SC 1x4 1x8 1x16 1x32 PLC Splitter Module

SC 1x4 1x8 1x16 1x32 PLC Splitter Module

Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: 1 X 16 PLC

Brand: OEM

Product Name: Fiber PLC Splitter

Connector: SC/LC/ST/FC

Ferrule End Face: PC/UPC/APC

Fiber Type: G652D, G657A1, G657A2, G652D G657A1 G657A2

Application: FTTX System, Local Area Networks, Passive Optical

Type: Mini Steel tube

Cable Length: 1M/1.5M Or Customized

Structure: 1*2/1*4/1*8/1*16/1*32/1*64

Certification: RoHS/ISO9001

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Mini SC/UPC SC/APC 1x4 1x8 1x16 1x32 PLC Splitter Module

Description:
PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.
Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.

Product Name:splitter module,1x4 plc splitter,plc splitter 1x16,,fiber splitter box,fiber splitter price,plc splitter,plc optical splitter,fiber optic splitter box,fo splitter,optical fiber splitter,optical splitter loss,1x16 fiber splitter,plc splitter 1x8,optical splitter,ofc splitter,plc splitter manufacturer,plc splitter price,optical fiber cable splitter,gpon splitter price,optical fiber cable splitter,splitter apc,1 8 optical splitter loss,splitter plc 1x8,mini plc splitter

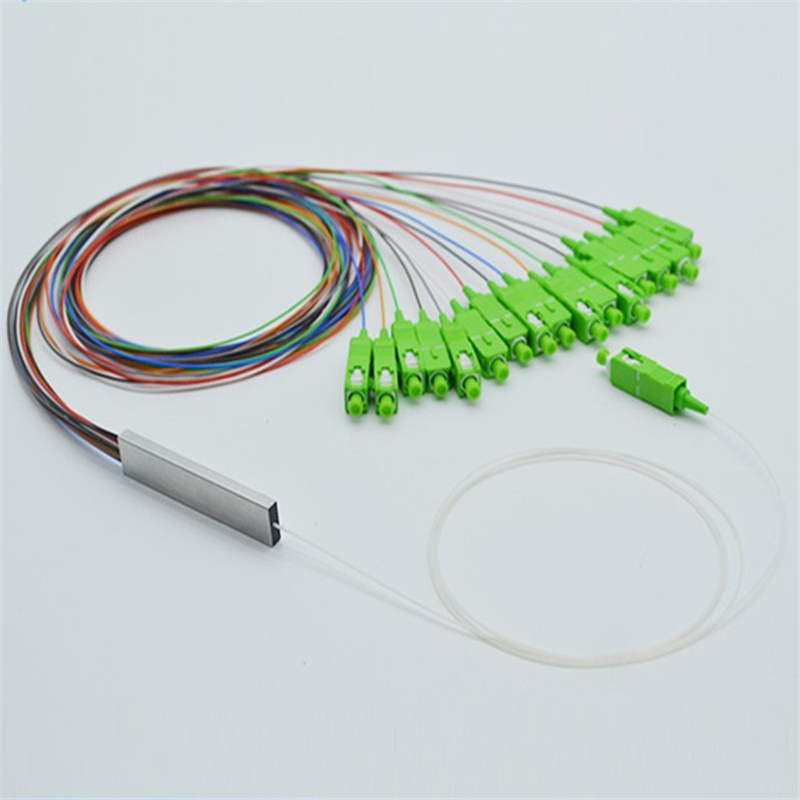

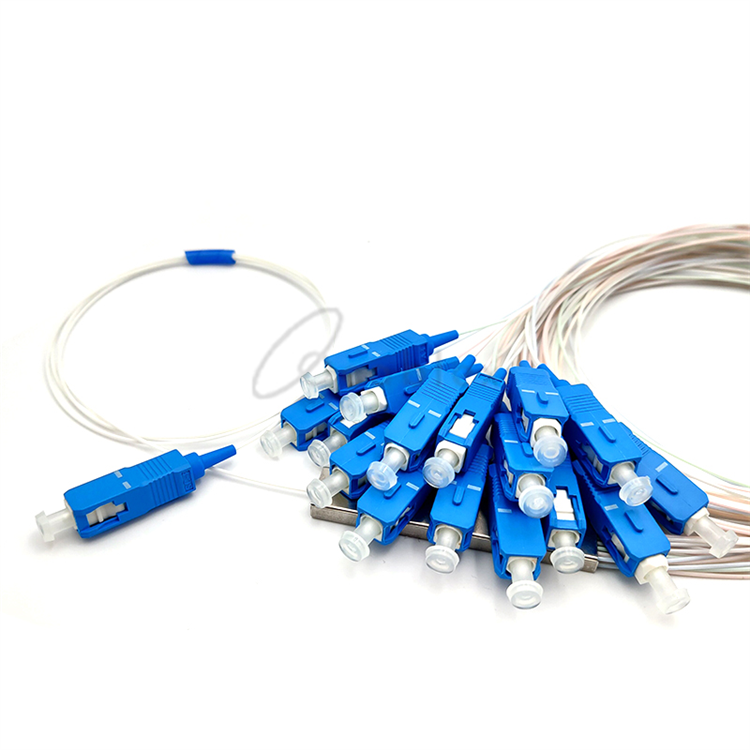

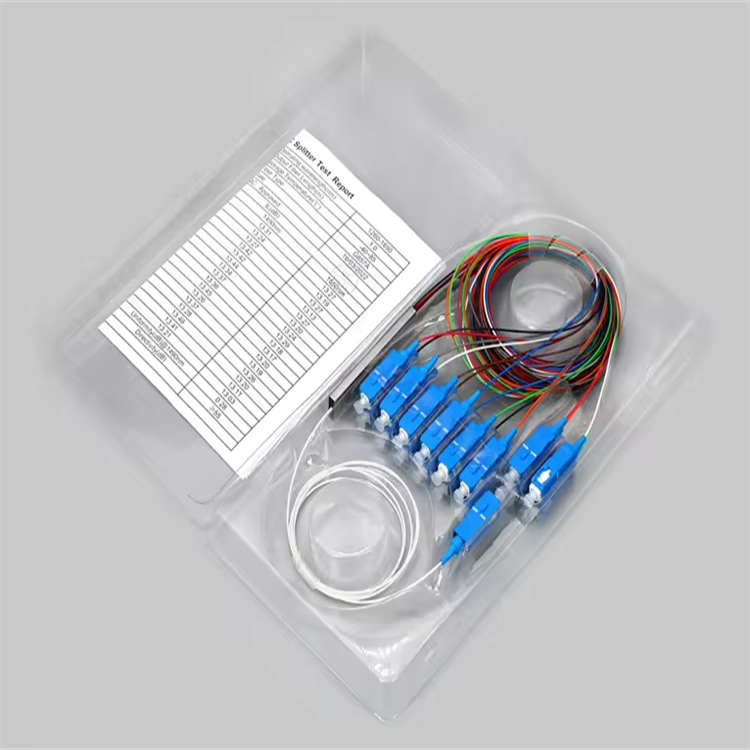

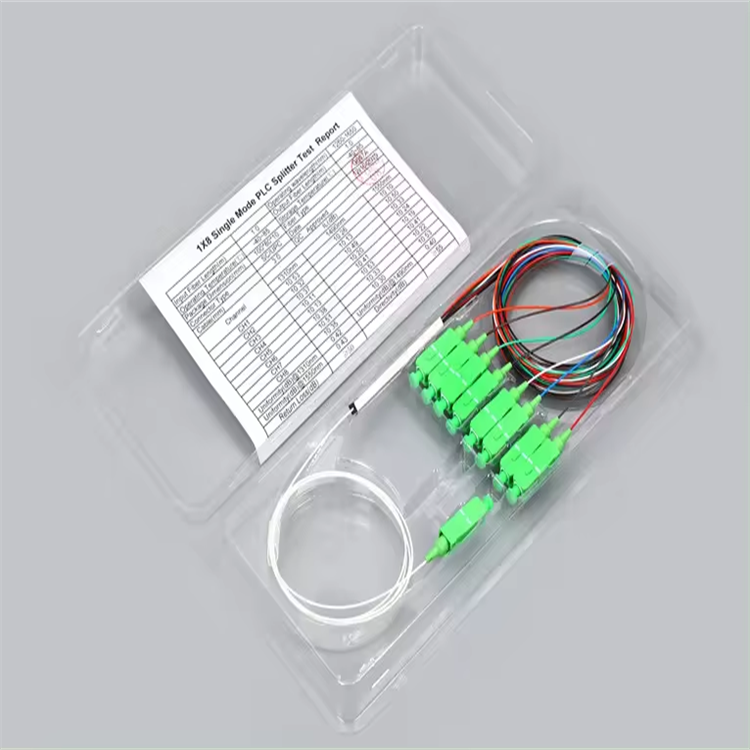

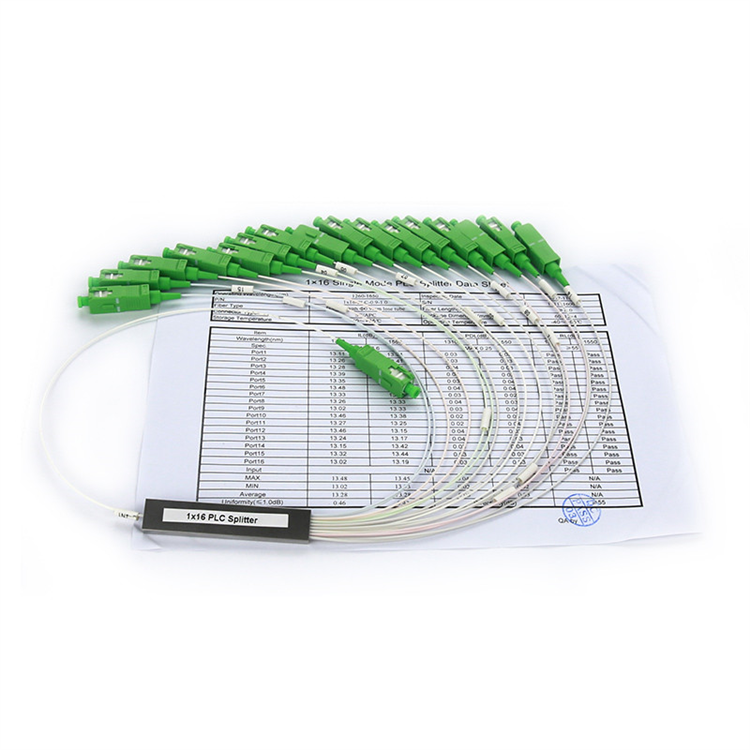

Product Picture:

Specification:
Table 1 – 1×N PLC Fiber Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

G 657 A1 Fiber Feature:
Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size

PLC Splitter Application:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Amplifying, Monitoring System
Test Equipments
Order Information
For FBT Splitters, Fiberstore provides a whole series of this kind customized for specific
