Model No.: 1 X 8 PLC
Brand: OEM
Product Name: Fiber PLC Splitter
Connector: SC/LC/ST/FC
Ferrule End Face: PC/UPC/APC
Fiber Type: G652D, G657A1, G657A2, G652D G657A1 G657A2
Application: FTTX System, Local Area Networks, Passive Optical
Type: Mini Steel tube
Cable Length: 1M/1.5M Or Customized
Structure: 1*2/1*4/1*8/1*16/1*32/1*64
Certification: RoHS/ISO9001
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Steel Tube 1x4 1x8 1x16 1x32 OFC Optical PLC Splitter
Description:
Steel Tube PLC Fiber Optic Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.TTI provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Product Name:plc splitter 1x8,optical splitter,ofc splitter,fiber splitter box,fiber splitter price,plc splitter,plc optical splitter,fiber optic splitter box,fo splitter,optical fiber splitter,optical splitter loss,1x16 fiber splitter,plc splitter manufacturer,plc splitter price,optical fiber cable splitter,gpon splitter price,optical fiber cable splitter,splitter apc,1 8 optical splitter loss,splitter plc 1x8,mini plc splitter

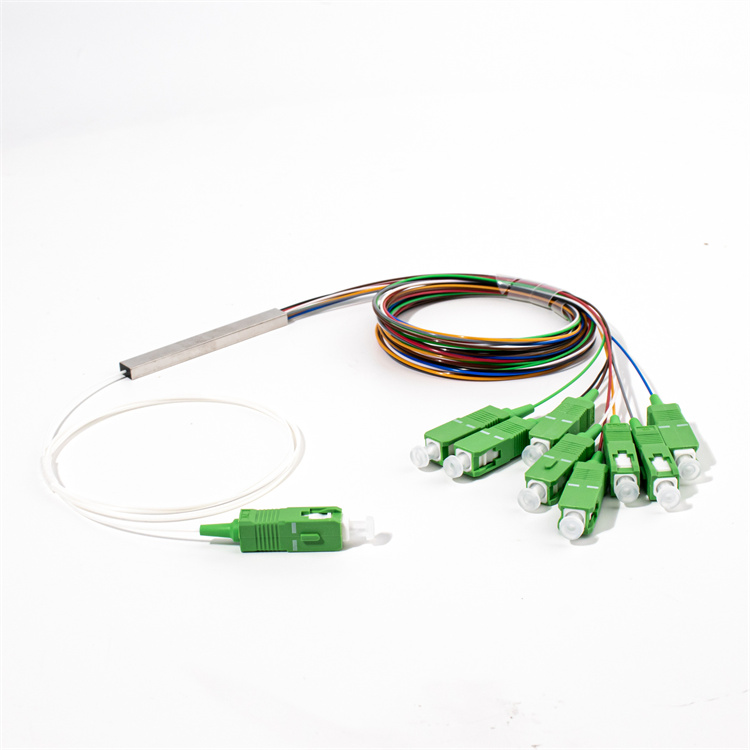

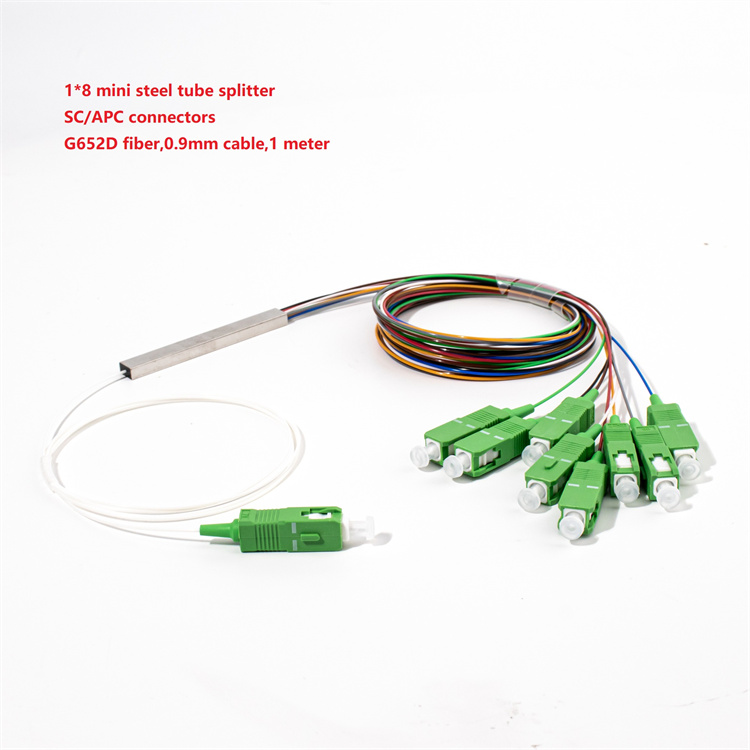

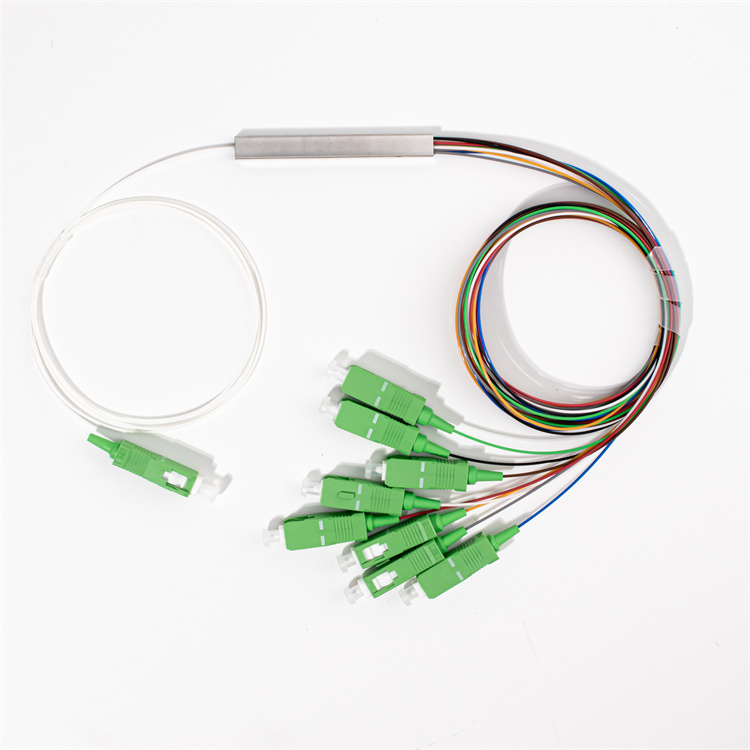

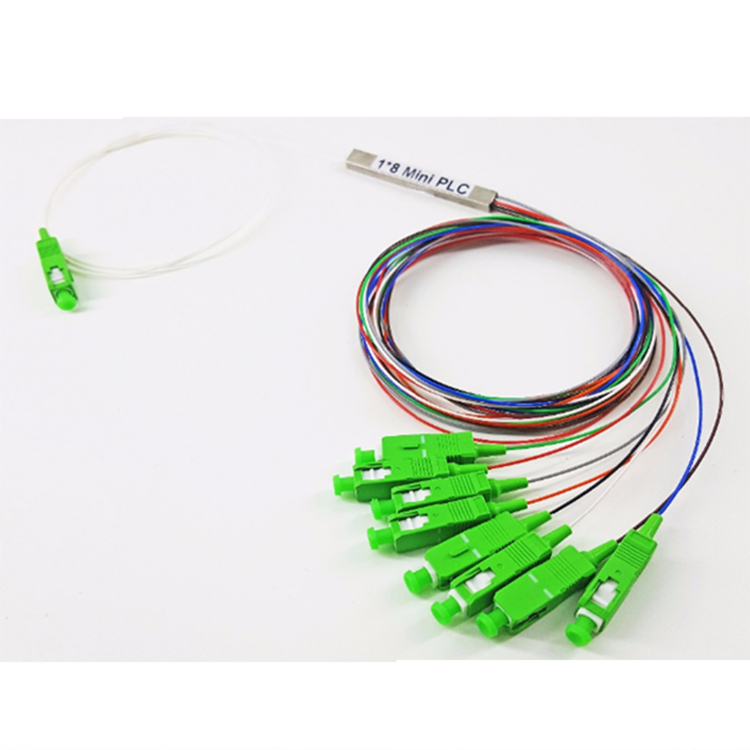

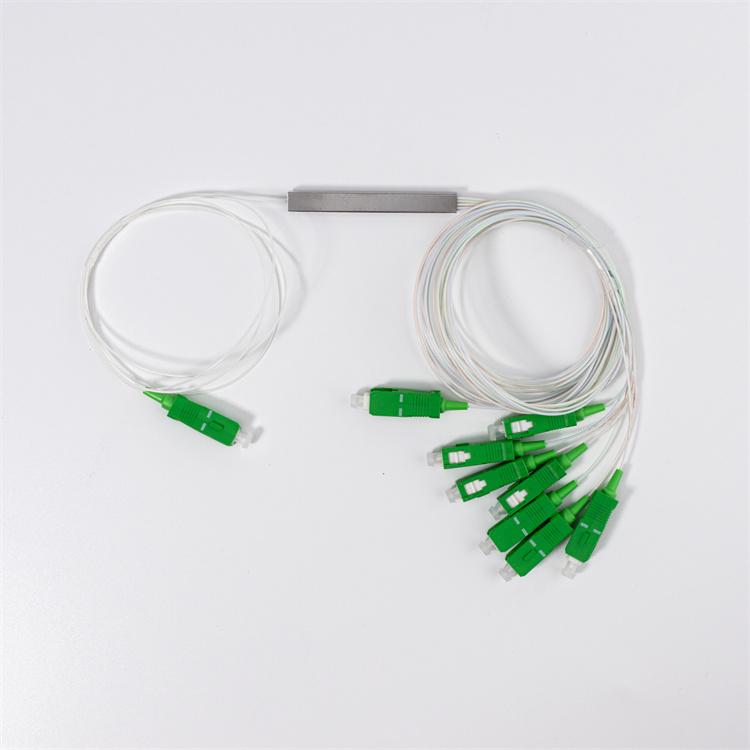

Product Picture:
Specification:
Table 1 – 1×N PLC Fiber Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Fiber Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
1x4 Splitter Feature:
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Mechanical
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified,Conform to YD1117-2001
Operating environment: -40ºC to +85ºC
High Polarization Extinction Ratio & Excellent Uniformity
Fiber input: 0.9mm or 250μm fiber for choice
Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber
Bare Fiber Type PLC Splitter Applications
Steel Tube Splitter Application:
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON, GEPON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

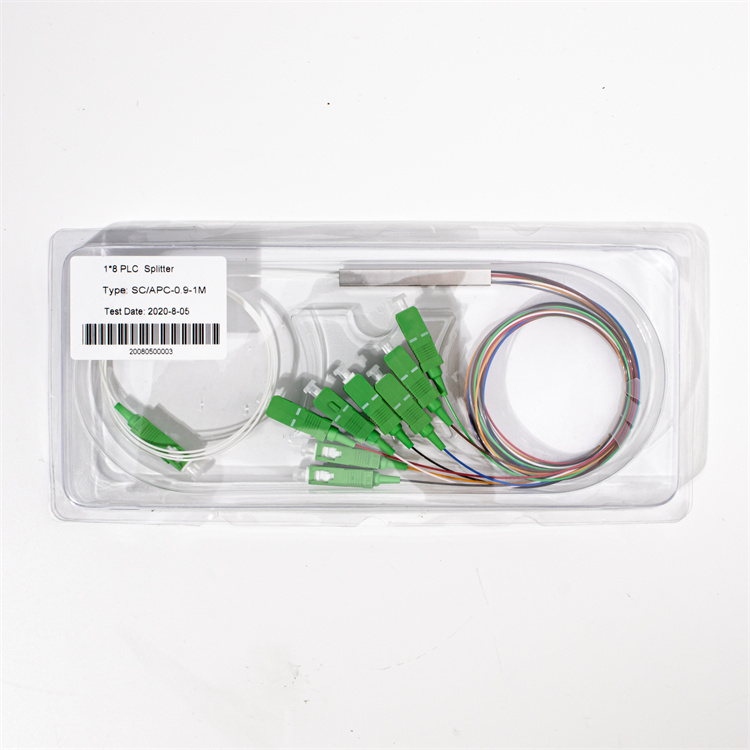

Packing:Individual Package
Packaging: Individual Package
Productivity: 5000 Piece/Pieces per Week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Week
Certificate: RoHS/ISO9001
HS Code: 8536700000
Port: Shenzhen,Guangzhou
