G652D G657A1 1x4 1x8 1x16 Optical Fiber Splitter

G652D G657A1 1x4 1x8 1x16 Optical Fiber Splitter

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: 1 X 4 PLC

Brand: OEM

Application: FTTH FTTB FTTX Network

Material: ABS housing+ceramics ferrule

Connector Type: ST FC SC LC optional

Ferrule End-face: PC, UPC,APC

Fiber Type: G652D G657A1 G657A2

Structure: 1*2/1*4/1*8/1*16/1*32/1*64

Keyword: FTTH Fiber Optical Splitter, 1x32 Fiber Optical Sp

Type: ABS package or Mini Steel tube

Certification: RoHS/ISO9001

Cable Length: 1M/1.5M Or Customized

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Low Loss G652D G657A1 1*4 1x16 Optical Fiber Splitter

Fiber Optic PLC Splitter Description:

1*4 PLC Fiber Optic Splitter, is based on a quartz substrate of integrated waveguide optical power distribution device, the same as coaxial cable transmission system, The optical network system also needs to be an optical signal coupled to the branch distribution, which requires the fiber optic splitter.

Product Name:optical fiber splitter,optical splitter loss,1x16 fiber splitter,fiber splitter box,fiber splitter price,plc splitter,plc optical splitter,fiber optic splitter box,fo splitter,plc splitter manufacturer,plc splitter price,optical fiber cable splitter,gpon splitter price,optical fiber cable splitter

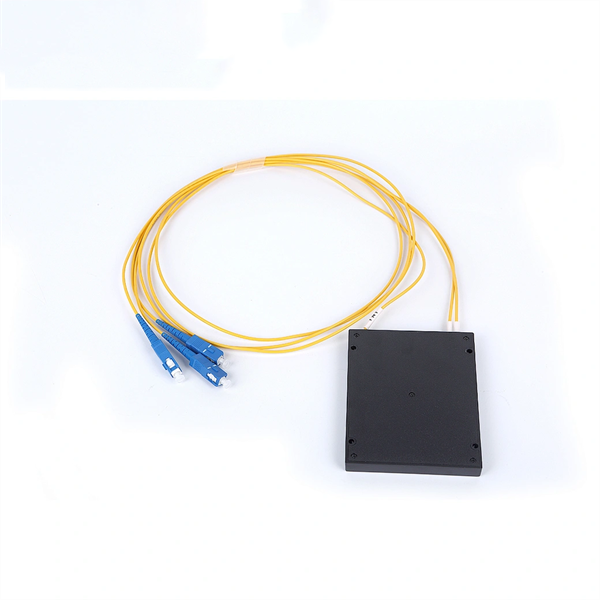

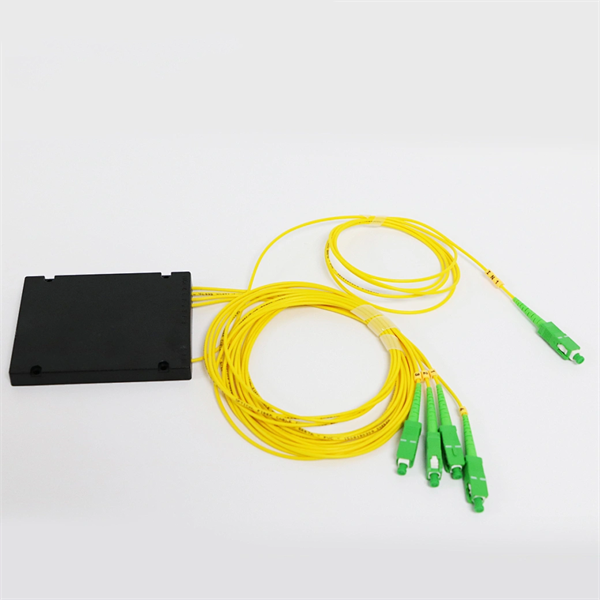

Product Picture:

Specification:
Table 1 – 1×N PLC Splitter

Parameters/PLC Fibre Optic Splitter	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters/PLC Fibre Optic Splitter	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

fiber optic cable Splitter Feature:
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength
Tight and fine structure
Excellent parameters on IL & RL
High reliability and directivity
Non-sensitive wavelength

Fiber Optic G652d Cable Application:
CATV network
LAN, WAN and MAN
Testing equipments
Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
