Home> Products> Fiber Passive Accessories> Fiber Optic PLC Splitter> SC FO PLC Optical Fiber Optic Splitter Box

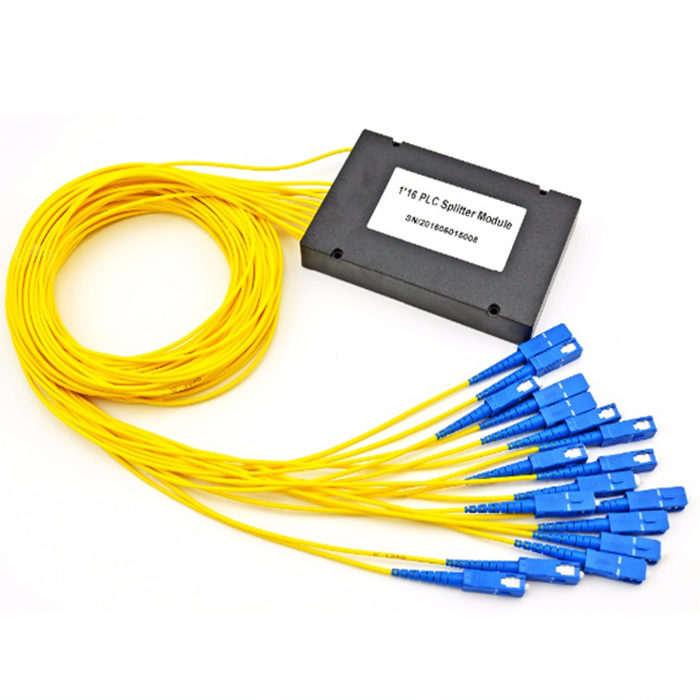

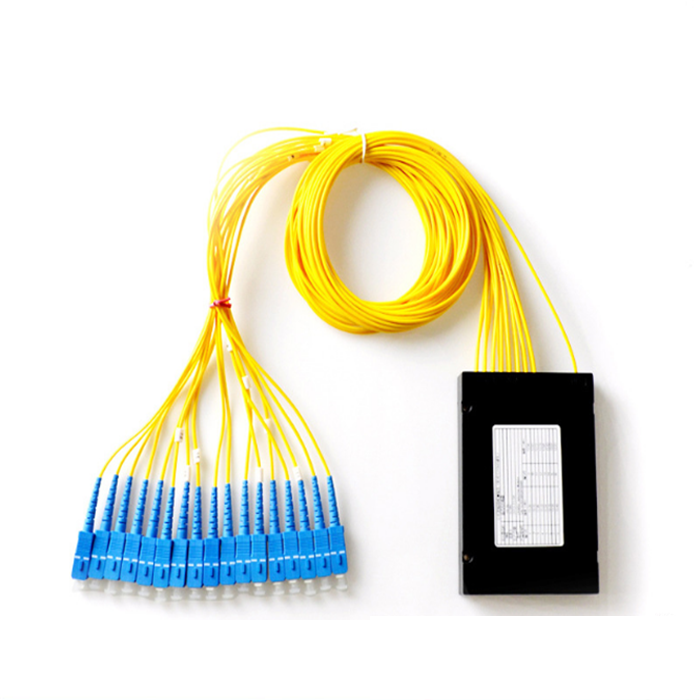

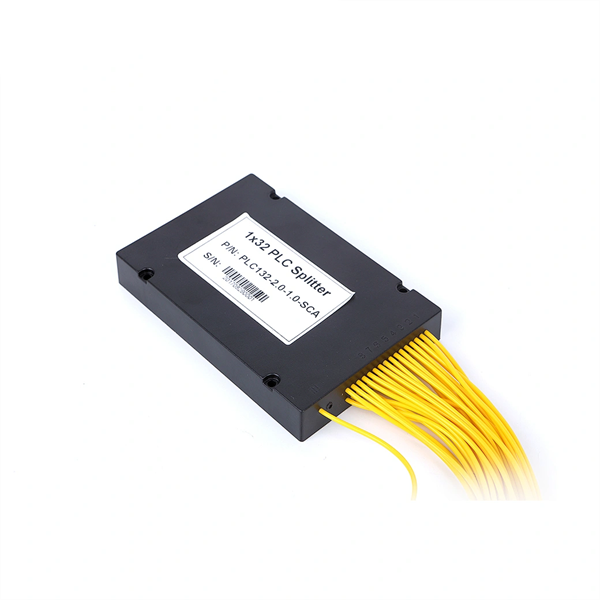

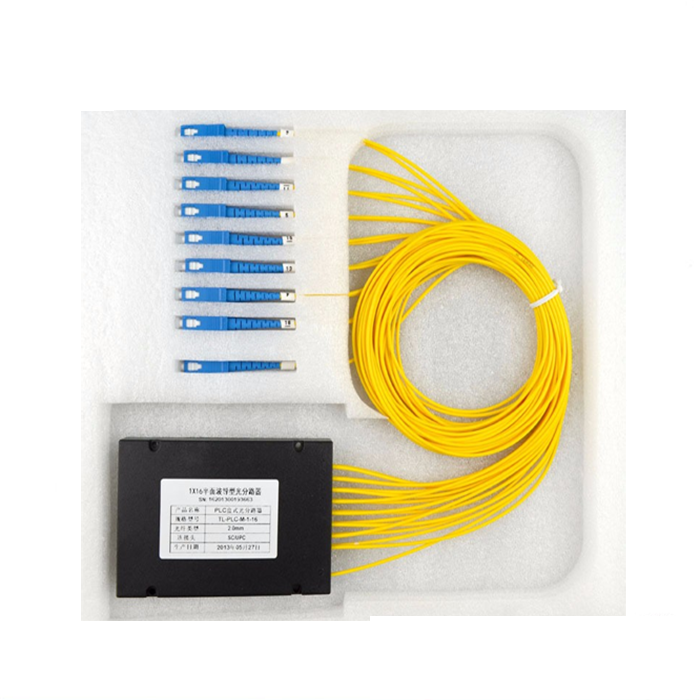

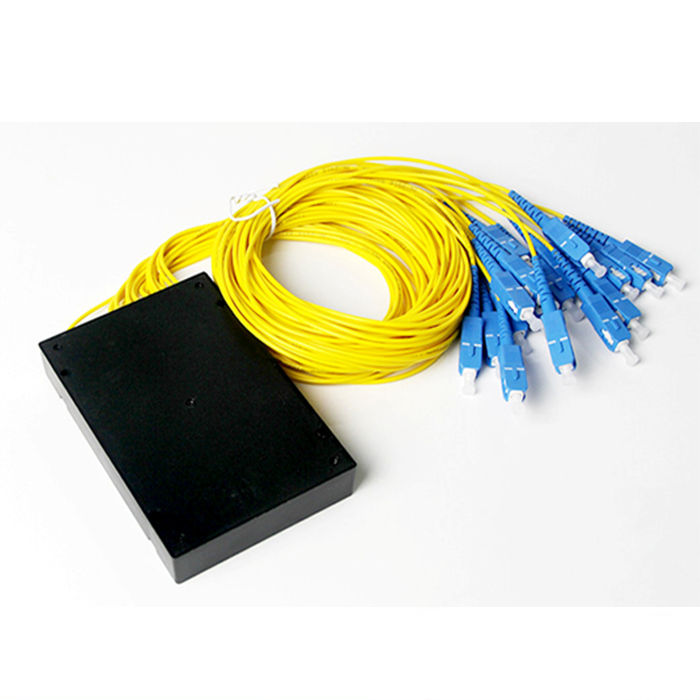

SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box
SC FO PLC Optical Fiber Optic Splitter Box

SC FO PLC Optical Fiber Optic Splitter Box

Payment Type:L/C,T/T,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.1 x 16 PLC

BrandOEM

ApplicationFTTH FTTB FTTX Network

MaterialABS housing+ceramics ferrule

Connector TypeST FC SC LC optional

Ferrule End-facePC, UPC,APC

Fiber TypeG652D G657A1 G657A2

Structure1*2/1*4/1*8/1*16/1*32/1*64

KeywordFTTH Fiber Optical Splitter, 1x32 Fiber Optical Sp

TypeABS package or Mini Steel tube

CertificationRoHS/ISO9001

Cable Length1M/1.5M Or Customized

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Individual Package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1 x 16 SC UPC APC FO PLC Optical fiber optic splitter box

Description:
The plc optical splitter is branching devices that is used to distribute optical signals to multiple locations for processing.In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.

PLC Optical Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Optical Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N PLC Optical Splitter products that are tailored for specific applications.

Product Name:optical splitter loss,fiber splitter box,fiber splitter price,plc splitter,plc optical splitter,fiber optic splitter box,fo splitter,1x16 fiber splitter,plc splitter manufacturer,plc splitter price,optical fiber cable splitter,gpon splitter price

Product Picture:

plc optical splitter

Specification:
Table 1 – 1×N PLC Optical Splitter

Parameters /PLC Optical Splitter 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS



Table 2 – 2×N PLC Optical Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

optical fiber splitteroptical fiber cable splittergpon splitter pricefiber splitter box

1x8 Splitter Feature:
Low insertion loss High Return Loss
Low polarization dependent loss
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size

Application:
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems

plc splitter price
