Model No.: 1 x 32 PLC
Brand: OEM
Application: FTTH FTTB FTTX Network
Material: ABS housing+ceramics ferrule
Connector Type: ST FC SC LC optional
Ferrule End-face: PC, UPC,APC
Fiber Type: G652D G657A1 G657A2
Structure: 1*2/1*4/1*8/1*16/1*32/1*64
Keyword: FTTH Fiber Optical Splitter, 1x32 Fiber Optical Sp
Type: ABS package or Mini Steel tube
Certification: RoHS/ISO9001
Cable Length: 1M/1.5M Or Customized
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

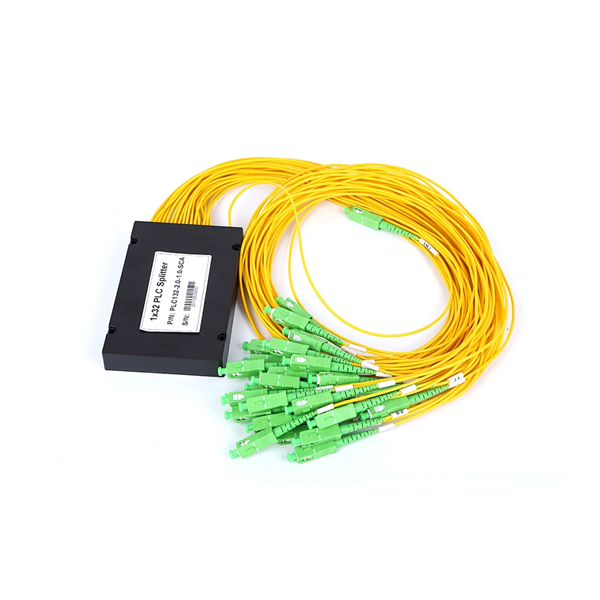

1 x 32 Singlemode G652D SC/APC PLC fiber splitter box Price
Description
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Product Name:fiber splitter box,fiber splitter price,plc splitter,fo splitter,optical splitter loss,1x16 fiber splitter,plc splitter manufacturer
fiber optic splitter box specification:
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max. * | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) | ≥55 | ||||||||
| Return Loss (dB) | UPC ≥55 APC ≥60 | ||||||||
| Operating Temperature (°C) | -5~ +75 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | Corning SMF-28e fiber | ||||||||
| Connector Type | Custom specified | ||||||||
| Power Handling (mW) | 300 | ||||||||
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(Min/Max) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Operating Temperature (℃) | -40～+85 | |||||
| Storage Temperature (℃)) | -40～+85 | |||||
| Operating Humidity | 5% ~ 85% RH | |||||
| Storage Humidity | 5% ~ 85% RH | |||||
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(Min/Max) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.2/17.7 | 21.0/21.5 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 1.8 | 2.0 | 2.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Operating Temperature(℃)) | -40～+85 | |||||
| Storage Temperature (℃)) | -40～+85 | |||||
| Operating Humidity | 5% ~ 85% RH | |||||
| Storage Humidity | 5% ~ 85% RH | |||||
| Device Dimension (mm) (L×W×H) | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A |
Feature for fo splitter:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability
Application of fiber splitter box:
Low Insertion Loss.
Fiber to home(FTTH)
Passive Optical Networks(PON)
Local Areal Networks(LAN)
Fiber communication systems
Packaging: Individual Package
Productivity: 5000 Piece/Pieces per Week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Week
Certificate: RoHS/ISO9001
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
