Model No.: Fixed 96 Port Patch Panel
Brand: OEM
Structure: 19'' Rack Mounted
Material: Cold Rolled Steel, AL
Color: Black, White, Grey
Model: Fixed Type, Slidable Type
Connector: SC-SX,LC-DX
Port: 12/24/48/72/96 ports
Height: 1U, 2U, 3U, 4U, 8U
Thickness: 0.8mm,1.0mm, 1.2mm
Leading Time: 3-5 Working Days
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it
SC 48 96 port fiber optic cable patch panel
Description:
Fixed Rack-mount Fiber Optic Patch Panel with 1U height distribution center holds up to 4 fusion splice trays and provides an economical way of splicing a small number of fiber cables in communication room or existing equipment racks where space is constrained. Can be installed 24pcs LC Duplex adapters insides.
19 inches;1RU ,2RU, 4RU standard installation.
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC,SC,ST, DLC
Suitable for ribbon and bunchy fiber cable.
Product Name:fiber cable patch panel,fiber optic panel,fiber optic cable patch panel,outdoor fiber patch panel,patch panel fiber optic,48 port fiber patch panel,fiber optic patch panel 48 port，multimode patch panel,fiber optic cable terminal box,144 port fiber patch panel,48 port fiber patch panel price,patch panel 24 port fiber,fibre distribution terminal,fiber optic patch panel manufacturers

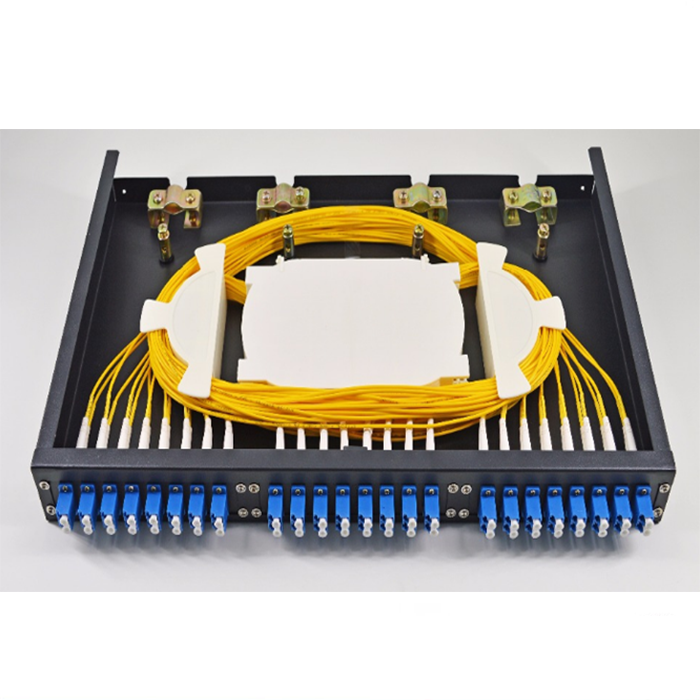

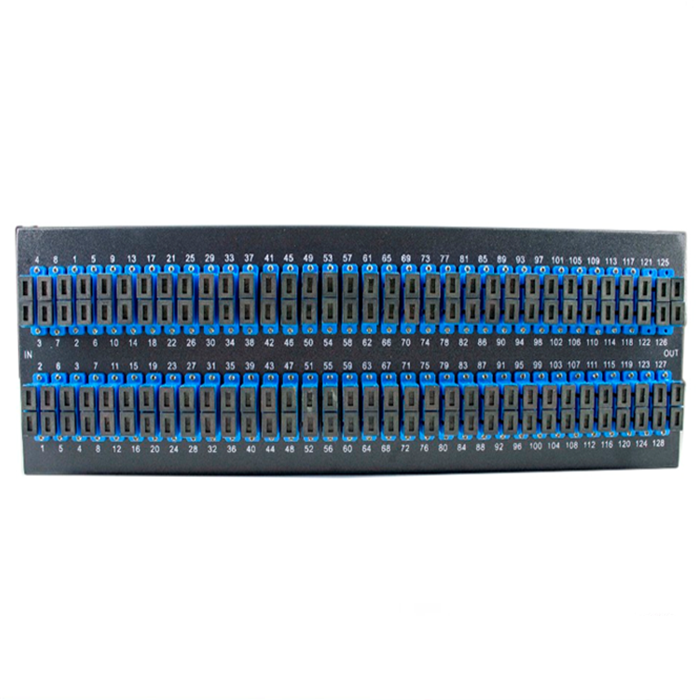

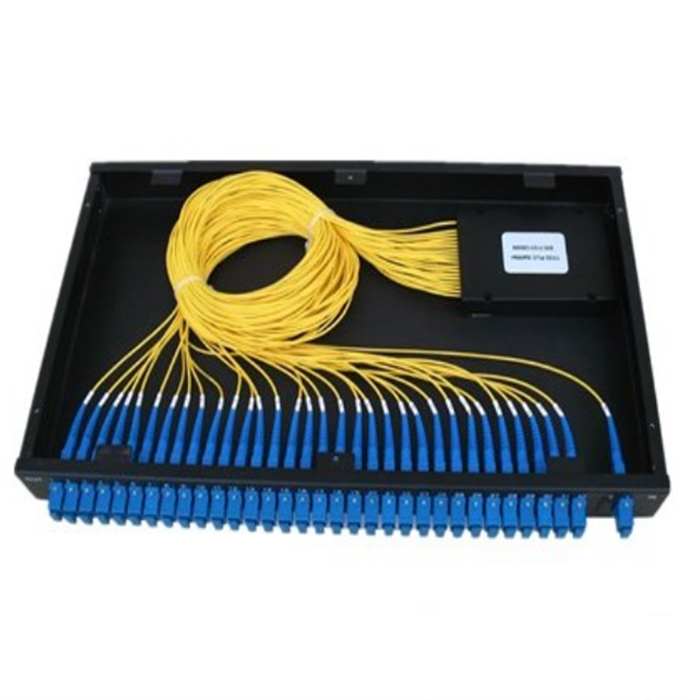

Product Picture:
Fixed Type Specification:
| Type | GT-RF-1UA | GT-RF-2UA | GT-RF-1UB | GT-RF-1UB | GT-RF-1UC | GT-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Fiber Optic Patch Panel Feature:
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box has a pothook, which is convenient to install and dismantle.
The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray.
The box is of unique structure, reasonable layout, and has adequate room for operation.
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Environmental temperature: -25 - 65°C.
Relative humidity:≤85%((when the temperature is below 30°C)).
Atmosphere pressure:70~106Kpa.
Insulating resistance:≥2×104 MΩ/500VDC.
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
The fiber optic splice tray could be piled one upon another, flexible to turn.
The box are Rack Mounted, which is convenient to install and dismantle.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Packaging: Individual package,carton box
Productivity: 5000 Piece/Pieces per Week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Week
Certificate: ISO,ROHS
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
