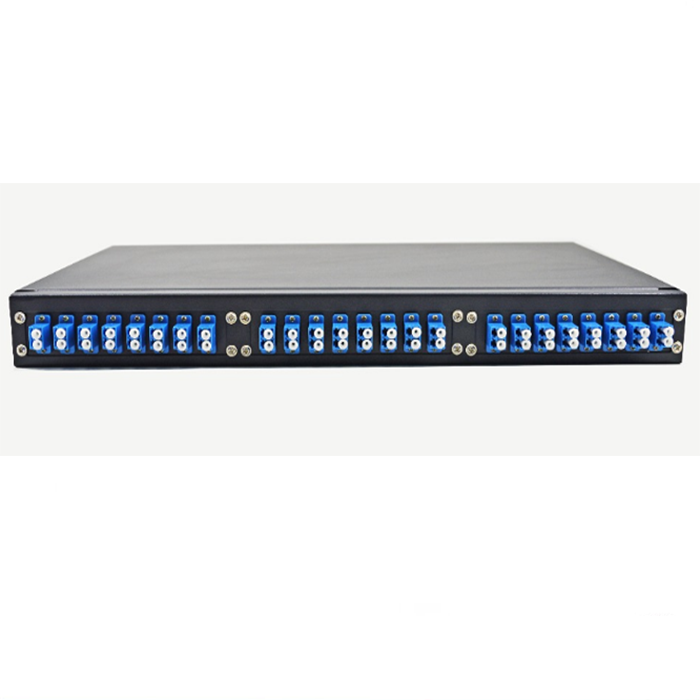

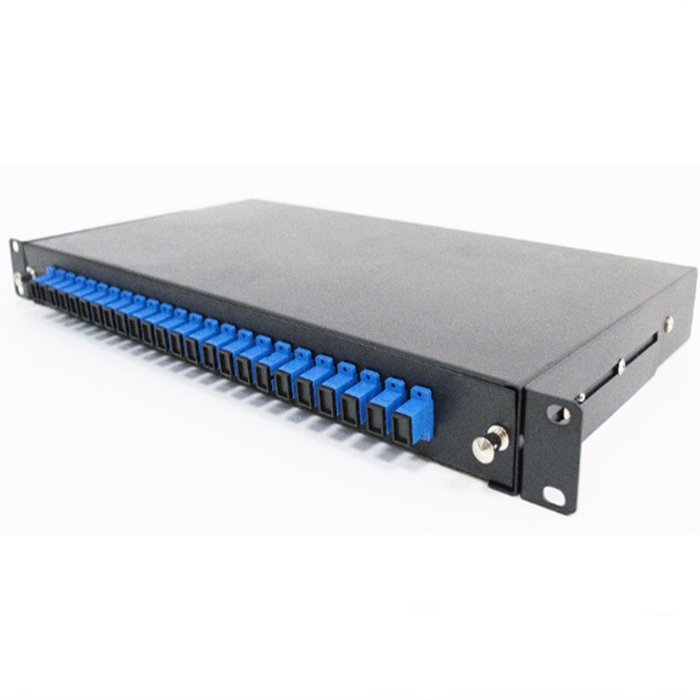

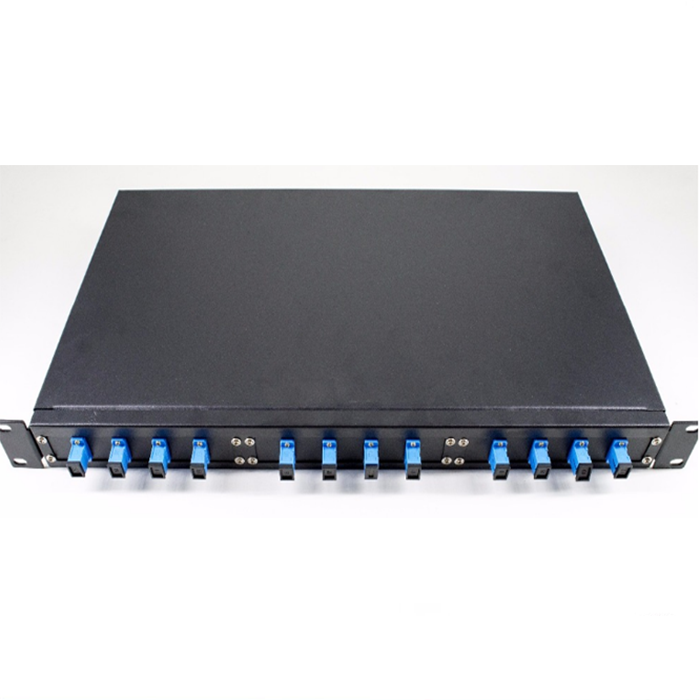

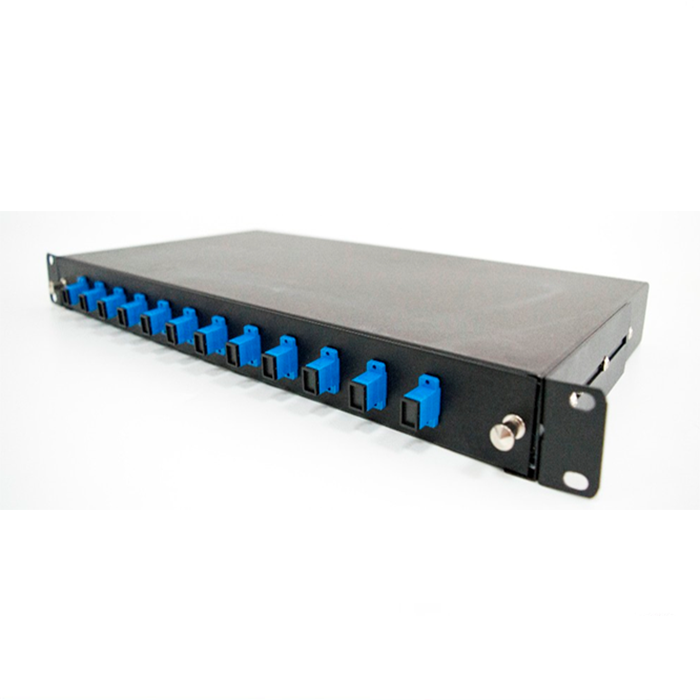

12 24 Port Fiber Optic Terminal Patch Panel

• Provides branch connection for fiber termination
• It is an integrated unit for fiber management and can be used as distribution box
• It divides into fix and sliding-out types
• This equipment function is to fix and manage the fiber-optic cables inside the box as well as to provide protection
• Patch panel is modular so they are applicable to your existing systems without any modification or additional work

Specification:

Type	GT-RF-1UA	GT-RF-2UA	GT-RF-1UB	GT-RF-1UB	GT-RF-1UC	GT-RF-2UC
Size(mm)	430*250*1U	430*250*1U	482*295*1U	320*240*100	350*340*120	350*340*120
Max capacity(core)	24	48	24	48	24	48
Weight(kg)	2.6	3.8	3	4	3	5

Features

• 19-inch standard size, fit for 19-inch rack and 23-inch size is also available on request
• Standard size is 1U, 2U or 4U are available on request
• 12, 24, 48, 72 and 96 ports (optional)
• Suitable for SC, FC, ST and LC adapters
• Duplex or simplex is available
• Smart design to supply firm protection for optic cable terminal connection and optic fiber adapter installation
• Provides termination, protection, connection and management of fiber-optic cable
• Compliant with RoHS Directive
• Supplied unloaded

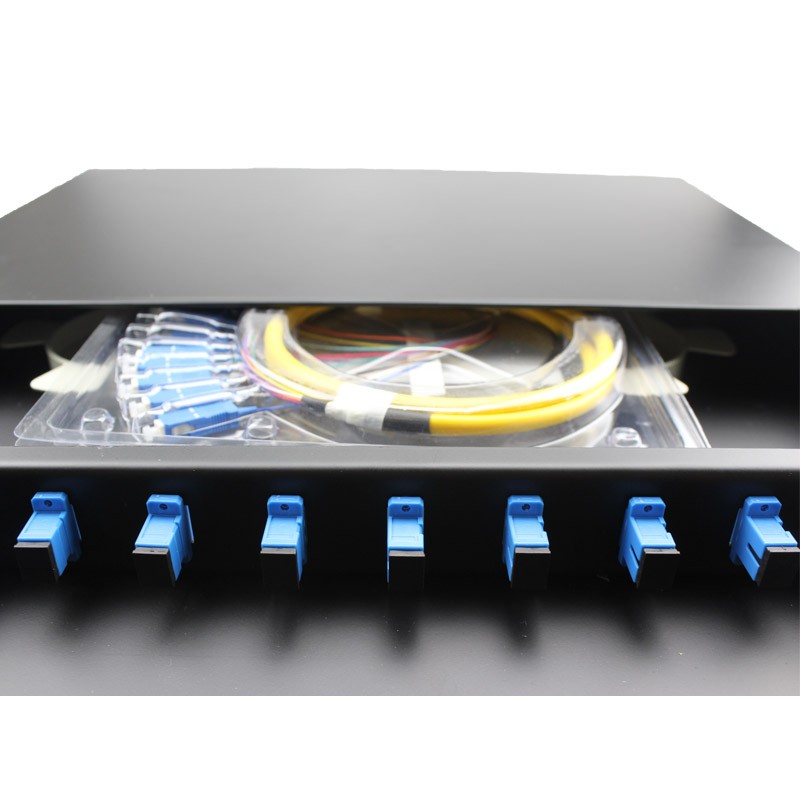

• 19-inch sliding-out type
• Easy to operate
• Four cable entrance at rear, three parts at front panel
• Three pieces of front panel is changeable by modular panel and flexible choice for user
• 24 ports are available
• Maximum capacity: 48 fibers

• Telecommunications
• Local area networks
• FTTH deployments
• CATV
