Model No.: Fixed 24 Port Patch Panel
Brand: OEM
Structure: 19'' Rack Mounted
Material: Cold Rolled Steel, AL
Color: Black, White, Grey
Model: Fixed Type, Slidable Type
Connector: SC-SX,LC-DX
Port: 12/24/48/72/96 ports
Height: 1U, 2U, 3U, 4U, 8U
Thickness: 0.8mm,1.0mm, 1.2mm
Leading Time: 3-5 Working Days
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it
24 Port Fixed Rack Mounted Optical Fiber Optic Patch Panel
Fixed Rack-mount Fiber Optic Patch Panel with 1U height distribution center holds up to 2 fusion splice trays and provides an economical way of splicing a small number of fiber cables in communication room or existing equipment racks where space is constrained.
Product Name:fiber optic patch panel,optical patch panel,optic patch panel,fo patch panel,lc fiber patch panel,optical patch panel 24 port,fibre terminal box

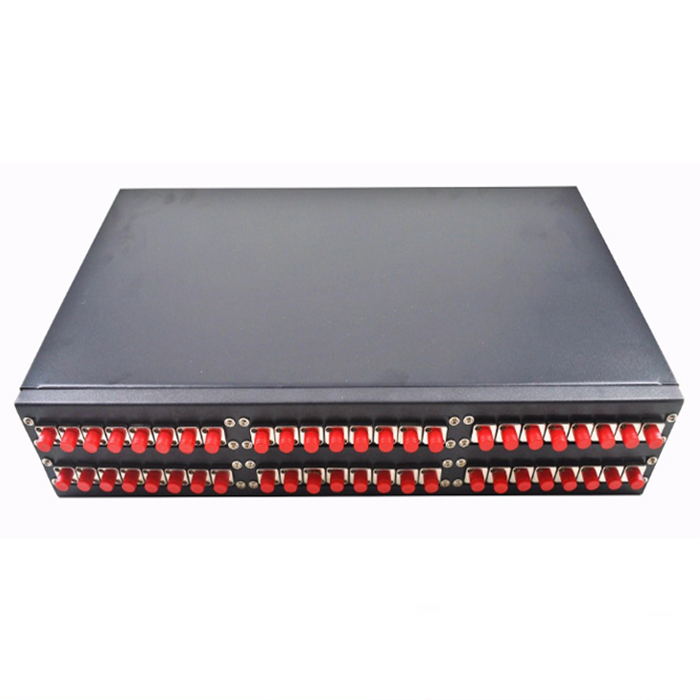

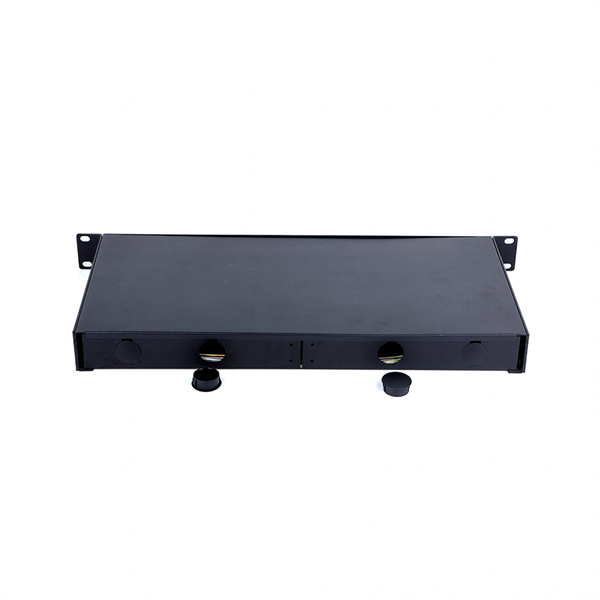

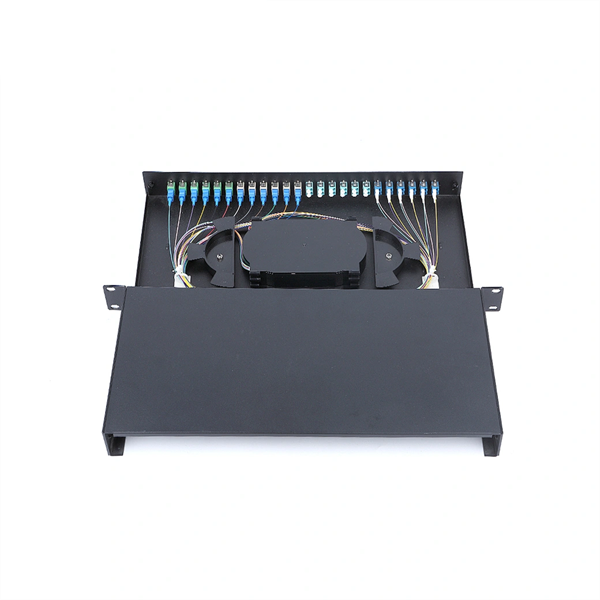

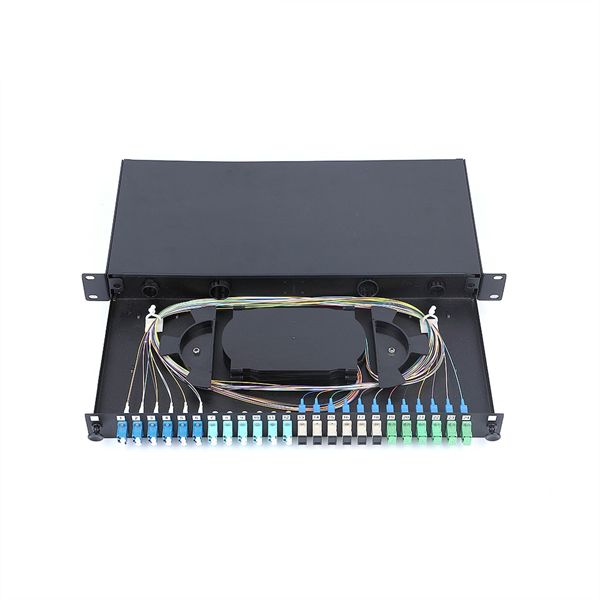

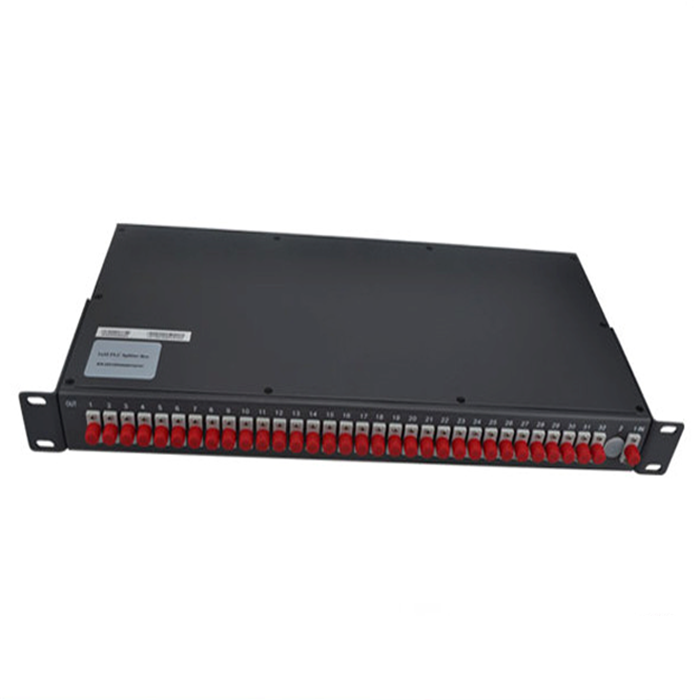

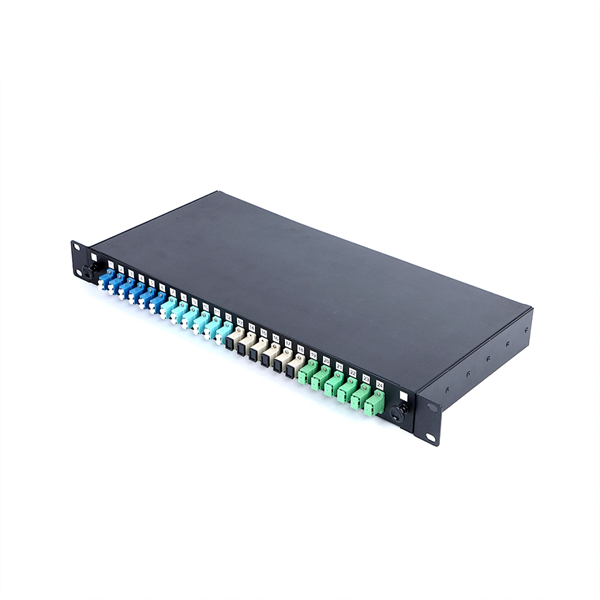

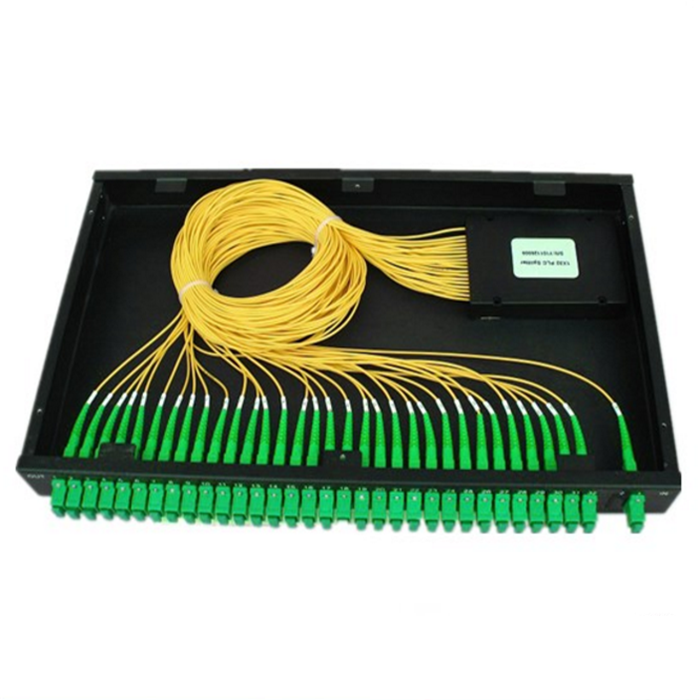

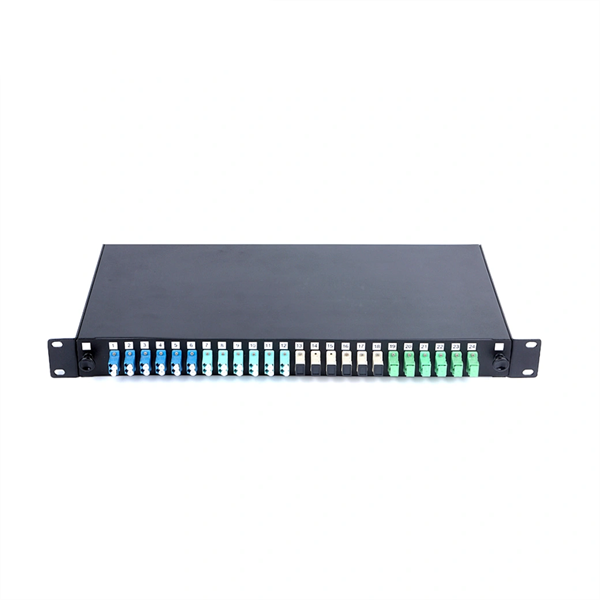

Fiber Optic Terminal Box Product Picture:
Duplex Port Fixed 24 Port Description:
The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong
adhesive force,artistic and durable;
Standard size, light weight and reasonable structure;
Splice tray inside changeable;
Can be used in 19'', 23'' standard distribution frame;
Suitable for ribbon and single fiber;
SC/ST/FC/LC ports is available;
Front mark on the plate is easy for identification and operation;
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;
Easy for management and operation .
Specification:
| Type | GT-RF-1UA | GT-RF-2UA | GT-RF-1UB | GT-RF-1UB | GT-RF-1UC | GT-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Fiber Termination Box Feature:
External size 480x250x1U, 2U,
Fiber capacity from 12 cores to 48 cores
Insertion loss: <0.3dB
Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
Winding radius ≥40mm
Working temperature -25°C~+45°C
Atmosphere pressure 70~106Kpa
Fiber Optic Patch Panel Application:
Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable,
distribution and terminal of various optical fiber system.
Revolving structure, easy for operation.
Available for the rack installation of adaptors for FC, SC, ST, LC and so on.
Packaging: Individual package,carton box
Productivity: 5000 Piece/Pieces per Week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Week
Certificate: ISO,ROHS
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
