12cores MPO OM3 fiber connector patch cord cable

12cores MPO OM3 fiber connector patch cord cable

Payment Type:	L/C,T/T,D/P,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: MPO-MPO

Brand: OEM

Product Name: MPO MTP cable

Application: 40G 100G MPO MTP to LC SM MM OM3 OM4 breakout Fano

No. Of Fiber: 8/12/16/24/48

Connector Type: MTP MPO

Outer Jacket: LSZH

Fiber Diameter: 3.0mm

Brand Name: OEM or neutral

Certification: RoHS/ISO9001

Leading Time: 5-7 Working Days

Durability: >1000 times

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

12 cores MPO OM3 fiber connector fiber patch cord cable

MPO Fiber Optic Patch Cord, MPO (Multi-fiber Push On) connector is one of the MT series connectors. The MT series ferrules use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face and guide pins (also called PIN pins) for precise connection.The compact design of the MPO connector makes the MPO patch cord have more cores and smaller size. MPO patch cords are widely used in the wiring process,where high-density integrated optical fiber lines are required, and in FTTX, 40/100GSFP, SFP+ and other transceiver modules or internal and external connections of equipment.

Product Name:mpo fiber connector,mpo optical cable,mpo mpo cable,om4 patch cable,mpo mpo cable,om3 fiber patch cord

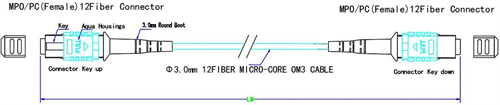

Product Structure：

Product Length Tolerance

L≤1m	-1cm≤△L≤+5cm
1m＜L≤10m	-10cm≤△L≤+10cm
L≥10m	-10cm≤△L≤1％*L

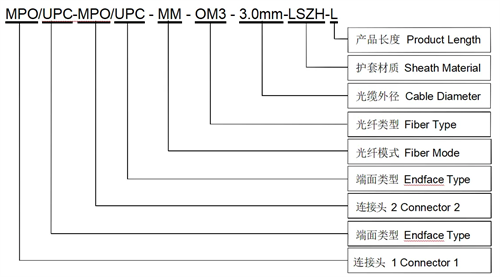

Product Model：

Connector1	Connector2	Endface Type	Fiber Type	Cable Diameter	Sheath Material	Colour
MPO	MPO	UPC	OM3	3.0mm	LSZH	Aqua
It can also be customized according to the specifications specified by customers.

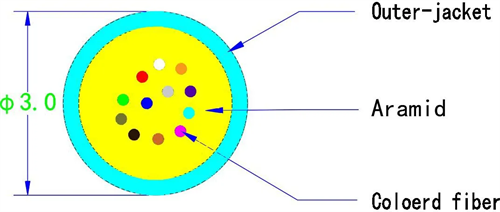

Fiber optic cable structure and performances / 12Fiber Round Cable

Optical Performances

Item	Connector
Insertion Loss(dB)	≤0.75
Return Loss(dB)	SM:≥50（UPC） ≥60（APC）; MM:≥25（PC）
Conform to criterion	IEC61754

1.Mechanical Performances

Vibration test

Test criterion：IEC 61300-2-1

Amplitude：0.75mm
Frequency sweep range：10~50HZ/minute

Time：30minutes

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

2.Impact Test

Test criterion：IEC 61300-2-12

Drop height：1.5m

Drop times：5 次/times

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

3.Mating durability test

Test criterion：IEC 61300-2-2

Durability：500 次/times

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

4.Environmental performances

High temperature test

Test criterion：IEC61300-2-18

Temperature：70℃

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

5.Low temperature test

Test criterion：IEC61300-2-17

Test criterion：-25℃

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

6.Change of temperature：

Test criterion：IEC 61300-2-22

Temperature range：-25℃to + 70℃

Time：96 /hours，12 /cycles

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

7.Damp heat

Test criterion：IEC 61300-2-19

Test condition：40℃，93% RH

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

No.	Test Item	Insertion Loss variation（dB）
1	Vibration test	≤0.2
2	Impact test	≤0.2
3	Mating durability test	≤0.2
4	High temperature test	≤0.2
5	Low temperature test	≤0.2
6	Change of temperature	≤0.2
7	Damp heat	≤0.2

Temperature Performances

Opration temperature: -25℃～+70℃

Installation temperature: -10℃~+60℃

Storage temperature: -40℃~+85℃

Environmental protection: Products meet ROHS.

Packaging,Transportation and Storage

1.Identification

Product packaging box (bag) should be marked with product model and specifications, optical
performance parameters, production batch number and other information.

2.Packaging

After the coils are tied up, they are packed in ziplock bags, and then packed in cartons according
to the customer's order quantity

3.Transportation

as outer packing, on the packing boxes, according to the provisions of the national standards,
do the corresponding marks

4.Storage

Products should not be stored in open air, wet or seriously corroded environment for a long time

Note: the above specifications can be produced according to the customer's requirements.

Supply Ability & Additional Information

Packaging: Individual package

Productivity: 30000pieces per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China
