Model No.: MPO-MPO
Brand: OEM

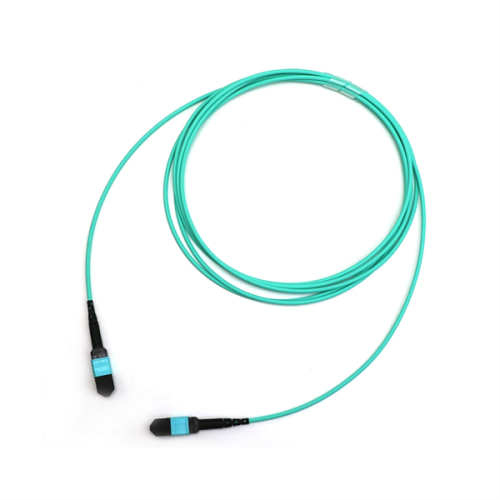

Product Name: MPO MTP cable
Application: 40G 100G MPO MTP to LC SM MM OM3 OM4 breakout Fano
No. Of Fiber: 8/12/16/24/48
Connector Type: MTP MPO
Outer Jacket: LSZH
Fiber Diameter: 3.0mm
Brand Name: OEM or neutral
Certification: RoHS/ISO9001
Leading Time: 5-7 Working Days
Durability: >1000 times
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package |

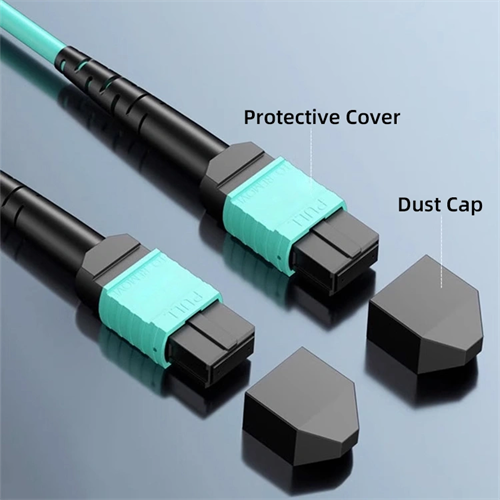

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | unit | Numerical value | ||||
| Connector type | / | MPO-MPO、MTP-MTP | ||||
| Central wavelength | nm | 1550 | 1310 | 1300 | 850 | |
| Maximum insertion loss (23℃) | dB | Typical value 0.3 maximum 0.75 | Typical value 0.3 maximum 0.75 | Typical value 0.3 maximum 0.75 | Typical value 0.3 maximum 0.75 | |
| Minimum return loss (23℃) | PC | dB | ≥45 | ≥20 | ||
| UPC | dB | ≥50 | ≥25 | |||
| APC | dB | ≥60 | ≥45 | |||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeability | dB | ≤0.2 | ||||
| Axis alignment Angle tolerance | deg | ±0.3 | ||||
| Nuber of plug | times | ≥500 | ||||
| Operating temperature | ℃ | -20~+70 | ||||
| Storage temperature | ℃ | -40~+85 | ||||
| Central wavelength | 1550nm、1310nm、 1300nm、850nm |
| Enter the connector type Out-put connector type | MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） |
| MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） | |
| MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） | |
| Optical fiber number | 8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or specified |
| Optical fiber type | G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified |
| Fiber diameter | Φ9/125um、Φ50/125um、Φ62.5/125m |
| Cable outer diameter | Φ3.0mm、Φ3.5mm、Φ4.5mm、or specified |
| Product line sequence The pigtail pigtail | A polarity、 B polarity、 C polarity MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） |
| MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） |
Packaging: Individual package
Productivity: 30000pieces per month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000pieces per month
Certificate: RoHS/ISO9001
HS Code: 8536700000
Port: Shenzhen,Guangzhou,Shanghai
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,Express Delivery
