5M OM3 OM4 MPO fiber patch optical cable

5M OM3 OM4 MPO fiber patch optical cable

Payment Type:	L/C,T/T,D/P,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: MPO-MPO

Brand: OEM

Product Name: MPO MTP cable

Application: 40G 100G MPO MTP to LC SM MM OM3 OM4 breakout Fano

No. Of Fiber: 8/12/16/24/48

Connector Type: MTP MPO

Outer Jacket: LSZH

Fiber Diameter: 3.0mm

Brand Name: OEM or neutral

Certification: RoHS/ISO9001

Leading Time: 5-7 Working Days

Durability: >1000 times

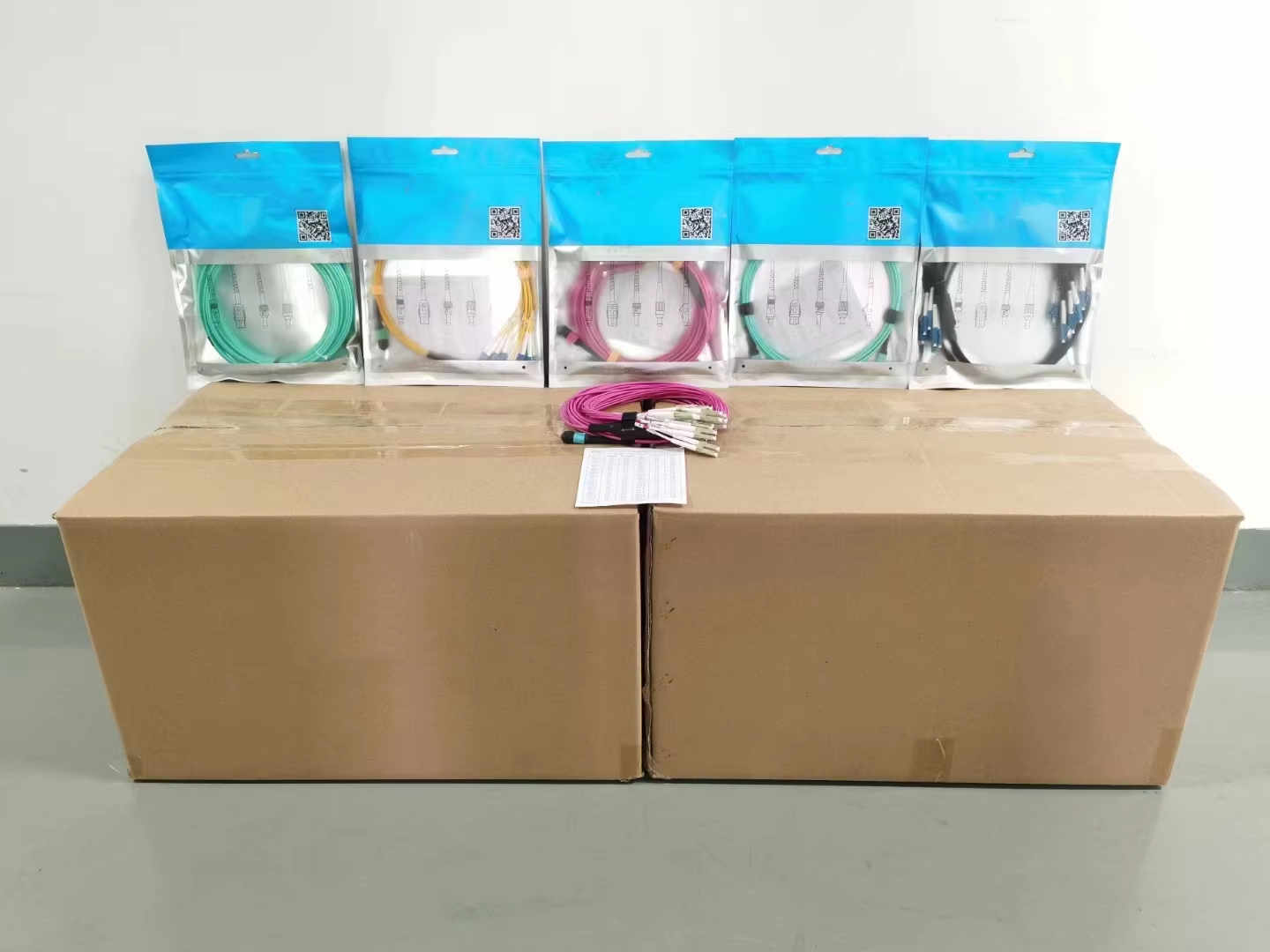

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

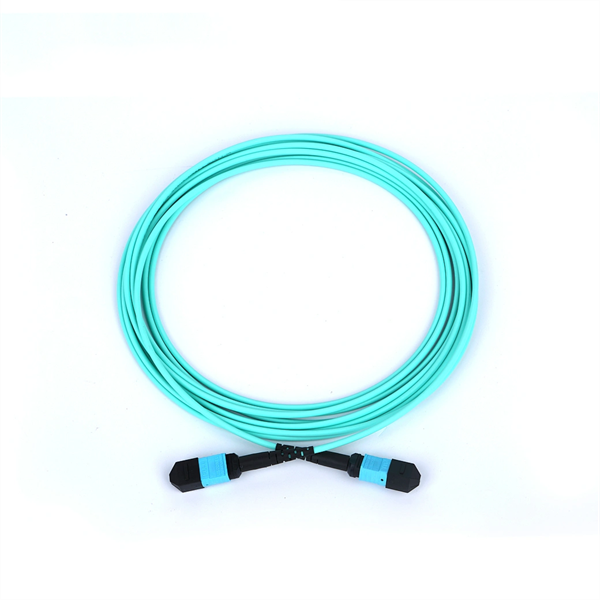

2M 5M OM3 OM4 MPO fiber patch optical cable

Introduction:

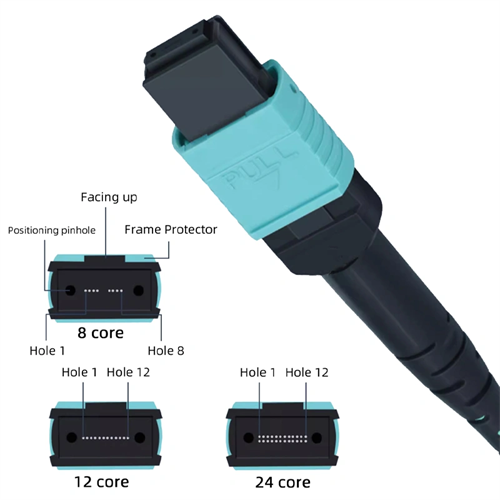

MPO Fiber Optic Patch Cord, MPO (Multi-fiber Push On) connector is one of the MT series connectors. The MT series ferrules use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face and guide pins (also called PIN pins) for precise connection.The compact design of the MPO connector makes the MPO patch cord have more cores and smaller size. MPO patch cords are widely used in the wiring process,where high-density integrated optical fiber lines are required, and in FTTX, 40/100GSFP, SFP+ and other transceiver modules or internal and external connections of equipment.

Product Name:mpo optical cable,om4 patch cable,om3 fiber patch cable,mpo fiber optic,om3 patch cable,om4 fiber patch cables,om3 fiber patch cord,mpo lc breakout cable,mpo fiber optic cable,mpo to lc breakout,mpo cable price,mpo 24 fiber cable,mpo splitter,om3 fiber patch cable,fiber optic mpo,mpo fiber cable,om4 fiber patch cord,om3 fiber patch cord,fiber optic mpo,mpo splitter

Application area
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

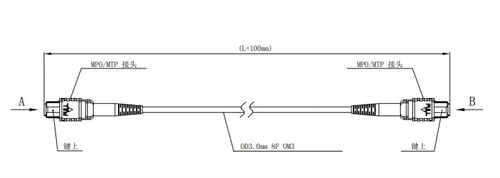

Connector Specification:

Central wavelength	1550nm、1310nm、 1300nm、850nm
Enter the connector type Out-put connector type	MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
	MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
	MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
Optical ﬁber number	8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or speciﬁed
Optical ﬁber type	G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or speciﬁed
Fiber diameter	Φ9/125um、Φ50/125um、Φ62.5/125m
Cable outer diameter	Φ3.0mm、Φ3.5mm、Φ4.5mm、or speciﬁed
Product line sequence The pigtail pigtail	A polarity、 B polarity、 C polarity MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
Product line sequence The pigtail pigtail	MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）

Features
① Low insertion loss
② High return loss
③ High reliability (Hi-Rel)
④ Product smart degree is high
⑤ Excellent temperature stability

Application

1.LAN cabling between different buildings of an enterprise

2.Optical link interconnection in optical active equipment

3.Wiring in communication base stations, wiring in distribution boxes

4.Optical signal connection in residential areas, industrial park computer rooms, and commercial building
computer rooms

5.Building dense cabling systems

6.Fiber optic communication systems, cable TV networks, telecommunication networks

7.Local area networks (LANs), wide area networks (WANs), FTTx

Supply Ability & Additional Information

Packaging: Individual package

Productivity: 30000pieces per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000pieces per month

Certificate: RoHS/ISO9001

HS Code: 8536700000

Port: Shenzhen,Guangzhou,Shanghai

Payment Type: L/C,T/T,D/P,Paypal,others,Cash

Incoterm: FOB,CFR,CIF,EXW,FAS,Express Delivery

5M OM3 OM4 MPO fiber patch optical cable

Introduction:

Application area1. FTTH, LAN, PON & Optical CATV, Local ring net2. Optical fiber communication system 3. Optical fiber test equipment4. Optical fiber sensor 5. Industry and military application

Features① Low insertion loss② High return loss③ High reliability (Hi-Rel)④ Product smart degree is high⑤ Excellent temperature stability

Application

Application area
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

Features
① Low insertion loss
② High return loss
③ High reliability (Hi-Rel)
④ Product smart degree is high
⑤ Excellent temperature stability
