MPO MTP OM4 fiber optic patch cord cable

MPO MTP OM4 fiber optic patch cord cable

Payment Type:	L/C,T/T,D/P,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: MPO-MTP

Brand: OEM

Product Name: MPO MTP cable

Application: 40G 100G MPO MTP to LC SM MM OM3 OM4 breakout Fano

No. Of Fiber: 8/12/16/24/48

Connector Type: MTP MPO

Outer Jacket: LSZH

Fiber Diameter: 3.0mm

Brand Name: OEM or neutral

Certification: RoHS/ISO9001

Leading Time: 5-7 Working Days

Durability: >1000 times

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual package

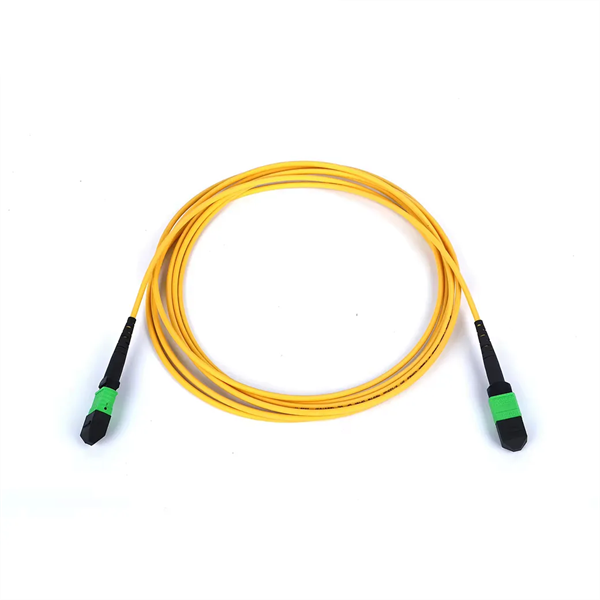

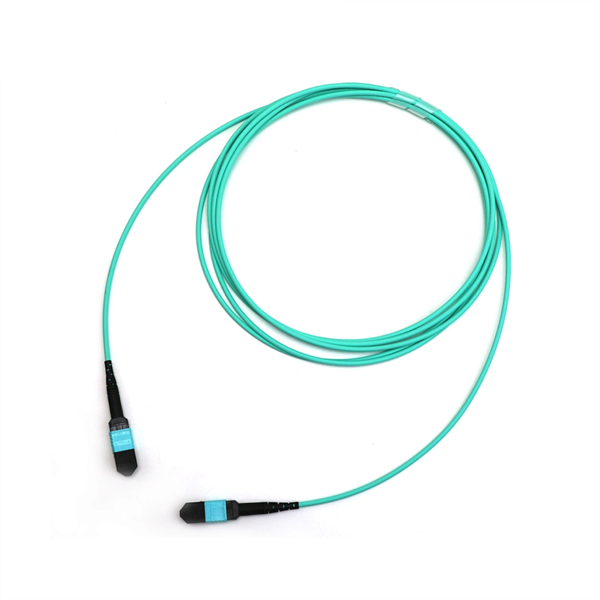

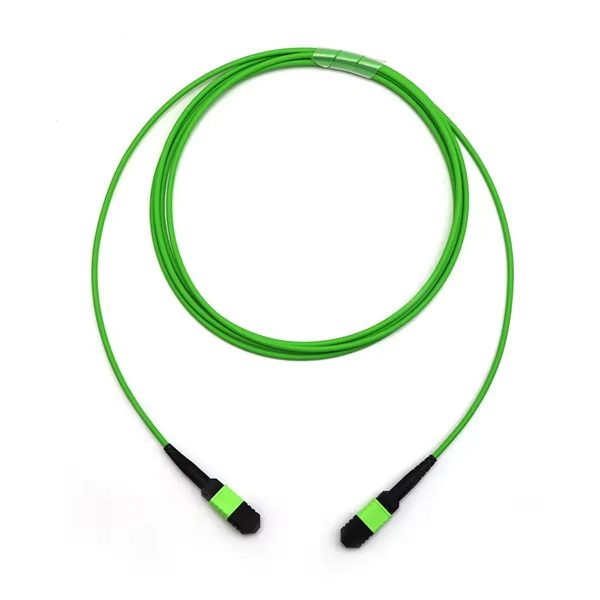

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

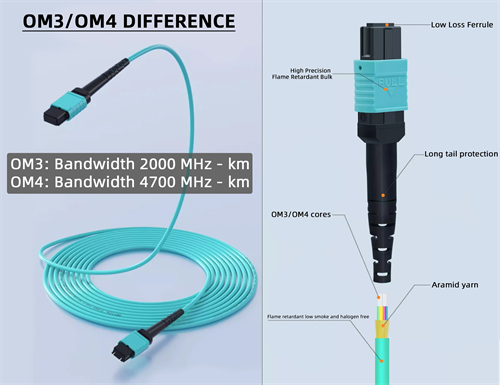

MPO MTP OM4 OM3 OM4 Fiber Optic Patch Cord cable

MPO Fiber cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

Product Name:fiber optic mpo,mpo fiber cable,om4 fiber patch cord,mpo fiber optic,om3 patch cable,om4 fiber patch cables,om3 fiber patch cord,mpo lc breakout cable,mpo fiber optic cable,mpo to lc breakout,mpo cable price,mpo 24 fiber cable,mpo splitter,om3 fiber patch cable

Technical Parmeter:

Connector Type	MPO/Female to MPO/Female	Fiber Type	50/125 OM5
Wavelength	850/1300nm	Fiber Count	12 Fibers
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	2.0mm 3.0mm	Cable Jacket	PVC/OFNR/LSZH/Plenum(OFNP)
Insertion Losss(dB) 850/1300nm	Standard	≤0.50dB
Insertion Losss(dB) 850/1300nm	Elite Low Loss	≤0.30dB
Return Loss(dB)	≥20dB(UPC)
Installation Tensile Load	66 N
Tensile Strength (Long/Short Term)	80N/240N
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1PC/bag

Features:
Used to connect equipment that utilizes MPO style connectors and OM5 50/125 Multimode cabling

● Type A, Type B and Type C Polarity Options available
● Each cable 100% tested for low insertion loss and back reflection
● Custom lengths and cable colors available
● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options
● Reduced Insertion Loss by up to 50%
● High Durability
● High Temperature Stability
● Good Exchangeability
● High Density design cuts down on installation costs
● Designed for 40Gig QSFP systems

Supply Ability & Additional Information

Packaging: Individual package

Productivity: 30000pieces per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000pieces per month

Certificate: RoHS/ISO9001

HS Code: 8536700000

Port: Shenzhen,Guangzhou,Shanghai

Payment Type: L/C,T/T,D/P,Paypal,others,Cash

Incoterm: FOB,CFR,CIF,EXW,FAS,Express Delivery
