16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable
16cores mpo to lc breakout fiber optic cable

16cores mpo to lc breakout fiber optic cable

Payment Type:L/C,T/T,D/P,Paypal,others,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,Express Delivery
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou,Shanghai

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.MPO (ODVA) - LC / UPC

BrandOEM

Product NameMPO MTP cable

Application40G 100G MPO MTP to LC SM MM OM3 OM4 breakout Fano

No. Of Fiber8/12/16/24/48

Connector TypeMTP MPO

Outer JacketLSZH

Fiber Diameter3.0mm

Brand NameOEM or neutral

CertificationRoHS/ISO9001

Leading Time5-7 Working Days

Durability>1000 times

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Individual package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

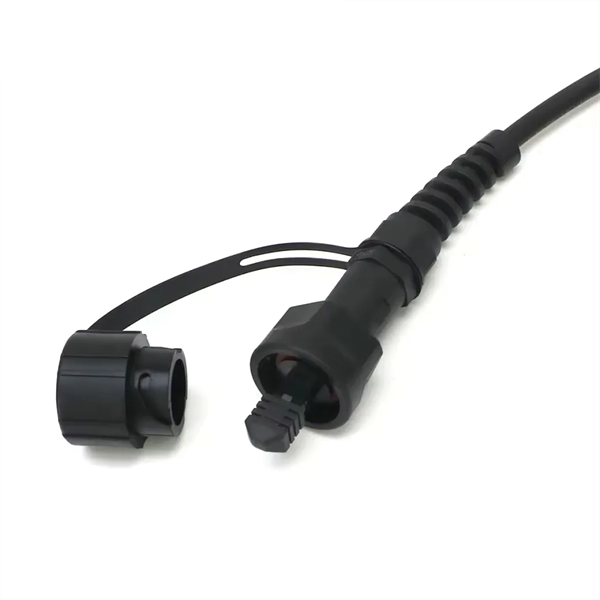

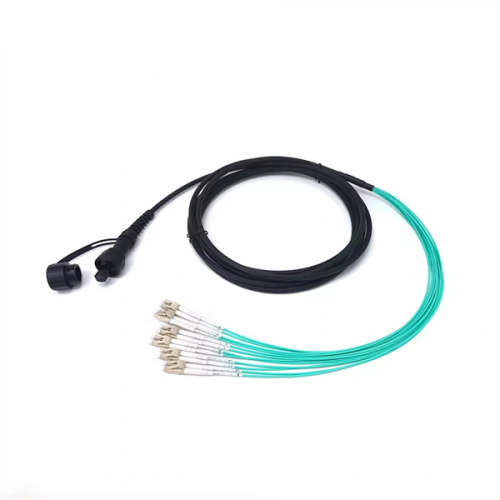

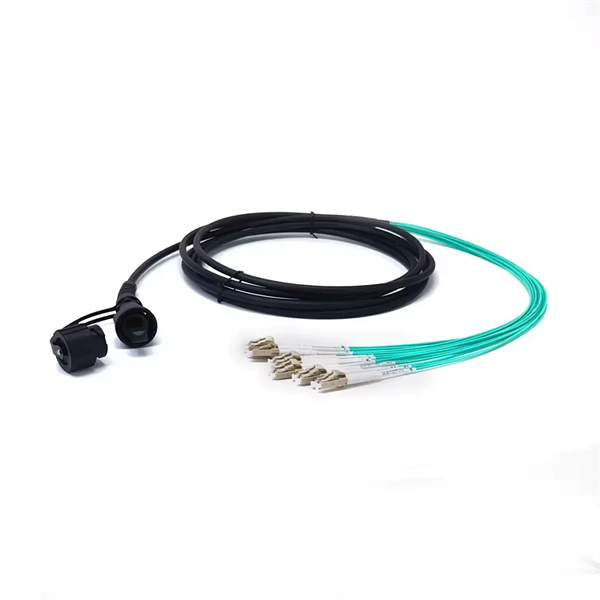

8 12 16 cores OM3 OM4 mpo to lc breakout fiber optic cable

Description for fiber breakout cable:
MPO /MTP trunk cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment , reducing network installation or reconfiguration time and cost , they are used to interconnect cassettes, plane or fan outs , It offered in fiber types in standard 8/12/16/24/48 cores version using a compact and rugged micro cables structure.

Product Name:mpo lc breakout cable,mpo fiber optic cable,mpo to lc breakout,mpo fiber optic,om3 patch cable,om4 fiber patch cables,om3 fiber patch cord
mpo lc breakout cablempo to lc breakoutom3 patch cable
Length Tolerances of breakout fiber

L

L<10m

0≤△L≤+100mm

10m≤ L ≤50m

0≤△L≤+100mm

L>50m

0≤△L≤+100mm


Technical Parameter for fiber optic input cable:

Project

The test conditions

SM

MM

The optical properties

Insertion loss

UPC

SM:1310nm/1550nm MM:850nm/1300nm

≤0.3dB

≤0.3dB

APC

1310nm/1550nm

≤0.3dB



Return loss

UPC

SM:1310nm/1550nm MM:850nm/1300nm

≥50 dB

≥35 dB

APC

1310nm/1550nm

≥60 dB

/

Mechanical properties

Impact test

1.8 altitude, 8 reps

<0.1 dB

<0.1 dB

Vibration test

10 to 60 hz, 1 mm total amplitude

<0.1 dB

<0.1 dB

Plug service life

More than 1000 times

<0.1 dB

<0.1 dB

Tensile strength

>300N

<0.1 dB

<0.1 dB

Environmental features

High and low temperature cycle test

-25℃ ~ +70℃, 2 cycles

<0.2 dB

<0.2 dB

High temperature test

+80℃ for 2 hours

<0.2 dB

<0.2 dB

Low temperature test

-40 ° C for 2 hours

<0.2 dB

<0.2 dB

Hot and humid test

+40℃, 90-95%RH, 2 hours

<0.2 dB

<0.2 dB

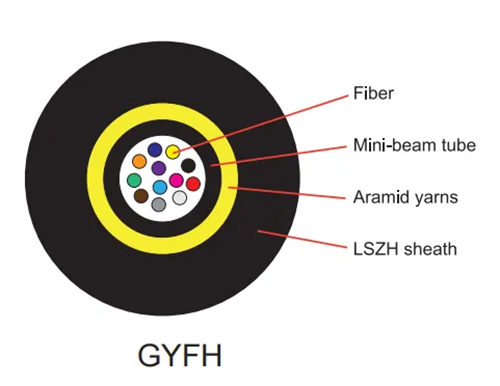

Cable Structure of indoor fiber cable
mpo fiber optic cable



ITEMS

UNITS

SPECIFICATION

Fiber Type

-

50/125(OM2+/OM3/OM4)

Attenuation

dB/km

Before Cable

After Cable

850 nm≤ 2.4

1300 nm≤ 0.6

850 nm≤ 3.5

1300 nm≤ 1.5

OFL BW

MHz•km

850nm:≥700/≥1500/≥3500

1300nm:≥500/≥500/≥500

Effective mode bandwidth

MHz•km

850nm:≥950/≥2000/≥4700

Link length

-

-

40GBASE-SR4 / 100GBASE-SR101

m

850nm:-/140/170

10GBASE-SR

m

850nm:150/300/550

1000BASE-SR

m

850nm:750/1000/1100

N.A

-

0.200±0.015

Zero Dispersion Wavelength

nm

1295~ 1340

Zero Dispersion Slope

ps/nm2.km

1295nm≤ λ0 ≤1310nm:≤ 0.105

1310nm≤ λ0 ≤1340nm:≤ 0.000375

Attenuation vs. Bending



dB

≤ 0.1at 850 nm

≤ 0.3at 1300 nm

(30mm x2turns)

≤ 0.2at 850 nm

≤ 0.5at 1300 nm

(15mm x2turns)

Core diameter

mm

50±2.5

Core-Clad Concentricity

mm

≤ 10

Cladding Diameter

mm

125±1.0

Cladding Non-circularity

%

≤ 5.0

Coating Diameter

mm

245±7

Proof Test

Gpa

≥ 0.69



Cable Technical Parameters

Item

Parameter

Operating temperature

-40℃ ~ +70℃

Storage temperature

-40℃ ~ +70℃



Tensile Strength

Long Term(N)

200

Short Term(N)

500



Crush Resistance

Long Term(N/100mm)

1000

Short Term(N/100mm)

2000



Bending Radius

Static(mm)

140

Dynamic(mm)

70



Application

1.Data communication network;
2.Optical system access network;
3.Storage area network fiber channel;
4.High density architectures.


Feature

-Low Insertion loss;
-Low PDL;
-Compact Design;
-Good channel-to-channel uniformity;
-Wide Operating Temperature:From -40℃ to 85℃;
-High Reliability and Stability.

Packing:Individual plastic bag and carton box
fiber patch cord packing
Supply Ability & Additional Information

PackagingIndividual package

Productivity30000pieces per month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000pieces per month

CertificateRoHS/ISO9001

HS Code8536700000

PortShenzhen,Guangzhou,Shanghai

Payment TypeL/C,T/T,D/P,Paypal,others,Cash

IncotermFOB,CFR,CIF,EXW,FAS,Express Delivery
