LC single mode fiber optic patch cord cable

LC single mode fiber optic patch cord cable

Payment Type:	L/C,T/T,D/P,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: LC-FC

Brand: OEM

Brand Name: OEM or neutral

Network: 3G,4G

Product Name: Fiber Patch Cord

Fiber Type: G652D,G657A,OM1,OM2,OM3,OM4

Cable Diameter: 0.9mm/2.0mm/3.0mm

Connector Type: SC,FC,LC,ST

Outer Jacket: PVC/LSZH/OFNP

Fiber Cores: Simplex or Duplex

Certification: RoHS/ISO9001

Leading Time: 5-7 Working Days

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Normal neutral packaging and neutral labels without branding and logo
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

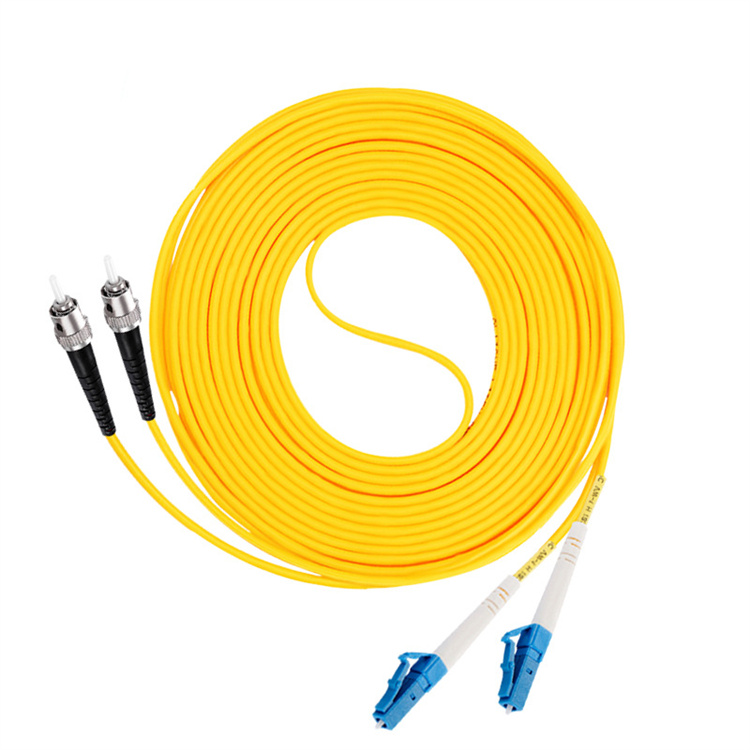

LC-FC UPC single mode Fiber Optic Patch Cord cable

Description:

Fiber Optic patch cable is also known as fiber optic jumperorfiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. GT fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC,MU, MTRJ, connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Product Name:patch cable fiber optic,fiber optic patch cord,single mode patch cord,single mode fiber patch cord,sm fiber patch cables,single mode patch cables,fiber patch,fiber patch cord type,patch cord price,sc patch cord,sc fiber patch cable,optical patch cord,sc to sc patch cord,sc apc patch cord,single mode fiber patch cable,fiber cable patch,sc to lc fiber patch cable,lc fiber patch cord,patch fiber optic,sm fiber patch cord

Features:

Low insertion loss High back reflection loss

Excellent mechanical endurance

High credibility and stability

Good in repeatability and exchangeability

Performance Specification:

Connector Type	FC, SC, LC, ST, MU, MTRJ
Fiber Type	SM(G.652D/G.657A)			MM(OM1/OM2/OM3/OM4)
Ferrule End-face	PC	UPC	APC	UPC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Exchangeability	≤0.2dB
Repeatability	≤ 0.1dB(1000 times)
Durability	> 1000 times
Operating Temperature	-40°C ~ +85°C

Fiber Optic Cable Performance Specification:

Fiber type	Min. Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

LC-FC Single Mode Specification:

Type	Standard, Master
Style	LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2 & OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex / Φ3.0mm, Φ2.0mm, Φ0.9mm / PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB / SPC ≥ 55dB / APC ≥ 60dB (typ.65dB) / Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net

2. Optical fiber communication system

3. Optical fiber test equipment

4. Optical fiber sensor

5. Industry and military application

Detailed Images

Various Choice to Meet Your Different Needs

1.Custom Connector & Polish Type

Mainly used for high-density connections,matching

SFP/SFP+/XFP transceivers and LC adapters.

Mainly used for datacom and telecom, matching

GBIC/X2/XENPAK transceivers and SC adapters.

Mainly used for datacom, FTTH, campuses, corporate

networks etc.

Mainly used for datacom, measurement equipment,

lasers etc.

Suited for Ethernet network equipment, such as serial

devices, media converters and fiber switches.

Suited for high bandwidth applications and long

distance links, such as FTTx.

2.Custom Cable Jacket

PVC Jacket

Very soft resistant to oxidation, used for horizontal and vertical runs in a contained ventilation building.

LSZH Jacket

Make little smoke and no halogen,suited for horizontal structural cabling areas.

OFNP Jacket

Have the highest fire rating, suited for vertical runs between floors in data centers.

3.Custom Cable Diameter

0.9 mm cable diameter is lighter and smaller, suited for space saving and cost reduction.

2.0 mm cable diameter is of great durability, suited for indoor environment.

3.0 mm cable diameter has longer lifetime, suited for stress-resistant environment.

4. Custom Products Tailored to Your Needs

Diverse Custom Options

Choose suitable options based on your applications.

Strict Quality Control

Ensure high quality products with state of testing facility.

Technical Support

Get support from professional engineer team.
