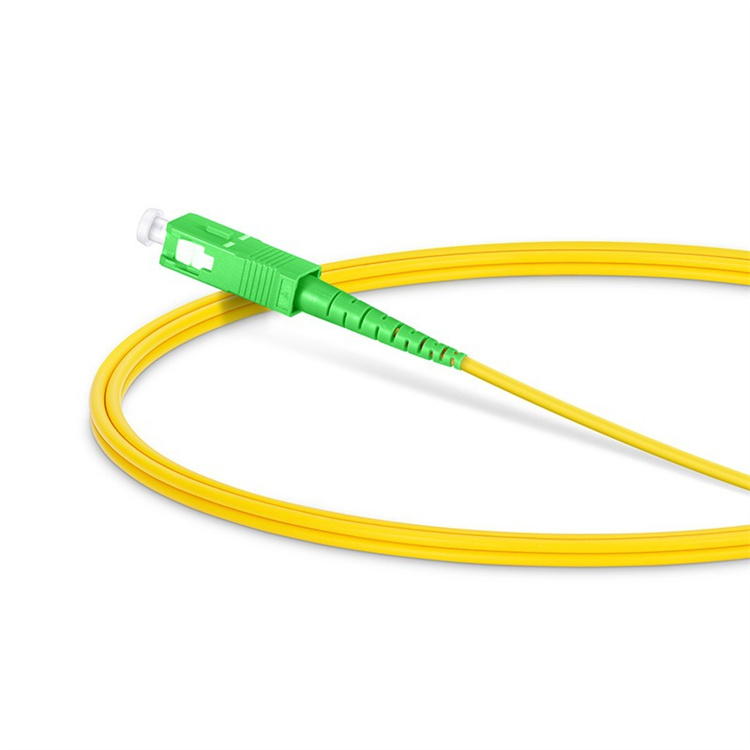

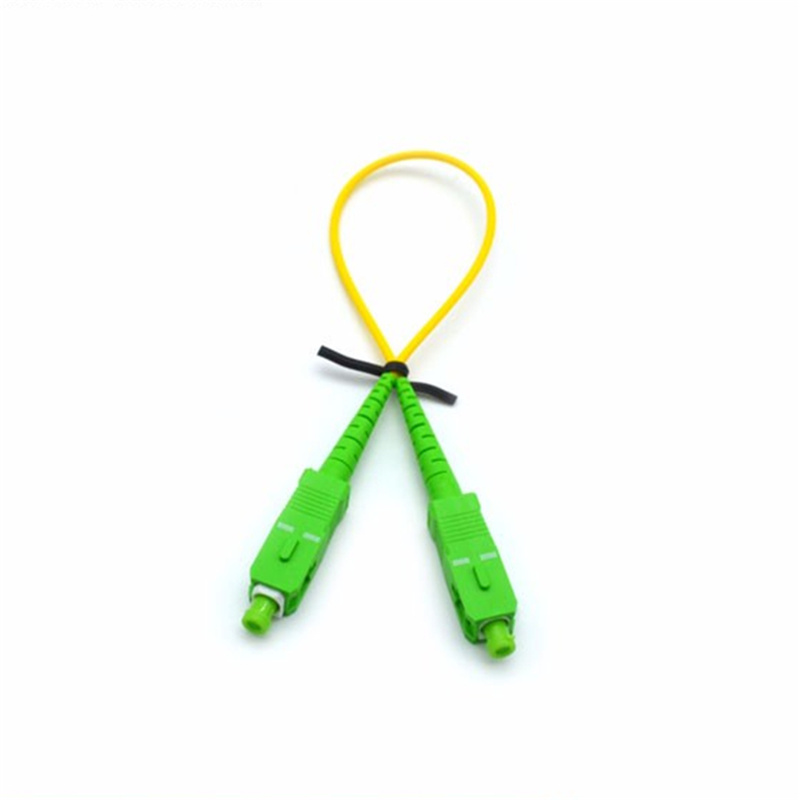

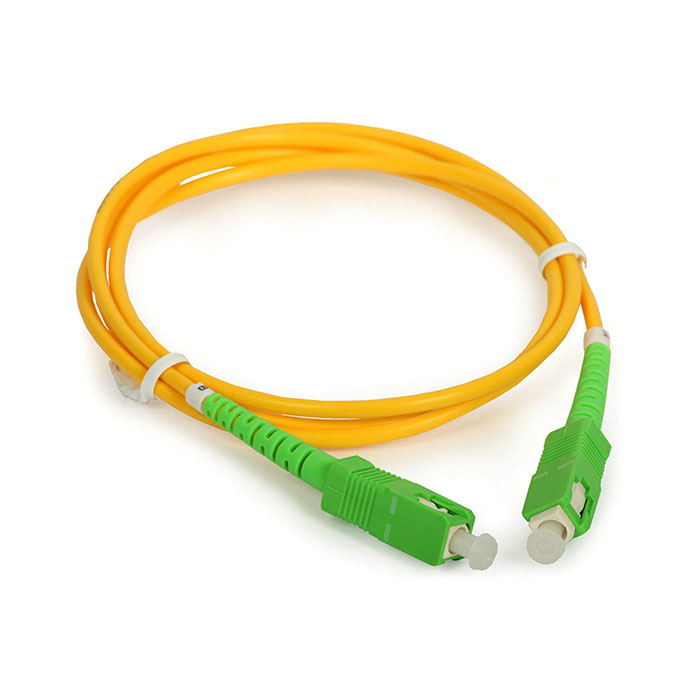

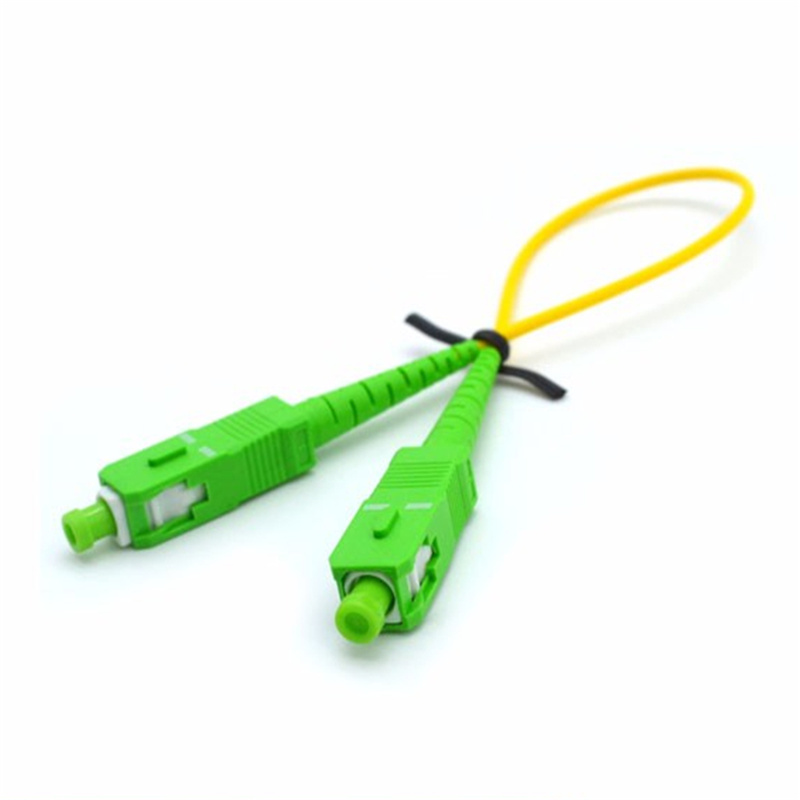

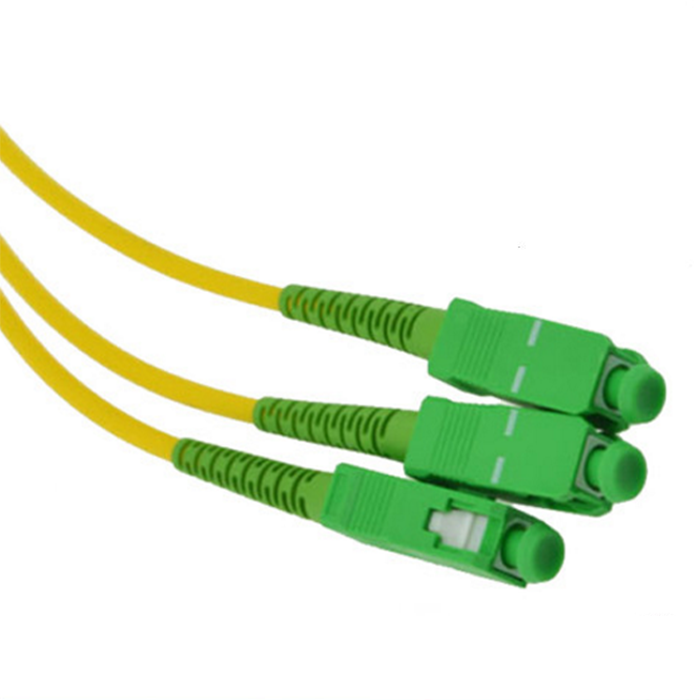

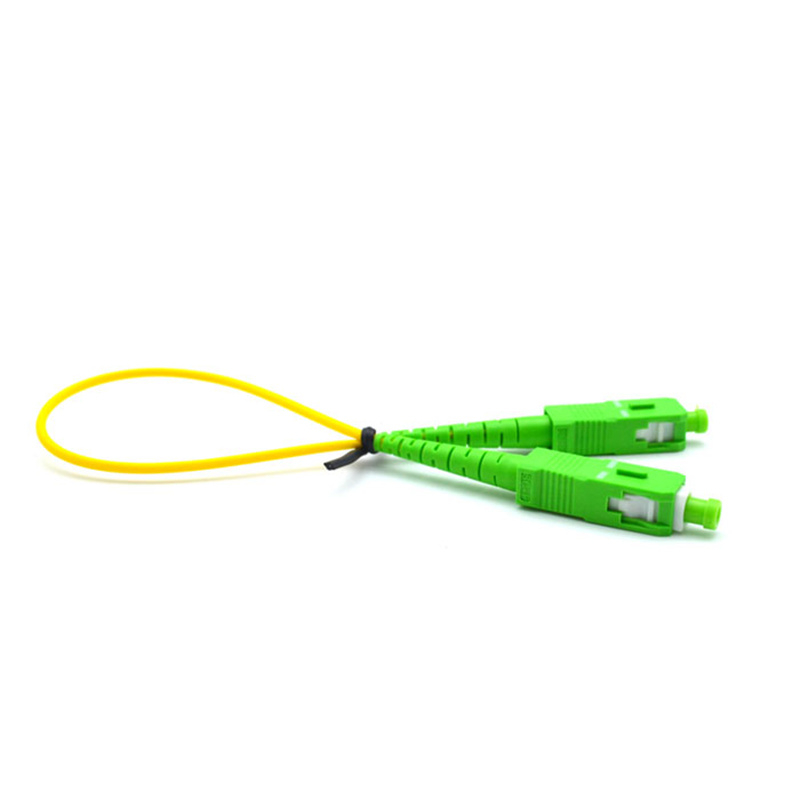

SC APC duplex fiber optic patch cord cable

SC APC duplex fiber optic patch cord cable

Payment Type:	L/C,T/T,D/P,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: SC/APC-SC/APC

Brand: OEM

Brand Name: OEM or neutral

Network: 3G,4G

Product Name: Fiber Patch Cord

Fiber Type: G652D,G657A,OM1,OM2,OM3,OM4

Cable Diameter: 0.9mm/2.0mm/3.0mm

Connector Type: SC,FC,LC,ST

Outer Jacket: PVC/LSZH/OFNP

Fiber Cores: Simplex or Duplex

Certification: RoHS/ISO9001

Leading Time: 5-7 Working Days

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Normal neutral packaging and neutral labels without branding and logo
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

SC to SC APC duplex Fiber Optic Patch Cord cable

Description:

A2.0mm 3.0mm Fiber Optic Pigtail Patch Cord Simplex is a fiber optic cable used to attach one device to another for signal routing. Two ends with connectors be named patchcord or jumpter , only one end with the connector be named Fiber Optic Pigtail.

Product Name:fiber patch cord type,patch cord price,sc patch cord,sc fiber patch cable,optical patch cord,sc to sc patch cord,sc apc patch cord,single mode fiber patch cable,fiber cable patch,sc to lc fiber patch cable,lc fiber patch cord,patch fiber optic,sm fiber patch cord,,fc fiber patch cord,5m patch cable,corning fiber patch cords,simplex fiber patch cord,duplex fiber optic patch cable

Performance Specification:

Connector Type	FC, SC, LC, ST, MU, MTRJ
Fiber Type	SM(G.652D/G.657A)			MM(OM1/OM2/OM3/OM4)
Ferrule End-face	PC	UPC	APC	UPC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Exchangeability	≤0.2dB
Repeatability	≤ 0.1dB(1000 times)
Durability	> 1000 times
Operating Temperature	-40°C ~ +85°C

Fiber Optic Cable Performance Specification:

Fiber type	Min. Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

Order Information:

SC/APC-SC/APC-MM-DX-3.0mm-5M
SC	/	APC	—	SC	/	APC	/	SM	—	SX	/	3.0	—	5M
1		2		3		2		4		5		6		7
1	Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc.
2	Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male)
3	Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.
4	Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4
5	Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core...
6	Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.
7	Cable Length: 3m(Length in meter)

Features:

3D Fiber Optic interferometer is available

Pluggable structure, easy to intensive-installation

Meets RoHS and Bell core GR 326-core standards

Custom Configurations Available at No Extra Charge

Low insertion loss and high return loss

Serialized & Individual Test Records

Guaranteed Zero Defects

Application:

Telecommunication networks

Computer networks

CATV networks

Offshore, Power Generation, Oil & Gas

Railways

Active device termination

Instrumentation

Detailed Images

Various Choice to Meet Your Different Needs

1.Custom Connector & Polish Type

Mainly used for high-density connections,matching

SFP/SFP+/XFP transceivers and LC adapters.

Mainly used for datacom and telecom, matching

GBIC/X2/XENPAK transceivers and SC adapters.

Mainly used for datacom, FTTH, campuses, corporate

networks etc.

Mainly used for datacom, measurement equipment,

lasers etc.

Suited for Ethernet network equipment, such as serial

devices, media converters and fiber switches.

Suited for high bandwidth applications and long

distance links, such as FTTx.

2.Custom Cable Jacket

PVC Jacket

Very soft resistant to oxidation, used for horizontal and vertical runs in a contained ventilation building.

LSZH Jacket

Make little smoke and no halogen,suited for horizontal structural cabling areas.

OFNP Jacket

Have the highest fire rating, suited for vertical runs between floors in data centers.

3.Custom Cable Diameter

0.9 mm cable diameter is lighter and smaller, suited for space saving and cost reduction.

2.0 mm cable diameter is of great durability, suited for indoor environment.

3.0 mm cable diameter has longer lifetime, suited for stress-resistant environment.

4. Custom Products Tailored to Your Needs

Diverse Custom Options

Choose suitable options based on your applications.

Strict Quality Control

Ensure high quality products with state of testing facility.

Technical Support

Get support from professional engineer team.
