Home> Products> Fiber Passive Accessories> Fiber Optic Patch Cord> FC-FC SM simplex duplex fiber patch cord cable

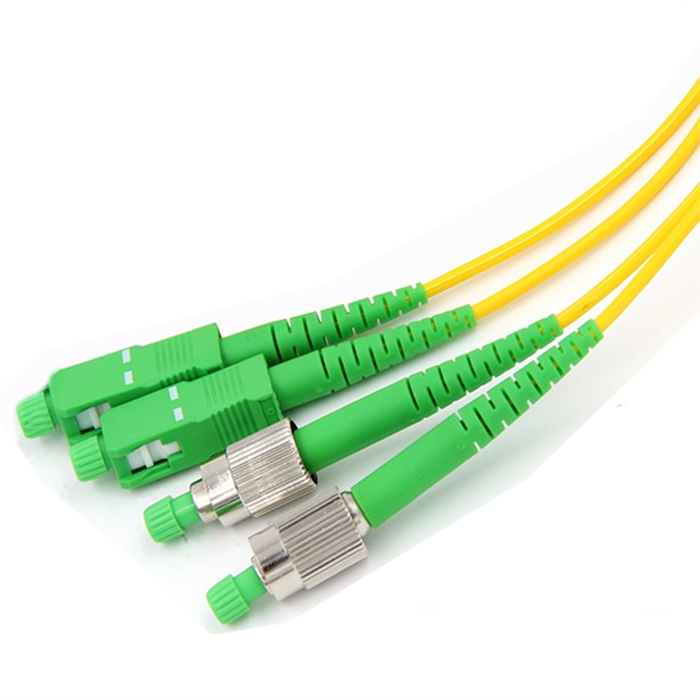

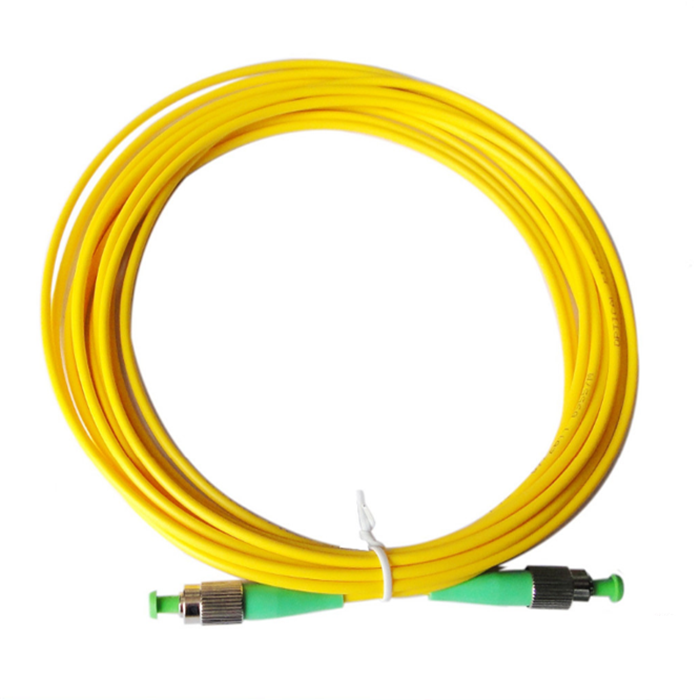

FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable
FC-FC SM simplex duplex fiber patch cord cable

FC-FC SM simplex duplex fiber patch cord cable

Payment Type:L/C,T/T,D/P,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou,Shanghai

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.FC-FC

BrandOEM

Brand NameOEM or neutral

Network3G,4G

Product NameFiber Patch Cord

Fiber TypeG652D,G657A,OM1,OM2,OM3,OM4

Cable Diameter0.9mm/2.0mm/3.0mm

Connector TypeSC,FC,LC,ST

Outer JacketPVC/LSZH/OFNP

Fiber CoresSimplex or Duplex

CertificationRoHS/ISO9001

Leading Time5-7 Working Days

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Normal neutral packaging and neutral labels without branding and logo
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

FC-FC SM simplex duplex fiber patch cord cable

Description:

Fiber Optic Patch Cord is suitable for equipment jumper cable, cross connects, and work area connections. All fiber optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance to standards.

Optical fiber jumper / pigtail can be divided into common single-mode and multi-mode jumpers according to different transmission media; according to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper,MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, din4 jumper, D4 jumper and other forms.

Product Name:simplex fiber patch cable,duplex patch cord,duplex patch cable,apc patch cord,single mode fiber patch cord price,multimode patch cable,lc fiber patch cord,patch fiber optic,sc to sc patch cord,sc apc patch cord,fc fiber patch cord,5m patch cable,corning fiber patch cords


corning fiber patch cablesapc patch cordfc fiber patch cordduplex patch cableduplex patch cord

Performance Specification:

Connector Type

FC, SC, LC, ST, MU, MTRJ

Fiber Type

SM(G.652D/G.657A)

MM(OM1/OM2/OM3/OM4)

Ferrule End-face

PC

UPC

APC

UPC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.3dB

≤0.3bB

Return Loss

≥50dB

≥55dB

≥60dB

≥35dB

Exchangeability

≤0.2dB

Repeatability

≤ 0.1dB(1000 times)

Durability

> 1000 times

Operating Temperature

-40°C ~ +85°C



fiber optic cable Performance Specification:

Fiber type

Min. Bandwidth

Distance

Attenuation

62.5/125

850/1300nm
200/500 MHz/Km

@100Mbps 2km @1Gig 220m

850/1300nm
3.0/1.0dB/km

50/125

850/1300nm
500/500 MHz/Km

@100Mbps 2km @1Gig 500m

850/1300nm
3.0/1.0dB/km

50/125
10Gig Optimized

850/1300nm
2000/500 MHz/Km

@100Gig Varies by VCSEL typical 300m 2850nm

850/1300nm
3.0/1.0dB/km

9/125

1310/1550nm
Approx 100 Terahertz

Up to 100km Varies by transceiver

1310/1550nm
0.4/0.3dB/km



Order Information:

FC/UPC-FC/UPC-SM-SX-3.0mm-5M

FC

/

UPC

FC

/

UPC

/

SM

SX

/

3.0

5M

1



2



3



2



4



5



6



7

1

Connector#1:       LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc.

2

Lapping Way:       UPC&APC (For MTRJ, F=Female, M=Male)

3

Connector#2:        LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.

4

Cable Type:          SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4

5

Fiber Number:      SX(Simplex) or DX(Duplex), 2/4/6/8 core...

6

Cable Diameter:   2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.

 7

Cable Length:       3m(Length in meter)


Features:
Low insertion loss High back reflection loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability

Application:
Gigabit Ethernet
Optical access network
Data processing networks
Fiber optic communication networks

Detailed Images
Various Choice to Meet Your Different Needs
1.Custom Connector & Polish Type
LC fiber connector
Mainly used for high-density connections,matching
SFP/SFP+/XFP transceivers and LC adapters.
SC connector
Mainly used for datacom and telecom, matching
GBIC/X2/XENPAK transceivers and SC adapters.
ST connector
Mainly used for datacom, FTTH, campuses, corporate
networks etc.
FC connector
Mainly used for datacom, measurement equipment,
lasers etc.
UPC polishing
Suited for Ethernet network equipment, such as serial
devices, media converters and fiber switches.
APC polishing
Suited for high bandwidth applications and long
distance links, such as FTTx.
2.Custom Cable Jacket
PVC sheath
PVC Jacket
Very soft resistant to oxidation, used for horizontal and vertical runs in a contained ventilation building.
LSZH sheath
LSZH Jacket
Make little smoke and no halogen,suited for horizontal structural cabling areas.


OFNP sheath
OFNP Jacket
Have the highest fire rating, suited for vertical runs between floors in data centers.
3.Custom Cable Diameter
0.9mm cable
0.9 mm cable diameter is lighter and smaller, suited for space saving and cost reduction.
2.0mm cable
2.0 mm cable diameter is of great durability, suited for indoor environment.
3.0mm cable
3.0 mm cable diameter has longer lifetime, suited for stress-resistant environment.
4. Custom Products Tailored to Your Needs
Diverse Custom Options
Diverse Custom Options
Choose suitable options based on your applications.
Strict Quality Control
Strict Quality Control
Ensure high quality products with state of testing facility.
Technical Support
Technical Support
Get support from professional engineer team.
Supply Ability & Additional Information

PackagingNormal neutral packaging and neutral labels without branding and logo

Productivity30000 pieces per month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 pieces per month

CertificateRoHS ISO9001

HS Code8536700000

PortShenzhen,Guangzhou,Shanghai

Payment TypeL/C,T/T,D/P,Paypal,Cash

IncotermFOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
