Model No.: 144 core PLC Joint Closure
Brand: OEM
Structure: Dome Type
Max Capacity: 144 core
Material: PC, ABS, MP
Color: Black, White, Grey
Port: 2 in 2 out,3 in 3 out
Application: Network Equipment
Weight: 1.6kg-5kg
High Light: fiber optic enclosure
Certication: ISO,ROHS
Warranty: 1 year
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
IP65 dome PLC splitter fiber optic joint closure box
Description:
Vertical Fiber Optic splice closure provides space and protection for fiber optic cable splicing and joint.Dome Fiber Splice Closures can be installed by pole mounted, wall mounted, aerial and direct buried application.It can be divided into 2 types according to the sealing type: screw thread mechanical and heat shrinkable.
Product Name:fiber joint box,closure fiber optic,fiber optic closure,fiber splice closure,joint closure optic,splicing enclosure,outdoor fiber joint box 24 core,joint box fiber optic,splice enclosure,fiber splice enclosure,joint enclosure,splice closure,splice enclosure,fiber rack mount enclosure,fiber optic splice enclosure,splice closure fiber optic,fiber optic enclosure outdoor,fiber optic joint enclosure box price,fiber enclosures,fiber closure box,joint closure box,underground fiber splice enclosure,ftth enclosure,fibre splice enclosure,optical splice closure,fibre optic splice closure,fiber optic splice closure price,fiber patch panel enclosure,fiber joint enclosure,fiber joint closure,ftth joint box,optical fiber cable joint box

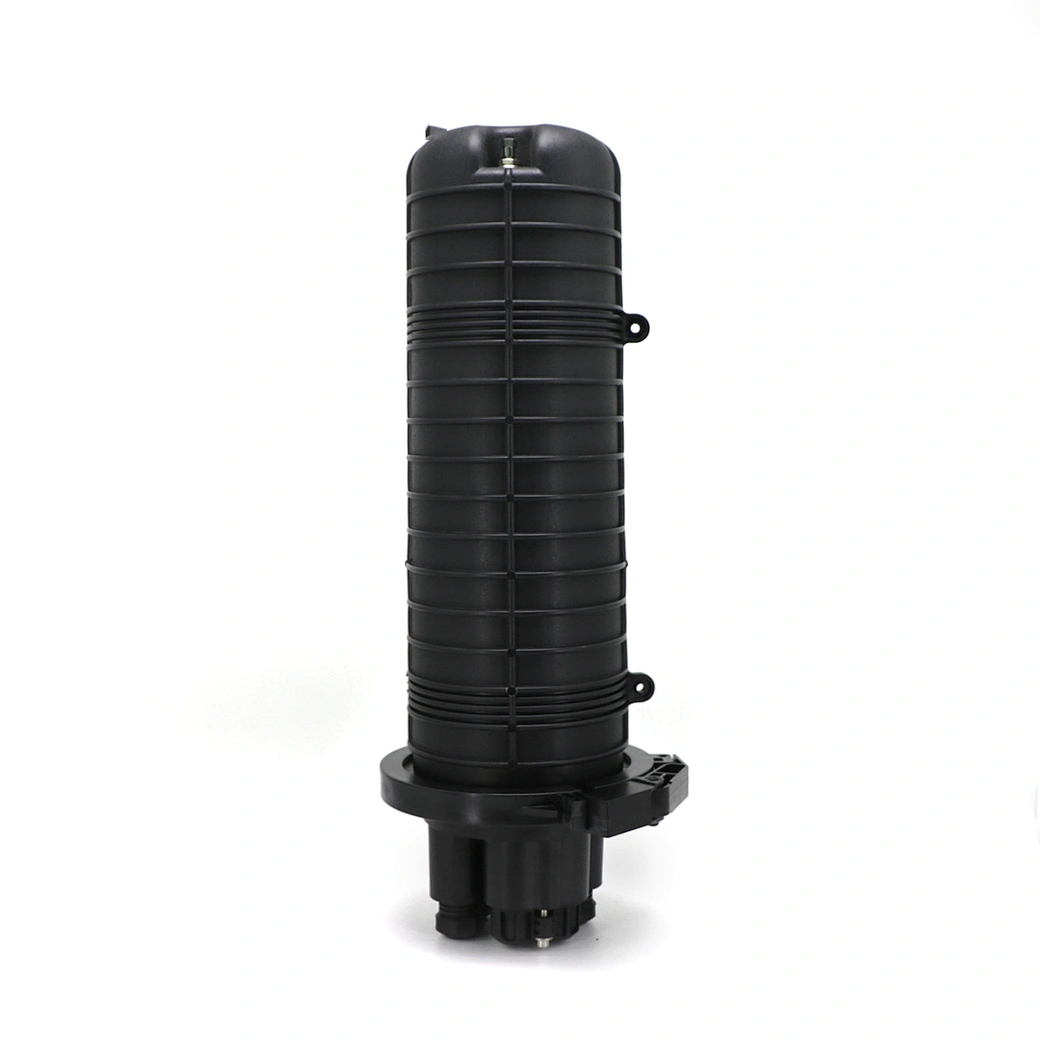

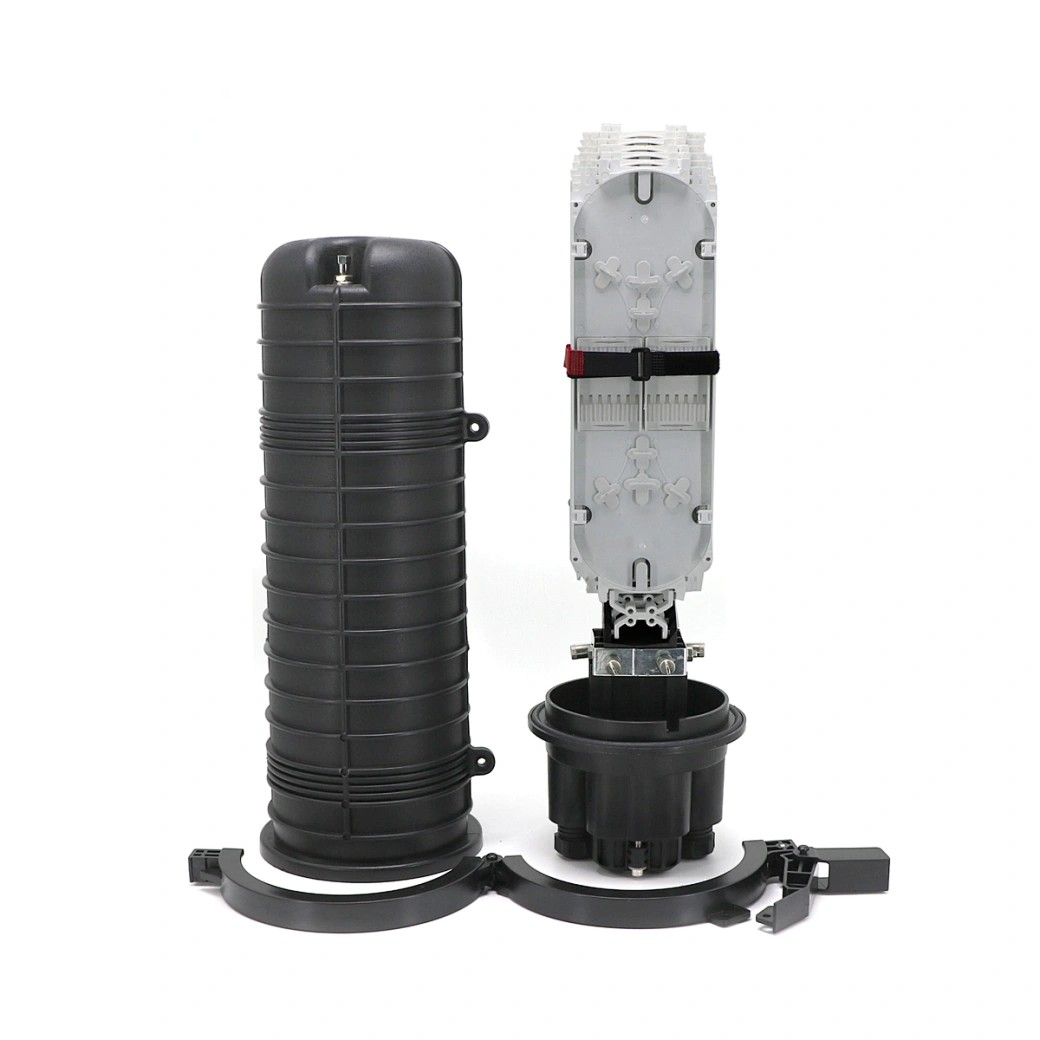

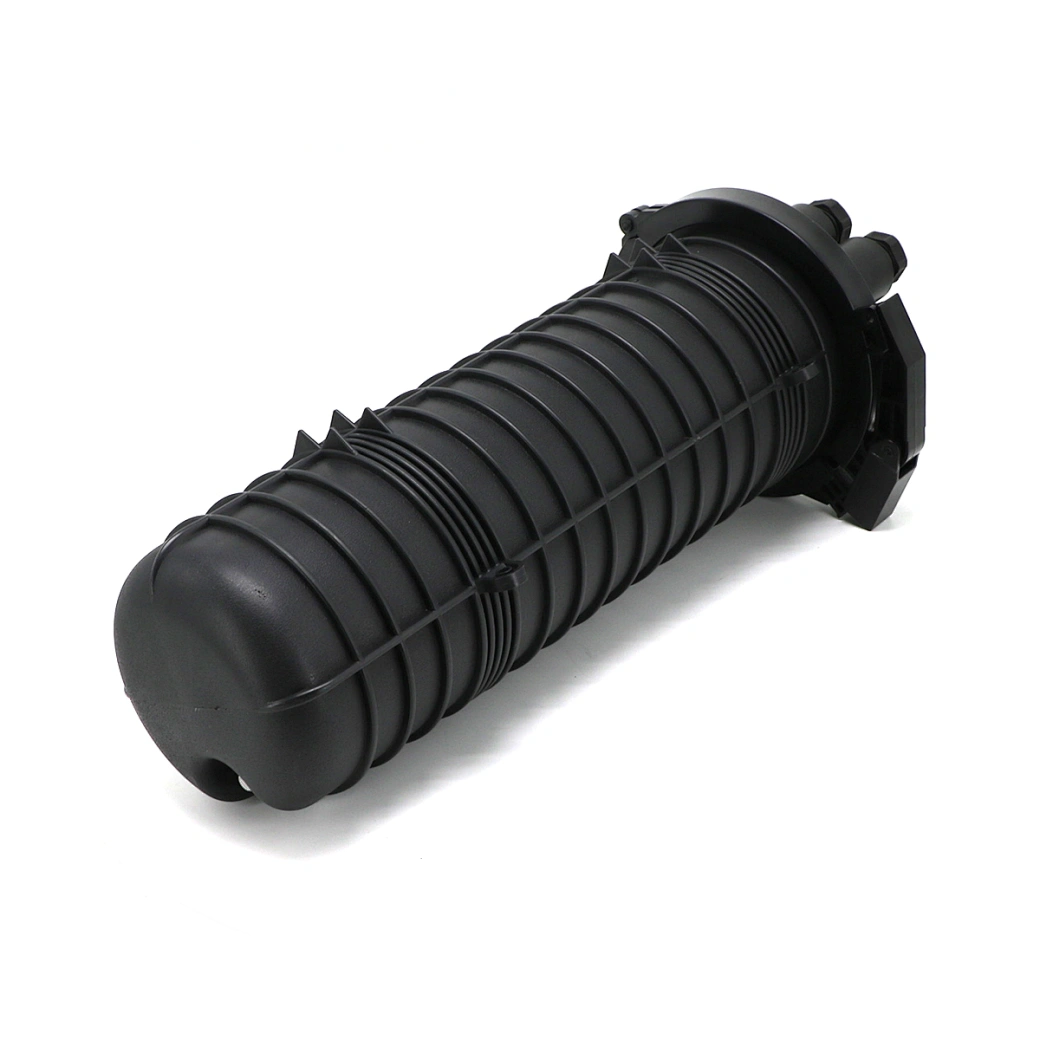

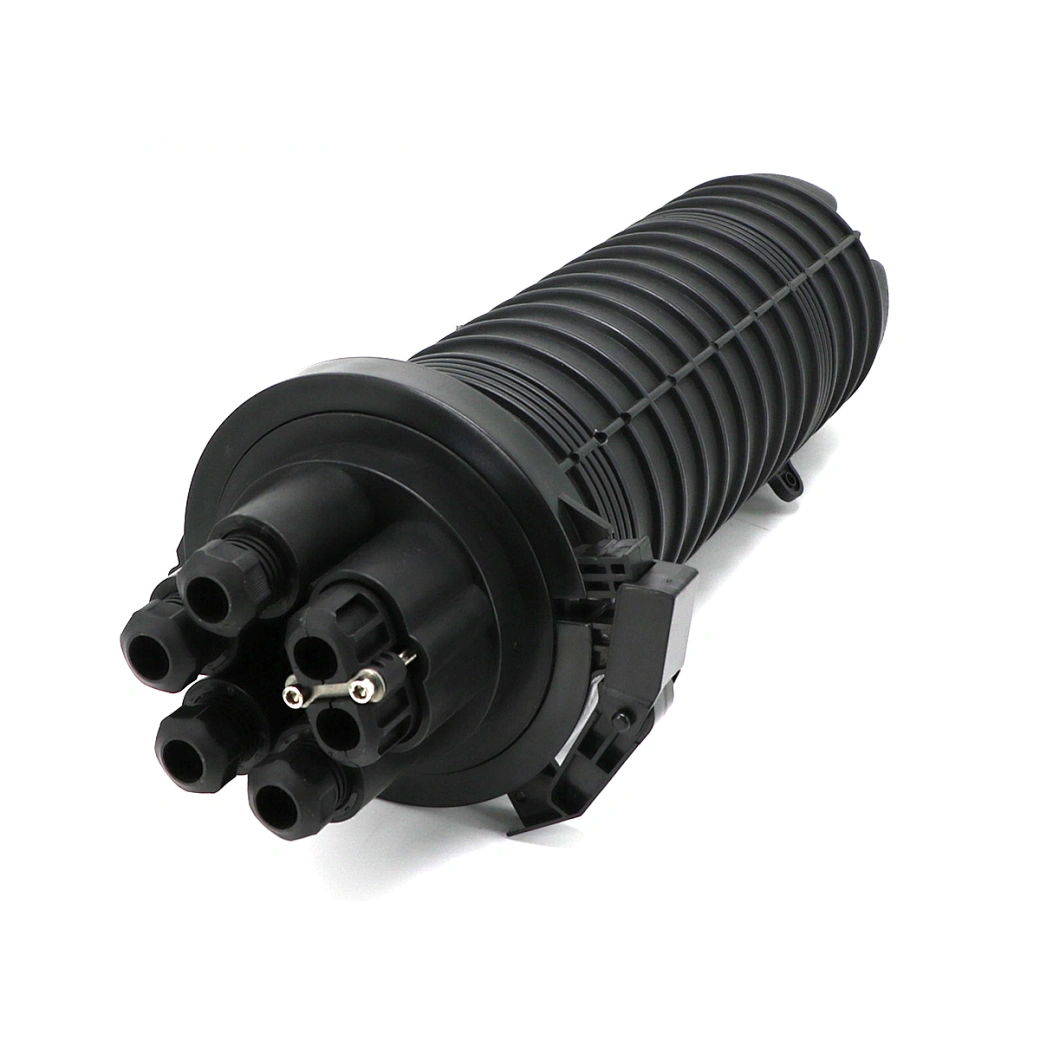

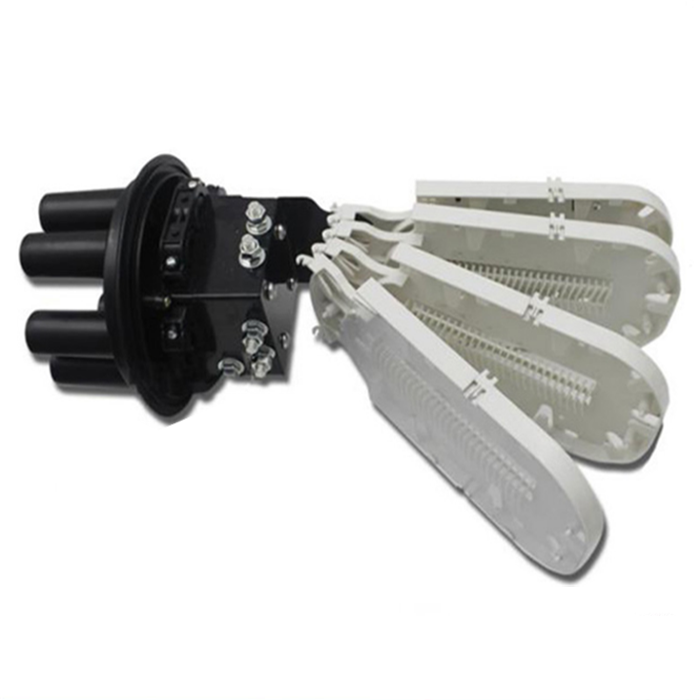

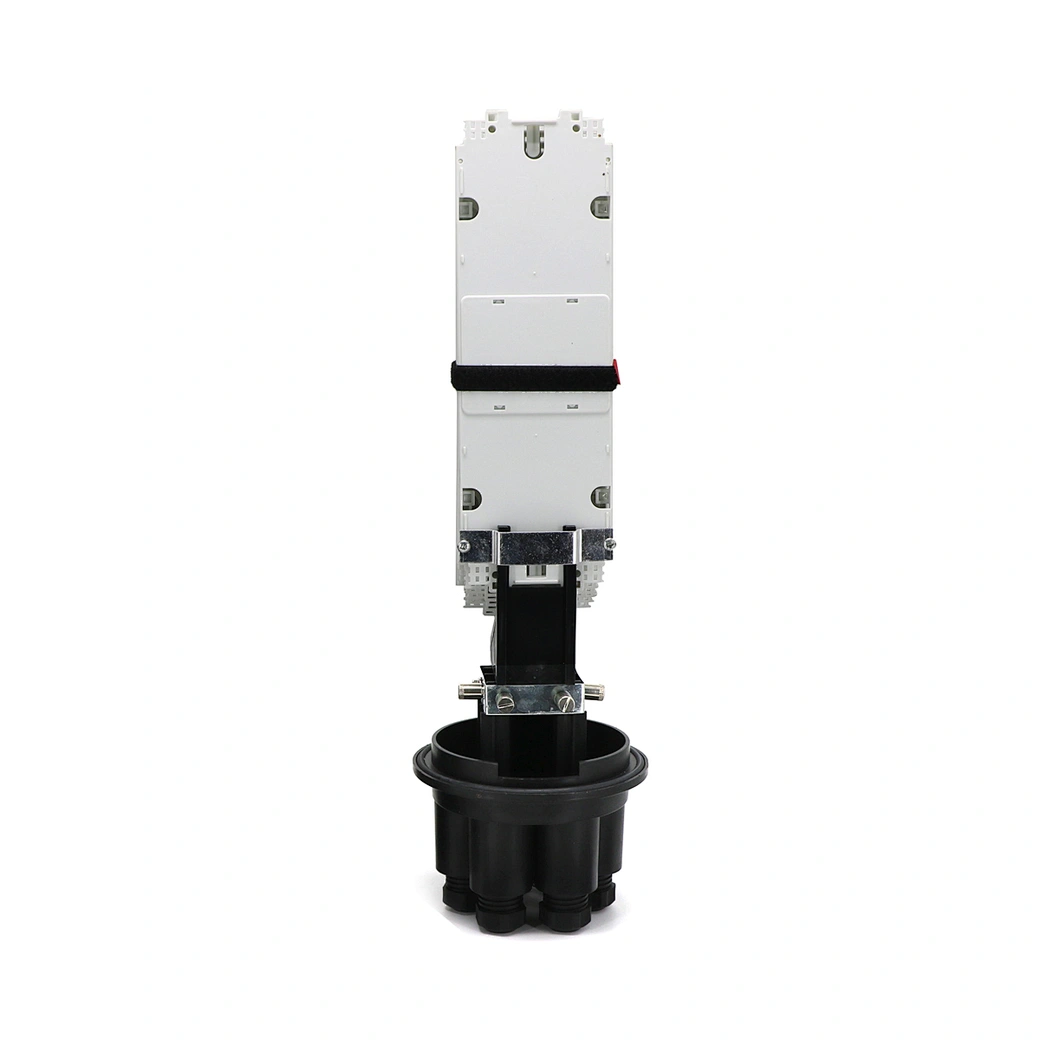

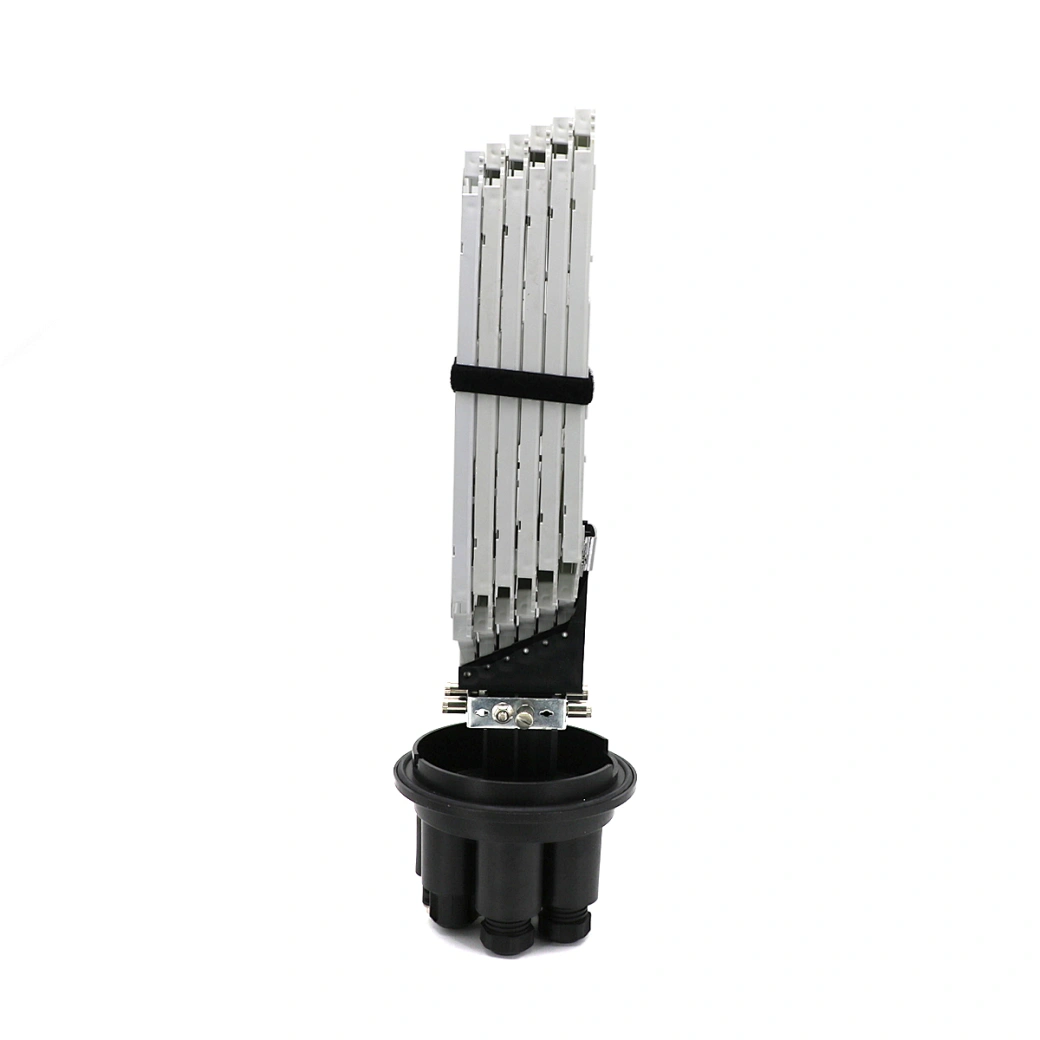

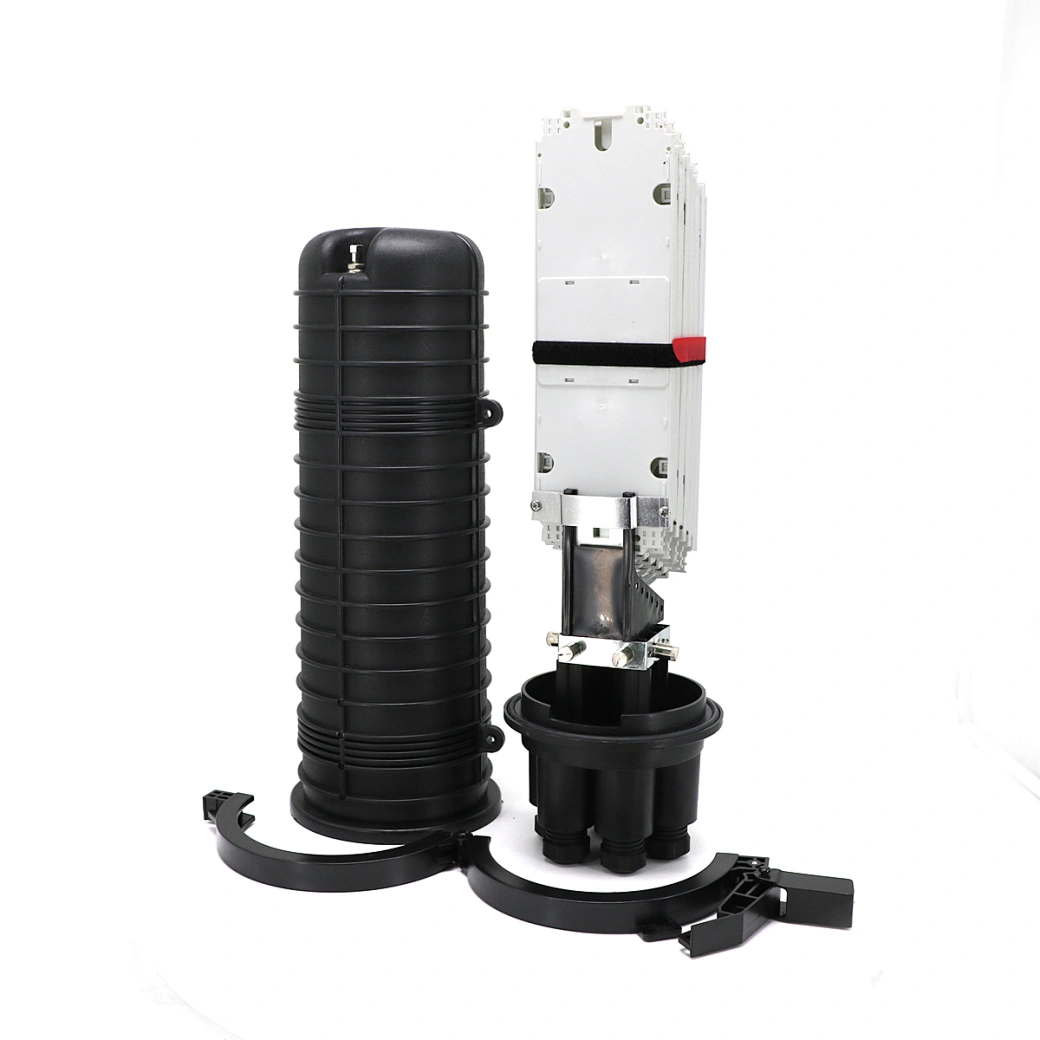

Fiber Optic Closure Picture:
Specification:
| Type/Closure | FOSC-D001 | FOSC-D002 | FOSC-D003 | FOSC-D004 | FOSC-D005 | FOSC-D006 | |
| Size(mm) | Φ190*310 | Φ190*410 | Φ190*435 | Φ210*540 | Φ230*435 | Φ230*550 | |
| Cable diameter(mm) | Φ 8 – Φ 20 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 10 – Φ 22 | Φ 7 – Φ 22 | |
| Max splice tray(pcs) | 4 | 4 | 4 | 4 | 6 | 6 | |
| Max capacity(core) | 48 | 96 | 96 | 96 | 144 | 144 | |
| Cable port | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out | 3 in, 3 out | 3 in, 3 out | 4 in, 4 out | |
| Sealing structure | Heat shrinkable | Screw thread mechanical | Heat shrinkable | Heat shrinkable | Screw thread mechanical | Heat shrinkable | |
| Weight(kg) | 1.9 | 2.5 | 2.4 | 3.5 | 3.2 | 2.7 | |
Feature:
Protection grade is IP 65 Closure
Cut cable uses"spinning type mechanical seal".
Uncut cable uses"direct pressure mechanical seal".
Vulcanized silicone seal ring can meet demands for Φ10~17.5 cable.
Installation Method: wall-mounted,pole mounting,aerial,pipe-lined,manhole.
Can be installed with one 1:32 or 2:32 passive splitter with Max 36 SC adaptors.
Application:
Widely used in FTTH access network
Aerial-hanging
Wall-mounting
Duct
Direct-bury
Packaging: Individual Package,Carton Box
Productivity: 1000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
