Model No.: 48 cores splice closure
Brand: OEM
Structure: In-line Type or Horizontal Type
Fiber Cores: 12 to 288 cores
Material: PC, ABS, MP
High Light: fiber optic enclosure
Application: FTTH FTTB FTTX Network
Cable Port: Various ports available
Operating Temperature: -40°C~+70°C
Install: Aerial, duct, buried
Warranty: 1 year
Certification: ROHS/ISO9001
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
48 cores outdoor fiber optic splice joint enclosure
Description:
The optic fiber splice closures are widely apply for the connecting of optical cable.
Fiber splice closure is used for aerial, strand-mount FTTH"tap"locations where drop cables are spliced to distribution cables.Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables.Optical splice closure provides space and protection for the fiber optic cable splicing and joint.
Product Name:fiber optic splice enclosure,splice closure fiber optic,fiber optic enclosure outdoor,fiber splice closure,joint closure optic,splicing enclosure,outdoor fiber splice enclosure,fiber splice enclosure,joint enclosure,splice closure,splice enclosure,fiber rack mount enclosure,joint closure box,underground fiber splice enclosure,ftth enclosure,fibre splice enclosure,optical splice closure,fibre optic splice closure,fiber optic splice closure price,fiber patch panel enclosure

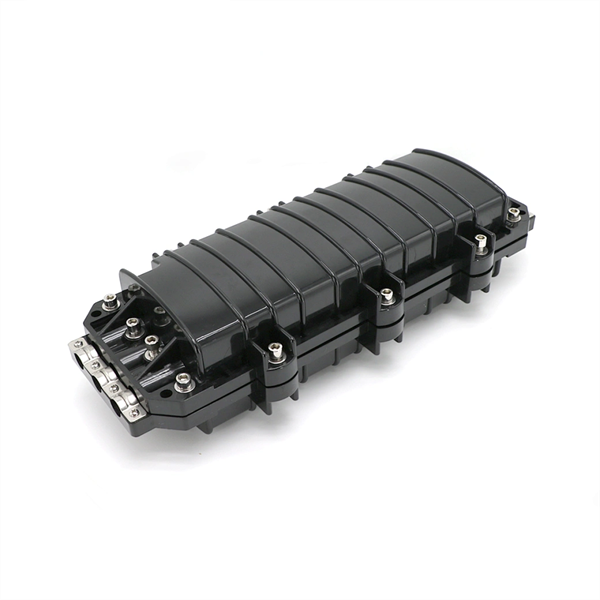

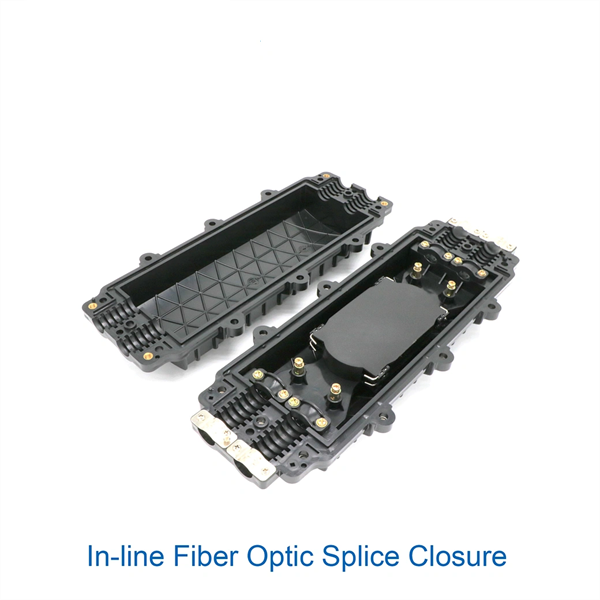

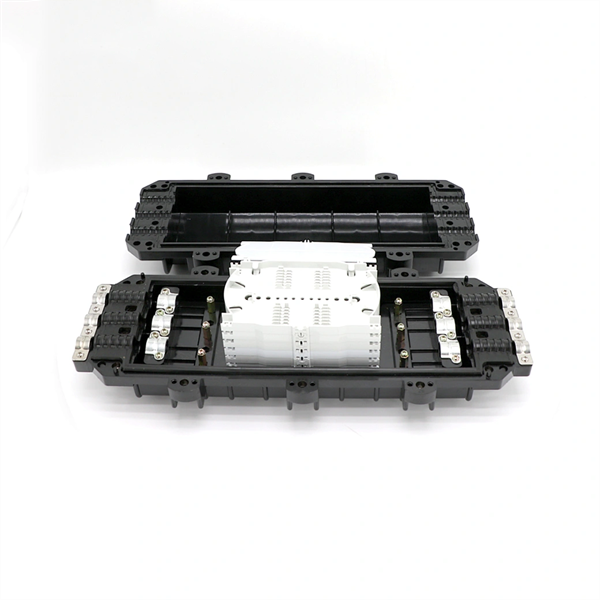

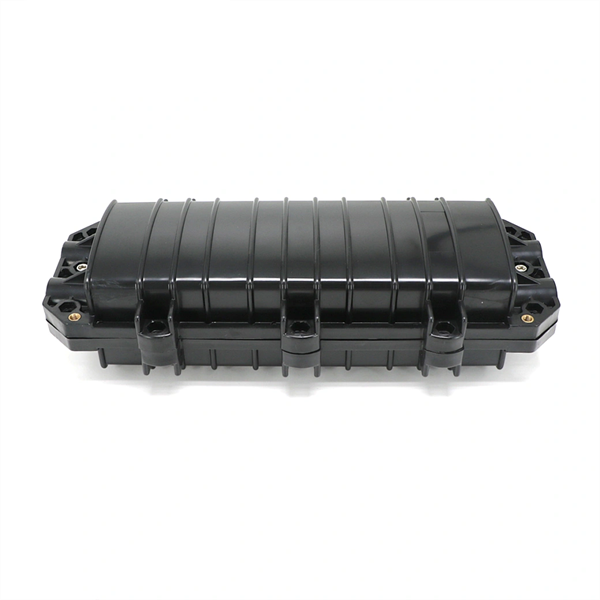

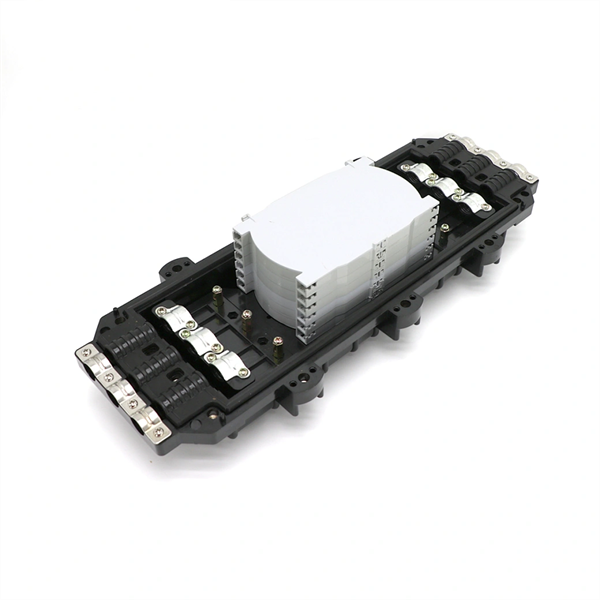

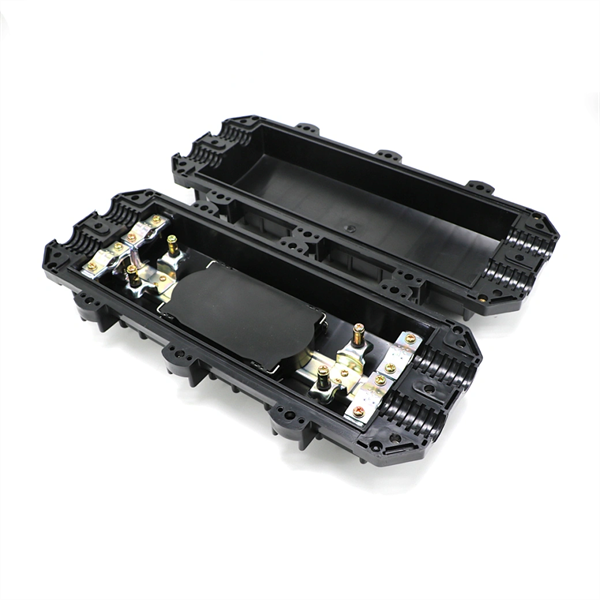

In-line Fiber Optic Splice Closure Picture:
Fiber Optic Splice Closure Specification:
| Type/Fiber Optic Splice Closure | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 22 | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
Feature:
Suitable for ordinary fiber and ribbon fiber.
Easy to install and re-entry with a common can wrench.
Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture,vibration and extreme temperatures.
Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Application:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables.
It is widely used for communication, network system, CATV, the fiber optic cable by network.
It is uitable for single core fiber optic cable and ribbon fiber optic cable.
Main Technical Indexes:
Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation
Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.

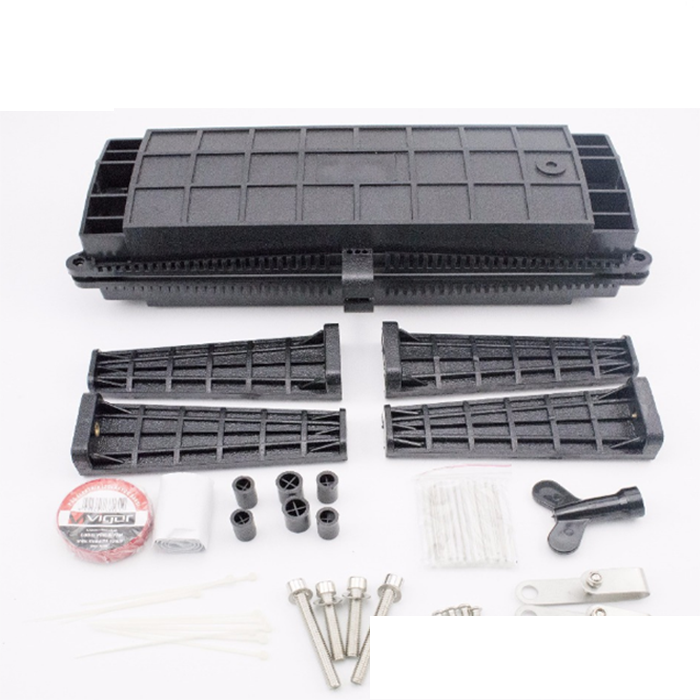

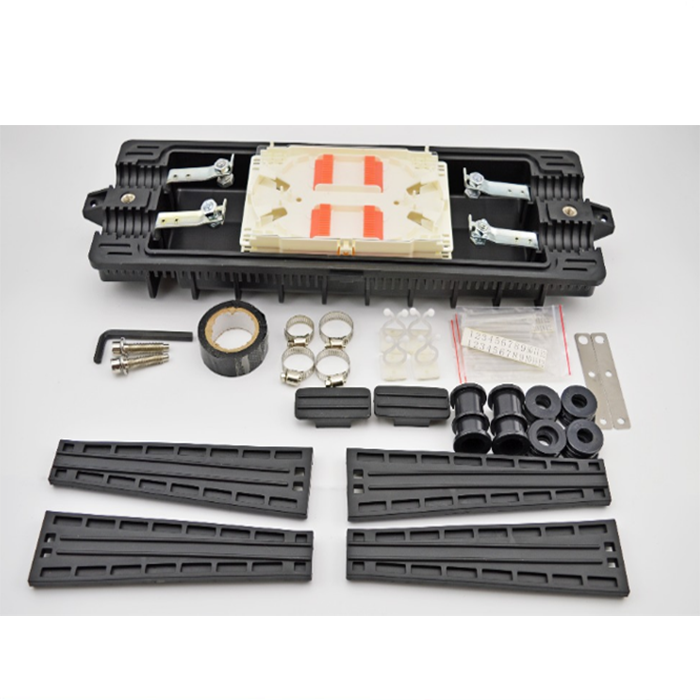

Splice Closure with Accessories:
Packaging: Individual Package,Carton Box
Productivity: 1000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
