In-line 12 cores outdoor fiber splice joint enclosure

In-line 12 cores outdoor fiber splice joint enclosure

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	50 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: 12 cores splice closure

Brand: OEM

Structure: In-line Type or Horizontal Type

Fiber Cores: 12 to 288 cores

Material: PC, ABS, MP

High Light: fiber optic enclosure

Application: FTTH FTTB FTTX Network

Cable Port: Various ports available

Operating Temperature: -40°C~+70°C

Install: Aerial, duct, buried

Warranty: 1 year

Certification: ROHS/ISO9001

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual Package,Carton Box

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

In-line 12 cores outdoor fiber splice joint enclosure

Fiber splice closure Description:
The optic fiber splice closures are widely apply for the connecting of optical cable.
Optic Fiber Splice Closure is a fiber management product typically used with outdoor fiber optical cables.It provides space and protection for the fiber optic cable splicing and joint.
Fiber splice closure is used for aerial, strand-mount FTTH"tap"locations where drop cables are spliced to distribution cables.

Product Name:outdoor fiber splice enclosure,fiber splice enclosure,joint enclosure,fiber splice closure,joint closure optic,splicing enclosure,joint closure box

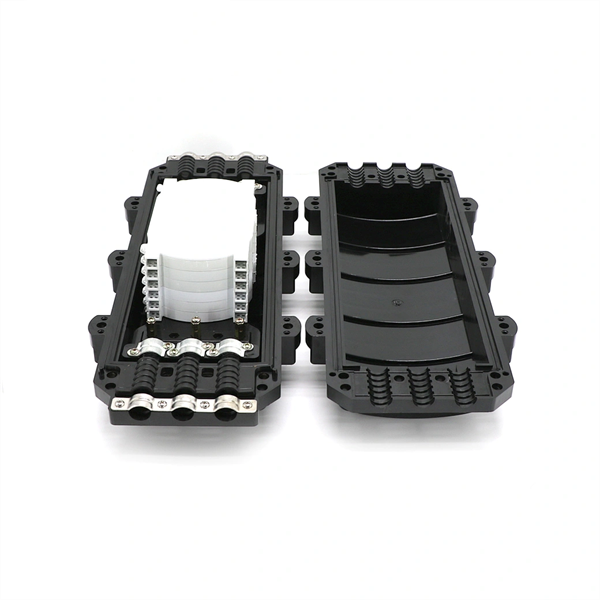

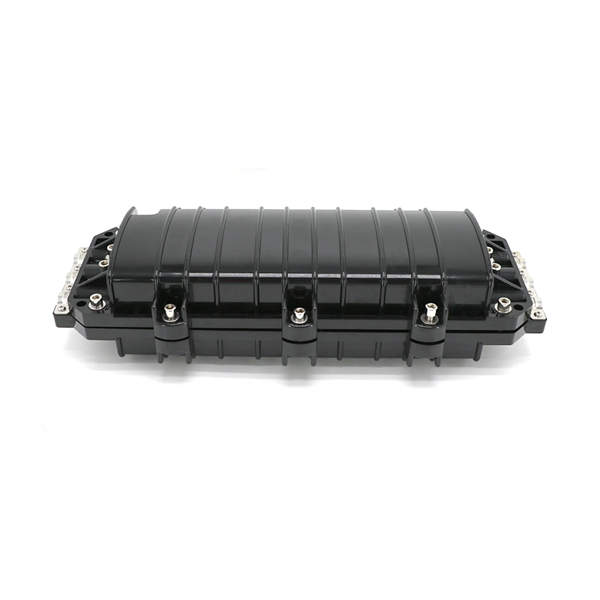

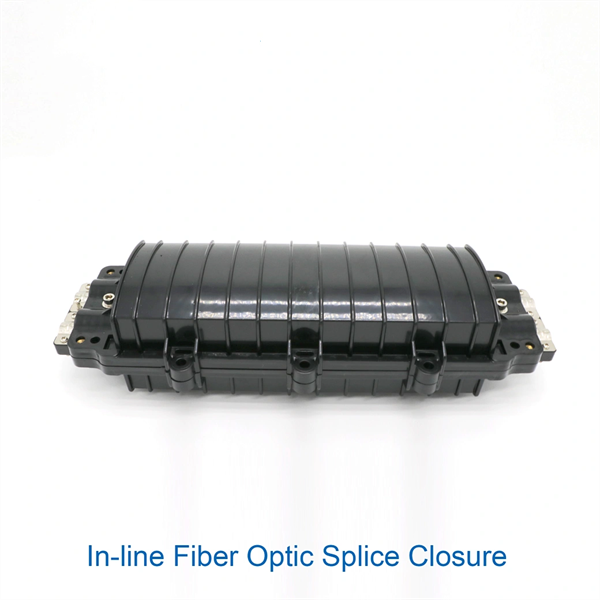

Fiber Splice Closure Picture:

Specification:

Type/Fiber Splice Tray	FOSC-H001	FOSC-H002	FOSC-H003	FOSC-H004	FOSC-H005	FOSC-H006
Size(mm)	43519085	435190120	435190120	43519080	435190170	420150110
Cable diameter(mm)	Φ 10 – Φ 17	Φ 10 – Φ 22	Φ 10 – Φ 22	Φ 10 – Φ 17	Φ 10 – Φ 22	Φ 10 – Φ 23
Max capacity(core)	96	168	192	96	288	96
Cable port	2 in, 2 out				4 in, 4 out	3 in, 3 out
Sealing structure	Sticky cincture
Weight(kg)	2.6	2.8	2.6	2.3	4.7	2

Feature:
Suitable for ordinary fiber and ribbon fiber.

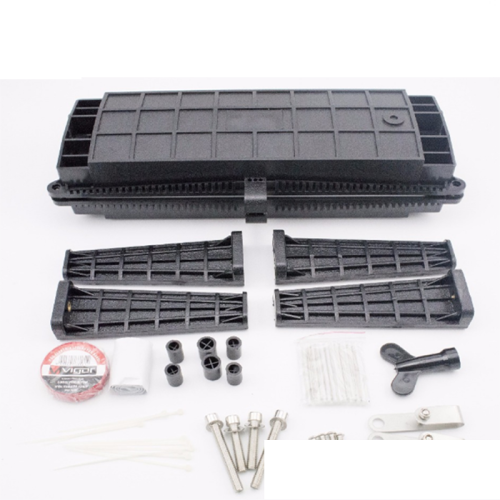

Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Easy to install and re-entry with a common can wrench.
Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture,vibration and extreme temperatures.

Application:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network.
Suitable for single core fiber optic cable and ribbon fiber optic cable.

Main Technical Indexes:
Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.
