Square Singlemode FC Fiber Optic Cable Coupler Adapter

Square Singlemode FC Fiber Optic Cable Coupler Adapter

Payment Type:	L/C,T/T,D/P,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	50 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: FC

Brand: OEM

Connector Type: SC,ST,FC,LC

Mode: Singlemode, Multimode

Type: Simplex, Duplex, Quad

Sleeve: Zirconia/Ceramic, Copper

Housing: ABS, PBT, PC

Color: Blue, Beige, Green, Customized

End-face: PC, UPC, APC

Keyword: Fiber Adapter

Structure: Female To Female

Certification: ISO,ROHS

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Individual Package,Carton Box

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

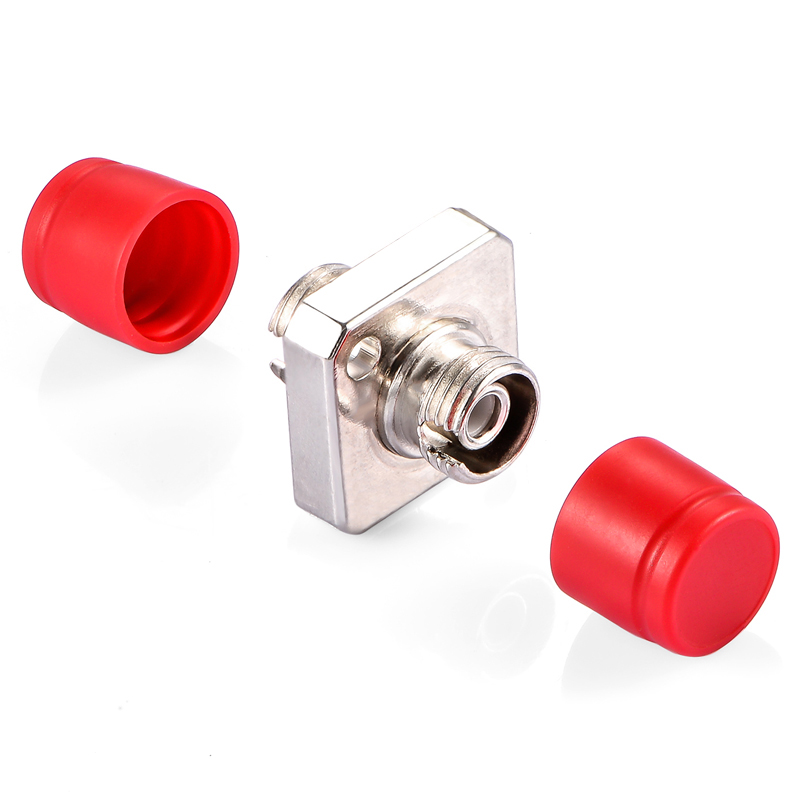

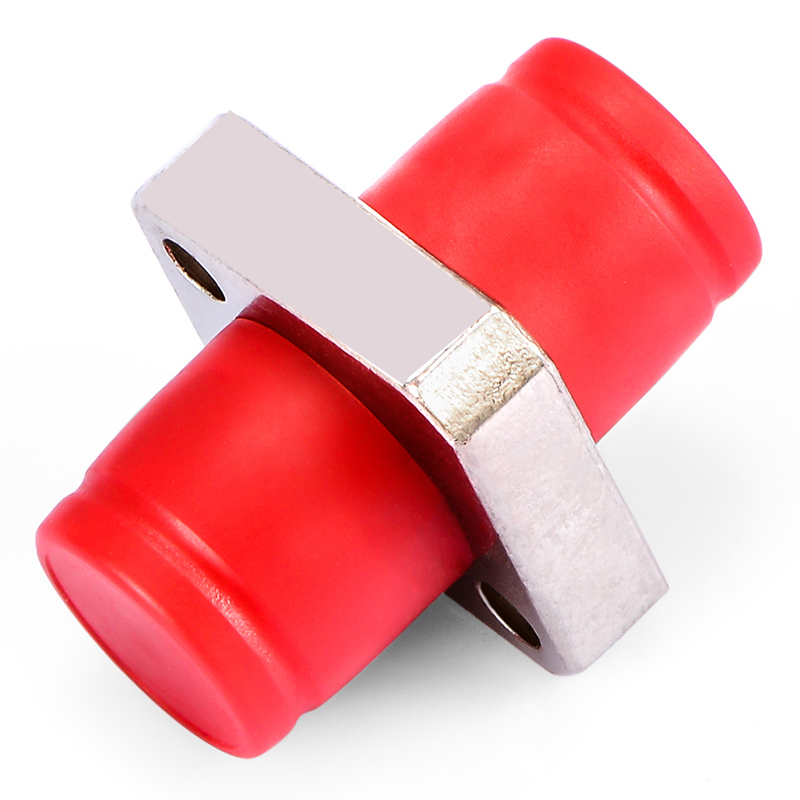

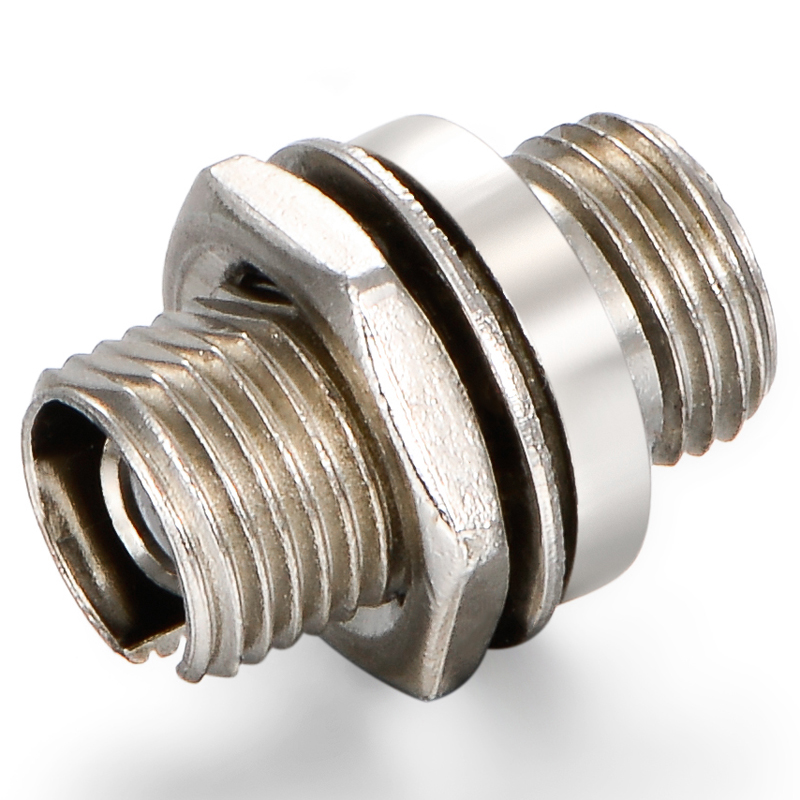

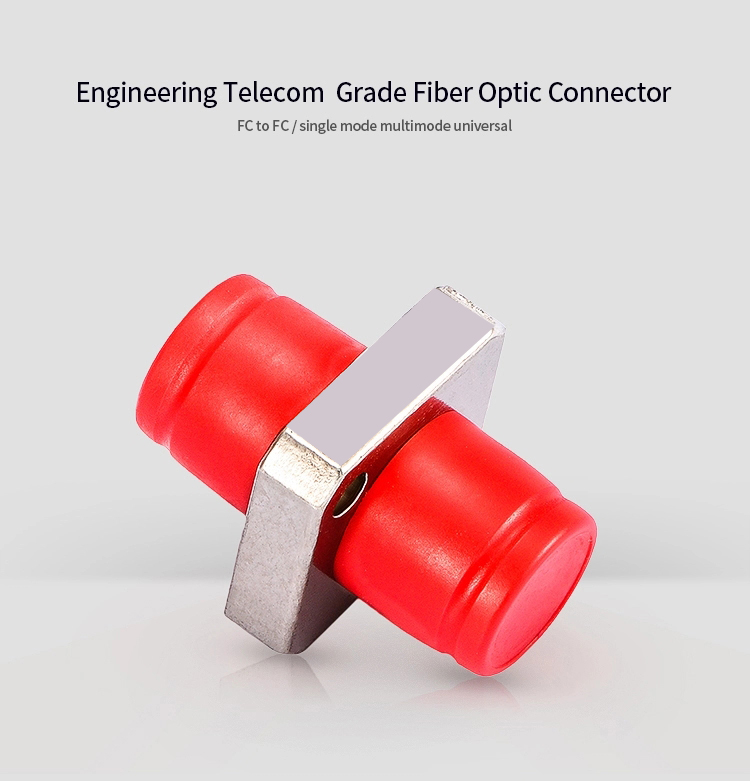

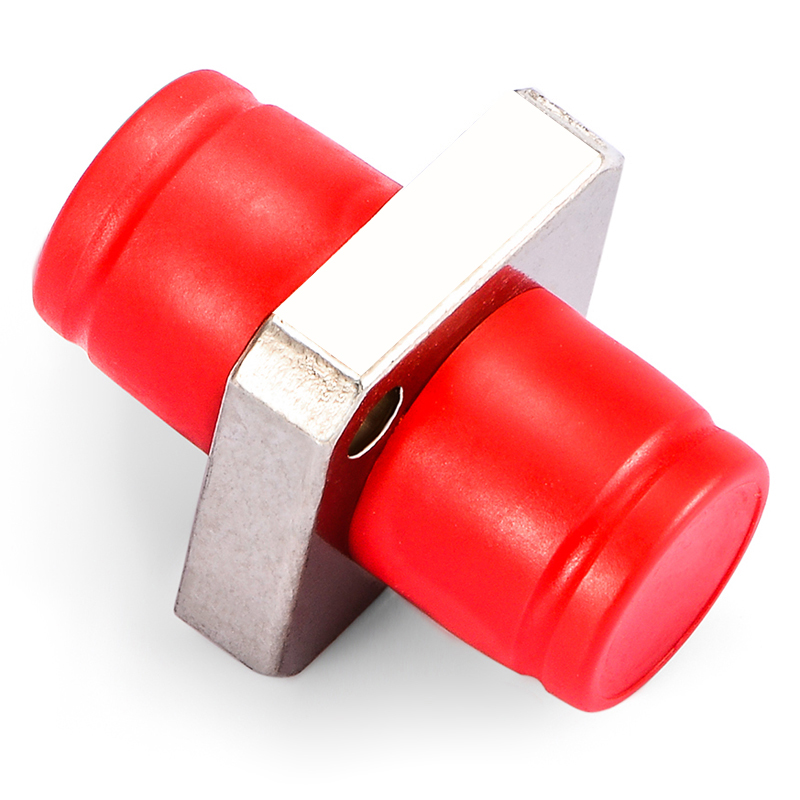

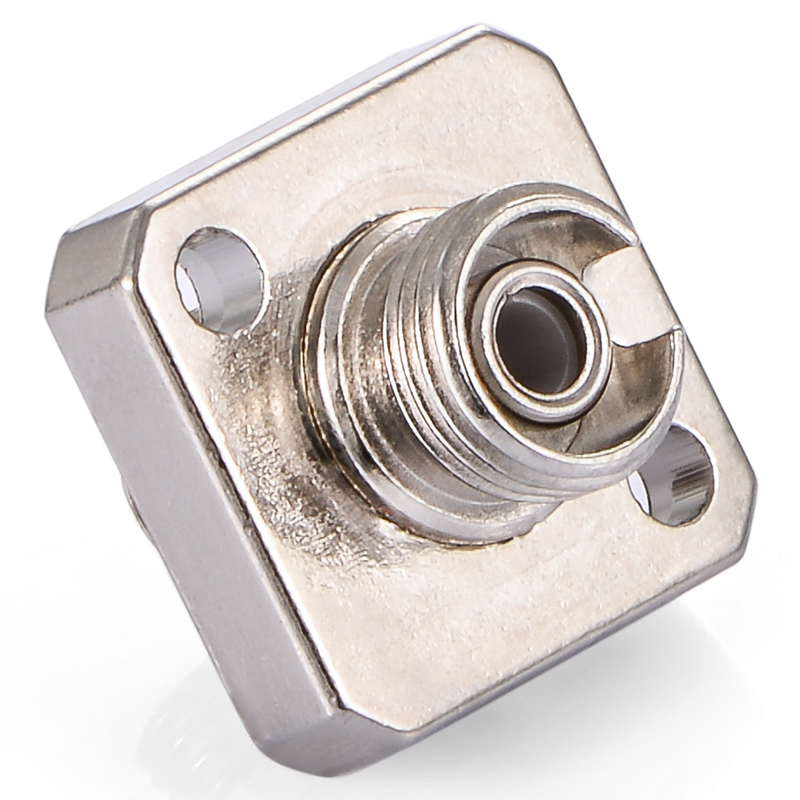

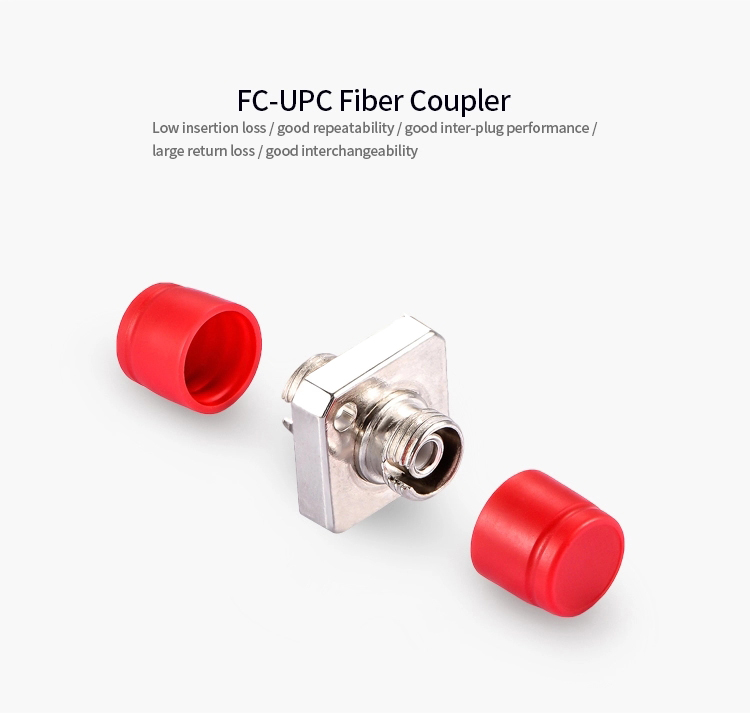

Square Singlemode FC fiber optic cable coupler Adapter

Description:

Our FC PC Fiber Optic Adapter Mating Sleeves are available in singlemode and multimode versions and have metal housings.These FC Fiber Optic Mating Sleeves have phos. bronze or zirconia sleeves, depending on the type chosen. Also available are APC style Fiber Optic FC Mating Sleeves.In addition to this particular style of fiber optic mating sleeve, we can provide mating sleeves, adapters, adapter panels and fiber optic connectors for all your needs and applications. Hybrid fiber optic mating sleeves are also available. If you don’t see the item that you need on our website, chances are that we have the product in stock in our large inventory.

Product Name:fiber optic cable coupler,fiber coupler,fiber optic cable adapter,adapter fiber optic,fiber sc adapter,fiber optic adapters,sc adapter,fiber optic adapter,fiber adapter,sc fiber adapter,sc fiber optic adapter,adapter upc,optic fiber coupler,lc fiber adapter,fiber optic adapter types,fiber adapter types,lc fiber optic adapter,fibre adapter,Fiber Optic Patch Cord adapter,single mode fiber adapter,ftth adapter,fiber cable adapter,ofc coupler,plc coupler

Product Picture:

Technical Parameter:

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU				MTRJ
Mode		SM			MM	SM		MM	SM
Category		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchange ability	dB	≤0.2				≤0.2			≤0.2
Repeat ability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85

Photoelectricity specifications:
1. Insertion Loss: <0.2dB
2. Repeatability: ≤ 0.2dB
3. Exchange: ≤ 0.2dB
4. Durability: >1000(times)
LC fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment

Features:
-Solid Type Adapter
-Rectangular Type Adapter
-Square Type Adapter
-Metal Body
-Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type

Specifications:

100% tested before delivery Custom Cable, Connector... Good Quality at Fair Price Usage environment

1. Storage Temperature: -25º C~+85º C

2. Operating Temperature: -25º C~+85º C

Application

-Fiber Optic Telecommunications;
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.
