Model No.: LC/UPC SM DX
Brand: OEM
Connector Type: SC,ST,FC,LC
Mode: Singlemode, Multimode
Type: Simplex, Duplex, Quad
Sleeve: Zirconia/Ceramic, Copper
Housing: ABS, PBT, PC
Color: Blue, Beige, Green, Customized
End-face: PC, UPC, APC
Keyword: Fiber Adapter
Structure: Female To Female
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it

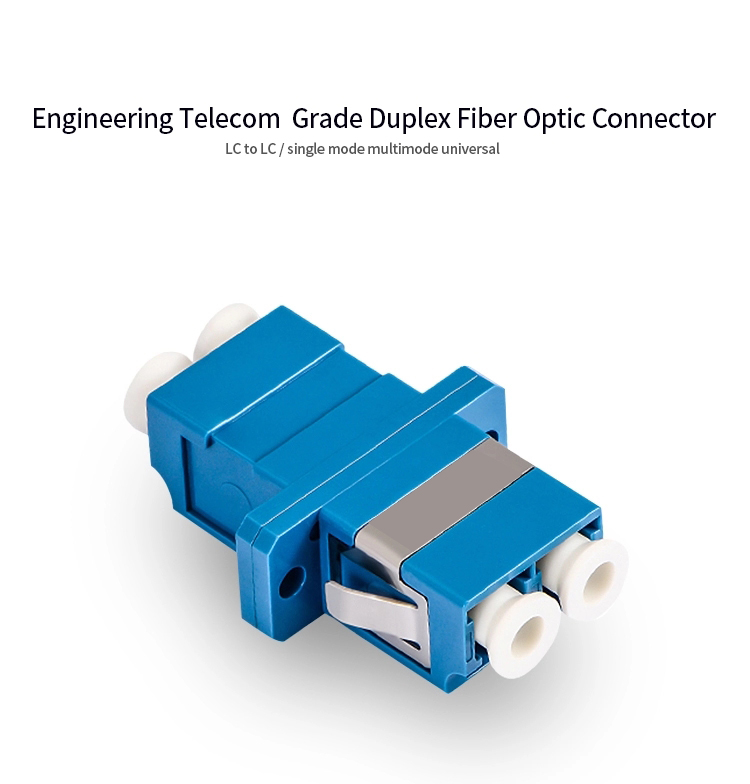

Singlemode Duplex UPC LC Fiber Optic Adapter Types
Description:
Optical Fiber Adapter are used in fiber optic connection, the typical use is to provide a cable to
cable fiber connection.The LC Quad Optical Fiber Adapter were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.Single-mode and multimode LC adapters come with a choice of zirconia ceramic or phosphor bronze split sleeves, including zirconia diagonal split sleeves for PC and APC applications.
Product Name:fiber adapter types,lc fiber optic adapter,fibre adapter,,adapter fiber optic,fiber sc adapter,fiber optic adapters,,sc adapter,fiber optic adapter,fiber adapter,sc fiber adapter,sc fiber optic adapter,adapter upc,optic fiber coupler,lc fiber adapter,fiber optic adapter types,Fiber Optic Patch Cord adapter,single mode fiber adapter,ftth adapter,fiber cable adapter,ofc coupler

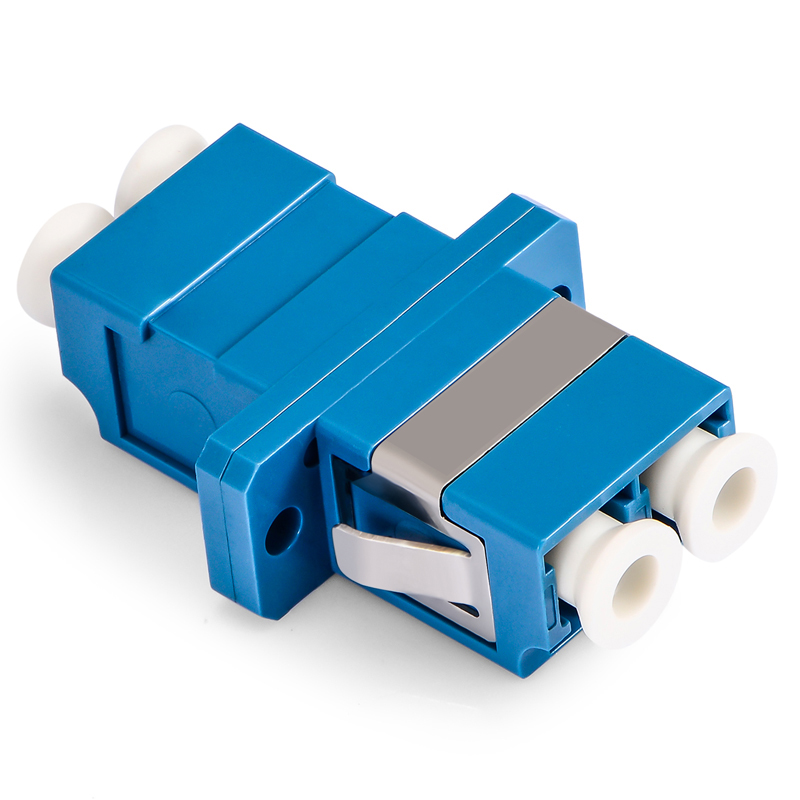

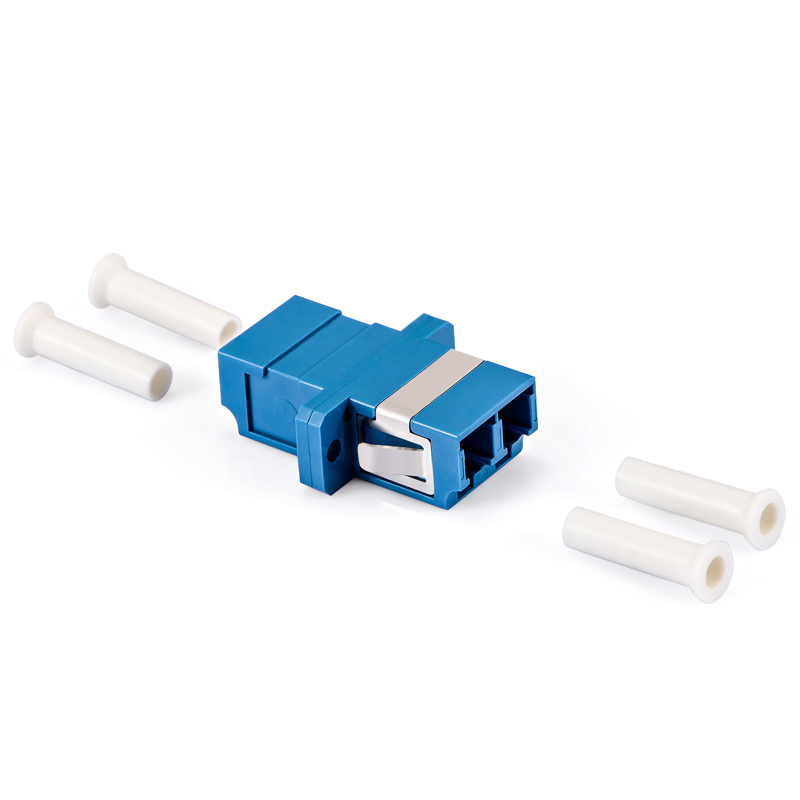

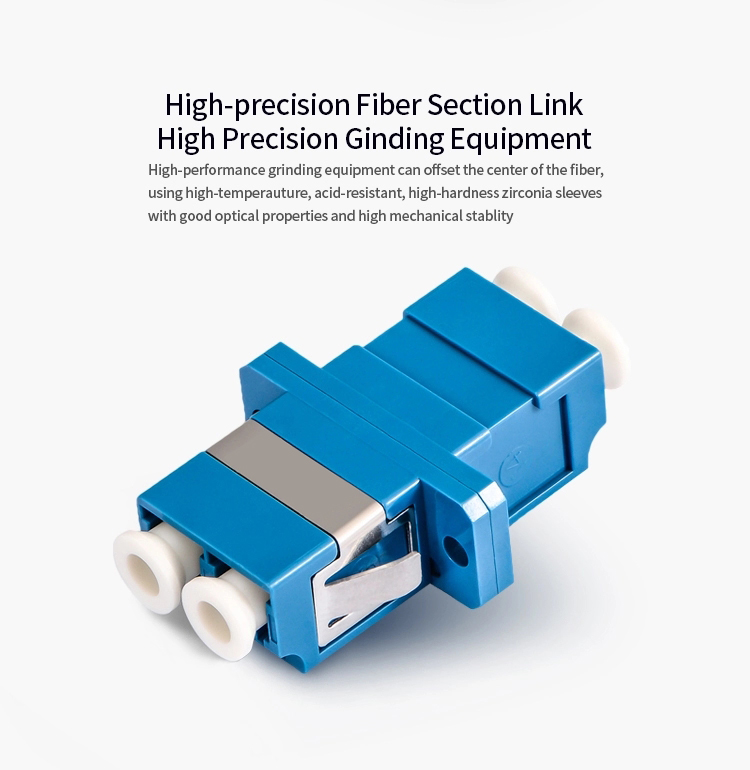

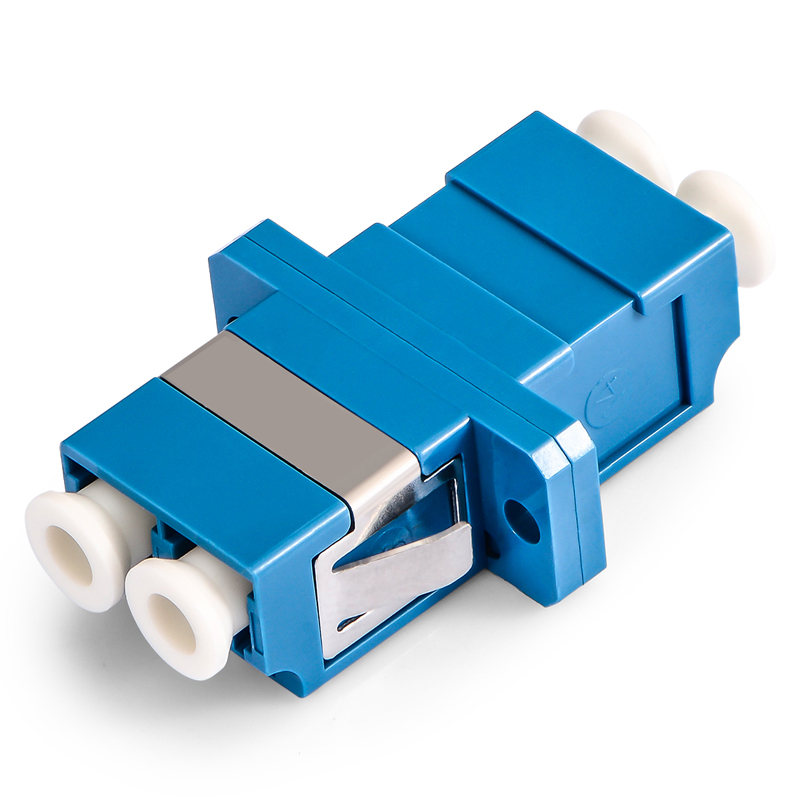

Product Picture:
Parts &Material:
| Parts | Material | Remarks |
| Sleeve | Zirconia, PB |
|
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Clip | stailess steel |
|
Optical Performance:
| Item | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical:
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC |
| ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Features:
Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical capability
Variety of colors

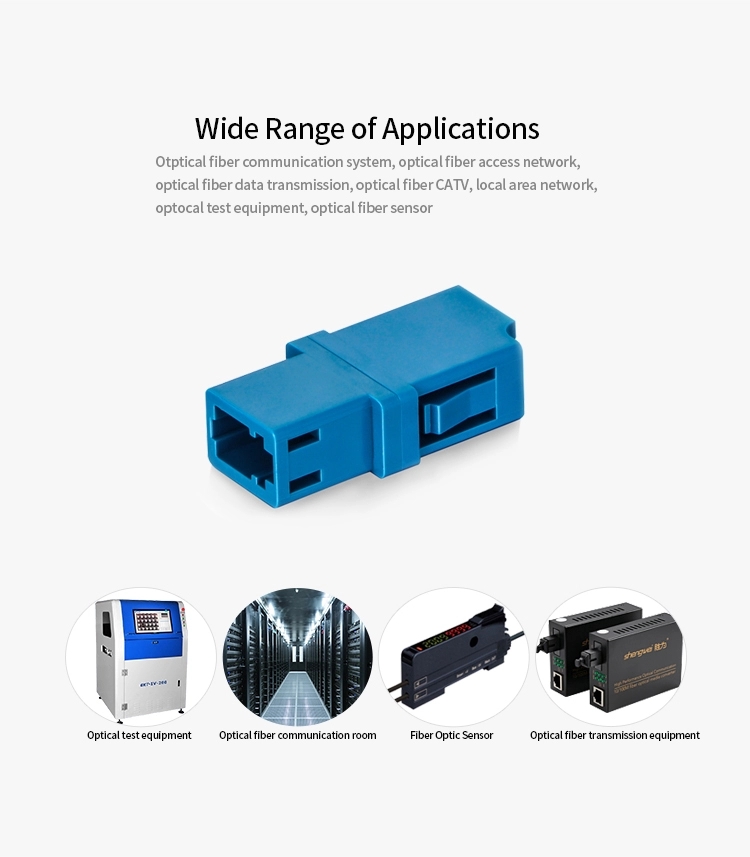

Fiber Adapter Application:
CATV
Telecom networks
Optical test equipments
Local area networks
Wide area networks
Data processing networks
Fiber Adapter Order Information:
LC/UPC-LC/UPC-MM-Quad-Plastic Adapter
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
Packaging: Individual Package,Carton Box
Productivity: 5000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Day
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
