Model No.: SC/UPC SC/APC SM SX
Brand: OEM
Connector Type: SC,ST,FC,LC
Mode: Singlemode, Multimode
Type: Simplex, Duplex, Quad
Sleeve: Zirconia/Ceramic, Copper
Housing: ABS, PBT, PC
Color: Blue, Beige, Green, Customized
End-face: PC, UPC, APC
Keyword: Fiber Adapter
Structure: Female To Female
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
UPC APC Simplex SM SC Fiber Optic Adapter
Description of fiber cable coupler:
fiber optic adapters SC fiber connector SC UPC SX SM optic fiber adapter.Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Product Name:sc adapter,fiber optic adapter,fiber adapter,adapter fiber optic,fiber sc adapter,fiber optic adapters

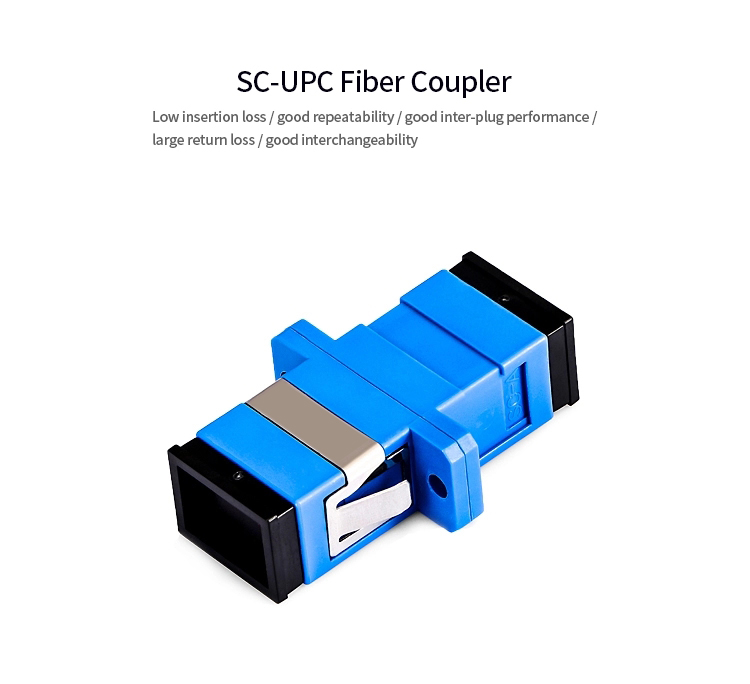

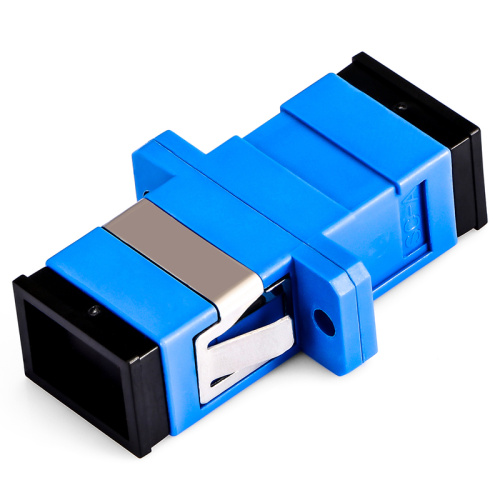

Picture for fiber optic cable adapter:
Quick Details for fiber coupler:
| Feature | * OS1 OS2 SC to SC(Female to Female) Simplex Fiber Optic Adapter/Coupler with M2*6MM Screw. * SC adapters is made by ceramic sleeve to connect between two SC fiber Optic cables. * Meets the Telcordia and IEC 61754 standard, all materials compliant with RoHS/REACH * Can be used in Local Area Networks (LANs), Storage Area Networks (SANs), Wide Area Networks (WAN), Metropolitan Area Networks (MAN) data center, business, premises, security, FTTH, FTTP, FTTA, high EMI, and commercial applications. | |||
Fiber Connector Parts &Material:
| Parts | Material | Remarks |
| Sleeve | Zirconia, PB |
|
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Clip | stailess steel |
|
Female to Female Connector Optical Performance:
| Item | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
fiber optic cable coupler Environment and Mechanical:
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC |
| ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC |
| ≤0.2dB |
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |

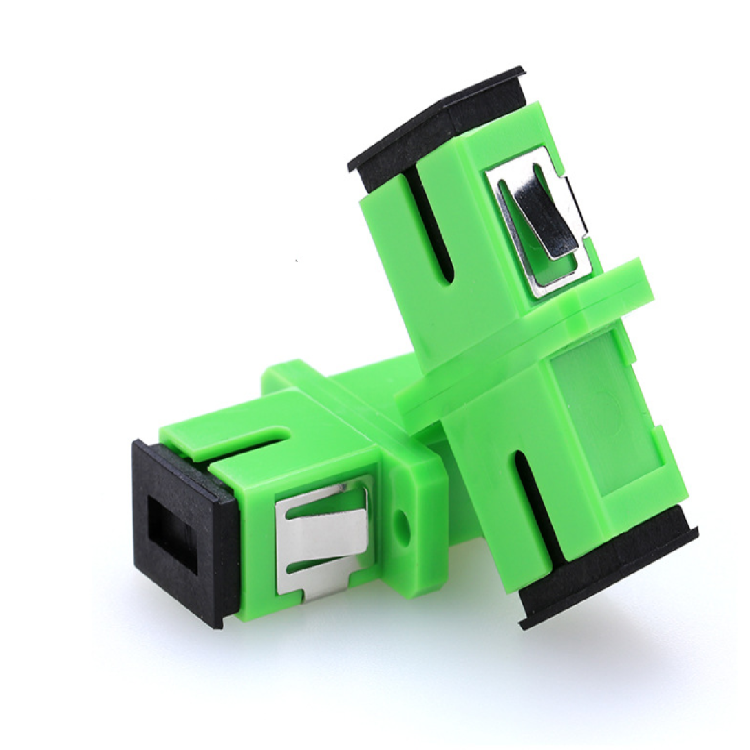

SC APC Adapter Features:
Application:
Order Information:
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
Packaging: Individual Package,Carton Box
Productivity: 5000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Day
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
