Model No.: 16 Port FTTH Distsribution Box
Brand: OEM
Mounting: Wall/Pole/Aerial
Connector: SC, LC
Material: PC, ABS
Application: Indoor, Outdoor
Color: Black, White, Grey
Port No.: 1X16/2X16/1X8/2X8
Usage: Splitter/Distribution FTTX
Use: FTTX
Certification: ROHS/ISO9001
Warranty Time: 1 year
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it

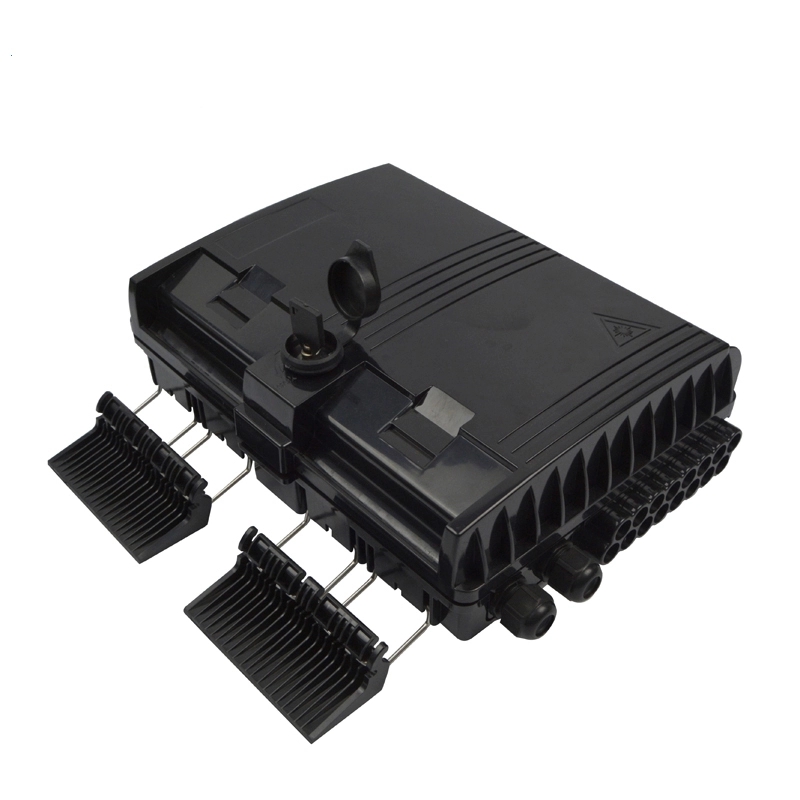

16 cores FTTH Fiber Splitter Terminal Distribution Box
Fiber access distribution box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Product Name:terminal box fiber,ftth box,indoor fiber termination box,ftth terminal box,ftth boxes,outdoor fiber termination box,optical distribution box,fiber patch panel 4 port,fiber access terminal box,Fiber Optic Patch Panel 4 port,4 port fiber termination box,ftth termination box,fibre optic distribution box,Fiber Distribution Box price,home termination box,fibre optic distribution box,fiber optic distribution box,fiber distribution box,fiber distribution box price,ftth distribution box,outdoor fiber distribution box,outdoor fiber optic distribution box,ftth outdoor box,ftth box manufacturer,outdoor optical distribution box,fiber optic nap box,ftth box manufacturer,terminal ftth,16 cores FTTH distribution box
Feature:
Water-proof design with IP-65 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1 pcs of 1*16 Fiber Optic Pigtails can be installed as an option.
Efficient cable management. 16 ports cable entrance for drop cable.
Details:
1、 Total enclosed structure.
2、 Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection
level up to IP65。
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution etc all in one.
4、 Cable，pigtails，patch cords are running through own path without disturbing
each other, cassette type SC adaptor installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a
cup-joint way, easy for maintenance and installation.
6、 Cabinet can be installed by the way of wall-mounted or poled-mounted,
suitable for both indoor and outdoor uses.
Application:
CATV Network
FTTH access network
Telecommunication network
Data communication network

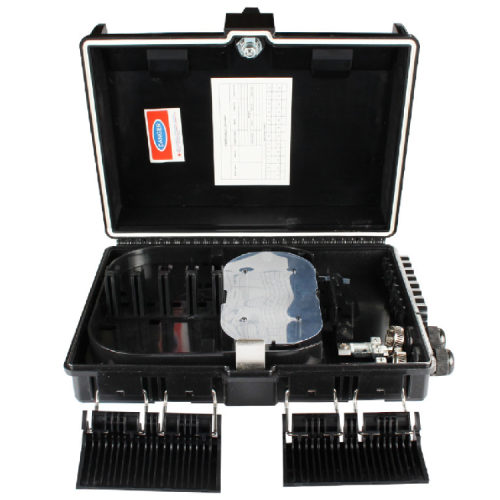

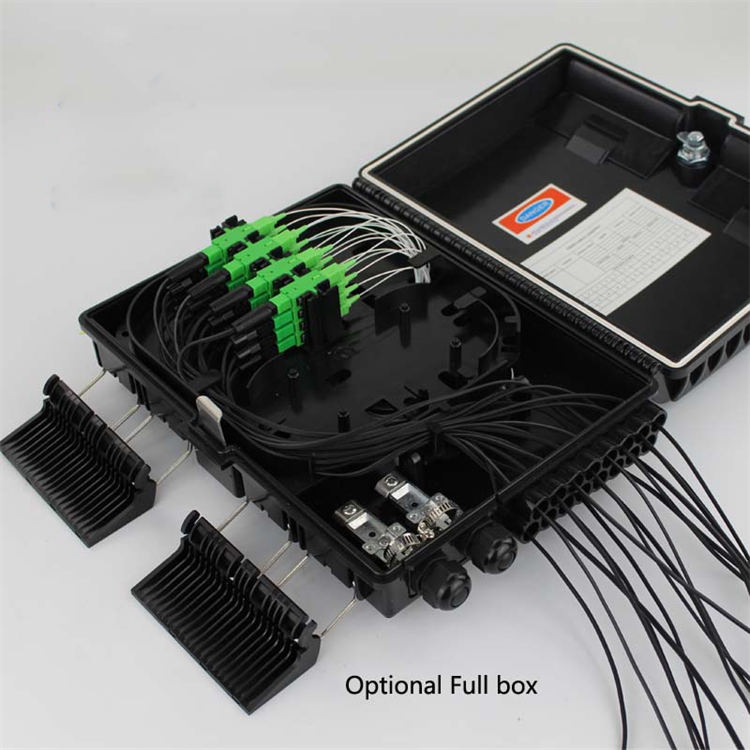

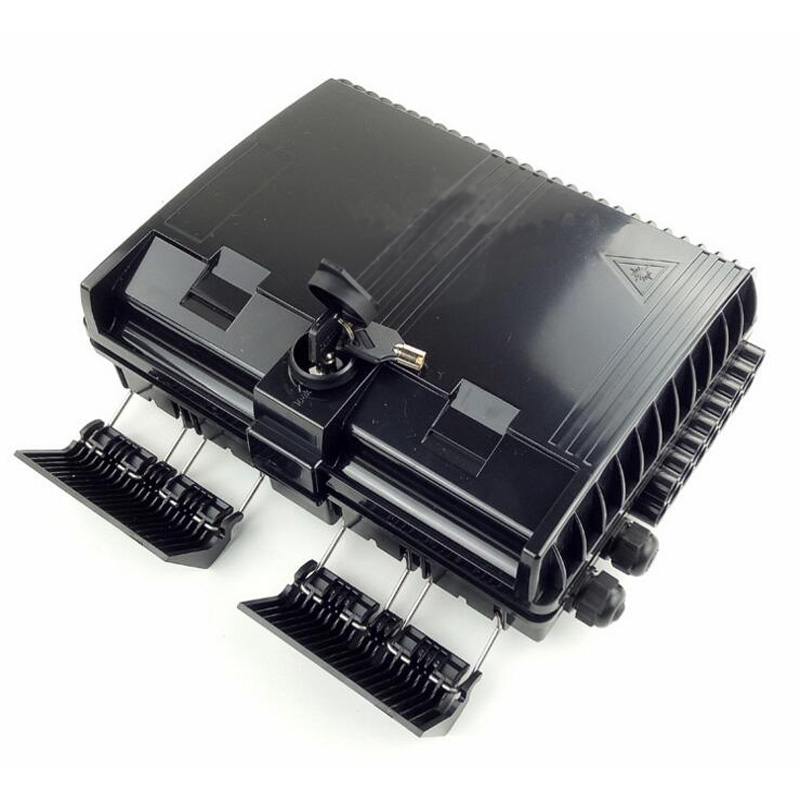

Pictures Of Fiber Optic Distribution Box
Packaging: Individual Package,Carton Box
Productivity: 5000 pieces per week
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 5000 pieces per week
Certificate: ISO,ROSH
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
