FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp
FTTH Aerial Electrical High Tesnion Drop Cable Clamp

FTTH Aerial Electrical High Tesnion Drop Cable Clamp

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:100 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.ODWAC-22

BrandOEM

Product NameDrop Cable Clamp

Cable Diameter2x6mm

Breaking Load1kN

MaterialStainless Steel SS201 or SS304

OEM/ODMAvailable

UsageFTTH drop cable

CertificationISO,ROHS,CE

Teeth MaterialAluminum

Applicationstrain cable line

Packaging & Delivery
Selling Units: Set/Sets
Package Type: Individual package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

FTTH Aerial Electrical High Tesnion drop cable clamp



1. Product Parameter of ODWAC-22 Drop Cable Clamp

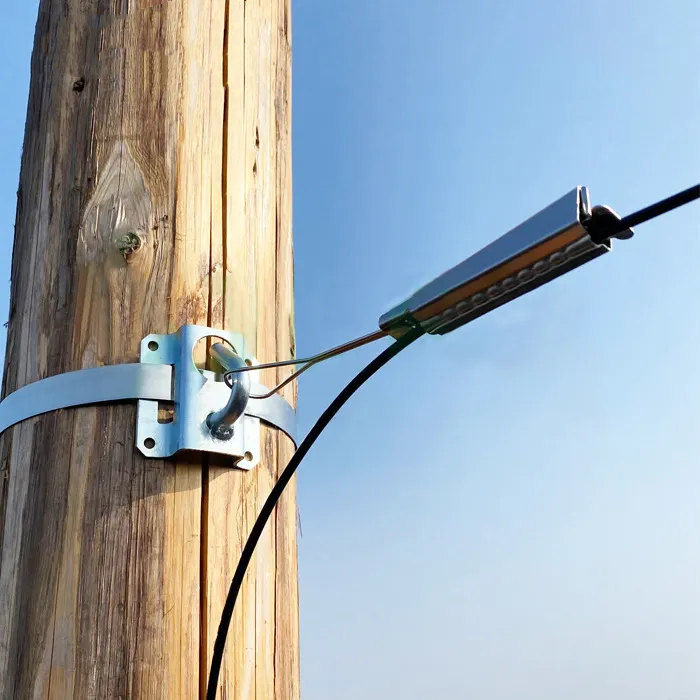

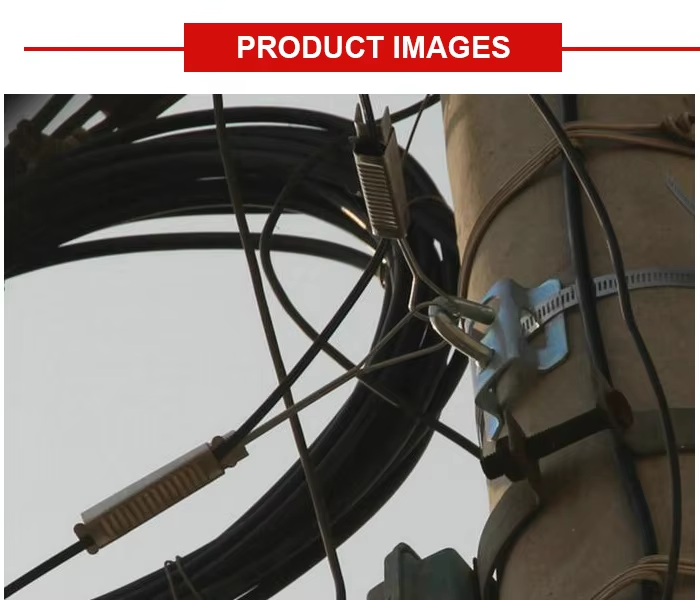

1)FTTH Drop Cable Clamp is used to connect a overhead fiber cable to a optical devices or a house, widely used indoor / outdoor installation.
2)This drop cable clamp is made of stainless materials, guarantees long time of usage.
3)Drop tension clamp is equipped with stainles steel perforated shim, which increase the tension load on stainless steel clamp without cable slip and damage.

Product Name:tension cable clamp,drop cable clamp,high tension cable clamp

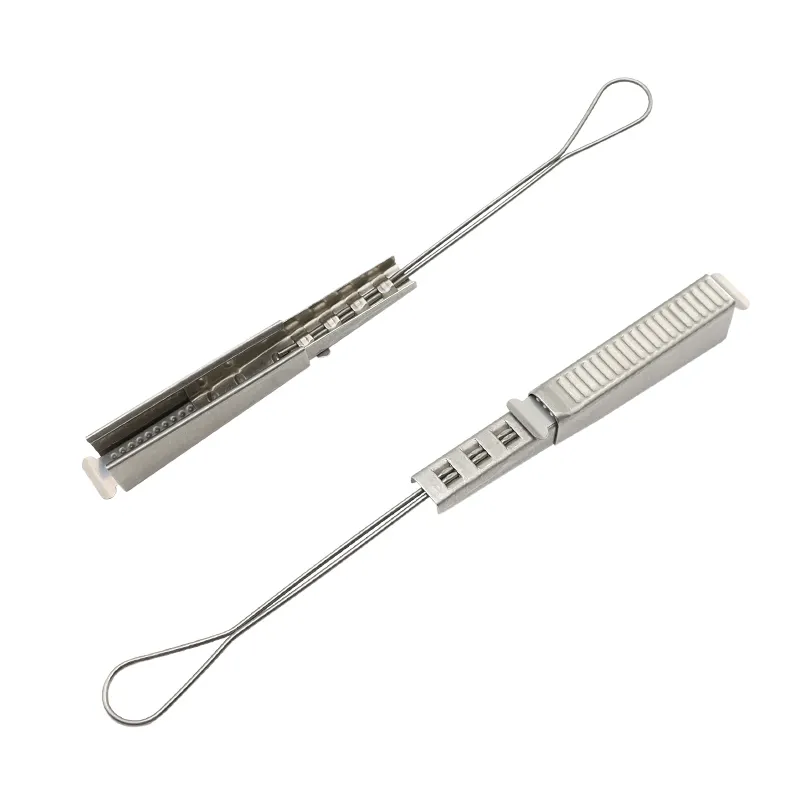

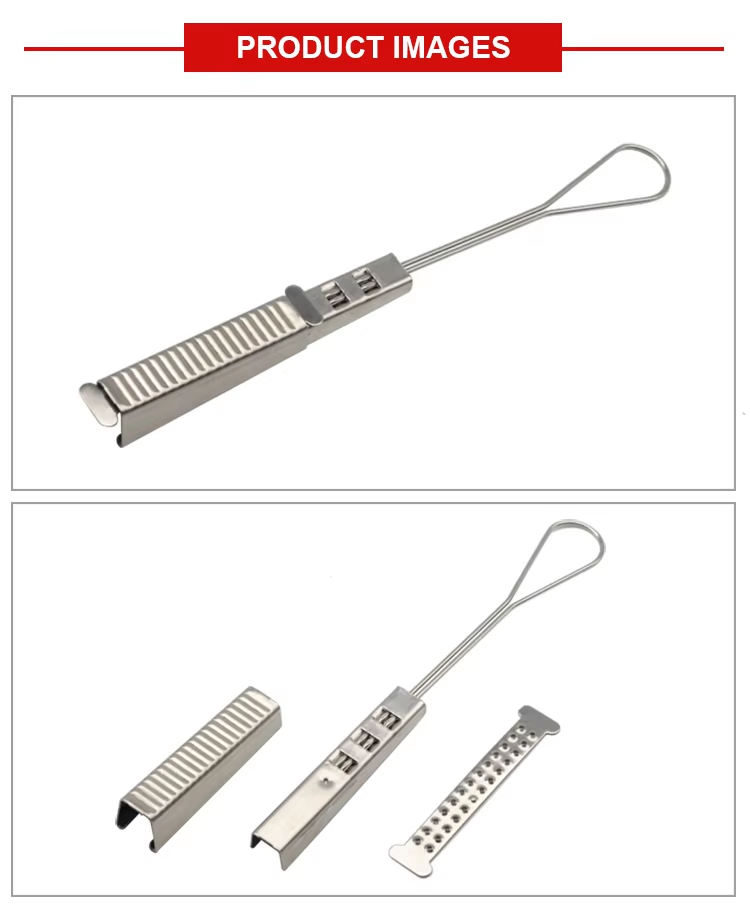

Product Picture:

Cable Metal ClampFTTH Metal Clamp

ODWAC series are tension clamps for FTTH drop cable

Name: ODWAC-22 Drop Cable Clamp

Type: Tension clamp for FTTH drop cable

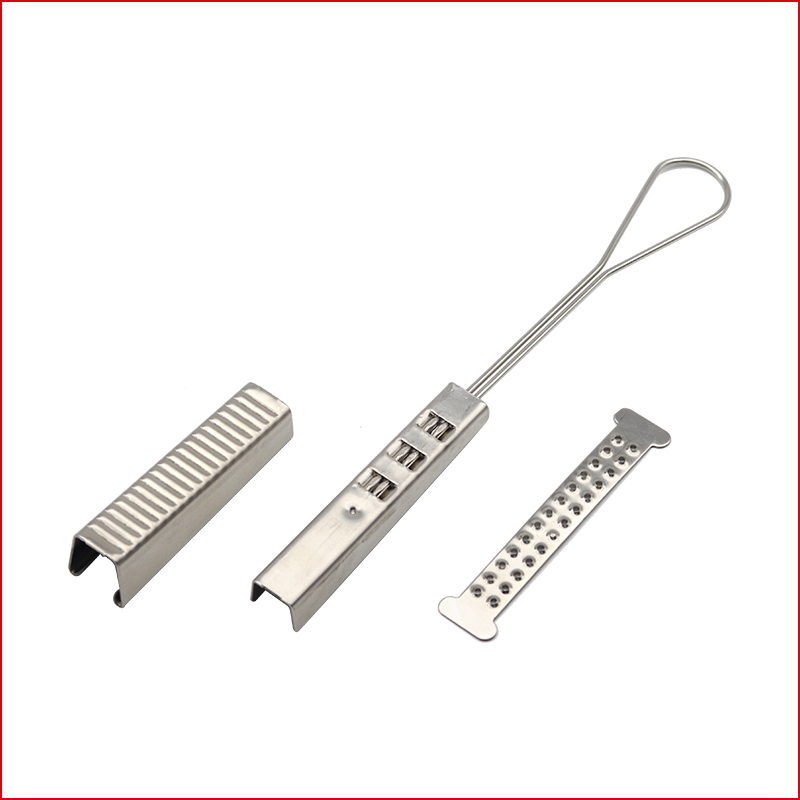

Components: Body, wedge, shim, and a solid wire bail crimped to the wedge.

Material: All parts are made of stainless steel.

Features: Designed to withstand tension, with components that have passed tensile tests.



Technical Parameter:

Model
Cable Diameter (mm)
Break Load (kN)
ODWAC-22
2*6
1
ODWAC-26
2*6
1
Drop Cable Tension Clamp
figure 8 cable clamp

2. Product Feature of 1kv ODWAC-22 Drop Cable Clamp

ODWAC series are tension clamps for FTTH drop cable. A type of wire clamp, which is widely used to support telephone drop wire at span clamps, drive hooks, and various drop attachments.



3. Product Application of ODWAC-22 Drop Cable Clamp

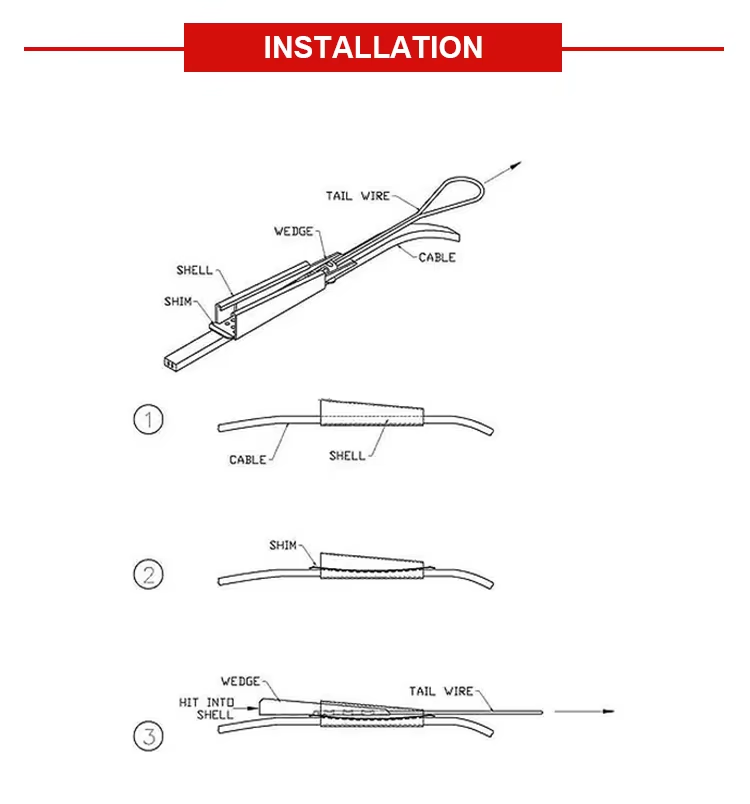

The fiber drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail

is crimped to the wedge. All parts are made out of stainless steel. CONWELL offer this tension clamp

with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps.

All the assemblies passed the tensile tests, operation experience with temperatures ranging from

-60 °C up to +60 °C test, temperature-cycling test.



Flat Cable Clampfiber drop wire clamp

Packaging 1. Normal package: inner bag+carton 2.Specific packaging can be made to order.

fiber clamp price
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account. And also can send by sea or air, kindly send me the port of yours.
Supply Ability & Additional Information

PackagingIndividual package

Productivity100000 pieces per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability100000 pieces per week

CertificateISO

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
