ABC ADSS Fiber Cable Suspension Electrical Wire Clamps

ABC ADSS Fiber Cable Suspension Electrical Wire Clamps

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA
Min. Order:	50 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ES1500

Brand: OEM

Place Of Origin: China

Product Name: ABC Suspension Clamp

Tension Load A Level: 12kN

Cable Size: 25-95mm2

Certificate: CE, ISO9001,ROHS,Test Report

Material: PA66, Aluminum Alloy

OEM/ODM: Offer

Single Package Size: 50X30X20 cm

Single Gross Weight: 21.000 kg

Keyword: Suspension Clamp With Bracket

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Individual Package,Carton Box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

ABC ADSS Fiber Cable Suspension Electrical Wire Clamps

Introduction for tension cable clamp:

1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable

1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable. Suspension Clamps are used along with a bracket or other supporting hardware to suspend and grip, without damaging, a LV AB Cable system. As shown in the images below, they can also be used in conjunction with insulation piercing connectors to provide service connections by tapping the mainline.We are expecting become your long -term partner in China.

For sus pensioning of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions. Bracket pre installed.

Product Name:electrical wire clamps,electrical clamps types,fiber cable clamp

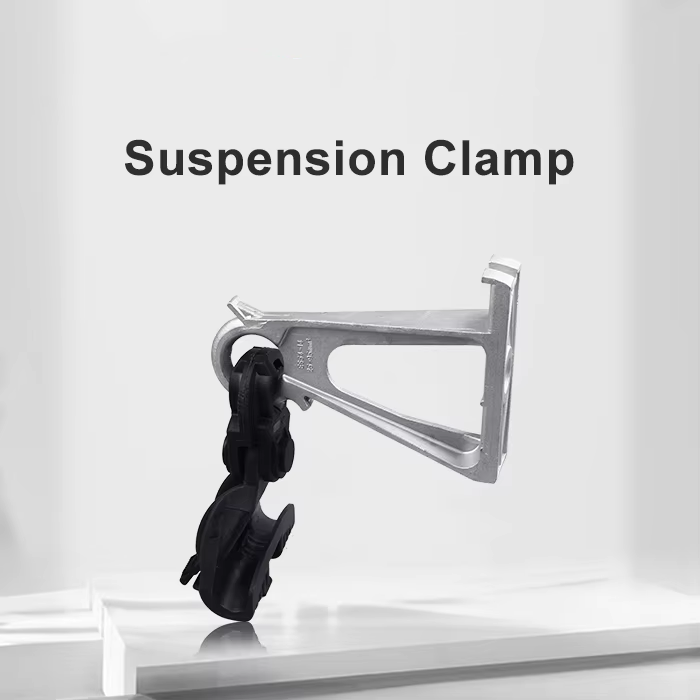

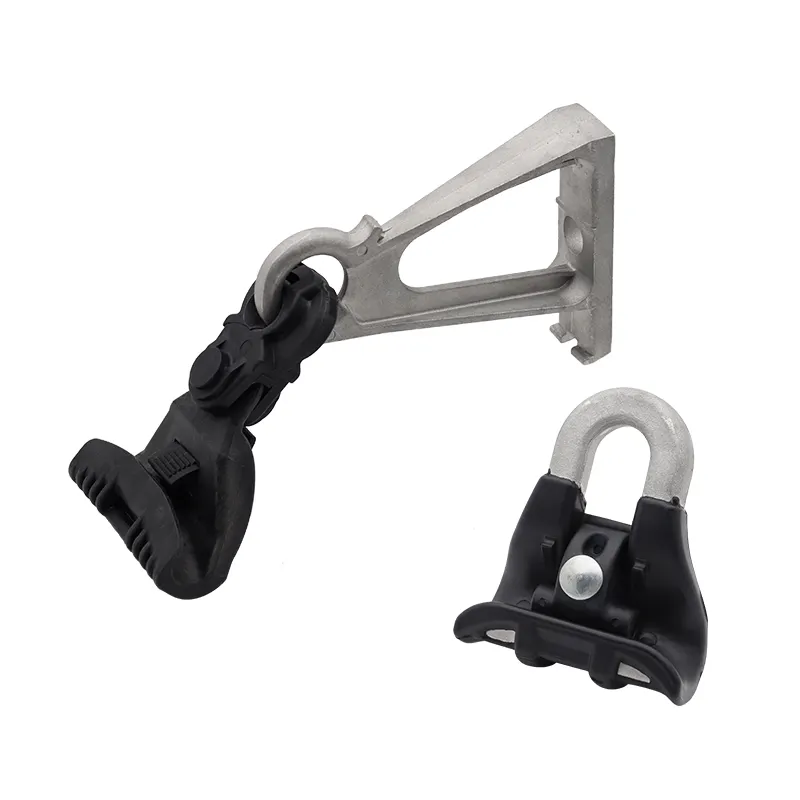

Product Picture for drop cable clamp:

Technical Parameter of high tension cable clamp:

1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable

Model	ES1500
Cross-section	25~95mm²
Breaking Load	12kN

Technical Specification for drop cable clamp

Dimensions

Weight:422g

Cable Size:25-95mm²

Mechanical

Breaking Load:12KN

Use:Suspension clamp with bracket for anchoring insulated messenger wire system.

Construction:UV resistant plastic + Corrosion resistant aluminum alloy.

Installation: Messenger wire is installed into the groove and locked with the locking part.

Tools required: No tools required

Standard:NFC 33-042; EN 50-483

Feature of drop wire clamp:

1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable for Self-Supporting Systems suspends and holds the insulated bundle of the LV-ABC system using a bolt and wingnut assembly without the requirement of any additional tools. The product is compatible with a variety of hook bolts.

The material used for manufacturing of Suspension Clamp:
Body: Hot-dip galvanized steel
Insert: UV and weather-resistant elastomer
Bolts: Galvanized steel

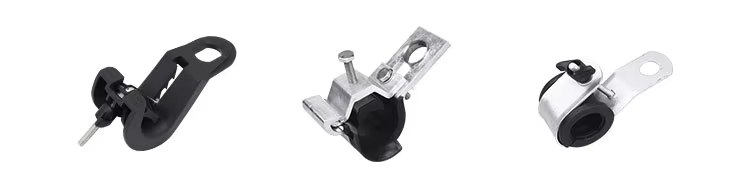

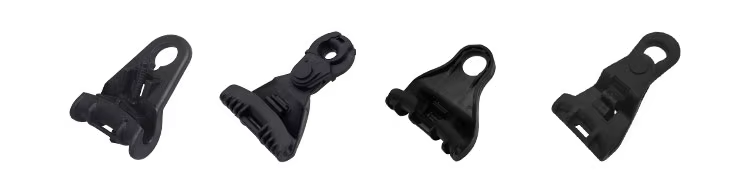

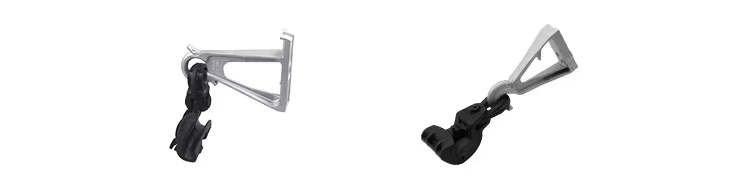

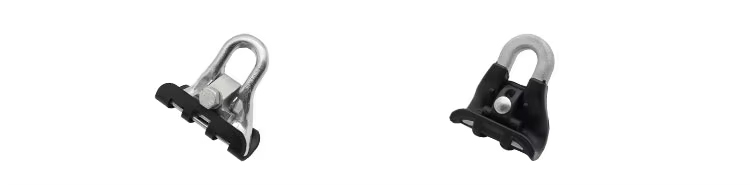

Product Details

Type	Cross-section (mm2)	Breaking Load (kN)
1.1A	16-95	9
1.1B	25-95	12
1.1C	25-95	4
1.1F	25-95	15

Type	Cross-section (mm2)	Breaking Load (kN)
KW94	16-95	15
KW95	16-95	18

Type	Cross-section (mm2)	Breaking Load (kN)
PS25/120	4x25-120	10
PSP25-120	4x25-120	13
PS435	4x18-35	15
PS470	4x50-70	15
PS4120	4x95-120	15

Type	Cross-section(mm2)	Breaking Load (kN)
ES1500	25-95	12
PS1500	25-95	12

Multiple models and specifications are available for selection, catering to your needs.

Application:

Suspension Clamp ES1500 for 25-95mm2 Aerial Cable

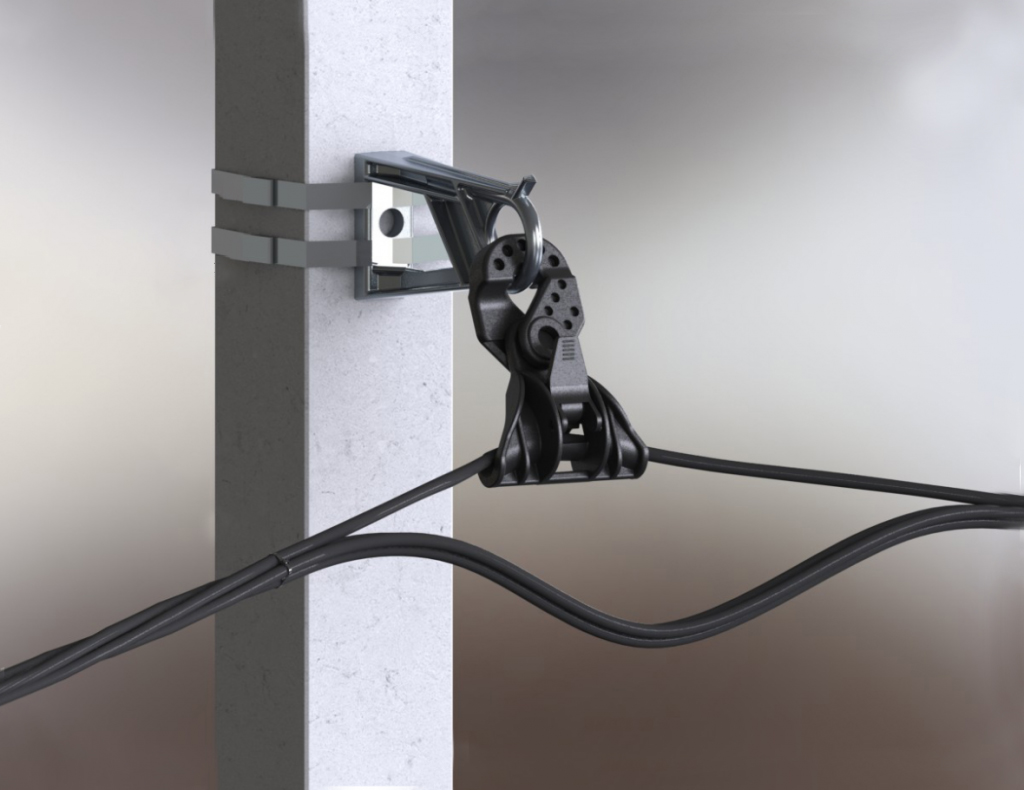

Suspension clamp is used for hanging ABC in the air, by cliping a netural messenger cable, and connected to a eye bolt, or a pig tail hook, which is fixed on the wooden pole.
