Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable
Aerial Dead End Suspension Clamp for ABC Cable

Aerial Dead End Suspension Clamp for ABC Cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:50 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.PAL1500

BrandOEM

Product NameSuspension Clamp

CertificateCE/ISO9001/ROHS

ApplicationHanging Cable

MaterialPA66, Aluminum Alloy

OEM/ODMAvailable

SamplesFree

UsageElectrical Cable Fitting

KeywordADSS Cable Suspension

HighlightDead End Clamp

Breaking Load4~15KN

Packaging & Delivery
Selling Units: Set/Sets
Package Type: Carton Box

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Aerial Dead End Suspension Clamp for ABC Cable

Description of tension cable clamp:

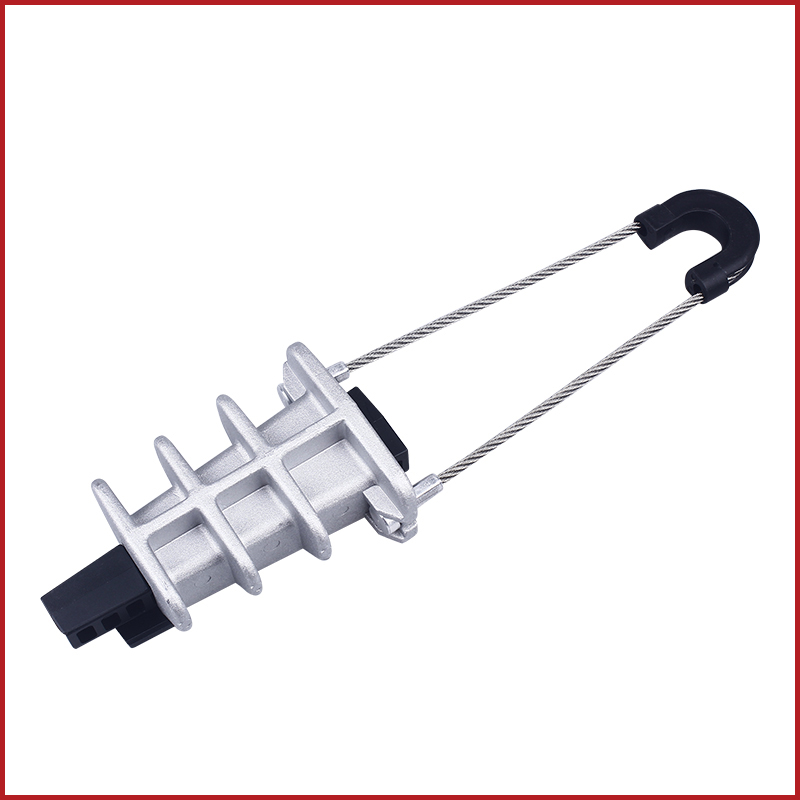

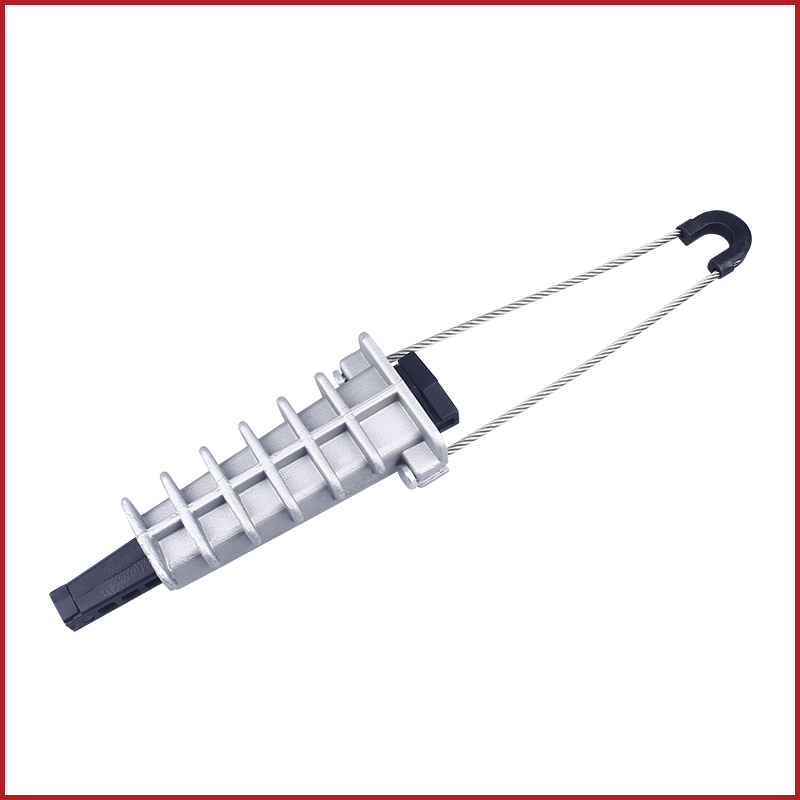

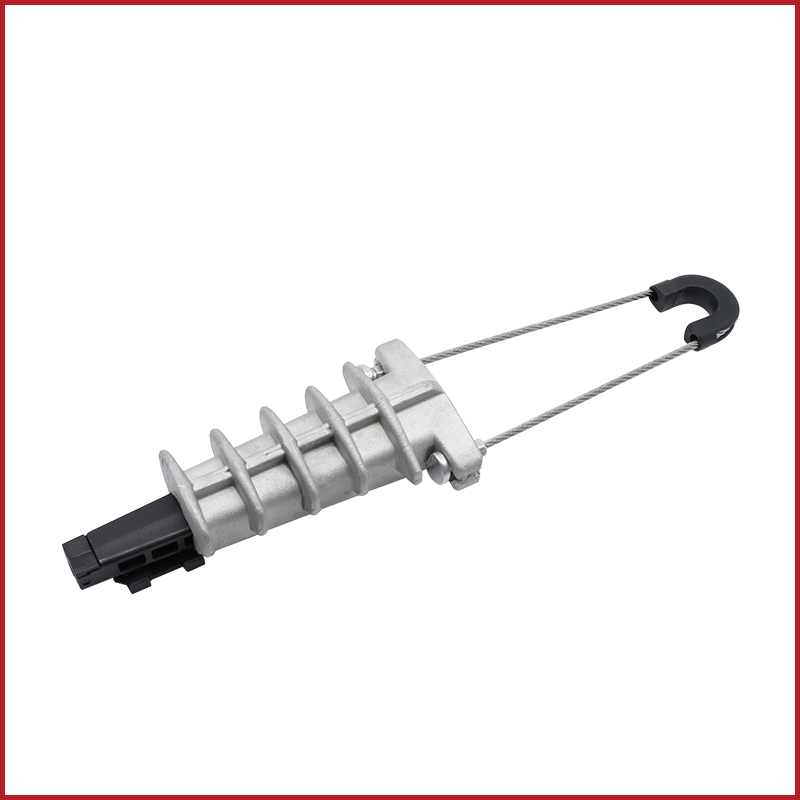

1kv Anchoring Clamp PAL1500 for 50-70mm2 Aerial Cable
Product introduction of 1kv Anchoring Clamp PAL1500 for 50-70mm2 Aerial Cable
We supply 1kv Anchoring Clamp PAL1500 for 50-70mm2 Aerial Cable. Anchoring Clamps for LV AB Cables are used along with a bracket or other supporting hardware and are used to strain the insulated or uninsulated neutral messenger or the self-supported system to terminate into transformer leads or mains for industrial/residential supply. They are also used to provide angles to a LV ABC system without damaging the cable’s insulation.We are expecting become your long -term partner in China.

>The body is made of aluminum alloy

>The cleats are made of UV resistant synthetic material. They are captive.

>The stainless steel flexible linking cable is captive.It is equipped with a resistant,insulated and movable saddle.

>Fixing the insulated neutral messenger is ensured by cleats without damaging the insulation.

Product Name:suspension clamp for abc cable,dead end clamp for abc cable,abc cable clamp

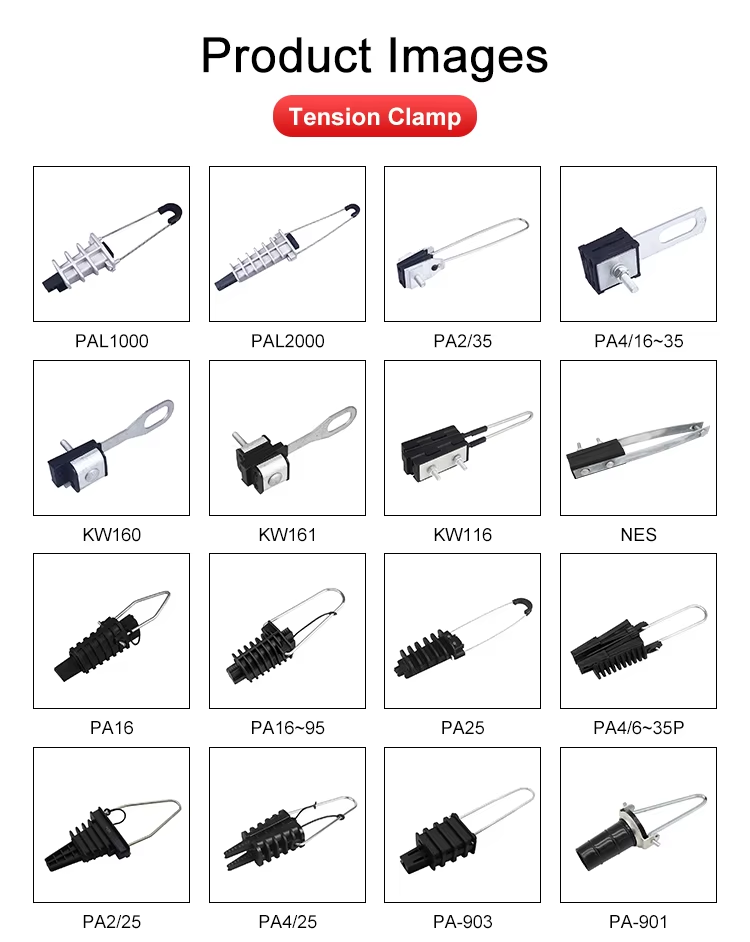

Product Picture for high tension cable clamp:

Overhead Cable Fittingspower line clampaerial fiber cable installation

Technical Specification

Dimensions

Code

PAL1000A

PAL1000

PAL1500

PAL2000

Cable Size

16-35mm²

16-50mm²

16-70mm²

70-150mm²

Messenger DIA.

5-9.8mm 7-12mm 7-13mm 13-18mm

Breaking Load

10KN

12KN

15KN

15KN

Specification

Use

This anchoring assembly is used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger. It comprises a bracket supporting one or two anchoring clamps.

Installation

Open the screw and put conductors into grooves.Tighten the shear head nut.

Standard

NFC 33-042; EN 50-483


electrical wire cable clampdead end clamp manufacturers
Product Feature of drop wire clamp:

There are various anchoring clamp designs available. Generally, these products are designed so that the whole assembly has no loose parts and the entire construction consists of aluminium alloy. The clamp consists of a clamp assembly through which the messenger wire will be passed. Generally polymeric or porcelain insulators are provided to separate lines and supporting structures. The bracket will be mounted on the pole using either the metallic strap or bolted directly. The bolt, nuts & washers are made out of galvanized steel.

Technical Features and Advantages:
1kv Anchoring Clamp PAL1500 for 50-70mm2 Aerial Cable
Can easily sustain the load of the cable size accommodated.
It accepts a variety of wire sizes and has no replaceable parts, making inventory management easy.
The wires are inserted easily due to the spring mounting.
Withstands harsh circumstances, resulting in an extended life, safety, less maintenance, and a lower total cost of ownership.

Product Application of drop cable clamp:
fiber tension clamp

Supply Ability & Additional Information

PackagingCarton Box

Productivity5000 pieces per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability5000 pieces per week

CertificateCE/ISO9001/ROHS

HS Code7616999000
