microduct fibre blowing fiber optic cable blower machine

microduct fibre blowing fiber optic cable blower machine

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GTOC-FBM06

Brand: OEM

Use: FTTH

Warranty Time: 24months

Cable Diameter: 6.0-15mm

Tube Diameter: 32 mm, 40mm, 50mm

Blowing Distance(Max): 2500m

Blowing Speed(Max): 110m per min

Operating Pressure(Max): 10 bar

Machines Dimensions: 620 * 300 * 380mm

Weight Approx: 30KG

Dimensions Of The Transport Box: 690 * 430 * 440mm

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Individual package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Microduct fibre blowing fiber optic cable blower machine

Description for ofc cable blowing machine

GTOC-FBM06 is a professional cable blowing machine designed for blowing cables within 6-15mm range. Available accessories for ducts diameters: 32, 40 and 50mm. Solid and simple construction ensures easy operation and a longevity of the unit. Machine is equipped with a high quality belt feeder and pneumatic motors. Basic version has a mechanical counter meter preinstalled. - Also available: a direction switch to retract the cable or change the blowing direction. - Additionally, together with FCST-FBM06, we can provide another blowing head suitable for blowing cables with a diameter of 4 mm-10mm (or optionally 2.5-12 mm) /into micro ducts of diameter between 5mm to 16mm/ (or optionally 5-20 mm). - FCST-FBM06 accessories set includes seals and bushings for every diameter of cable within machine's range (6.0,7.0,8.0,8.5,9.0, 9.5,11,12,13,14, 15 mm), as well as seals and bushings for HDPE ducts (32, 40, 50 mm).Please inquiry us for ofc blowing machine price or fiber blowing machine price.

Product Name:fiber optic cable blower,blowing fiber cable,fibre blowing machine

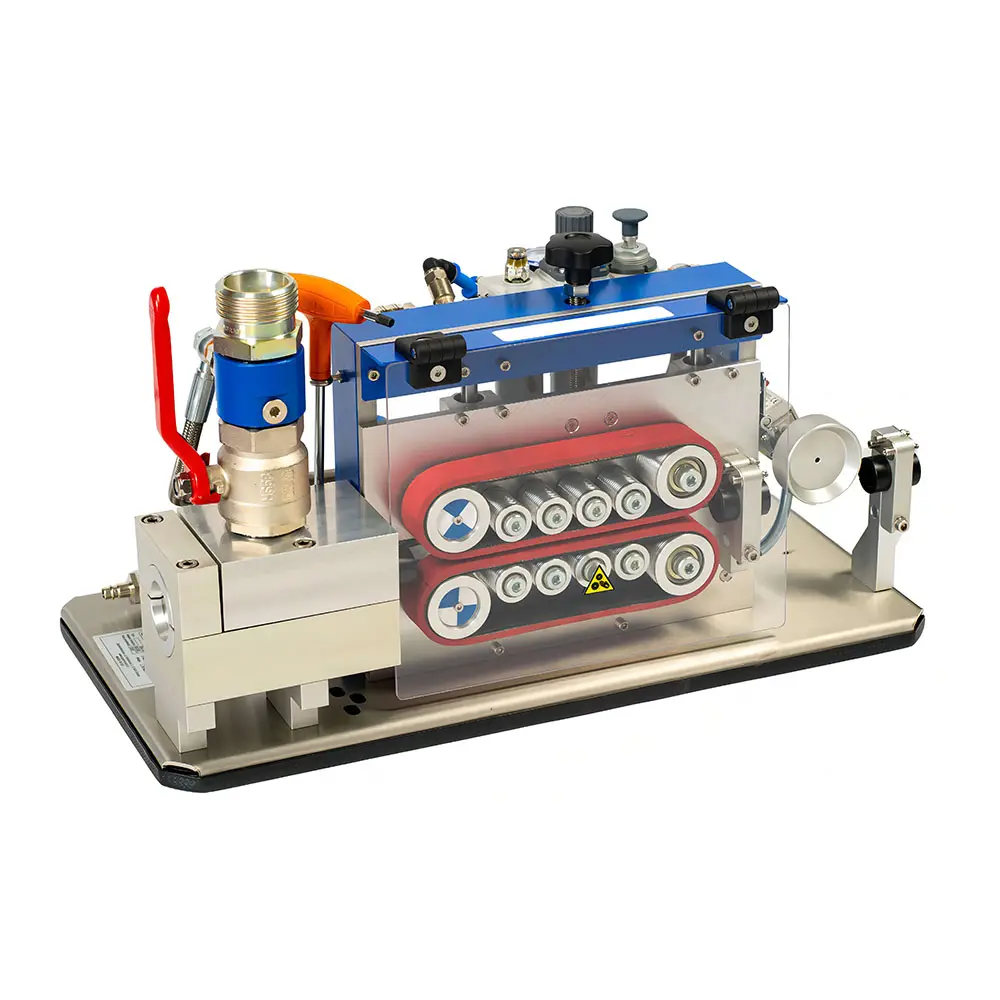

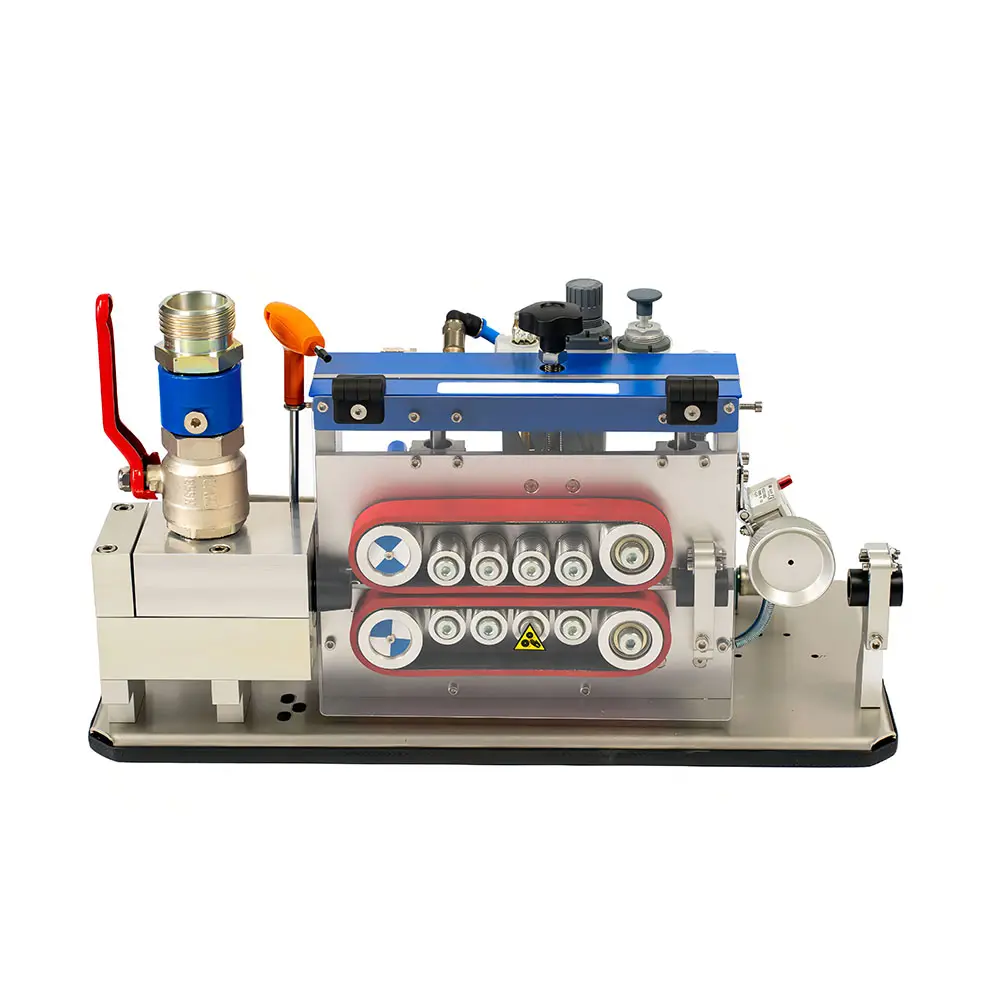

Product Picture for microduct fiber blowing machine:

Specification:

Construction	Description
Technical Data	GTOC-FBM06
Cable Diameter	6,0 – 15,0 mm
Tube Diameter	32 mm, 40mm, 50mm
Blowing Distance /Max	2500 m
Blowing Speed / Max	110 m/min
Operating Pressure / Max	10 bar
Machines Dimensions /L x W x H/	620 x 300 x 380mm /weight approx. 30kg
Dimensions Of The Transport Box	690 x 430 x 440mm /weight approx. 43kg
Available Accessories Inside The Set	Calibrating plates Set of handles for HDPE ducts Set of seals for HDPE ducts Set of cable seals Set of Allen keys Socket wrench Air hose Pneumatic oil sample
Required Compressor’s Efficiency	micro ducts up till 8mm -0,8m3/min micro ducts 8-12mm -1,0m3/min micro ducts 12-16mm -1,5m3/min micro ducts 15-20mm -3,5m3/min ducts 32-40-50 mm – 8 – 10 m3/min
