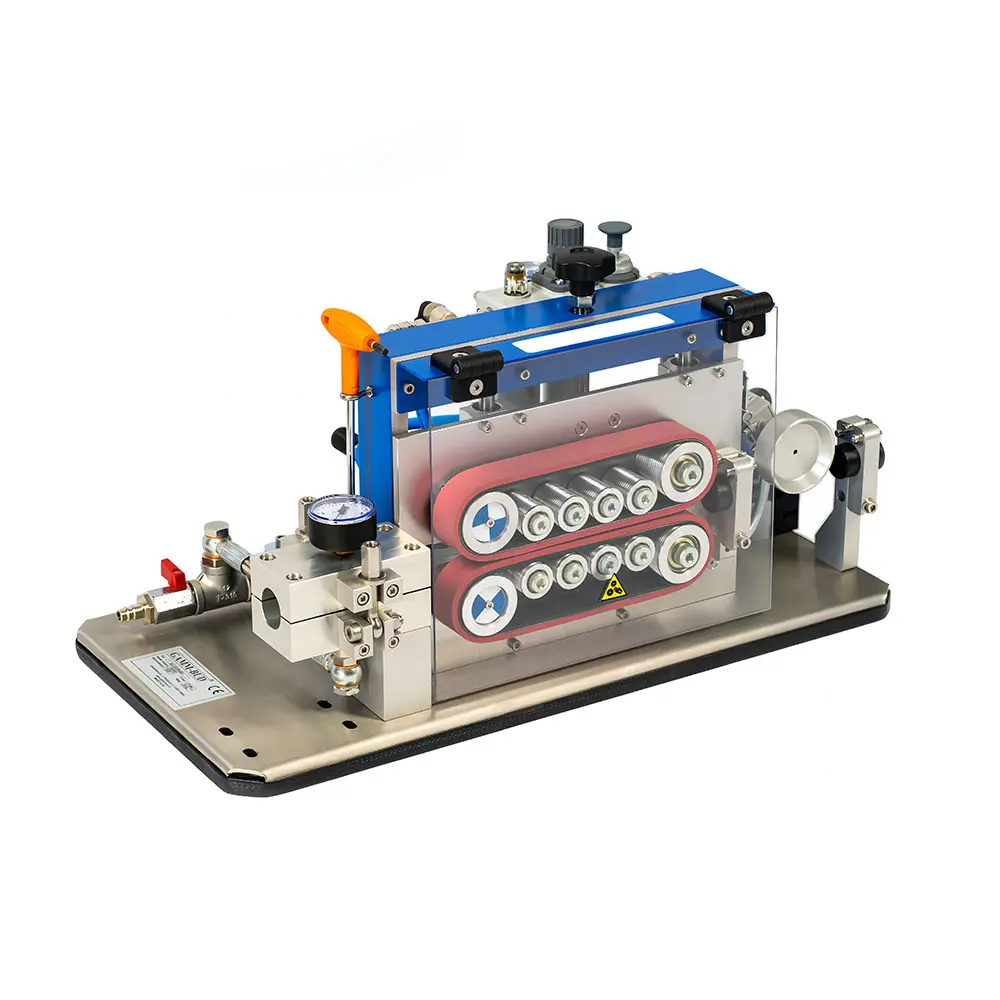

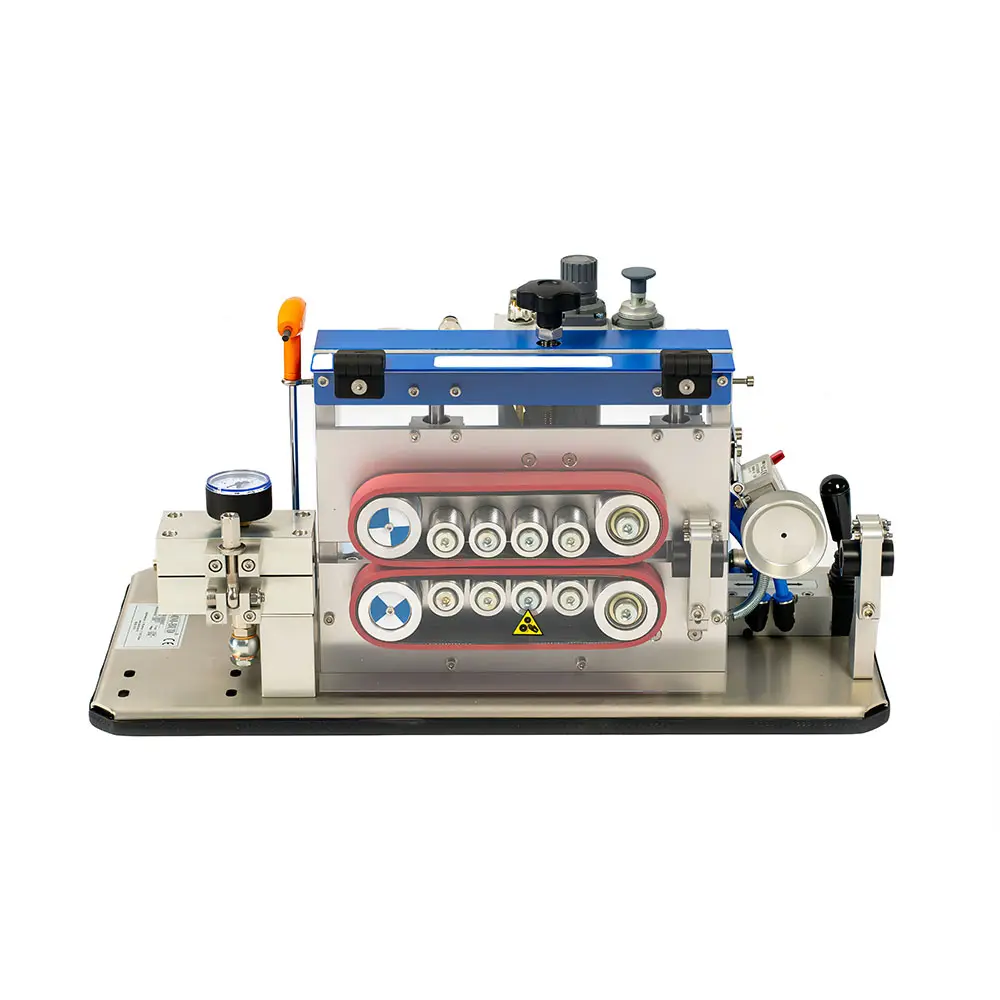

Model No.: GTOC-FBM03 Extended
Brand: OEM
Use: FTTH
Micro Cable Diameter (available Seals): 4.0 -10 mm
Micro Ducts Diameter (available Seals): 5 - 16 mm
Blowing Range(Max): 2500m
Blowing Speed(Max): 110 m per min
Operating Pressure(Max): 15 bar
Machines Dimensions (L X W X H): 580 * 300 * 320mm
Weight Approx: 20KG
Dimensions Of The Transport Box : 640 * 390 * 410mm
Weight Of The Transport Box: 33KG
| Selling Units: | Set/Sets |
| Package Type: | Individual package |
The file is encrypted. Please fill in the following information to continue accessing it
| Construction | Description |
| Technical Data | GTOC-FBM03 Extended |
| Micro Cable Diameter (available seals) | 2.5~12 mm |
| Micro Ducts Diameter (available seals) | 5~20 mm |
| Blowing Range / Max | 2500 m |
| Blowing Speed / Max | 110 m/min |
| Operating Pressure / Max | 15 bar |
| Machines Dimensions /L x W x H/ | 580 x 300 x 320mm / weight approx 20kg |
| Dimensions Of The Transport Box | 640 x 390 x 410mm / weight approx 33kg |
| Available Accessories Inside The Set | Lubricant PRELUBE 5000 (240 ml) Pneumatic oil sample Micro duct cutter Set of bushings Set of gaskets Set of Allen keys Socket wrench Air hose |
| Required Efficiency Of The Compressors | micro ducts up till 8mm -0,8m3/min micro ducts 8-12mm -1,0m3/min micro ducts 12-16mm - 1,5m3/min micro ducts 15-20mm - 3,5m3/min |
Packaging: Individual package
Productivity: 500 sets per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 500 sets per week
Certificate: ISO
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
