microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price
microduct fiber optic cable jetting blowing machine price

microduct fiber optic cable jetting blowing machine price

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:1 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GTOC-FBM03

BrandOEM

UseFTTH

Micro Cable Diameter (available Seals)4.0 -10 mm

Micro Ducts Diameter (available Seals)5 - 16 mm

Blowing Range(Max)2500m

Blowing Speed(Max)110 m per min

Operating Pressure(Max)15 bar

Machines Dimensions (L X W X H)580 * 300 * 320mm

Weight Approx20KG

Dimensions Of The Transport Box 640 * 390 * 410mm

Weight Of The Transport Box33KG

Packaging & Delivery
Selling Units: Set/Sets
Package Type: Individual package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Microduct fiber optic cable jetting blowing machine price

Product Overview

GTOC-FBM03 Fiber Blowing Machine designed for blowing micro cables with the diameter from 2,5 to 12 mm is new on the European market. Micro Cable diameter from 5 to 20 mm. Solid and simple construction enables easy operation of the blower and long-term durability. Due to high quality of the tray and power of the pneumatic engines the blow speed of up to 110m/min is available at a distance of up to 2,5km. The distance of up to 3,5km is possible when we use water instead of air.

Product Name:fiber blowing machine price,fiber optic cable blowing machine price,fiber jetting machine

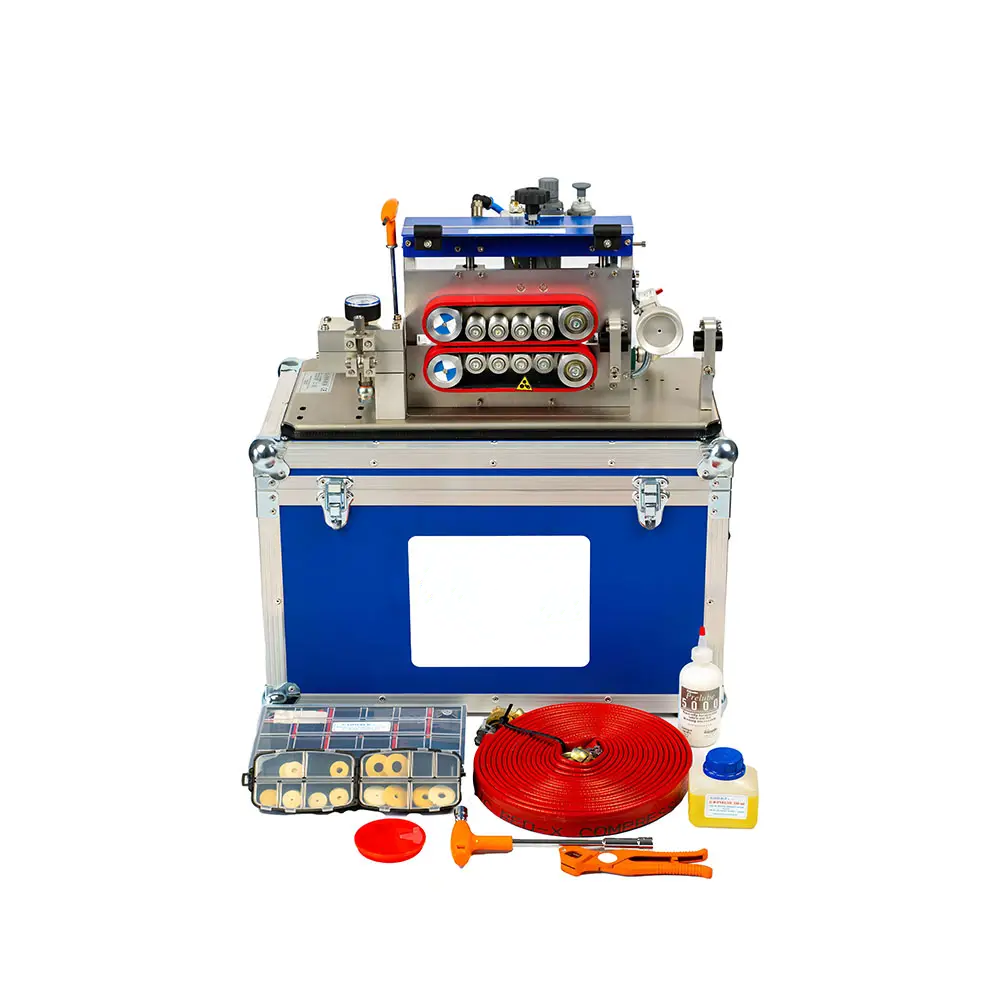

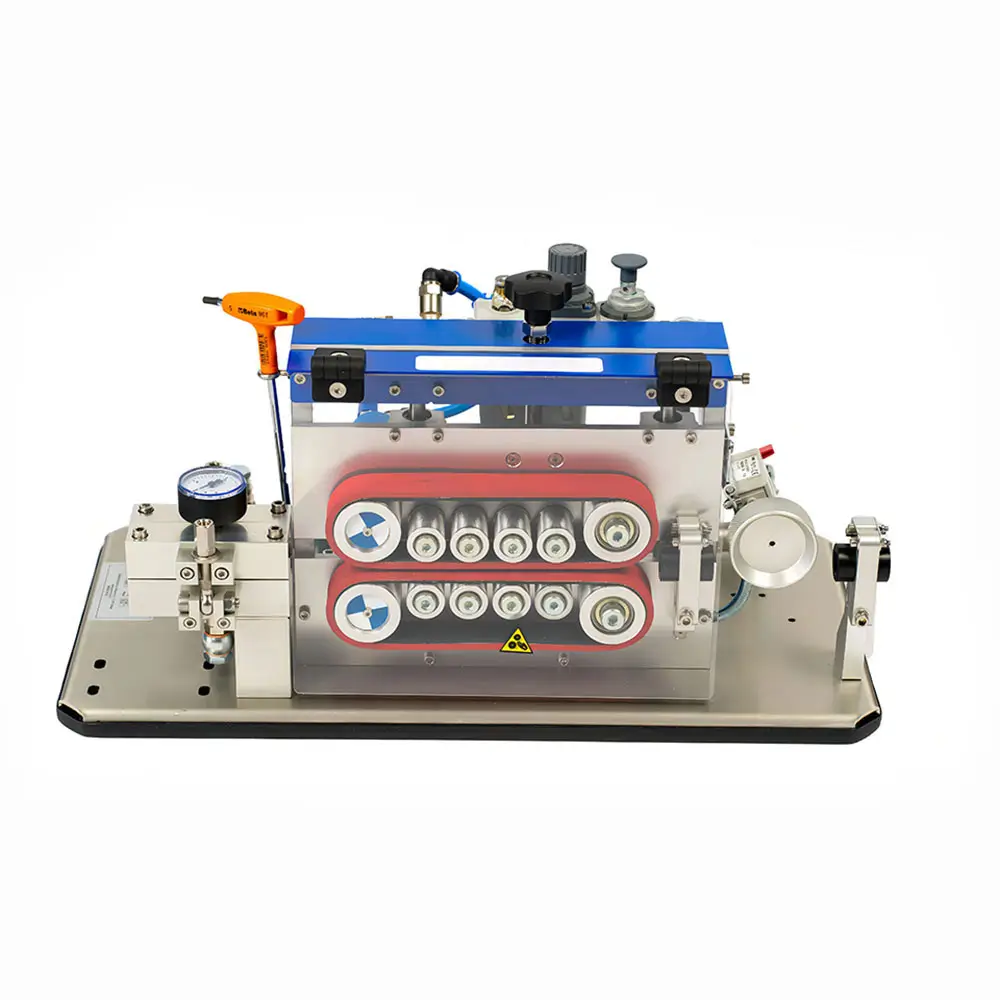

Product Picture:
ofc blowing machine
Air Blowing Machine
Specification
Construction
Description
Technical Data
GTOC-FBM03
Micro Cable Diameter (available seals)
4-10mm
Micro Ducts Diameter (available seals)
5~16 mm
Blowing Range / Max
2500 m
Blowing Speed / Max
110 m/min
Operating Pressure / Max
15 bar
Machines Dimensions /L x W x H/
580 x 300 x 320mm / weight approx 20kg
Dimensions Of The Transport Box
640 x 390 x 410mm / weight approx 33kg
Available Accessories Inside The Set
Lubricant PRELUBE 5000 (240 ml)
Pneumatic oil sample
Micro duct cutter
Set of bushings
Set of gaskets
Set of Allen keys
Socket wrench
Air hose
Required Efficiency Of The Compressors
micro ducts up till 8mm -0,8m3/min
micro ducts 8-12mm -1,0m3/min
micro ducts 12-16mm - 1,5m3/min
micro ducts 15-20mm - 3,5m3/min
cable blowing machine pricefiber jetting machine
Supply Ability & Additional Information

PackagingIndividual package

Productivity500 sets per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability500 sets per week

CertificateISO

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
