air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price
air blown fiber cable ofc blowing machine price

air blown fiber cable ofc blowing machine price

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:1 Set/Sets
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GTOC-FBM01

BrandOEM

UseFTTH

Warranty Time24months

Micro Cable Diameter (available Seals)0.5 - 8.0 mm

Micro Ducts Diameter (available Seals)5 - 16 mm

Blowing Range (Max)700m

Blowing Speed (Max)60 m per min

Operating Pressure(Max)15 bar

Machines Dimensions (L * W * H) 260 * 100 * 140mm

Weight Approx.2KG

Dimensions Of The Transport Box465 * 400 * 155mm

Packaging & Delivery
Selling Units: Set/Sets
Package Type: Individual package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
GTOC-FBM01 micro cable blowing machine is dedicated for last miles of FTTH network. Depending on the quality of the laid micro duct route and cable stiffness, FCST-FBM01 can be used to blow cable sections up to 700m. The machine is very easy to use. FCST-FBM01 is powered by a cordless screwdriver. By using the overload clutch of the screwdriver, the desired power of the roller drive, can be set very precisely. Also available: FCST-FBM01 with openable (split) blowing head. - FCST-FBM01 accessories set includes seals and bushings for every diameter of micro cable in machine's range (1.0,2.0,3.0, 4.0,5.0,6.0,7.0,8.0 mm), as well as micro ducts connectors (5.0,7.0,10,12,14,16 mm).Please inquiry us for fiber blowing machine price.

Product Name:ofc blowing machine,cable blowing machine price,air blown fiber machine

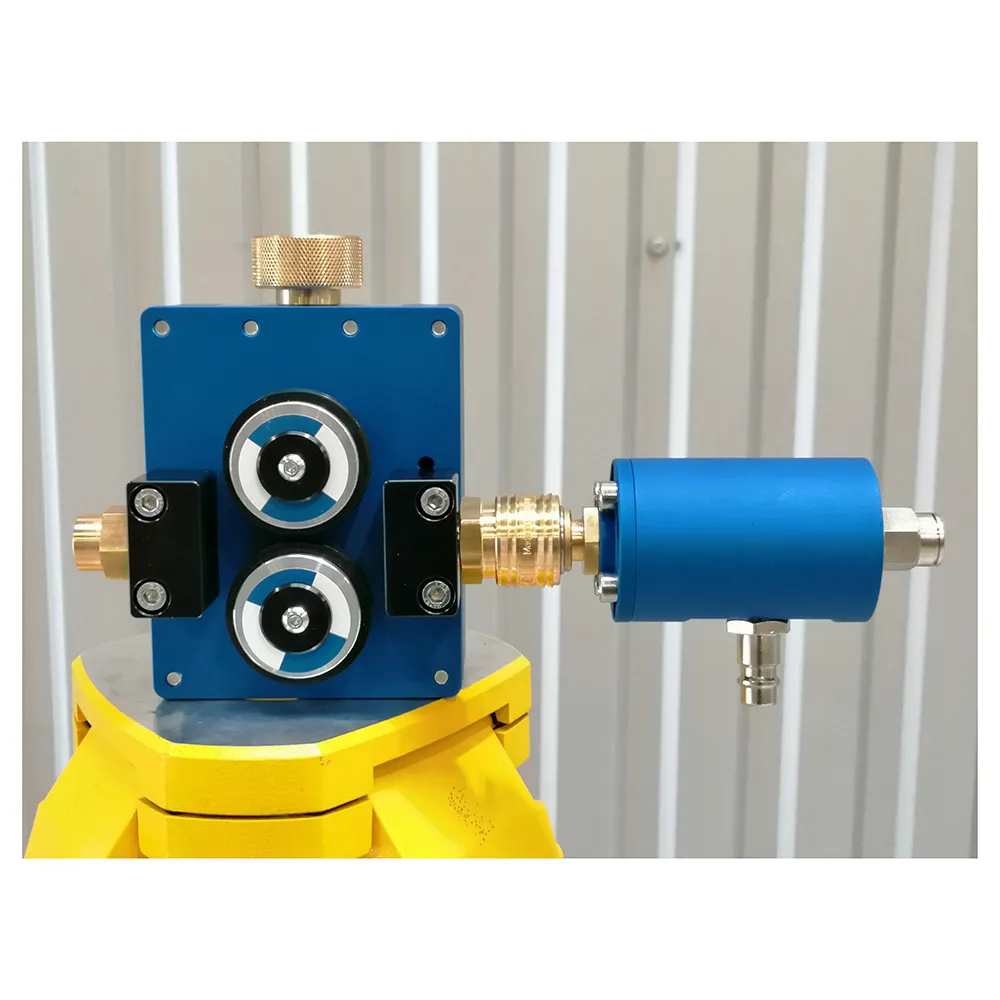

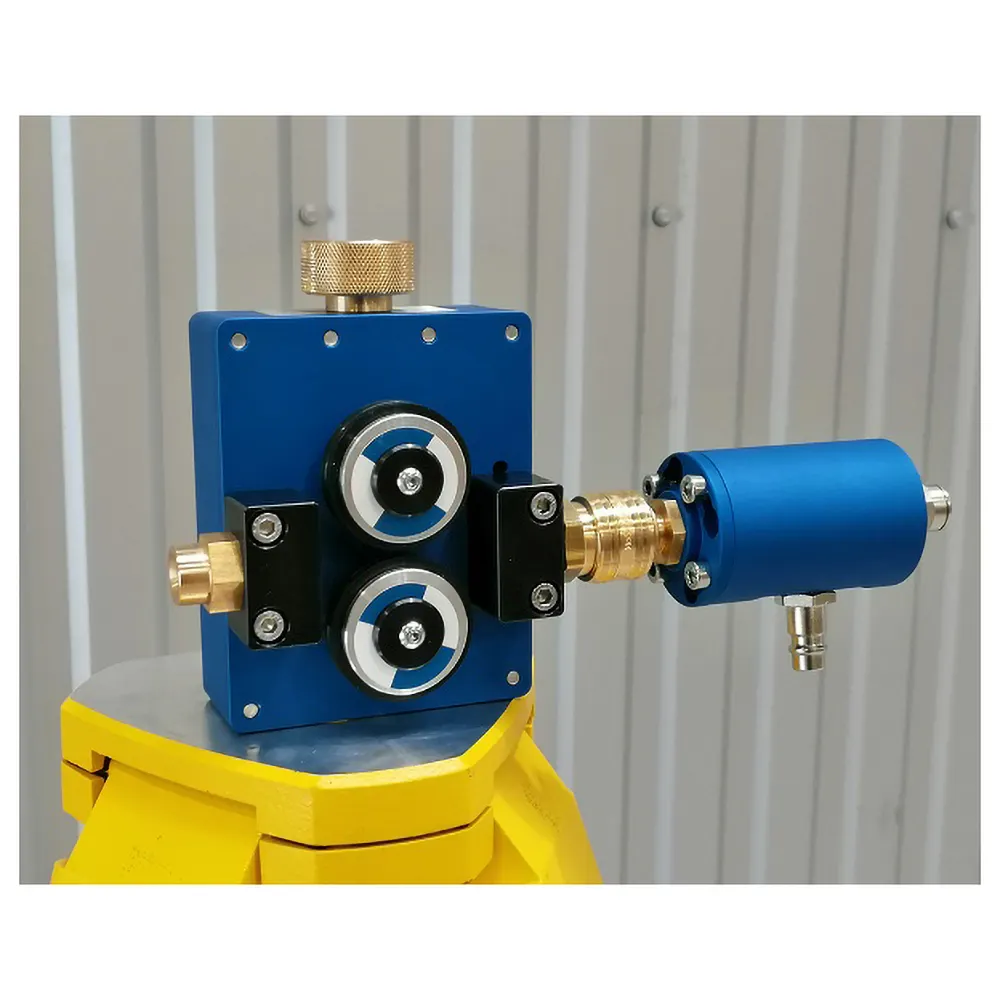

Picture of ofc blowing machine price:

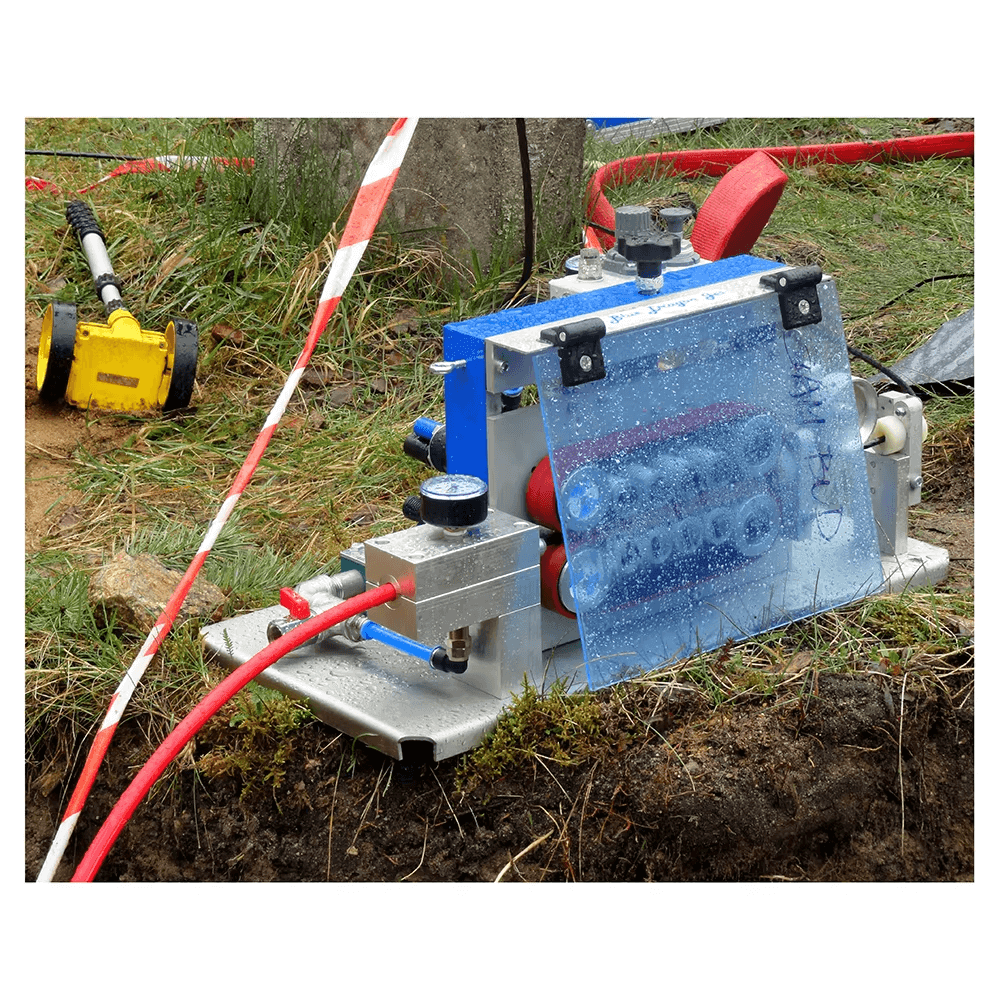

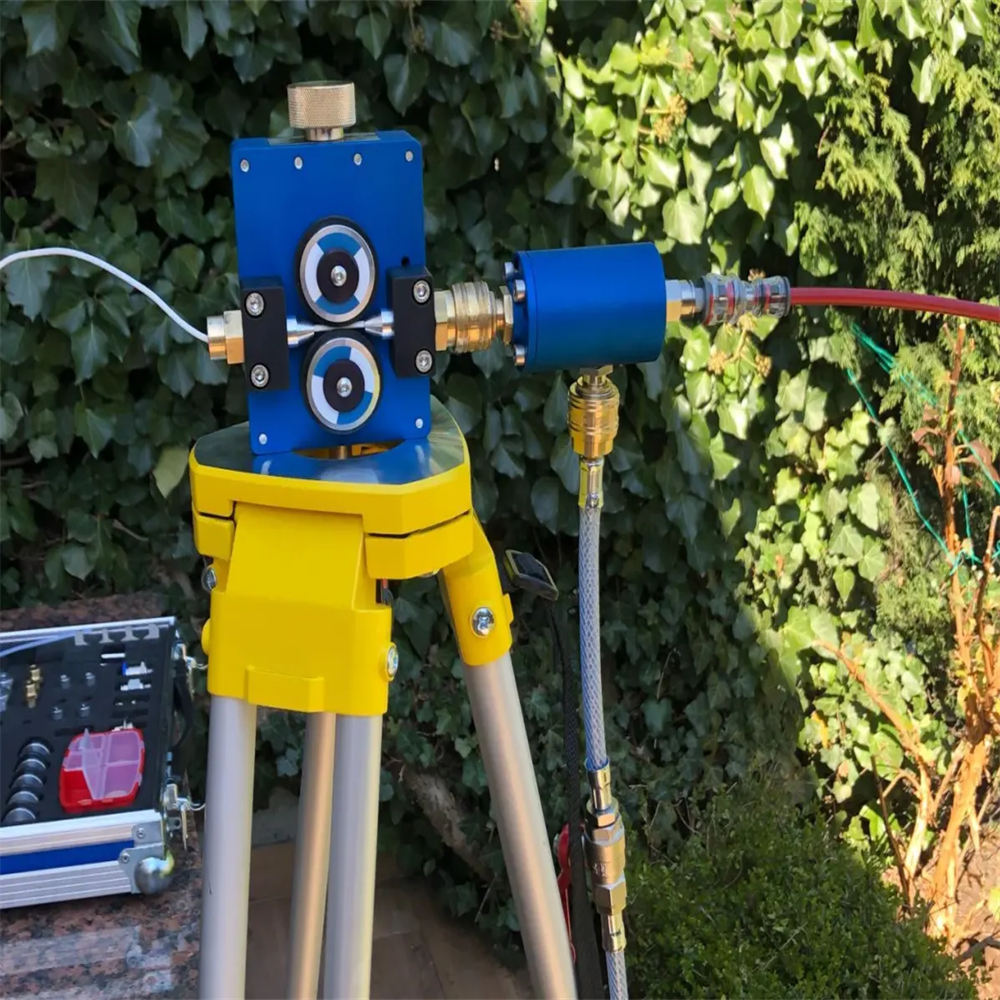

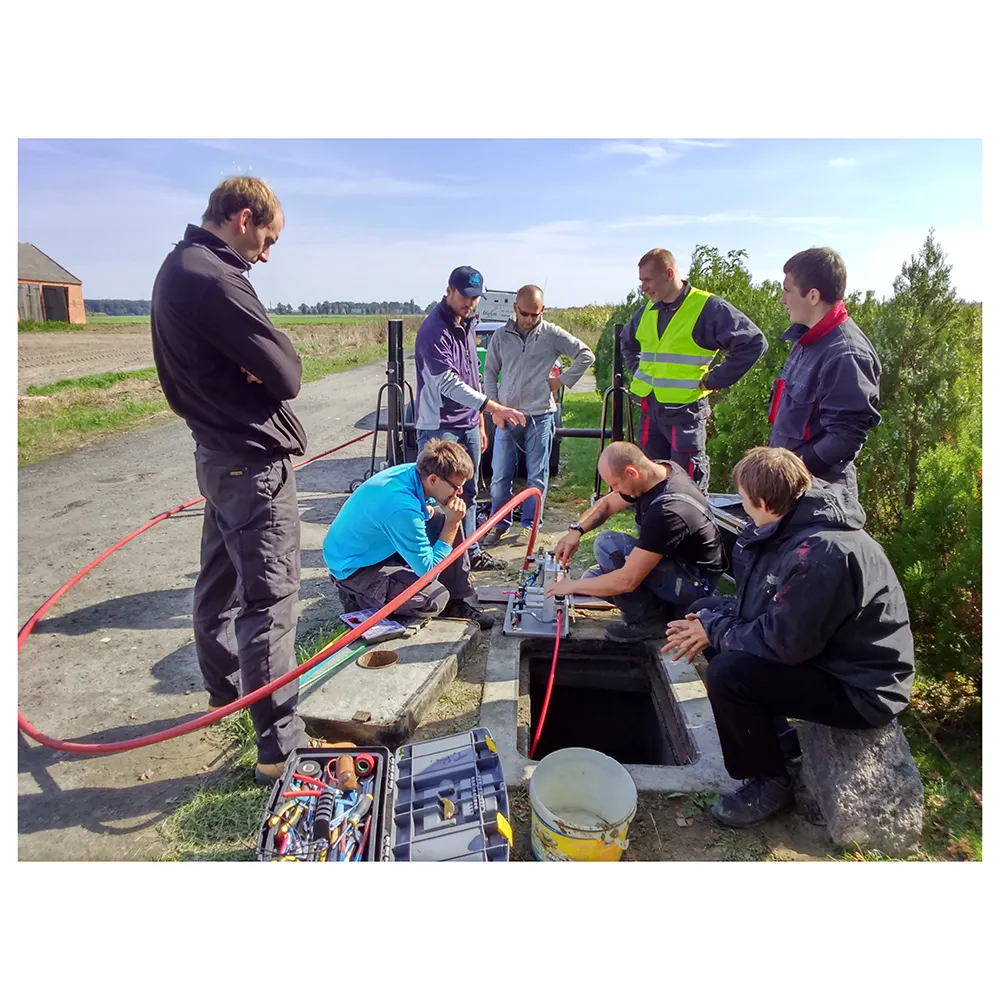

blowing in fiber optic cableair blown fiber installation

Specification for ofc cable blowing machine:
Construction
Description
Technical Data
GTOC-FBM01
Micro Cable Diameter (available seals)
0,5 – 8.0 mm
Micro Ducts Diameter (available seals)
5 – 16 mm
Blowing Range / Max
700 m
Blowing Speed / Max
60 m/min
Operating Pressure / Max
15 bar
Machines Dimensions /L x W x H/
260 x 100 x 140mm /weight approx. 2kg
Dimensions Of The Transport Box
465 x 400 x 155mm /weight. 8kg
Available Accessories Inside The Set
Lubricant PRELUBE 5000 (240 ml)
Micro duct cutter
Set of bushings and micro duct connectors
Set of gaskets
Set of Allen keys
Hex key
Spare wheels with removable rubber bands
Air hose
Required Efficiency Of The Compressors
micro ducts up till 8mm-0,8m3/min
micro ducts between 8-12mm-1,0m3/min
micro ducts between 12-15mm - 1,5m3/min
Air Blowing Machinefiber jetting machine
Supply Ability & Additional Information

PackagingIndividual package

Productivity500 sets per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability500 sets per week

CertificateISO

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
