microduct blower fiber ofc cable blowing machine price

microduct blower fiber ofc cable blowing machine price

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GTOC-FBM01 Easy Set

Brand: OEM

Micro Cable Diameter (available Seals): 0.5 - 8.0 mm

Micro Ducts Diameter (available Seals): 5 - 16 mm

Blowing Range (Max): 700m

Blowing Speed (Max): 60 m per min

Operating Pressure(Max): 15 bar

Machines Dimensions (L * W * H): 260 * 100 * 140mm

Weight Approx.: 2KG

Dimensions Of The Transport Box : 465 * 400 * 155mm

Weight Of The Transport Box: 8KG

Use: FTTH

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Individual package

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Microduct blower fiber ofc cable blowing machine price

Product Description:

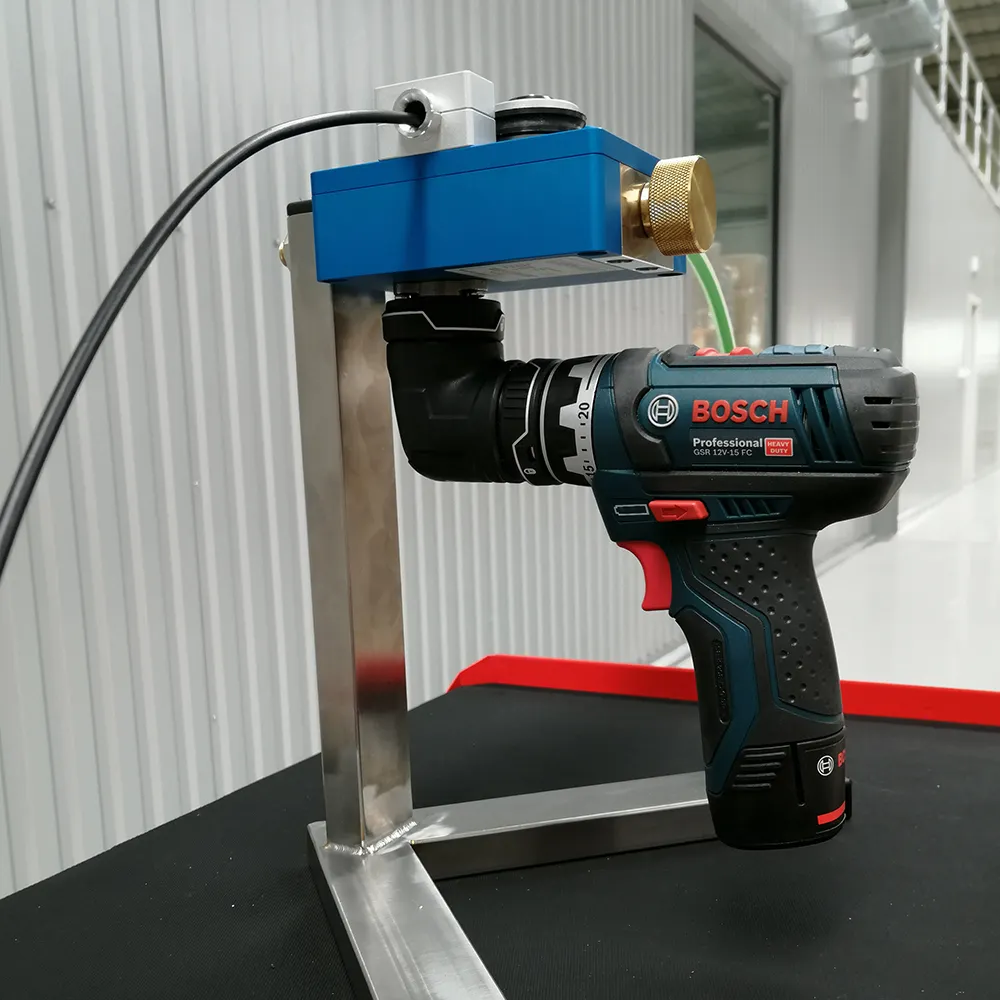

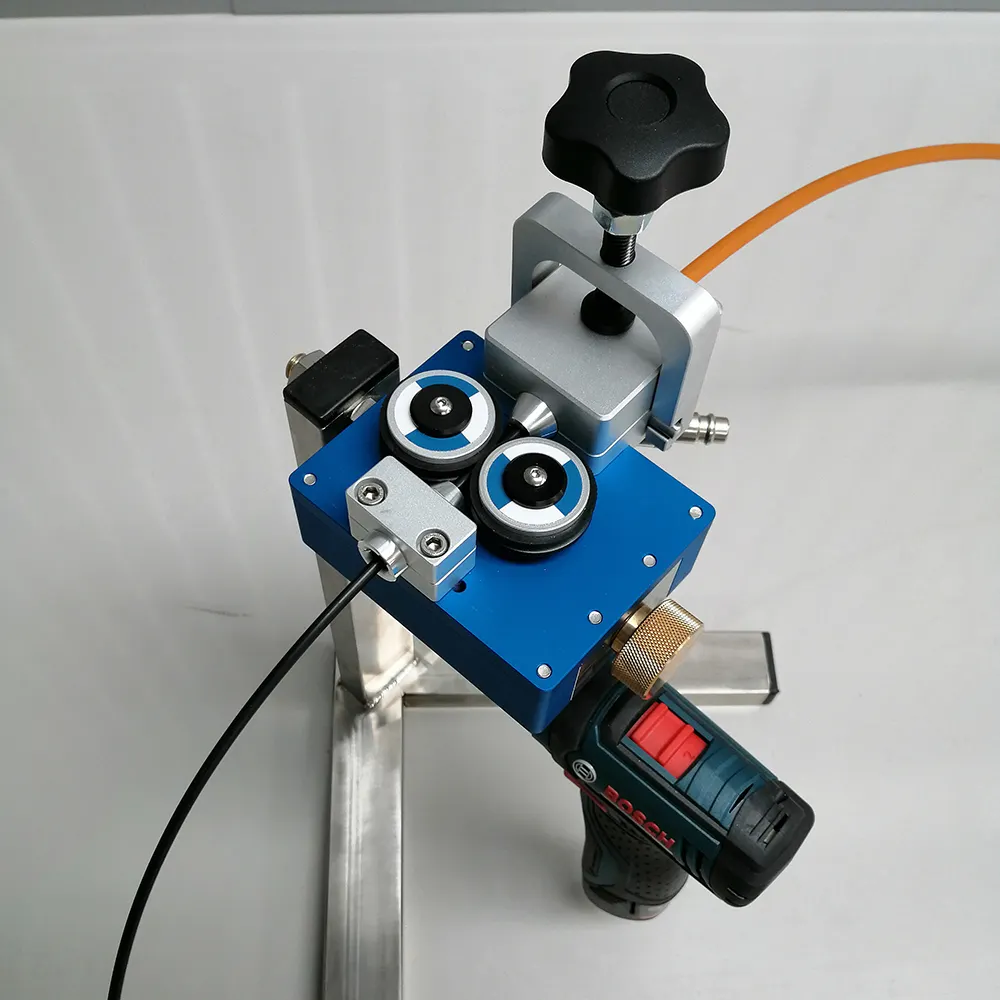

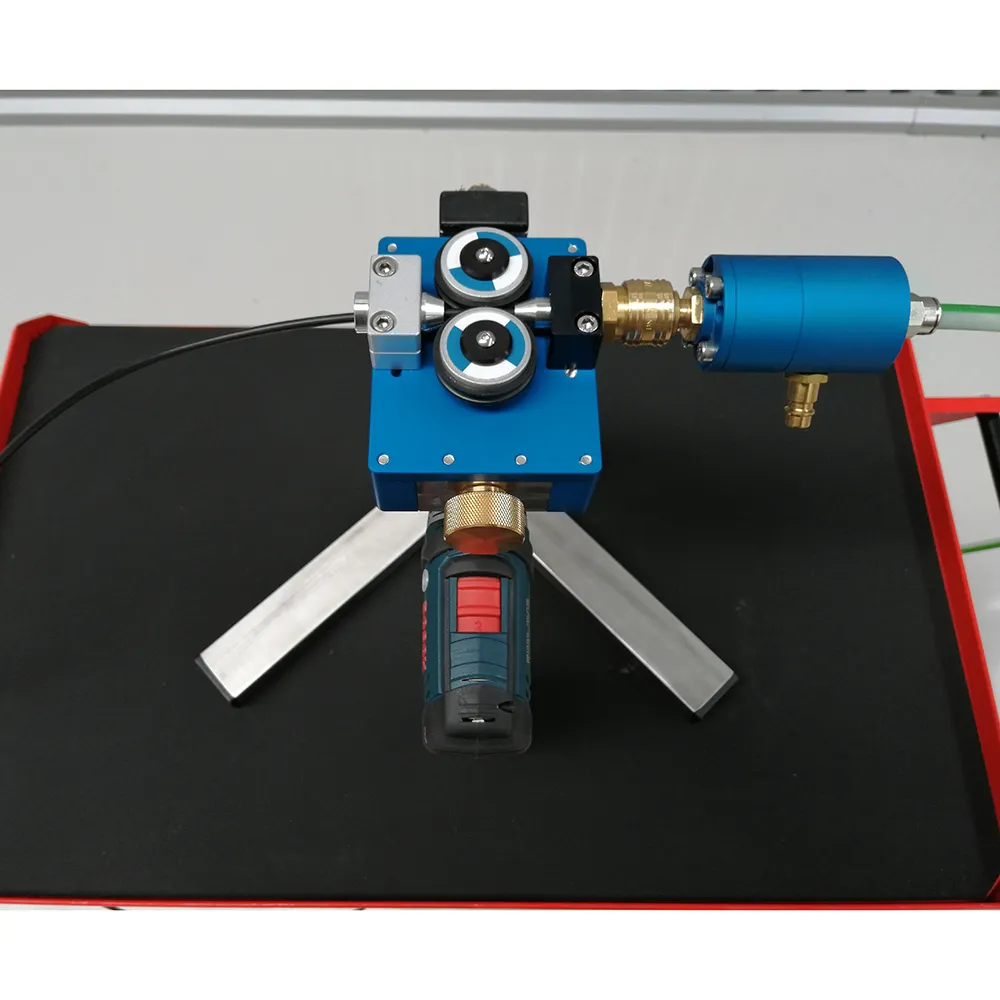

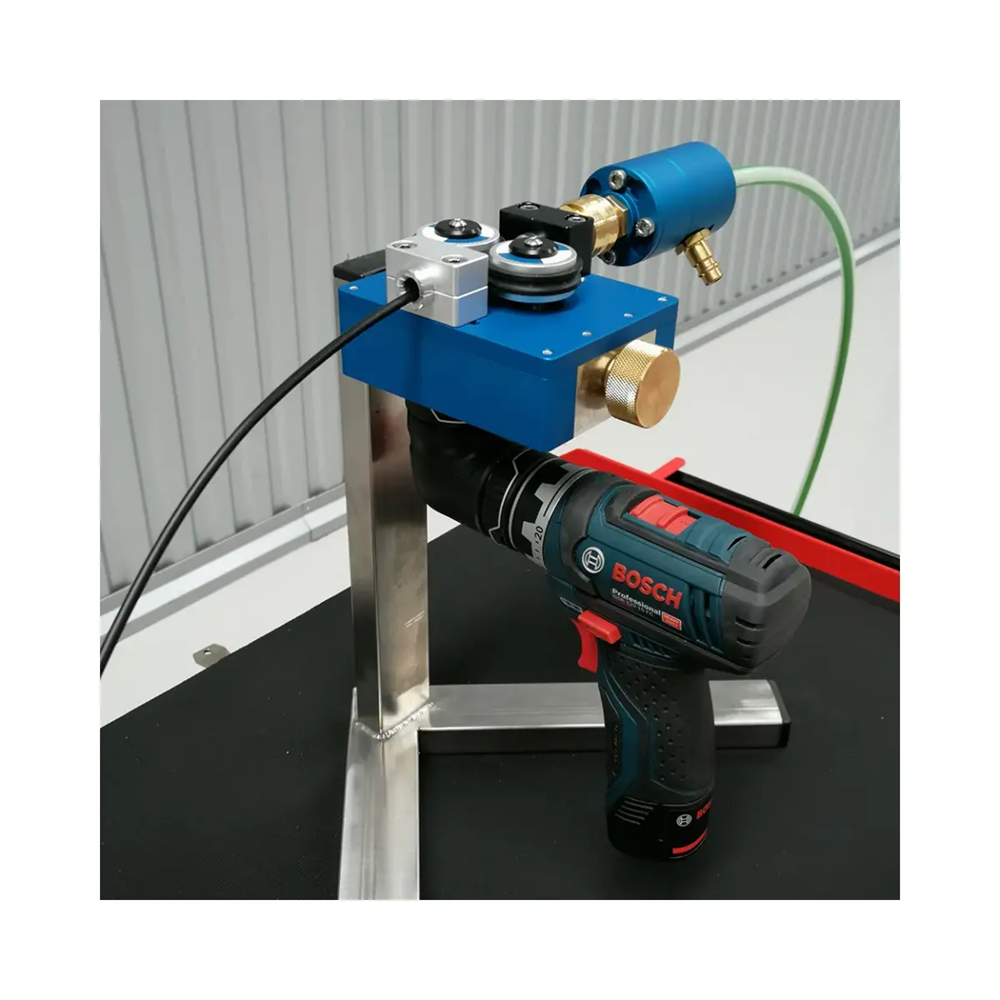

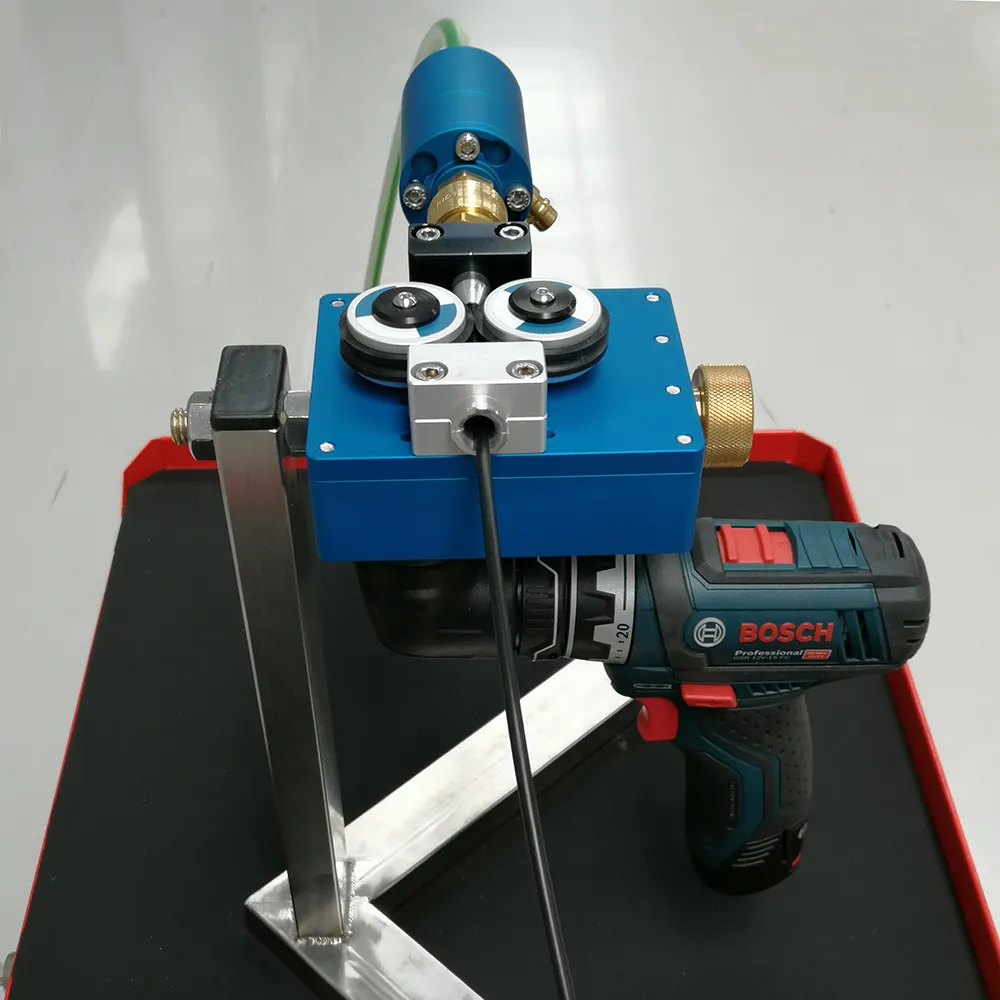

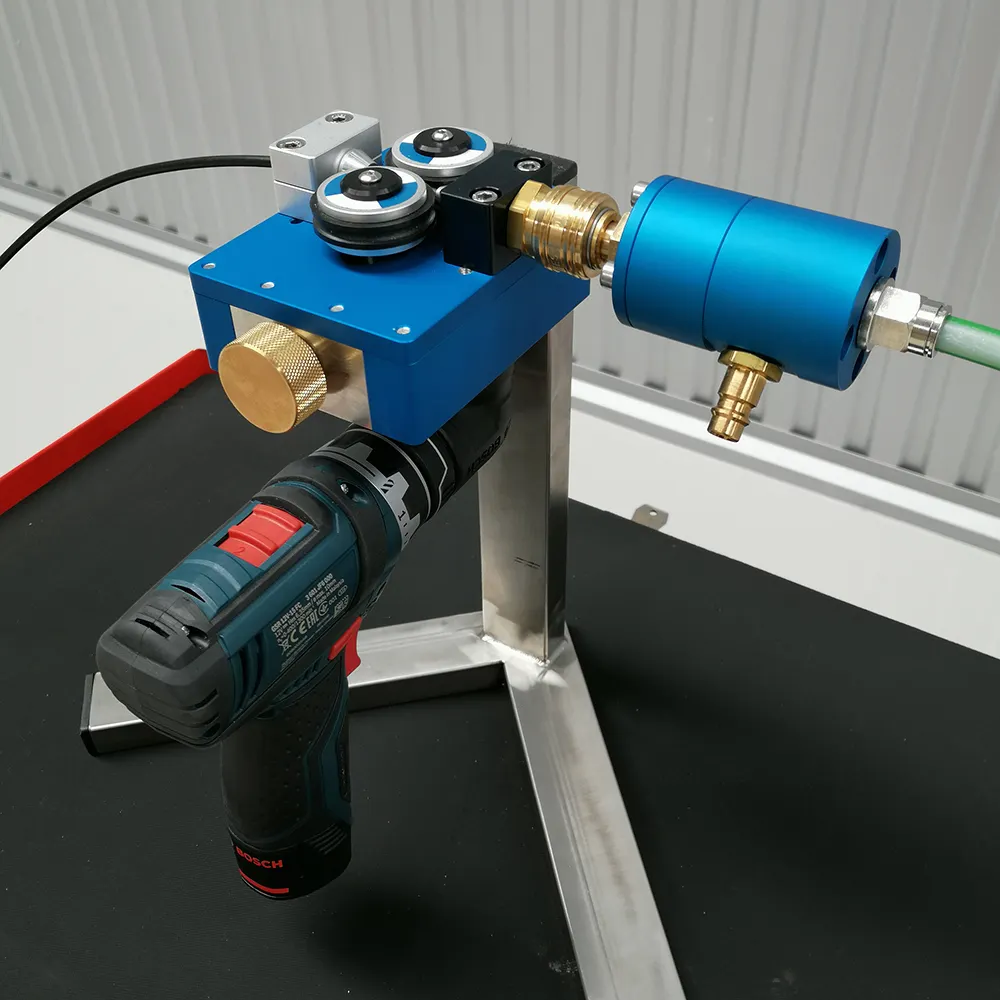

GTOC-FBM01 Easy Set micro cable blowing machine is dedicated for last miles of FTTH network. Depending on the quality of the laid micro duct route and cable stiffness, GTOC-FBM01 can be used to blow cable sections up to 700m. The machine is very easy to use. GTOC-FBM01 is powered by a cordless screwdriver. By using the overload clutch of the screwdriver, the desired power of the roller drive, can be set very precisely. Also available: GTOC-FBM01 with openable (split) blowing head. - GTOC-FBM01 accessories set includes seals and bushings for every diameter of micro cable in machine's range (1.0,2.0,3.0, 4.0,5.0,6.0,7.0,8.0 mm), as well as micro ducts connectors (5.0,7.0,10,12,14,16 mm)

Product Name:microduct fiber blowing machine,ofc blowing machine price,ofc cable blowing machine

Product Picture:

Specification

Construction	Description
Technical Data	GTOC-FBM01 Easy Set
Micro Cable Diameter (available seals)	0,5 – 8.0 mm
Micro Ducts Diameter (available seals)	5 – 16 mm
Blowing Range / Max	700 m
Blowing Speed / Max	60 m/min
Operating Pressure / Max	15 bar
Machines Dimensions /L x W x H/	260 x 100 x 140mm /weight approx. 2kg
Dimensions Of The Transport Box	465 x 400 x 155mm /weight. 8kg
Available Accessories Inside The Set	Lubricant PRELUBE 5000 (240 ml) Micro duct cutter Set of bushings and micro duct connectors Set of gaskets Set of Allen keys Hex key Spare wheels with removable rubber bands Air hose
Required Efficiency Of The Compressors	micro ducts up till 8mm-0,8m3/min micro ducts between 8-12mm-1,0m3/min micro ducts between 12-15mm - 1,5m3/min
