Model No.: GYFTY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Cable Structure: Multi-Loose Tube Non Armor
Application: Outdoor duct/outdoor cable/aerial/lashed
Fiber Options: G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count: 2-288 Cores
Installation Tensile: 2700N
Bend Radius (Under Installation): 20 x External Diameter of cable
Strength Member: Fiberglass reinforced plastic (FRP)
Material Of Jacket: Black Polyethylene (PE)
Diameter: 9.0-10.0mm
Keyword: single mode optic fiber cable

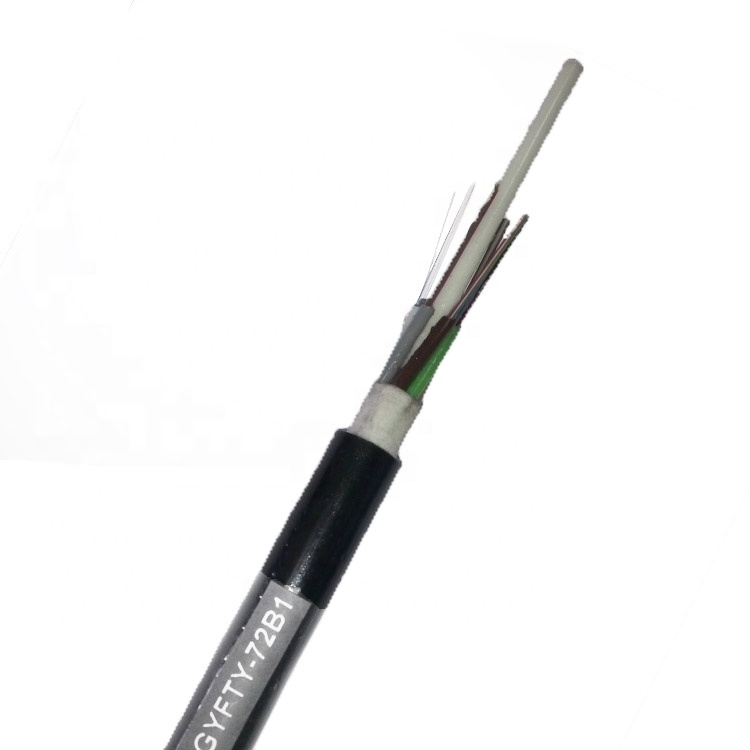

| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
fibreoptic single mode and multimode fiber cable types

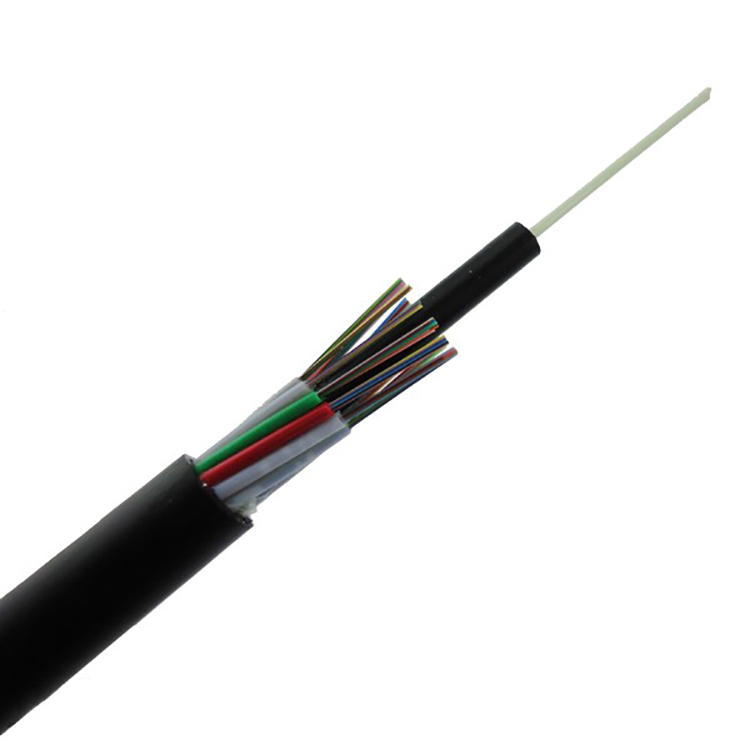

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Product Name:optical cable manufacturers,fibreoptic cable,single and multimode fiber,fiber cable 6 core price,fiber optic cable wire,cost of ofc cable per meter,2 core optical fiber cable price,armoured fibre cable,fiber 4 core cable price,1000m fiber optic cable price,12f fiber optic cable,corning fiber optic cable,optical fiber price per meter,fibre optic cable underground,288 fiber cable,single mode fiber types,optical fibre cable price list,optical fiber products

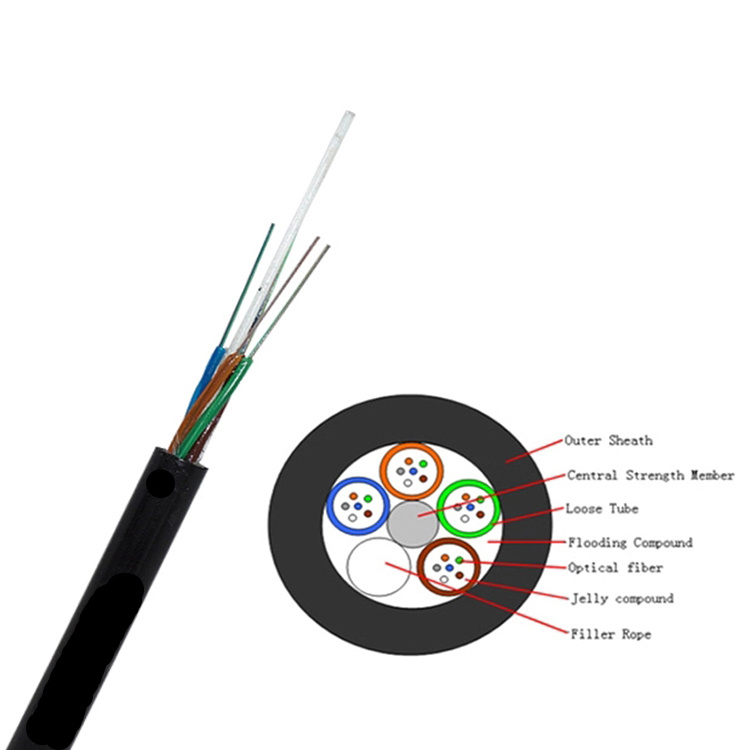

Cable Cross Section:
1.1 General Design（Outdoor Fiber Optic Cable）
Optical Fiber is constructed of a germanium doped silica based core with a pure silicacladding which meets ITU-T G.652 standard. Two layers of UV curable acrylateprotective coating are applied over the cladding to provide maximum fiber lifetime.
1.2 G.652.D fiber
| 1) Construction | |
| Mode Field Diameter @ 1310 nm | 9.2 +/-0.4 µm |
| Core-Cladding concentricity error | ≤0.4 µm |
| Cladding diameter | 125 +/-1 µm |
| Cladding non-circularity | ≤1 % |
| Primary coating material | UV curable acrylate |
| Primary coating Diameter | 250 +/-15 µm(Colored) |
| 2) Optical Characteristics | |
| Attenuation @ 1310nm | ≤0.36dB/km |
| Attenuation @ 1383nm | ≤0.35 dB/km |
| Attenuation @ 1550nm | ≤0.22dB/km |
| Dispersion @ 1288~1339nm | ≤3.5 ps/(nm.km) |
| Dispersion @ 1271~1360nm | ≤5.3 ps/(nm.km) |
| Dispersion @ 1550nm | ≤18.0 ps/(nm.km) |
| Zero dispersion wavelength | 1300 – 1324 nm |
| Zero dispersion slope | ≤0.092 ps/nm2×km |
| Cabled cut-off wavelength (lcc) | ≤1260 nm |
| Polarization Mode Dispersion | ≤0.2 ps/√km |
| 3) Mechanical Characteristics | |
| Proof stress level | 1.2 % (0.86 GPa) |
| Fiber curl (Fiber radius of curvature) | ≥4 m |
| Macro bending induced attenuation | 100 turns 30 mm radius≤ 0.1 dB at 1550nm |
| 4) Refractive index | 1.466 @ 1310nm,1.467 @ 1550nm |
2. Fiber Optic Cable
2.1 GeneralDesign
The colorcoded fibers are housed in multiple color coded plastic loose tubes which arestranded around a central strength member utilizing Reverse Oscillating Lay(ROL).
Waterblocking yarn and water-blocking tape, filling the interstices within the core,provides protection against water ingress.MDPE sheath with 2 rip cords iscovered over the cable core.
2.2 Construction
| Item | Specification |
| Central strength member | FRP OD: 2.0mm(8,12,16,24,36 fibers) 2.3mm(48,72 fibers) 2.5mm(96 fiber) 3.0mm(144 fiber) |
| Loose tube | PBT OD: Nom.2.0mm(8,12,16,24,36 fibers) OD:Nom.2.2mm(48,72,96,144 fibers) Thickness:0.3mm |
| Filler | Plastic OD: 1.95mm(8,12,16,24,36 fibers) 2.15mm(48,72,96,144 fibers) |
| Rip-cord | 3 strands per pcs(Symmetrial distribution in the sheath) |
| Water-blocking tape | 20mm*0.25mm(8,12,16,24,36 fibers) 22mm*0.25mm(48,72 fibers) 28mm*0.25mm(96 fiber) 36mm*0.25mm(144 fiber) |
| Outer sheath | MDPE Thickness:2.0mm |
2.3 Loose Tube Stranding
| Fiber count | Max.fiber number per tube | Number of tube / Filler |
| 8/12 | 6 | 2 / 4 |
| 16 | 6 | 3 / 3 |
| 24 | 6 | 4 / 2 |
| 36 | 6 | 6 / 0 |
| 48 | 12 | 4 / 2 |
| 72 | 12 | 6 / 0 |
| 96 | 12 | 8 / 0 |
| 144 | 12 | 12 / 0 |
2.4 Cable Diameter and Weight
| Fiber count | Nom. diameter (mm) | Nom. weight (kg/km) |
| 8/12/16/24/36 | 10.5 | 82 |
| 48/72 | 11.2 | 94 |
| 96 | 12.6 | 119 |
| 144 | 15.4 | 179 |
2.5 Sheath Marking & Packing
The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.
Re-markingis yellow color, if necessary.
GT *** xxFIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
xxFIBRE: Fiber count
Month/Year:Manufacture date
XXXXM: The figure ofmeter.
Packaging: wooden spool
Productivity: 1500 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1500 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
