optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types
optical hybrid cable fiber and power cable types

optical hybrid cable fiber and power cable types

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CIP,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.OPLC

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Fiber Number2~144cores

StandardsYD/T 901 & IEC 60794-1

Fiber TypeG652D G655 G657

Product NameHybrid cable

Applicationduct, 5G base station

CertificationCE/ROHS/ISO9001

Material Of JacketBlack Polyethylene (PE)

Delivery Time15~25 days for mass production

Cable Diameter10mm-13mm

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Optical hybrid cable fiber optic and power cable type

Product description/ PRODUCT

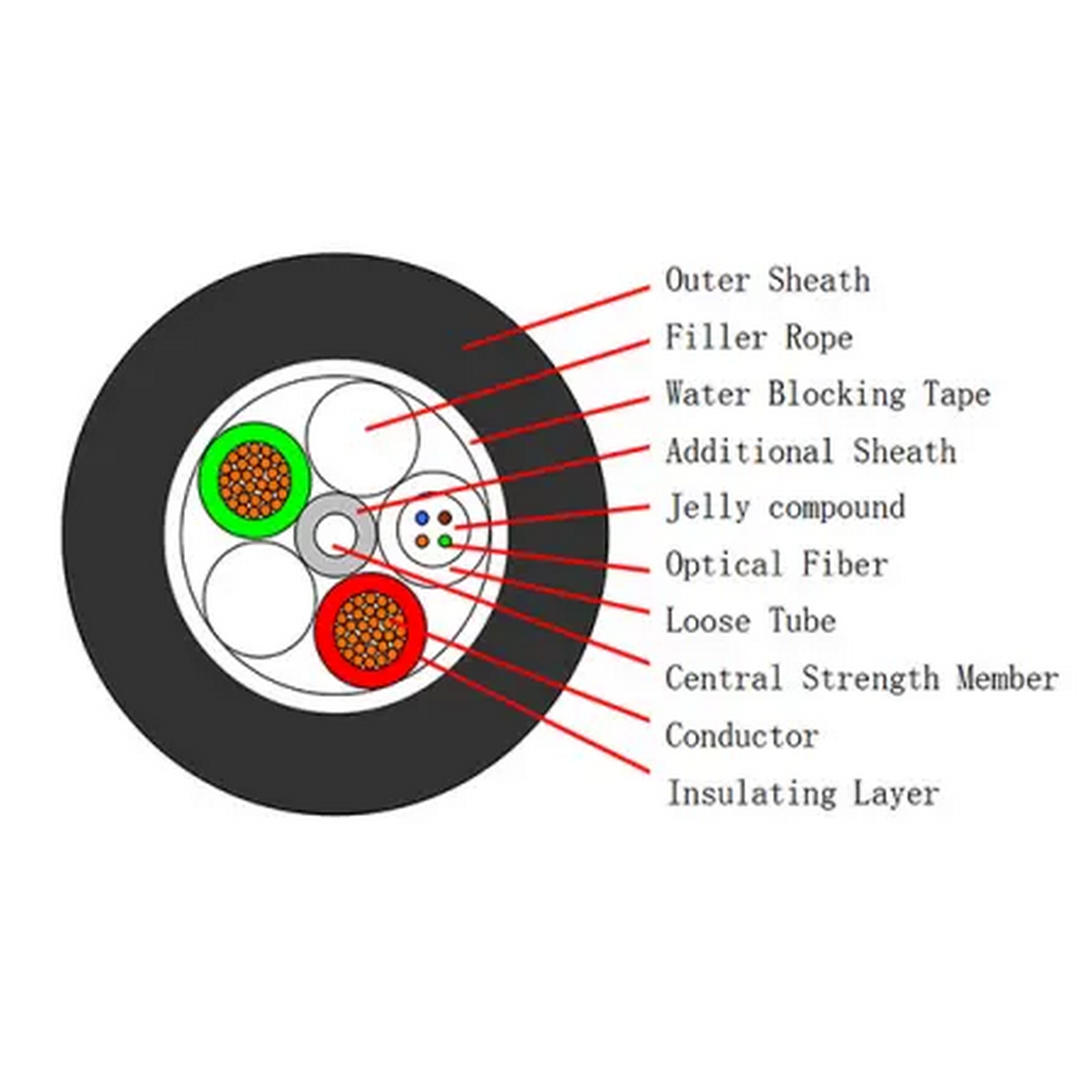

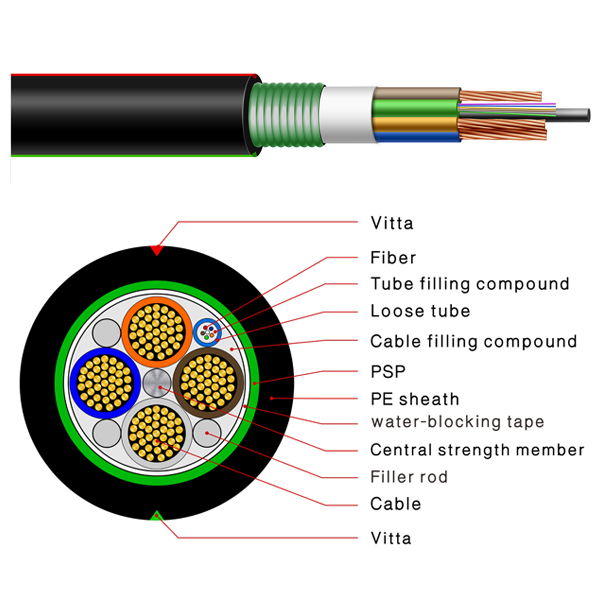

The structure of the photoelectric hybrid cable is to cover 250 um optical fiber into the loose tube of the high modulus material. The core of the cable core is a FRP or metal core (some structures need to add a layer of PE cushion layer). The electric wire and the loose tube (and the filling rope) surround the center to strengthen the core to synthesize the compact and circular cable core. Double coated strip (PSP) longitudinal package after extruded polyethylene or low smoke halogen (LSZH) cable sheath.



Product Name:optical fiber types,fiber optic cable type,hybrid cable fiber and power,powered fiber cable,12 core fiber optic cable specifications,duct fiber cable,hybrid fiber optic cable,composite fiber cable,hybrid fiber cable

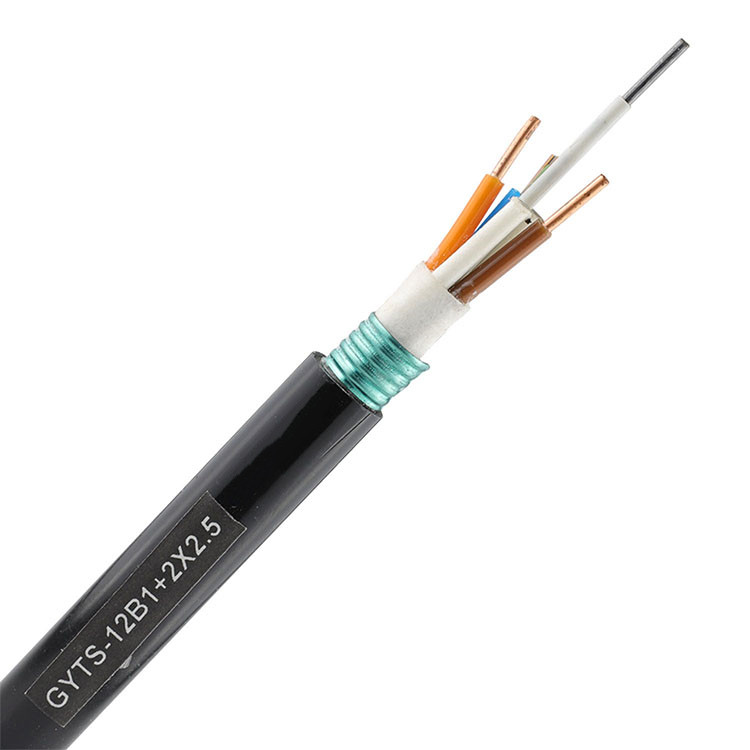

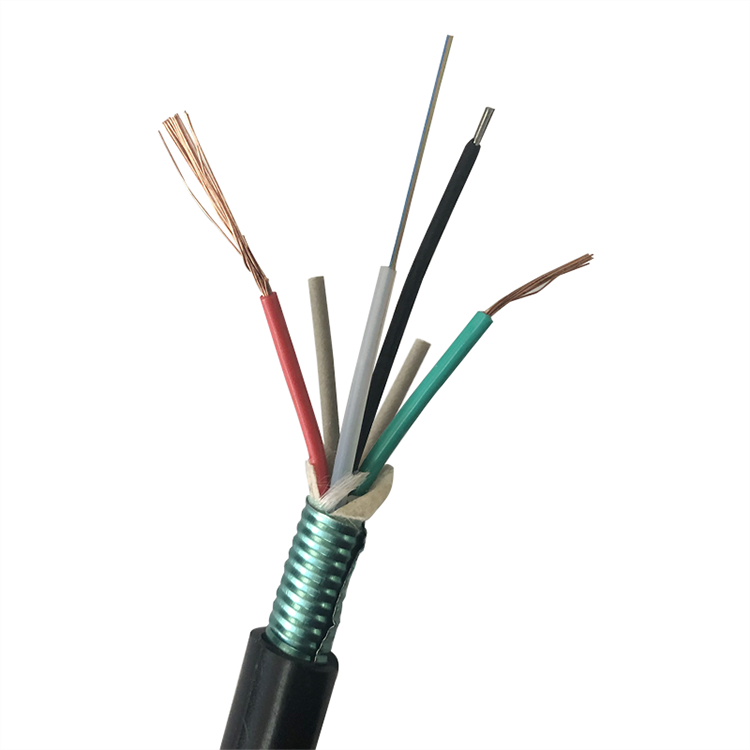

Product Picture/ PRODUCT

powered fiber cable

Product Features/ PRODUCT

·Have good flexibility and mechanical properties.
·Photoelectric integration, fully conserve pipeline resources
·The cable part and the optical cable part are relatively independent structure, which is convenient for the introduction, the lead out and the connection of the installation.
·Will power lines, telephone lines, TV lines, cable, monitoring line, data line and other network, save the cost
·Greater operating temperature range
·Greater construction temperature range
·Optical cable diameter and bending radius are small, in the next small space also can freely install compatible optical signal transmission and power transmission at the same time.

Technical advantage/ PRODUCT

·Optimization of transmission line design, energy saving effect is significant
·One, the transmission of electrical energy in the transmission of information at the same time, and can detect the line working state
·Fiber composite in the wire, stop by ground lightning fiber broken, broken wire
·Will not be due to the role of the field strength caused by cable suffered electrical corrosion or damage caused by cable, broken fiber accident
·There is no hidden danger to the original route with additional line load.

hybrid fiber optic cableduct fiber cable6 strand fiber cable12 core fiber optic cable specifications

Field of application/ PRODUCT

·Telecom Network Construction
·Construction of communication base stations in rural and remote areas of cities and towns
·Urban residential communities and buildings in the optical fiber
·Security monitoring project
·And other occasions where information and power are needed.
·Product standards
·Light cable tensile, impact, bending, flattening, torsion, winding and wear in compliance with YD/T901-2001 requirements

Optical Characteristics/ PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Max attenuation
(+20℃)

@850nm





3.5dB/km

3.5dB/km

@1300nm





1.5dB/km

1.5dB/km

@1310nm

0.45dB/km

0.45dB/km





@1550nm

0.30dB/km

0.30dB/km







Typical attenuation

@850





3.0dB/km

3.0dB/km

@1300





1.0dB/km

1.0dB/km

@1310nm

0.40dB/km

0.40dB/km





@1550nm

0.25dB/km

0.25dB/km





Mini bandwith

@850





400MHZ·km

160MHZ·km

@1300





800MHZ·km

500MHZ·km



Structure Parameter/ PRODUCT

item



technical requirement

remark

Allowable bending radius(mm)

dynamic

30D



static state

20D



Allowable pull(N)

short-term

3000



Long-term

1500



Allowable press force
(N/100mm²)

short-term

3000



Long-term

1000



Operating temperature range

wire

-15℃~+70℃

Meet GB5023-1997

Other materials other than

-40℃~+70℃



Water resistance / waterproof performance

Long term immersion in water without water seepage

Except the conductor of the wire

No leakage

Construction temperature range

-20℃~+60℃

In addition to electric wire

-0℃~+60℃

wire

weight

374kg/km(RV-2*2.5mm)
382kg/km(RV-4*2.5mm)
502kg/km(RV-6*2.5mm)
628kg/km(RV-8*2.5mm)



Mechanical properties

The optical cable tensile, impact, bending, flattening, torsion, winding and wear in compliance with YD/T901-2001 requirements

Applicable laying mode

Suitable for pipe, channel, cable trench, aerial, buried and other installation

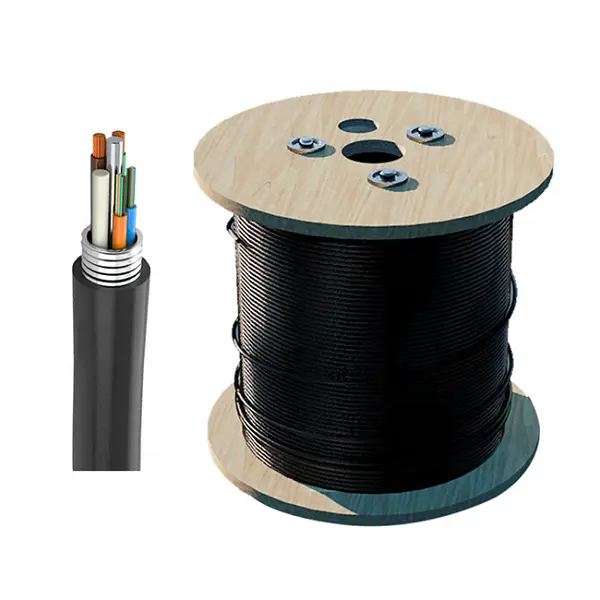

Cable Packing/ PRODUCT

hybrid fiber cable
