Model No.: GYTS
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Used for long haul communication
Fiber Type: G652D/G657A1/G657A2,OM3,OM4
No. Of Fiber: 2-288
Outer Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden
Loose Tube Material: PBT
Keyword: fiber optic cable
Laying Method: Duct,Aerial
Certification: CE/ROHS/ISO9001 /ANATEL
Strength Member: Steel Tape or Aluminium Tape
Installation Tensile: 1500N
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
GYTS optical fibre description underground fiber broadband cable

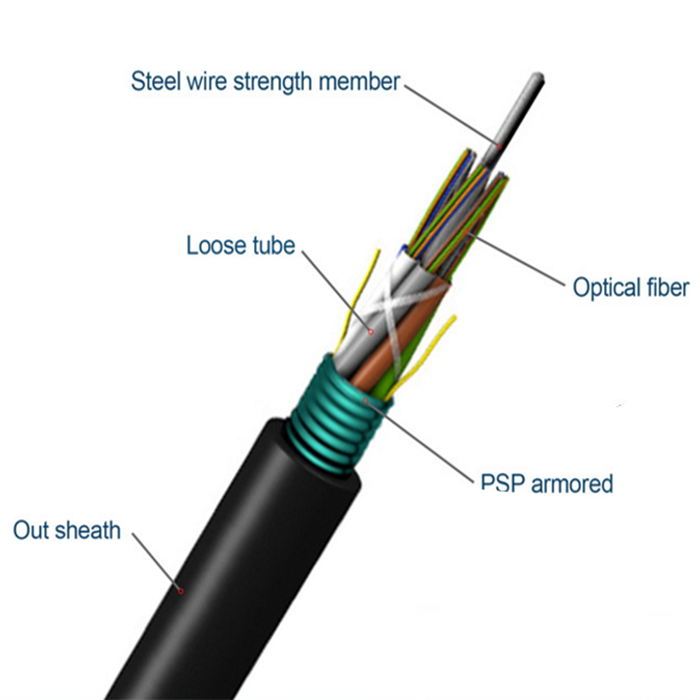

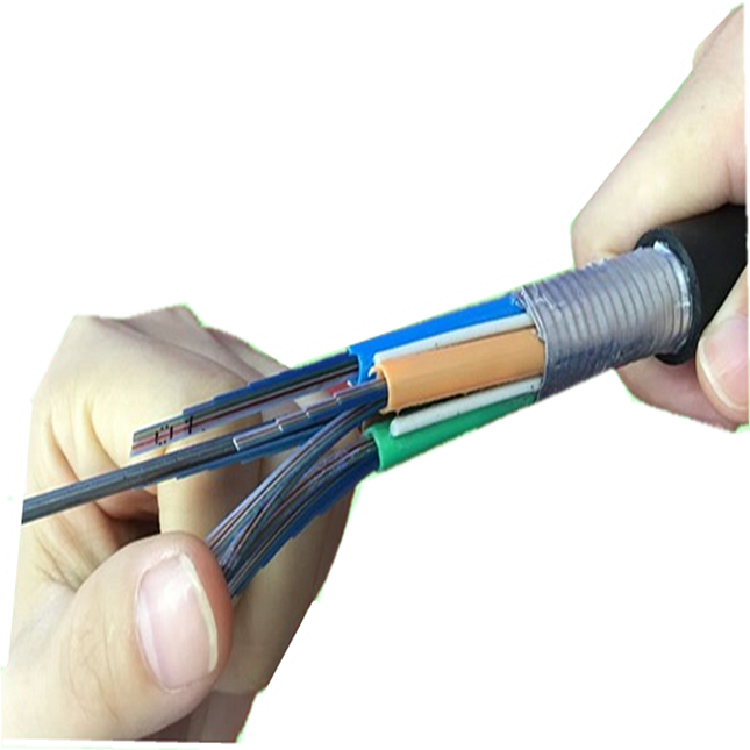

The fibers,200/ 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Product Name:fibre broadband cable,optical fibre description,underground fiber cable,supplier fiber optic cable,optic fibre，fiber optic wire price，fibre optic internet cable，fiber optic 6 core outdoor,fiber optic cable multimode price,fiber optic underground,prysmian fiber optic cable,fiber 48 core,optical cable company,optical fiber price per meter,om3 fiber optic cable,optical fibre cable price per meter,underground fiber optic cable installation
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km |
|
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| Cable Type | Fiber Count | Loose tube count | Filler count | Cable Diameter | Cable Weight Kg/km | ensile Strength | Crush Resistance | Bending Radius |
| GYTS-2～6 | 2～6 | 1 | 4 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-8～12 | 8～12 | 2 | 3 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-14～18 | 14～18 | 3 | 2 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-20～24 | 20～24 | 4 | 1 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-26～30 | 26～30 | 5 | 0 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-32～36 | 32～36 | 5 | 0 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-38～48 | 38～48 | 5 | 0 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-50～60 | 50～60 | 5 | 0 | 9.5 | 116 | 1000/2000 | 1000/2000 | 15D/30D |
| GYTS-62～72 | 62～72 | 6 | 0 | 10.0 | 159 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-74～84 | 74～84 | 7 | 1 | 11.0 | 209 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-86～96 | 86～96 | 8 | 0 | 11.0 | 209 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-98～108 | 98～108 | 9 | 1 | 12.5 | 232 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-110～120 | 110～120 | 10 | 0 | 12.5 | 232 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-122～132 | 122～132 | 11 | 1 | 13.5 | 280 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-134～144 | 134～144 | 12 | 0 | 13.5 | 280 | 1750/3500 | 1000/2000 | 15D/30D |
| GYTS-146～216 | 146～216 | 12 | 0 | 13.5 | 280 | 1750/3500 | 1000/2000 | 15D/30D |
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Specially designed compact structure is good at preventing loose tubes from shrinking
·PE sheath protects cable from ultraviolet radiation
·To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully filled in the cable
·PSP layer
GYTS cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
Packing and Marking:
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery
