Model No.: GYFTY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Cable Structure: Multi-Loose Tube Non Armor
Application: Outdoor duct/outdoor cable/aerial/lashed
Fiber Options: G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count: 2-288 Cores
Installation Tensile: 2700N
Bend Radius (Under Installation): 20 x External Diameter of cable
Strength Member: Fiberglass reinforced plastic (FRP)
Material Of Jacket: Black Polyethylene (PE)
Diameter: 9.0-10.0mm
Keyword: single mode optic fiber cable
Selling Units: | Kilometer |
Package Type: | wooden spool |
Picture Example: |
The file is encrypted. Please fill in the following information to continue accessing it

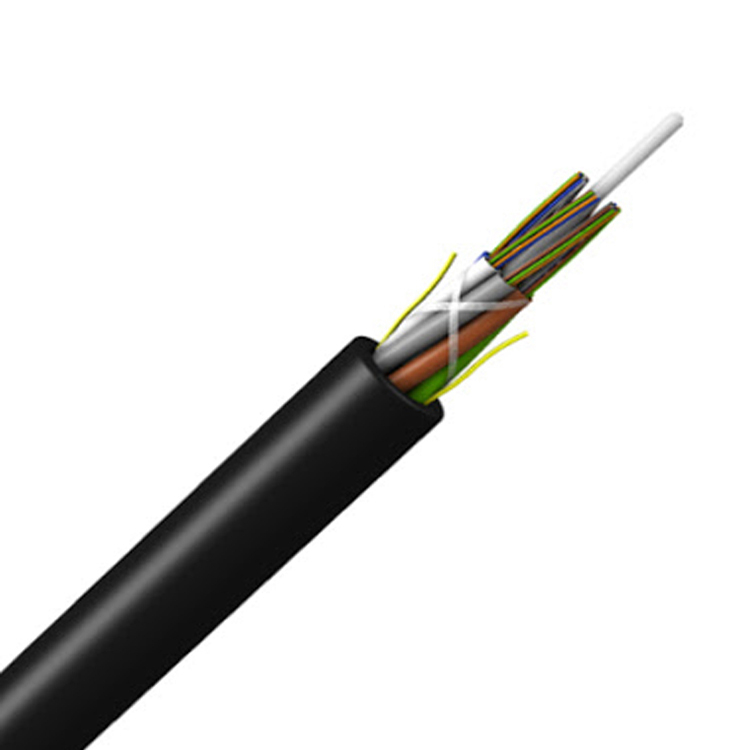

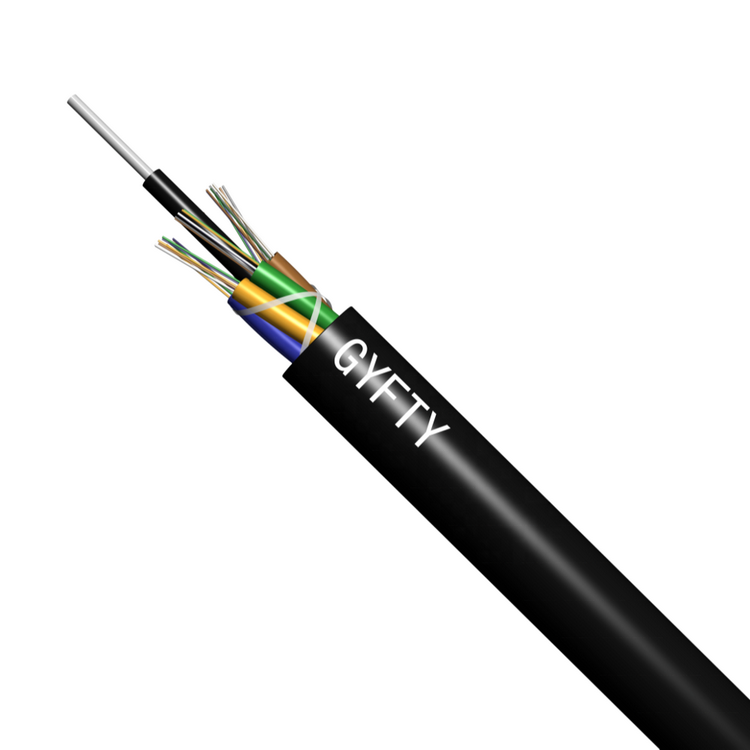

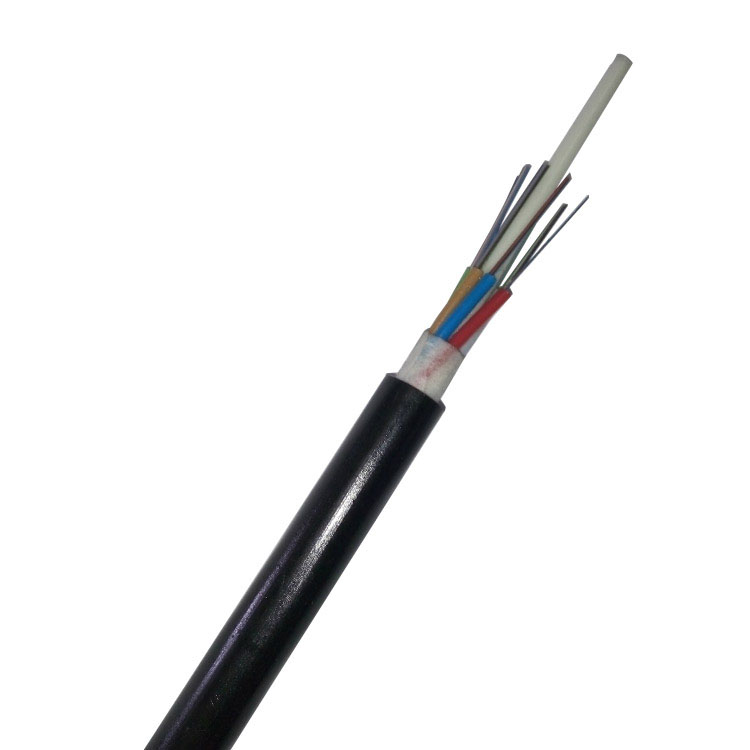

GYFTY Installing Outdoor Optical Corning Fiber Optic Cables

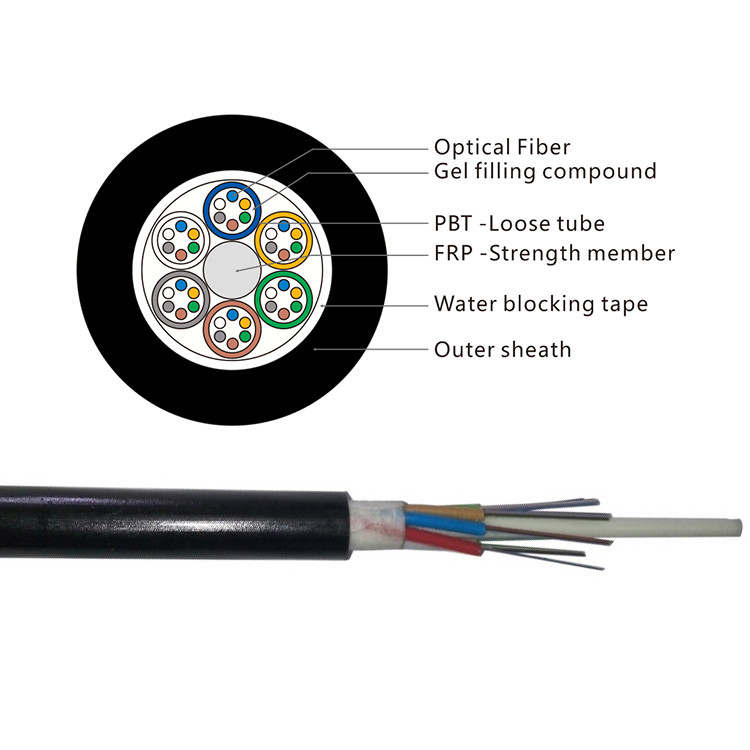

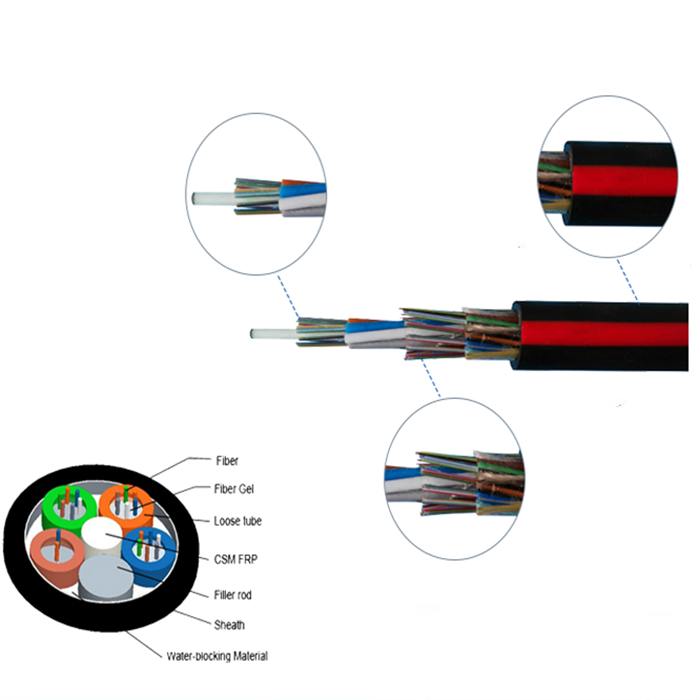

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Product Name:outdoor optical cable,installing fiber optic cable,corning fiber optic cables,optical fibre description,optic fibre,fiber optic wire price,fibre optic internet cable,fiber 48 core,fiber optic 6 core outdoor,supplier fiber optic cable
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Good crush ability and soft
Adopt the measures below to assure the water-proof function:
single non-metallic central strength member
Special tube filling compound ensure a critical protection of fiber
fully fiber filled
GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
@1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
@1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥200MHZ·km |
@1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
Cable Type | Fiber Count | Loose tube count | Filler count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending |
GYFTY-2~6 | 2~6 | 1 | 4 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-8~12 | 8~12 | 2 | 3 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-14~18 | 14~18 | 3 | 2 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-20~24 | 20~24 | 4 | 1 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-26~30 | 26~30 | 5 | 0 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-32~36 | 32~36 | 5 | 0 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-38~48 | 38~48 | 5 | 0 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-50~60 | 50~60 | 5 | 0 | 9.0 | 88 | 800/1500 | 500/1000 | 15D/30D |
GYFTY-62~72 | 62~72 | 6 | 0 | 9.5 | 100 | 1000/2000 | 500/1000 | 15D/30D |
GYFTY-74~84 | 74~84 | 7 | 1 | 10.5 | 120 | 1000/2000 | 500/1000 | 15D/30D |
GYFTY-86~96 | 86~96 | 8 | 0 | 10.5 | 120 | 1500/2500 | 500/1000 | 15D/30D |
GYFTY-98~108 | 98~108 | 9 | 1 | 11.5 | 150 | 1500/2500 | 500/1000 | 15D/30D |
GYFTY-110~120 | 110~120 | 10 | 0 | 12.0 | 150 | 1500/2500 | 500/1000 | 15D/30D |
GYFTY-122~144 | 122~144 | 12 | 0 | 13.0 | 150 | 1500/2500 | 500/1000 | 15D/30D |
GYFTY-146~216 | 146~216 | 18 | 0 | 13.0 | 150 | 1000/2000 | 500/1000 | 15D/30D |

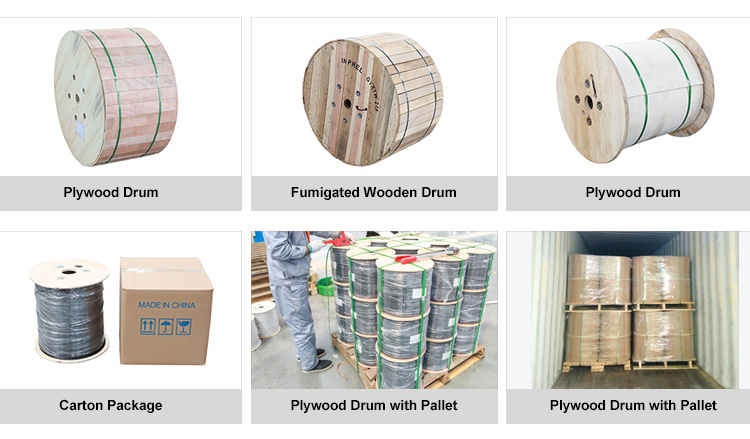

Packing and Marking:

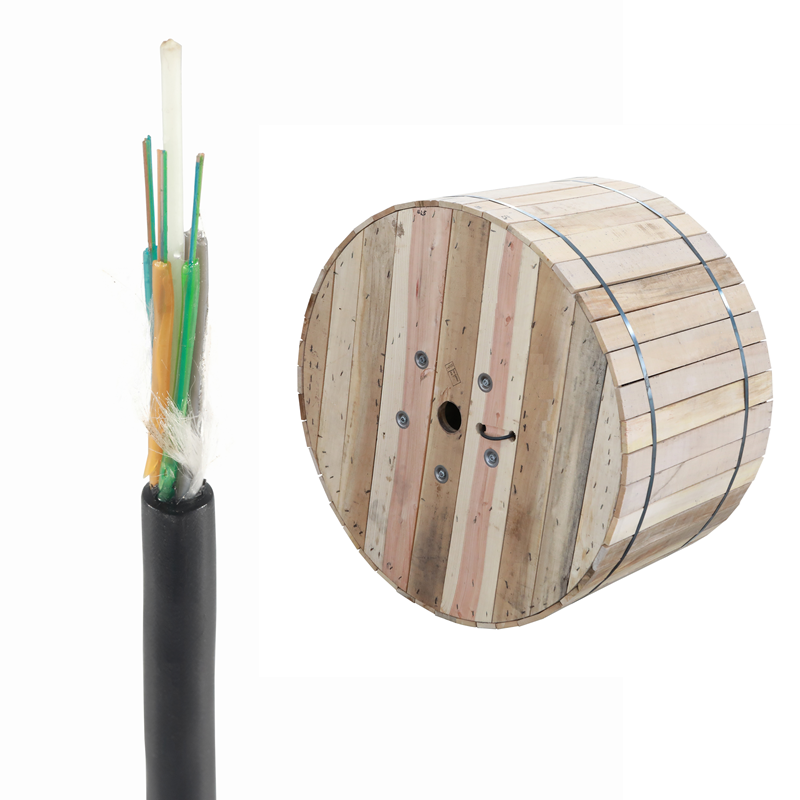

Packaging: wooden spool
Productivity: 1500 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1500 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
