12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable
12 Strand Hybrid Composite Power Fiber Optic Cable

12 Strand Hybrid Composite Power Fiber Optic Cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CIP,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GDTS

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Fiber Number2~144cores

StandardsYD/T 901 & IEC 60794-1

Fiber TypeG652D G655 G657

Product NameHybrid cable

Applicationduct, 5G base station

CertificationCE/ROHS/ISO9001

Material Of JacketBlack Polyethylene (PE)

Delivery Time15~25 days for mass production

Cable Diameter10mm-13mm

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
12 Strand Hybrid Composite Power fiber optic cable

Description of hybrid fiber cable:

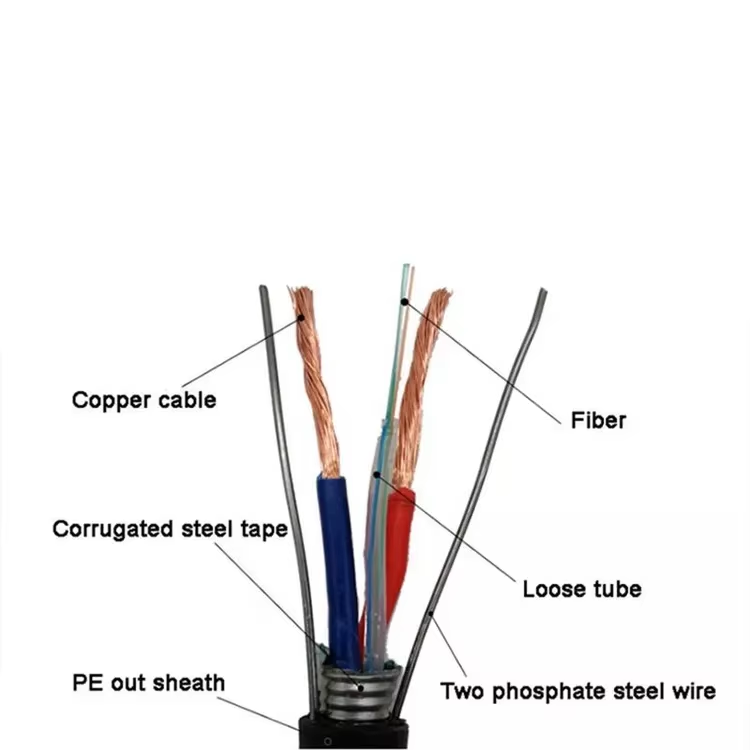

Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the center of cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with corrugated steel tape. Then, a PE sheath is extruded.​

Product Name:12 core fiber optic cable specifications,12 strand fiber cable,composite fiber cable,hybrid fiber cable,hybrid fiber optic cable,hybrid cable fiber,duct fiber cable

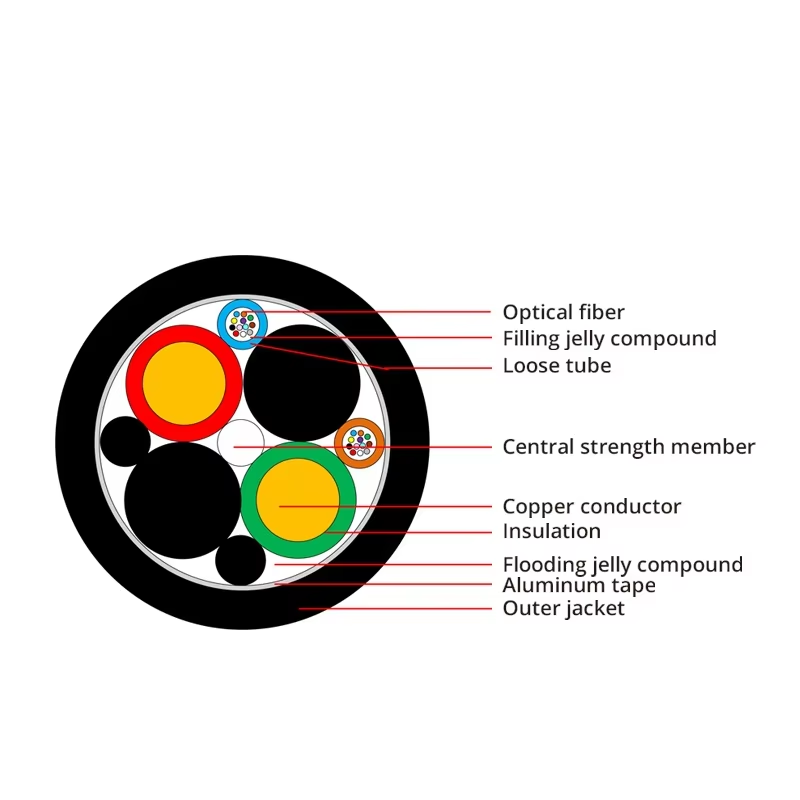

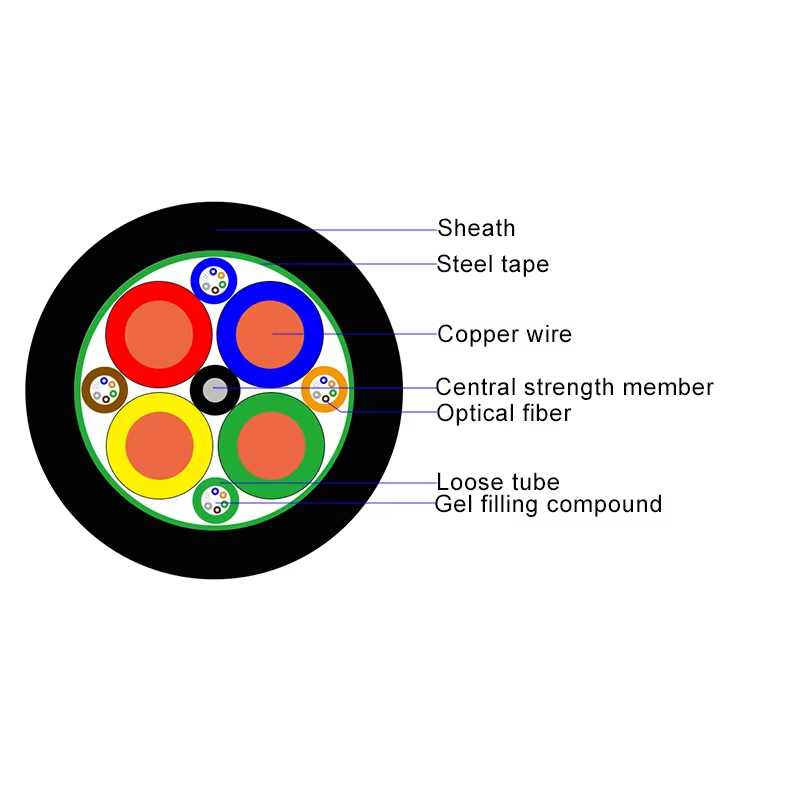

hybrid cable fiber and power cross section:

hybrid cable fiberhybrid fiber power cablehybrid cable fiber and power



fiber optic cable cable technical characteristics:
Type O.D.(mm) Weight(Kg/km) Tensile strength Long/short term (N) CrushLong/short term(N/100mm) Structure
GDTS-02-24Xn+2×1.5 11.6 157 600/1500 300/1000 Structure I
GDTS-02-24Xn+2×2.5 12.5 190 600/1500 300/1000 Structure I
GDTS-02-24Xn+2×4.0 14.6 241 600/1500 300/1000 Structure II
GDTS-02-24Xn+2×5.0 15.0 282 600/1500 300/1000 Structure II
GDTS-02-24Xn+2×6.0 15.7 300 600/1500 300/1000 Structure II
GDTS-02-24Xn+2×8.0 16.9 383 600/1500 300/1000 StructureII

Noted:

1.Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.Specially designed Cable structure is available on request.

Features:
• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hybrid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station.
duct fiber cable
12 core fiber optic cable specifications



optical fiber armored cable application:
The cable Laying method: Self-supporting Aerial Suitable for long-distance communication, local trunk line, CATV & computer networks system.
Fiber type: Single-mode/Multimode.

Packaging Details:

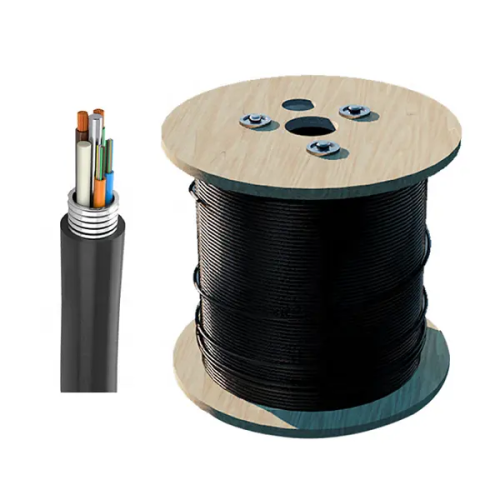

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request

hybrid fiber cable
Supply Ability & Additional Information

Packagingwooden drum

Productivity20 Kilometers per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability20 Kilometer/Kilometers per Week hybrid fiber optic cable

CertificateCE/ROHS/ISO9001

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CIP,DDP,DDU,Express Delivery
