6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable
6f 12cores Optical Hybrid Optic Fiber Internet Cable

6f 12cores Optical Hybrid Optic Fiber Internet Cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CIP,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.OPLC

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Fiber Number2~144cores

StandardsYD/T 901 & IEC 60794-1

Fiber TypeG652D G655 G657

Product NameHybrid cable

Applicationduct, 5G base station

CertificationCE/ROHS/ISO9001

Material Of JacketBlack Polyethylene (PE)

Delivery Time15~25 days for mass production

Cable Diameter10mm-13mm

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
6f 12cores Optical Hybrid Optic Fiber Internet Cable

Hybrid feeder cabling solution was developed to reduce installation complexity and costs at cellular sites,allows mobile operatiors deploying an RRH architecture to standardize the RRH installation process and eliminate the need and cost of cable grounding. Hybrid cable combines optical fiber (multimode or single mode ) and copper conductor for DC power in a single light weight aluminium corrugated cable.

Hybrid fiber optic cable, set fiber and power transmission and distribution cable at a suit, avoid secondary wiring, which can effectively reduce the construction, network construction and other fees. GDVV integrates optical transmission and power copper cable, hybrid fiber power cable can solve broadband access problems, equipment power supply, transmission transparent electricity meter data, report and charge electricity.

Product Name:optic fiber internet cable,optical fibre broadband,fiber optic cable internet,12 fiber cable,6f fiber optic cable,2 strand fiber cable,hybrid cable,ofc cable cost,200 meter fiber optic cable price

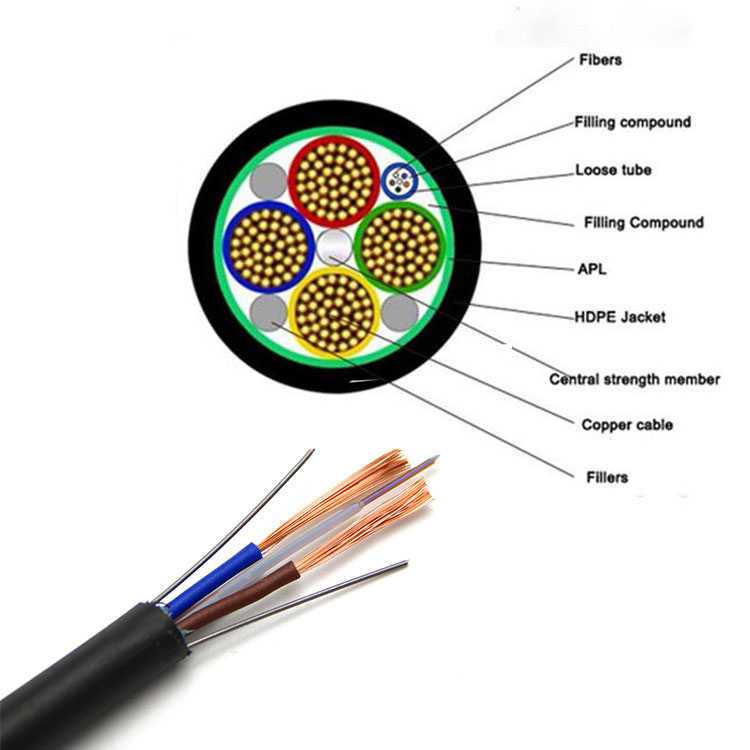

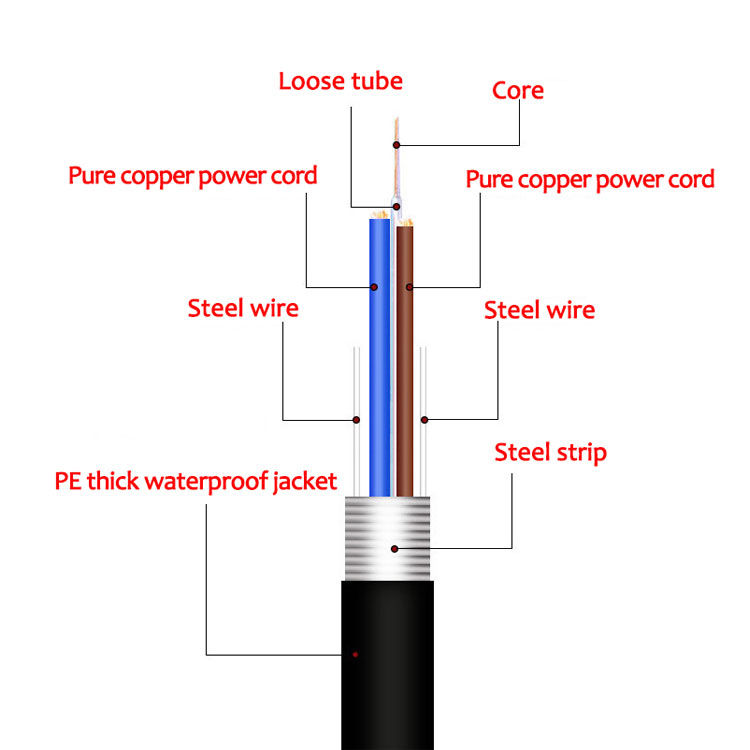

hybrid cable fiber and power cable cross -section:

optic fiber internet cable

hybrid fiber cable feature:

1. Low dispersion and attenuation.
2. LAP Aluminum belt is applied around the cable core, which is filled with the filling compound to protect it from water-ingress.
3. Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and environmental properties.
4. The armoring of steel wire and corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
5. Compact structure and lightness, flexible and good bend-resistant performance.

fiber optic wire cable technique parameters:

Fiber count Structure Conductorcross-section area Diameter Weight Tensile strength Crush ResistanceLong/Short TermN/100 mm Bending RadiusStatic
/Dynamicmm
2 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
4 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
6 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
8 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
10 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
12 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
14 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
16 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
18 Uni-tube 1.0 9.4 92 300/600 300/1000 10D/20D
20 Uni-tube 1.0 10.4 106 300/600 300/1000 10D/20D
22 Uni-tube 1.0 10.4 106 300/600 300/1000 10D/20D
24 Uni-tube 1.0 10.4 106 300/600 300/1000 10D/20D
Fiber count Structure Conductorcross-section area Diameter Weight Tensile strength Crush ResistanceLong/Short TermN/100 mm Bending RadiusStatic
/Dynamicmm
2 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
4 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
6 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
8 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
10 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
12 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
14 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
16 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
18 Uni-tube 1.5 10.8 119 300/600 300/1000 10D/20D
20 Uni-tube 1.5 11.3 127 300/600 300/1000 10D/20D
22 Uni-tube 1.5 11.3 127 300/600 300/1000 10D/20D
24 Uni-tube 1.5 11.3 127 300/600 300/1000 10D/20D

Temperature:

Operating /Storage:-40°c +70°c

Optical characteristics:

Fiber type 62.5um(OM1)850 nm 50um(OM2)850 nm/1300 nm G.652D1310 nm/1550 nm G.6551550 nm/1625 nm
Attenuation maximum 3.5/1.5 3.5/1.5 0.36/0.22 0.22/0.26
Attenuation typical 3.5/1.5 3.0/1.0 0.35/0.21 0.21/0.24
6f fiber optic cable2 strand fiber cable

Standards:

Comply with Standard YD/T 901 as well as IEC 60794-1.

Applicaiton:

1 Used for outdoor distribution box to the building’s pipeline; overhead; buried.
2 Used in optical communication equipment room, light distribution frame light connection and optical
3 instruments, equipment connect to the light.
4 Used for tail fiber and jump in line.
5 Used for buildings surrounding into cable.

Packaging Details:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Fiber Optic Cable
Supply Ability & Additional Information

Packagingwooden drum

Productivity20 Kilometers per week

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability20 Kilometer/Kilometers per Week hybrid fiber optic cable

CertificateCE/ROHS/ISO9001

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CIP,DDP,DDU,Express Delivery
