12cores fiber communication outdoor fiber optic cable type

12cores fiber communication outdoor fiber optic cable type

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYXTW

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Aerial/Duct

Out Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Fiber Type: G652D/G657A1/G657A2,OM3,OM4

Fiber Counts: 2~288 cores

OEM: YES

Allowable Tensile Strength: 600/1500N

Packing: 1~6km per spool

Armored: Steel Tape,Steel Wires

Diameter: 8.0mm

Certification: ISO9001

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

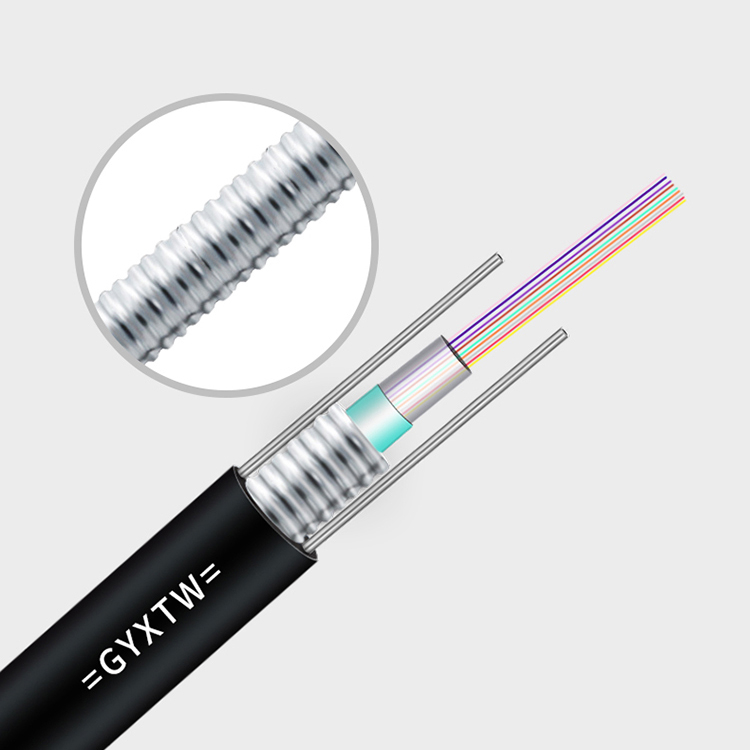

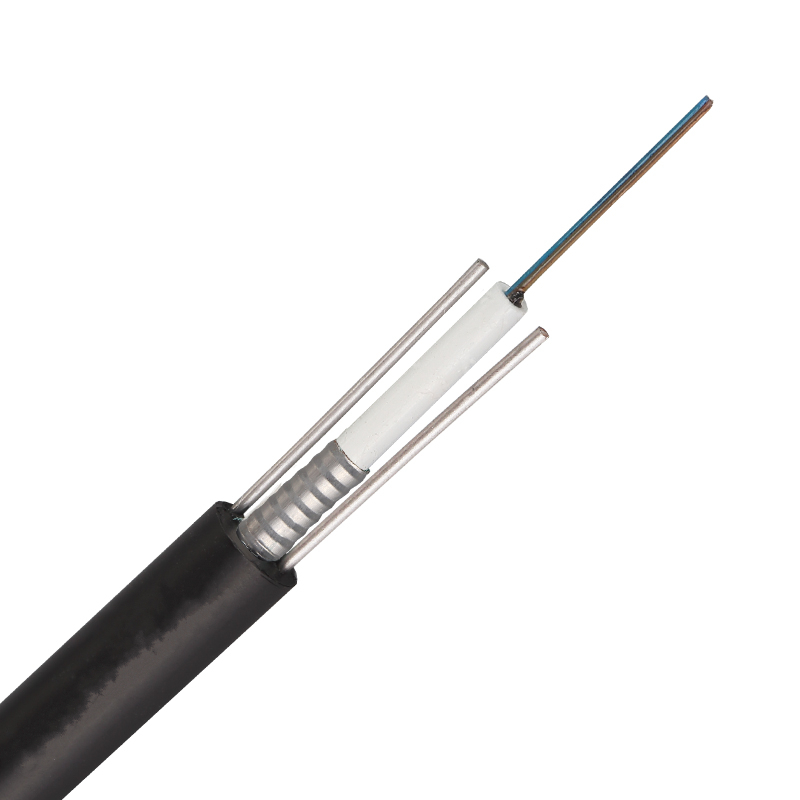

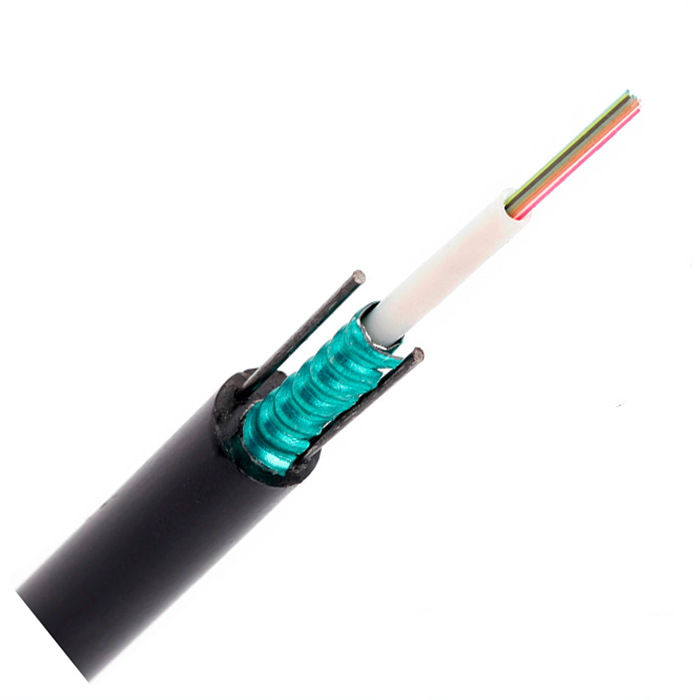

12cores fiber communication Outdoor Fiber Optic Cable type

Armoured loose tube fiber optic cable contain maximum up to 24 water blocking gel filled tubes with a maximum 12 fibers each.This cable comprises of a water blocking tape,a layer of corrugated steel tape armouring and PE outer jacket.The corrugated steel tape armouring provides mechanical and rodent protection to the cable.

Product Name:outdoor fiber cable,fiber optic type,fiber communications,fiber cable price，multimode fiber optic,outdoor fiber cable,supplier fiber optic cable,installation of optical fiber cable,optical patch cord types,fiber cable 12 core price,48 core fiber optic cable price,fiber optic cable buy,fiber cable underground,12 core optical fiber cable,4 core fiber cable,multimode cable,fiber multimode,multimode cable,fiber multimode,optic wire,2c fiber optic cable

Fiber:
2-24 fibers
Uni-loose tube gel-filled

Armor:
Corrugated steel tape

Strength Member:
Embedded steel wire

OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).

Cable Cross -Section:

Technical Parameters:

Cable Type (increased by 2fibers)	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYXTW 2 ~12	2 ~ 12	8.2	78	600/1500	300/1000	10D/20D

Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

Application : Aerial/ Duct

Main Feature:

1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers, based on the excellent hydrolysis resistance.
3. Excellent crush resistance and flexibility.
4. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
5. Two parallel steel wires ensure tensile strength.
6. Excellent ultraviolet prevention with PE sheath，small diameter, light weight and installation friendliness.

Temperature Rage:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards:

Comply with standard YD/T 769-2010

Packing and Marking:

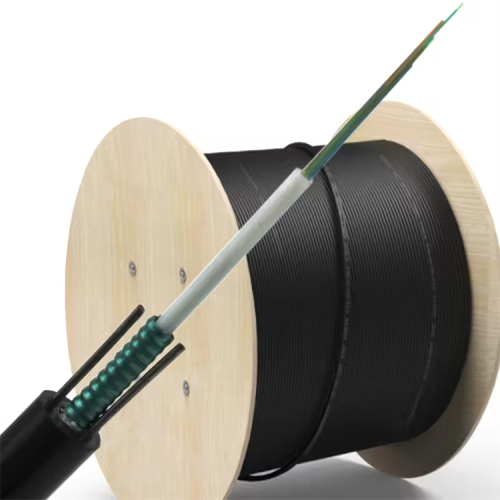

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
