Model No.: GYFTY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Cable Structure: Multi-Loose Tube Non Armor
Application: Outdoor duct/outdoor cable/aerial/lashed
Fiber Options: G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count: 2-288 Cores
Installation Tensile: 2700N
Bend Radius (Under Installation): 20 x External Diameter of cable
Strength Member: Fiberglass reinforced plastic (FRP)
Material Of Jacket: Black Polyethylene (PE)
Diameter: 9.0-10.0mm
Keyword: single mode optic fiber cable
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

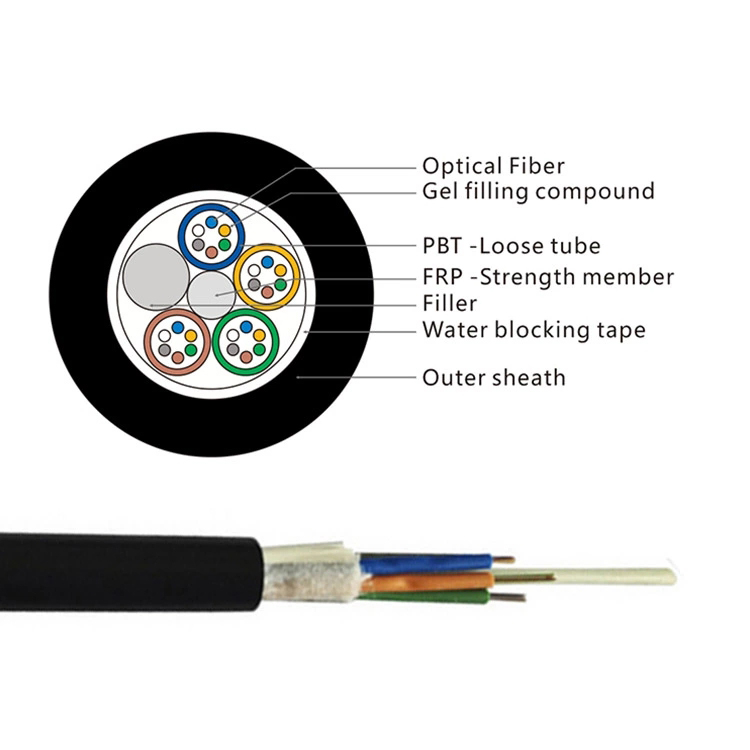

Cable Cross -Section:
G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Structure and Technical Specifications GYFTY
| Fiber Count | NominalDiameter (mm) | NominalWeight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
| 146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
| >144 | Available upon customer request | |||||||
Structure and Technical Specifications GYFTY-G (Yarn)
| Fiber Count | NominalDiameter (mm) | NominalWeight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
| 146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
| >144 | Available upon customer request | |||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
Application:
Aerial/Duct/Outdoor
Main Feature:
1. Suitable for use on distribution and high voltage transmission lines with mini spans or self-supporting installation for telecommunication ；
2. Track -Resistant outer jacket available for the high voltage；
3. Line where space potentials up to 35KV；
4. Gel-Filled buffer tubes are S-Z stranded；
5. Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain performance for mini span (usually below 150meters)；
6. The fiber counts from 2-288 fibers.
Temperature Rage:
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Standards: Comply with standard YD/T 769-201
Packaging: wooden spool
Productivity: 1500 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1500 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
