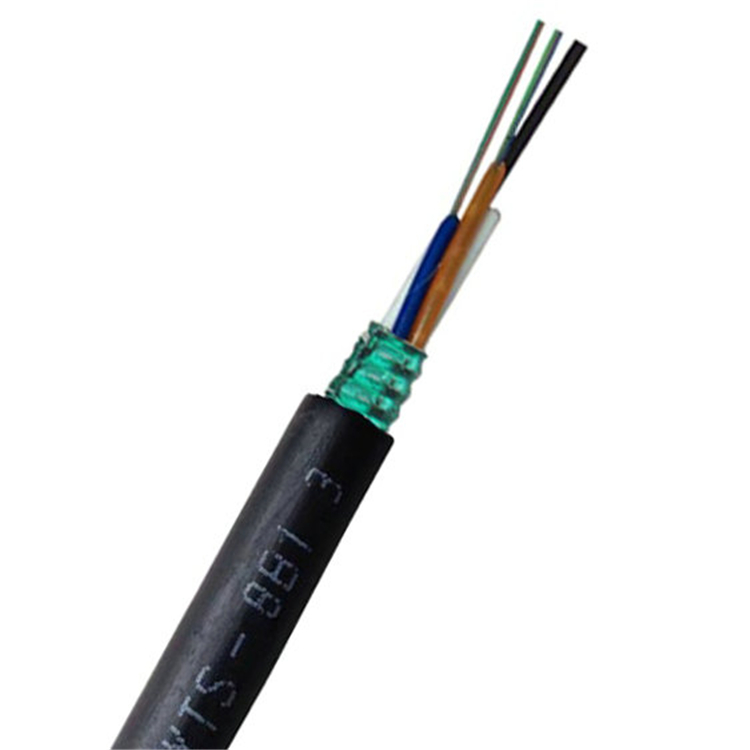

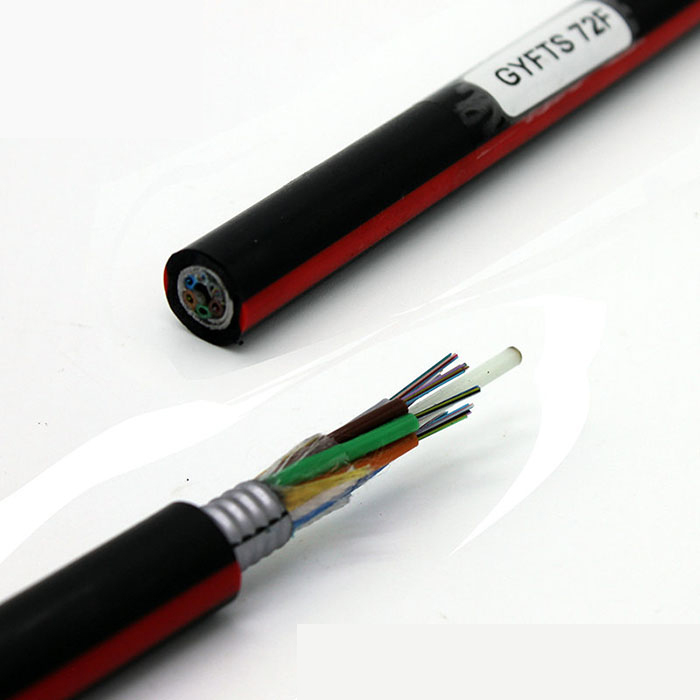

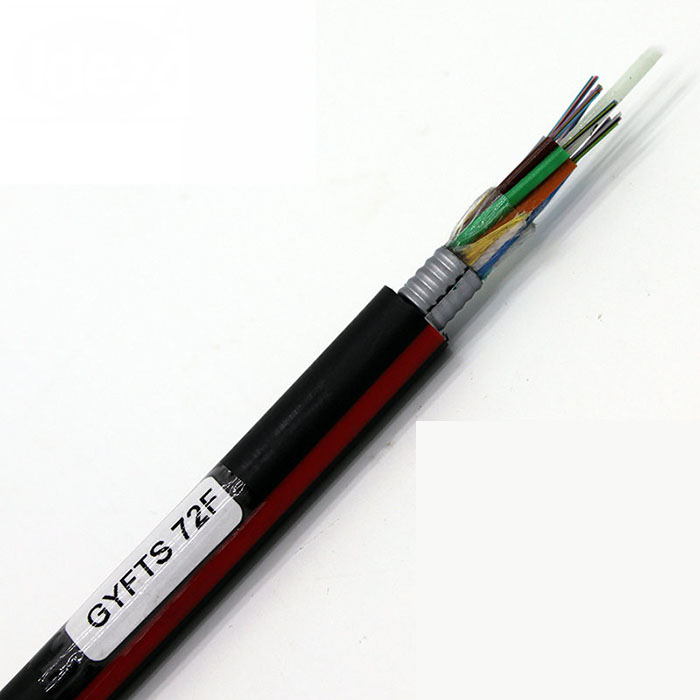

GYFTS optical fiber cable is an outdoor communication optical cable of non-metallic strength member of the loose tube jelly-filled structure, with steel-polyethylene laminated sheath.

The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with cable filling compound. The Corrugated Steel Tape is longitudinally applied over the cable core, and combined with a durable Polyethylene (PE) sheath.

Product Name:fiber optic cable pricing,armoured fo cable,4 core multimode fiber optic cable,single mode fiber price,fiber optic tv cable,optical wire price,fiber optic cable multimode price,cable 24 core,standard fiber optic cable,armoured fiber cable,multimode fiber cable,fiber optic kabel,fiber optic type,fiber communications,fiber cable price,multimode fiber optic

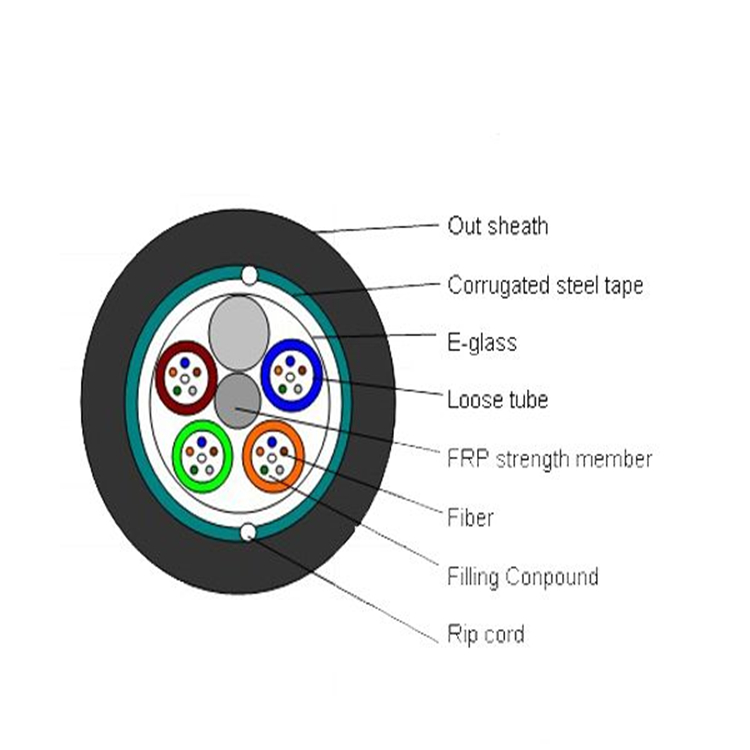

Cable Cross Section:

• Cable type: GYFTS
• Application: Aerial/Duct Cable
• Standard: YD/T 901-2009
• Fiber count: 2~288，or as your request
• Fiber type: G652D, or as requested
• Outer jacket: PE
• Packing: 2-4km/wooden drum
• Certification: ISO9001, ISO14001, OHSAS 18001, etc.
• Annual capacity: 45 million km

Technical Specification:



Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Min. Bending Radius(mm)		Max. Tensile load(N)		Max/ Crush Load(N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2~30	10.0	120	10D	20D	1500	600	1000	300
32~36	10.5	138	10D	20D	1500	600	1000	300
38~60	11.3	151	10D	20D	1500	600	1000	300
62~72	12.0	184	10D	20D	1500	600	1000	300
72~96	13.8	226	10D	20D	1500	600	1000	300
98~120	15.4	270	10D	20D	1500	600	1000	300
120~144	17.0	315	10D	20D	1500	600	1000	300
Operating Temperature			-40~70℃

Notes: This data-sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Characteristics of the Fiber-G.652D

Item	Specification	Item	Specification
Fiber type	Single Mode	PMD	£0.2 ps/km1/2
Fiber Material	Doped Silica	Mode field Diameter @ 1310 nm	(8.6~9.5)±0.6 um
Attenuation Coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	£ 0.35 dB/km £ 0.35 dB/km £ 0.21 dB/km £ 0.30 dB/km	Chromatic Dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	£3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km)
Point Discontinuity	£ 0.05 dB	Core / Clad Concentricity Error	£ 0.6 um
Cable Cut-off Wavelength	£ 1260 nm	Cladding Diameter	125.0 ± 1 um
Zero-dispersion Wavelength	1300 ~ 1324 nm	Zero-dispersion Slope	£ 0.092 ps/(nm2.km)
Primary Coating Diameter	245 ± 10 um	Temperature Dependence 0oC~ +70oC @ 1310 & 1550nm	£ 0.1 dB/km



Performance:

• Low loss, low dispersion.
• Proper design and precise excess length control offer excellent mechanical and environmental properties to cable.
• Small size, light weight, self-supporting.
• Corrugated steel tape armor improves cable’s moisture-proof property and side pressure resistance.
• LSZH flame retardant material is applied in sheath in model GYTZS.
• Applicable to access system, FTTH, CATV, computer network transmission system etc.
•
• Sheath Marking:
•

The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.

An occasional unclear of length marking is permitted if both of the neighboring markings are clear.

The both cable ends are sealed with heat shrinkable end caps to prevent water ingress
