12core Outdoor Stranded Singlemode Fiber Optic Cable GYFTA

12core Outdoor Stranded Singlemode Fiber Optic Cable GYFTA

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYFTA

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Used for long haul communication

Fiber Type: G652D/G657A1/G657A2,OM3,OM4

No. Of Fiber: 2-288

Outer Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Loose Tube Material: PBT

Keyword: fiber optic cable

Laying Method: Duct,Aerial

Certification: CE/ROHS/ISO9001 /ANATEL

Strength Member: Steel Tape or Aluminium Tape

Installation Tensile: 1500N

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

12core Outdoor Stranded singlemode fiber optic cable GYFTA

Armoured loose tube fiber optic cable comes with a Fiberglass Reinforced plastic (FRP) central strength member,containing maximum up to 24 water blocking gel filled tubes and each tube contains up to maximum 12 fibers.The cable jacket incorporates a water blocking tape,a layer of corrugated steel tape armour and PE outer jacket preventing any water penetration.The corrugated steel tape armouring provides additional mechanical protection &100% rodent proof thus making it suitable for direct burial &harsh environment installations.

Product Name:optical fiber,ofc communication,fiber cable type,single mode fiber price,fiber optic tv cable,optical wire price,fiber optic cable multimode price,cable 24 core,standard fiber optic cable,armoured fiber cable,4 core multimode fiber optic cable,multimode fiber cable,armoured fo cable,fiber optic cable pricing

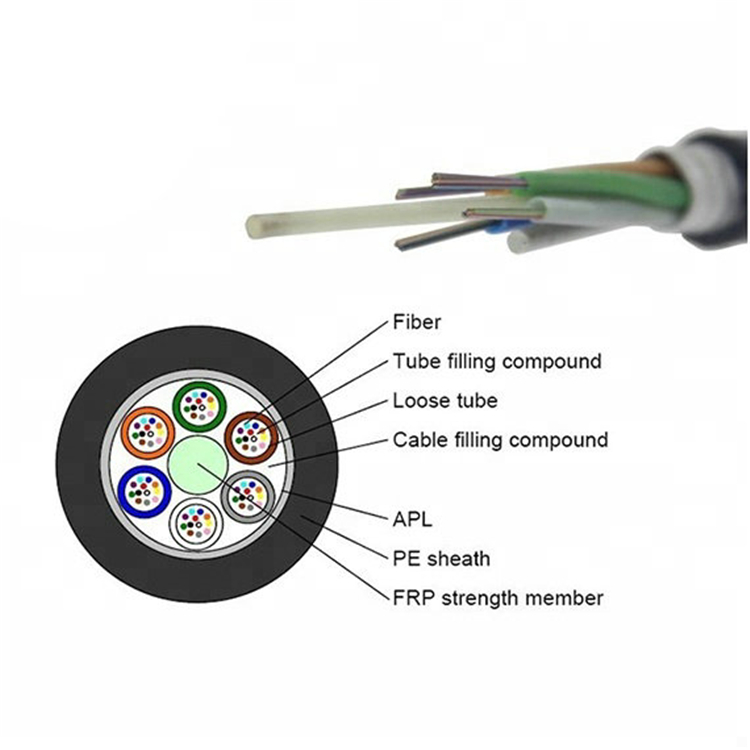

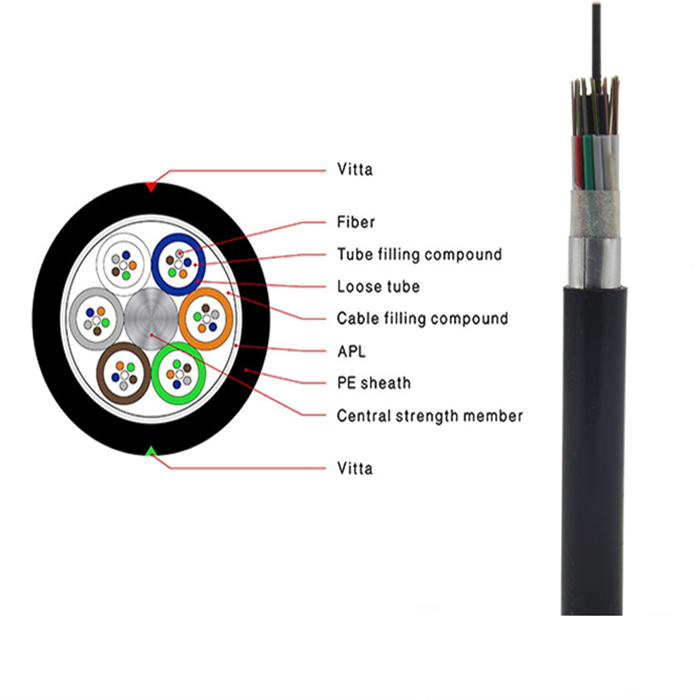

Cable Cross -Section:

Technical data:

Cable Type	Fiber Count	Tubes	Fillers	Cable Diametermm	Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short TermN/100mm	Bending Radius Static /Dynamicmm
GYFTA-2~6	2~6	1	5	11.0	100	600/1500	300/1000	10D/20D
GYFTA-8~12	8~12	2	4	11.0	100	600/1500	300/1000	10D/20D
GYFTA-14~18	14~18	3	3	11.0	100	600/1500	300/1000	10D/20D
GYFTA -20~24	20~24	4	2	11.0	100	600/1500	300/1000	10D/20D
GYFTA-26~30	26~30	5	1	11.0	100	600/1500	300/1000	10D/20D
GYFTA-32~36	32~36	6	0	11.0	100	600/1500	300/1000	10D/20D

Note:
1. Only a part of GYFTA fiber cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Application:
1.Long-distance telecom, LAN in high-voltage area or access to telecom network
2.Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
3.Recommended layings methods
4.High-voltage area, Aerial

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
