aluminium duct steel tape armored fiber optical cable

aluminium duct steel tape armored fiber optical cable

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYTA

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Used for long haul communication

Fiber Type: G652D/G657A1/G657A2,OM3,OM4

No. Of Fiber: 2-288

Outer Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Loose Tube Material: PBT

Keyword: fiber optic cable

Laying Method: Duct,Aerial

Certification: CE/ROHS/ISO9001 /ANATEL

Strength Member: Steel Tape or Aluminium Tape

Installation Tensile: 1500N

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

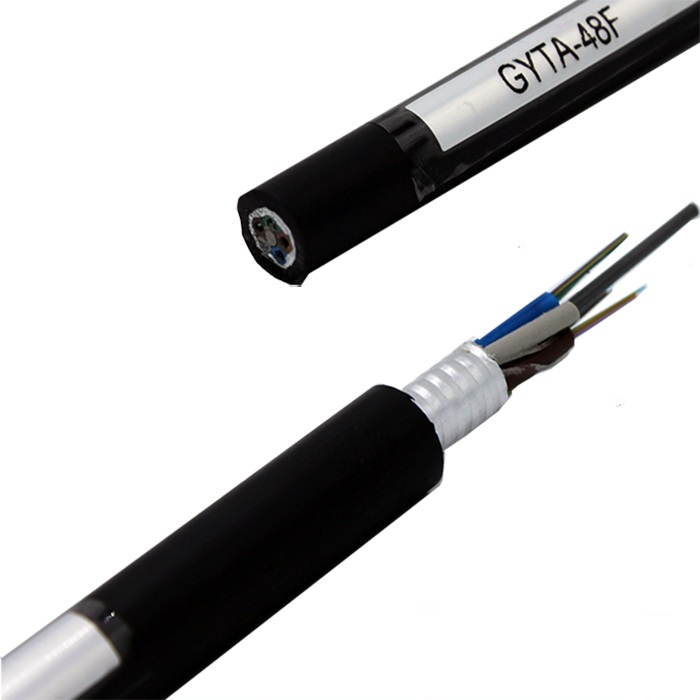

GYTA aluminium duct steel tape armored fiber optical cable

Armoured loose tube fiber optic cable contain maximum up to 24 water blocking gel filled tubes with a maximum 12 fibers each.This cable comprises of a water blocking tape,a layer of corrugated steel tape armouring and PE outer jacket.The corrugated steel tape armouring provides mechanical and rodent protection to the cable.

GYTA fiber optic cable is used for duct or aerial applications.

These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability; APL makes the cable crush resistant and moisture proof. So, the GYTA has a very good watertight performance.

Product Name:fiber optic cable information,description of fiber optic cable，armored optical cable，g652d fiber cable,optical cable g652d,stranded fiber optic cable,single mode fiber price，fiber optic tv cable,optical wire price，fiber optic cable multimode price，cable 24 core，standard fiber optic cable，armoured fiber cable，4 core multimode fiber optic cable

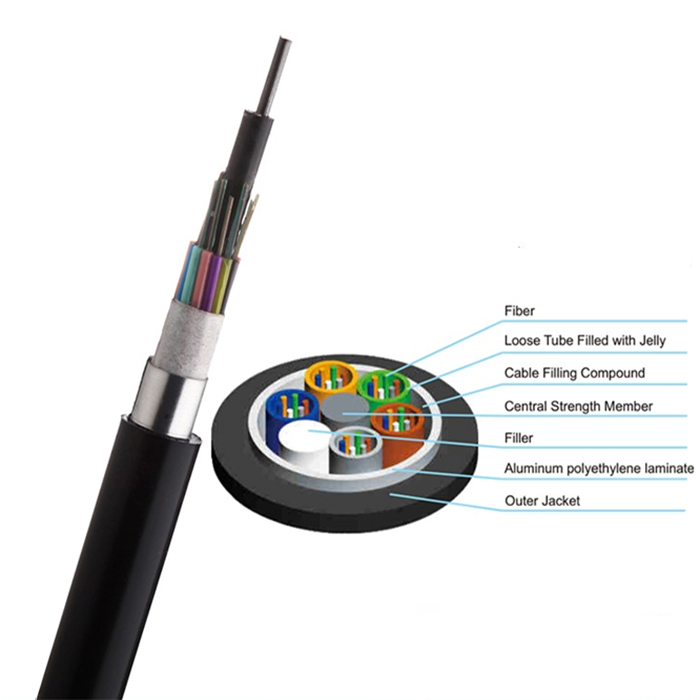

Cable Cross -Section:

Technical Parameters:

Cable Type (increased by 2fibers)	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/Short Term (N/100mm)	Bending RadiusStatic/Dynamic (mm)
GYTA 2 ~ 30	2 ~ 30	9.5	80	600/1500	300/1000	10D/20D
GYTA 32 ~ 36	32 ~ 36	9.7	97	600/1500	300/1000	10D/20D
GYTA 38 ~60	38 ~60	10.5	109	600/1500	300/1000	10D/20D
GYTA 62 ~72	62 ~72	11.5	126	600/1500	300/1000	10D/20D
GYTA 74 ~96	74 ~96	13.2	153	600/1500	300/1000	10D/20D
GYTA 98 ~120	98 ~120	14.6	182	600/2000	300/1000	10D/20D
GYTA 122 ~ 144	122 ~ 144	16.5	221	600/2500	300/1000	10D/20D
GYTA 146 ~ 216	146 ~ 288	16.5	221	600/2500	300/1000	10D/20D

Noted:

1，Only a part of Aerial/Duct/Direct Buried/Underground/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2，Cables can be supplied with a range of single mode or multimode fibers.
3，Specially designed Cable structure is available on request.

Application: Aerial/Duct/Outdoor

Characteristic:

1，The following measures are taken to ensure the water blocking performance of the cable.
2，Single steel wire used as the central strength member.
3，Special water-blocking filling compound in the loose tube.
4，100% cable core filling.

Temperature Rage:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards:

Comply with standard YD/T 901-2009 as well as IEC 60794-1

Packing:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
