4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable
4core single mode armoured GYXTW optical fiber cable

4core single mode armoured GYXTW optical fiber cable

Payment Type:L/C,T/T,Paypal,others,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYXTW

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationAerial/Duct

Out SheathHDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Fiber TypeG652D/G657A1/G657A2,OM3,OM4

Fiber Counts2~288 cores

OEMYES

Allowable Tensile Strength600/1500N

Packing1~6km per spool

ArmoredSteel Tape,Steel Wires

Diameter8.0mm

CertificationISO9001

Packaging & Delivery
Selling Units: Kilometer

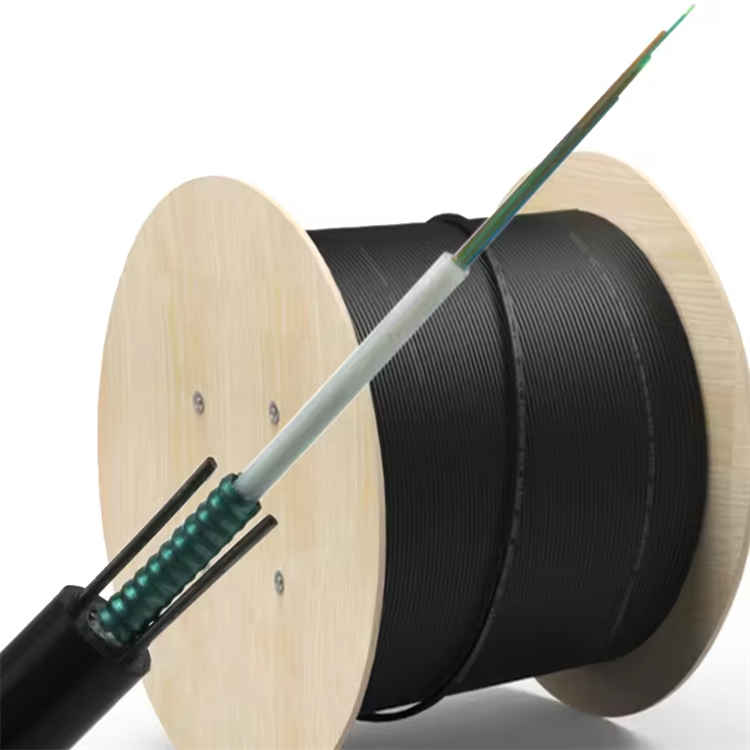

Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

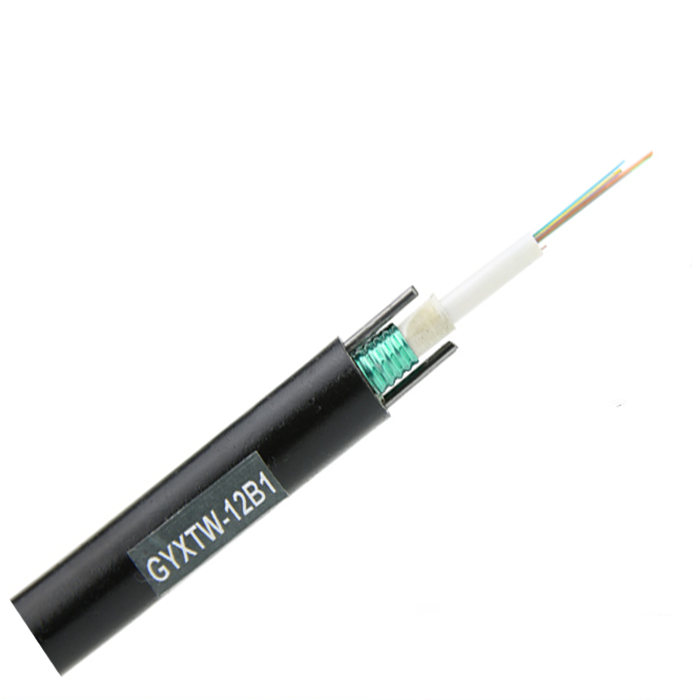

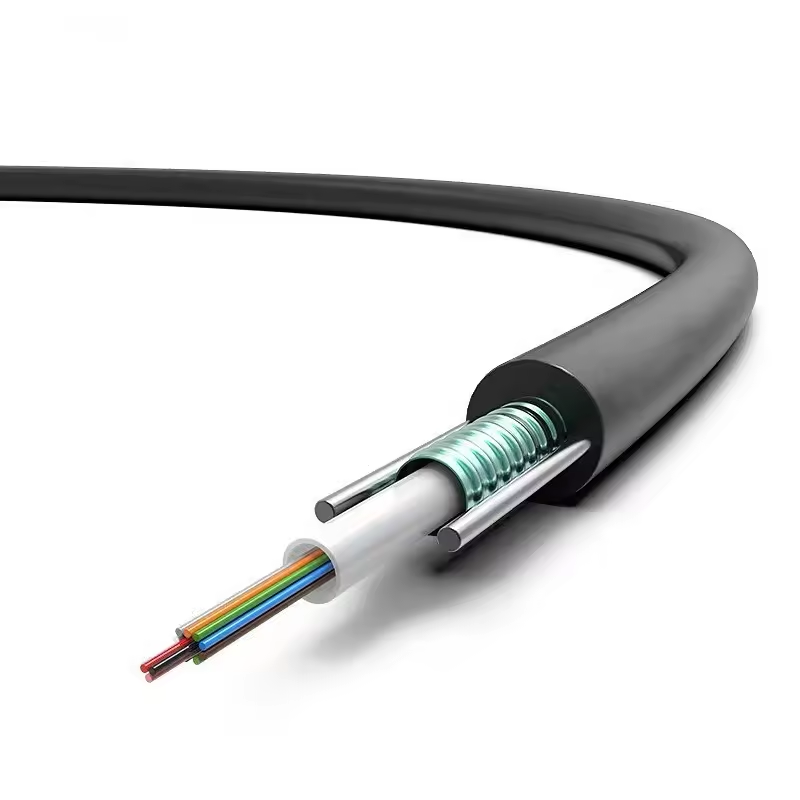

4 core single mode armoured GYXTW optical fiber cable

Armoured loose tube fiber optic cable contain maximum up to 24 water blocking gel filled tubes with a maximum 12 fibers each.This cable comprises of a water blocking tape,a layer of corrugated steel tape armouring and PE outer jacket.The corrugated steel tape armouring provides mechanical and rodent protection to the cable.

Product Name:size of fibre optic cable,cost of optical fiber cable per meter,fiber optic cable diameter,outdoor multimode fiber optic cable,optical fiber company,single mode fiber cable types,optical optical cable,optik fiber,mm fiber cable,single mode fiber optic distance,fiber cable underground

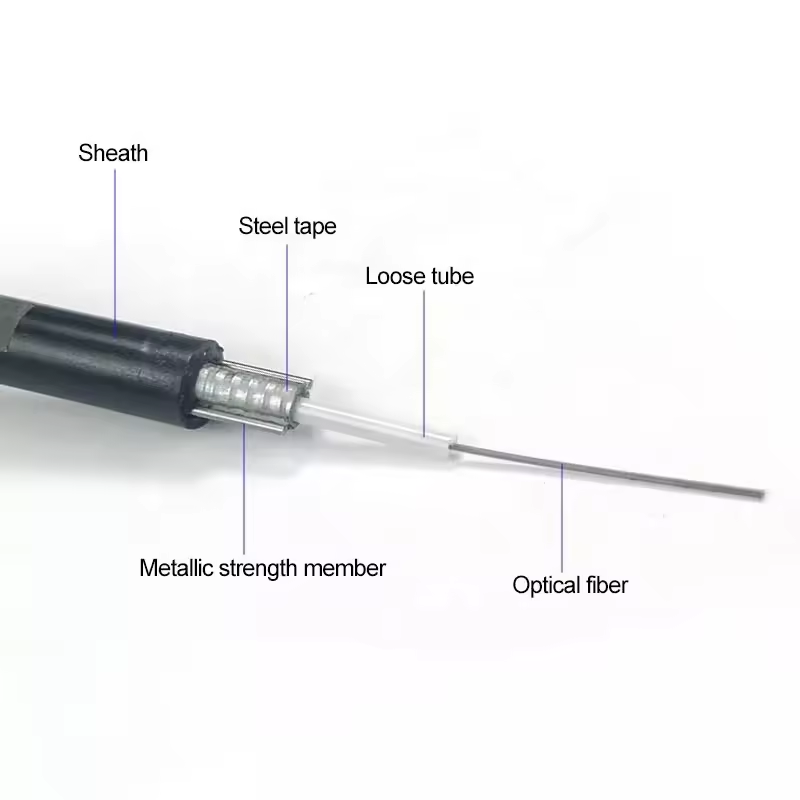

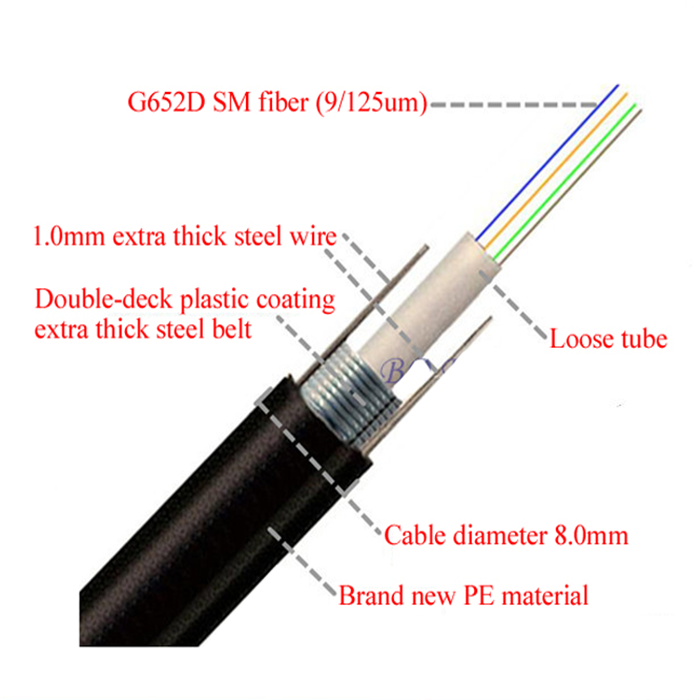

Cable Construction:

Fiber:
2-24 fibers
Uni-loose tube gel-filled


Armor:
Corrugated steel tape


Strength Member:
Embedded steel wire


OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).

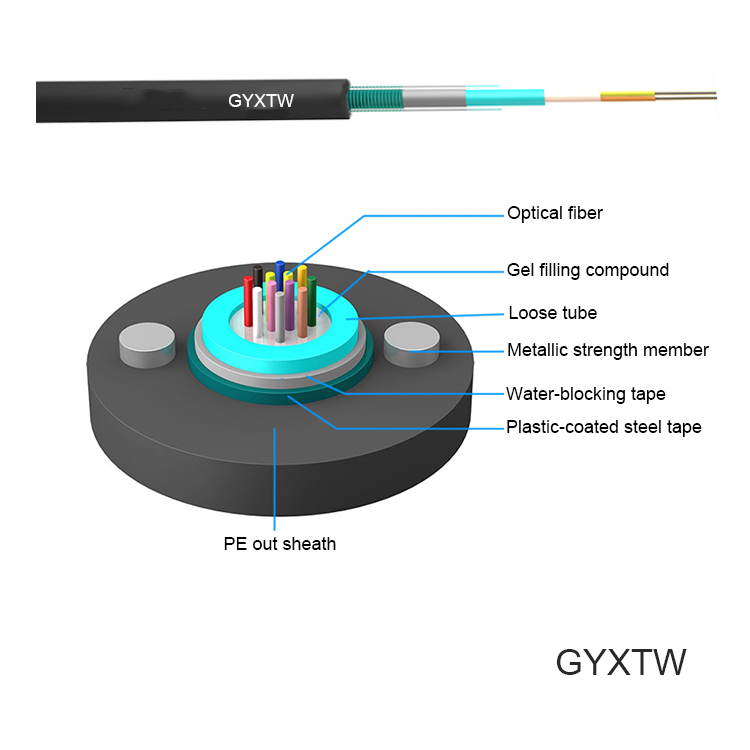

Cable Cross -Section:
multi mode fiber opticsingle mode fiber cable types

Optical Charateristics

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm





<3.0 dB/km

<3.3 dB/km

1300 nm





<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km





1550 nm

<0.22 dB/km

<0.23 dB/km





Bandwidth

850 nm





>500 MHz-km

>200 Mhz-km

1300 nm





>500 MHz-km

>500 Mhz-km

Numerical Aperture





0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength cc

<1260 nm

<1450 nm







Structure and Technical Specifications

 Fiber Count

 Nominal Diameter

           (mm)

 Nominal Weight

        (kg/km)

 Allowable Tensile Load

               (N)

 Allowable Crush Resistance
                  (N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

7.8

60

1500

600

1500

600

14~24

8.5

85

1500

600

1500

600

Note:

1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request. optik fiberoptical fiber companyoptic wire

Application : Aerial/ Duct

Main Feature:

1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers, based on the excellent hydrolysis resistance.
3. Excellent crush resistance and flexibility.
4. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
5. Two parallel steel wires ensure tensile strength.
6. Excellent ultraviolet prevention with PE sheath,small diameter, light weight and installation friendliness.

Temperature Rage:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards:

Comply with standard YD/T 769-2010

Packing:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

fiber cable underground
Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others,Cash

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP
