Model No.: GJFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Count: 2-24 Cores

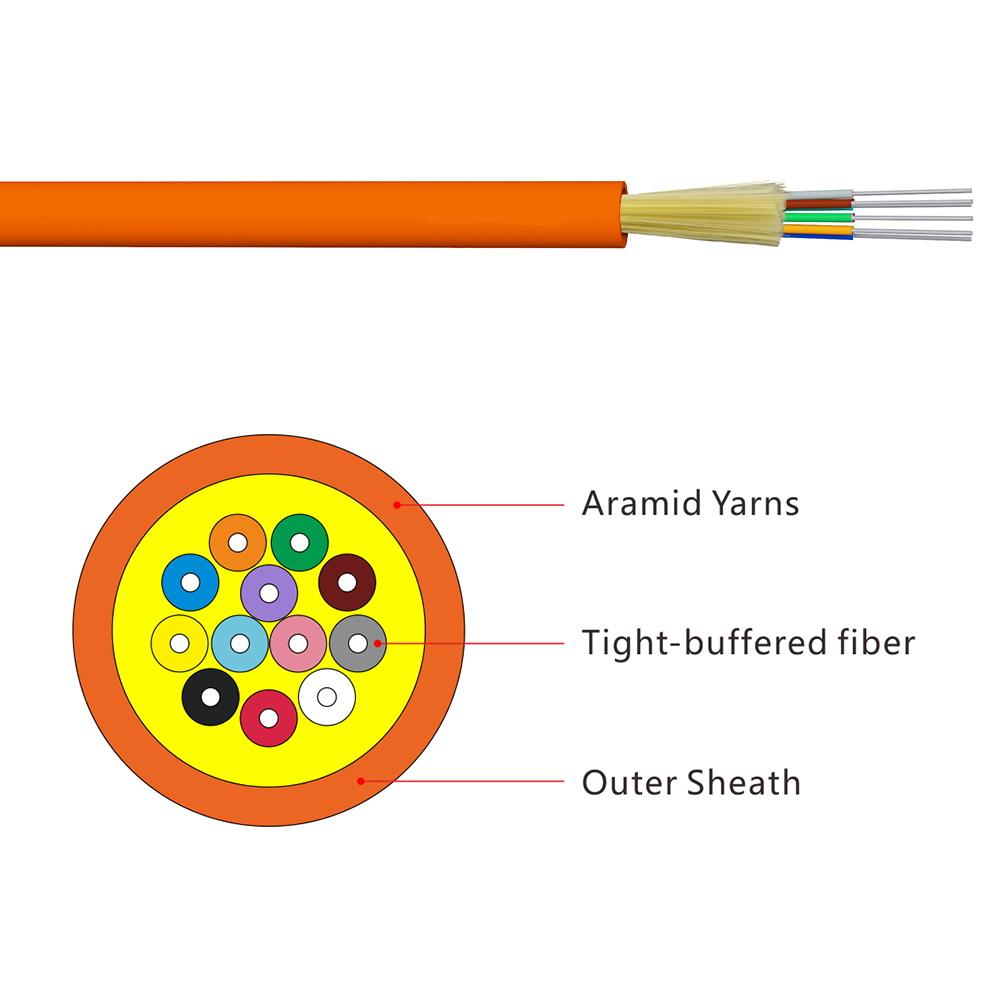

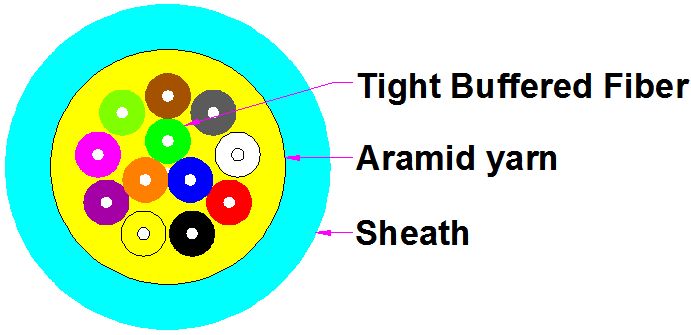

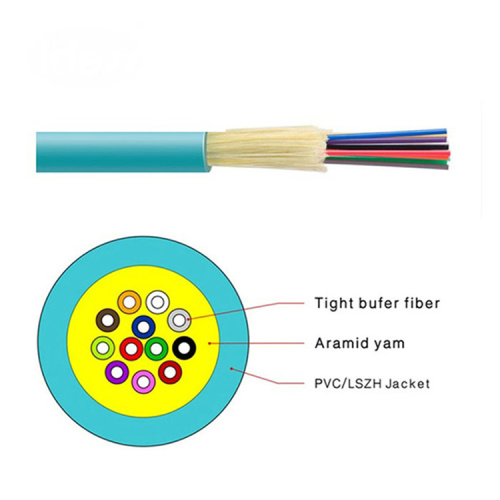

Cable Structure: tight buffer
Installation Tensile: 440-660N
Strength Member: Kevlar Aramid Yarn
Material Of Jacket: PVC/ LSZH
Application: Indoor any purpose cable distribution
Certification: ISO9001,ROHS,TLC
Bend Radius (Under Installation): 20 x External Diameter of cable
Fiber Type: OS1,OS2,OM1,OM2,OM3
OEM/ODM: Yes
| Selling Units: | Kilometer |
| Package Type: | Wooden Drum |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

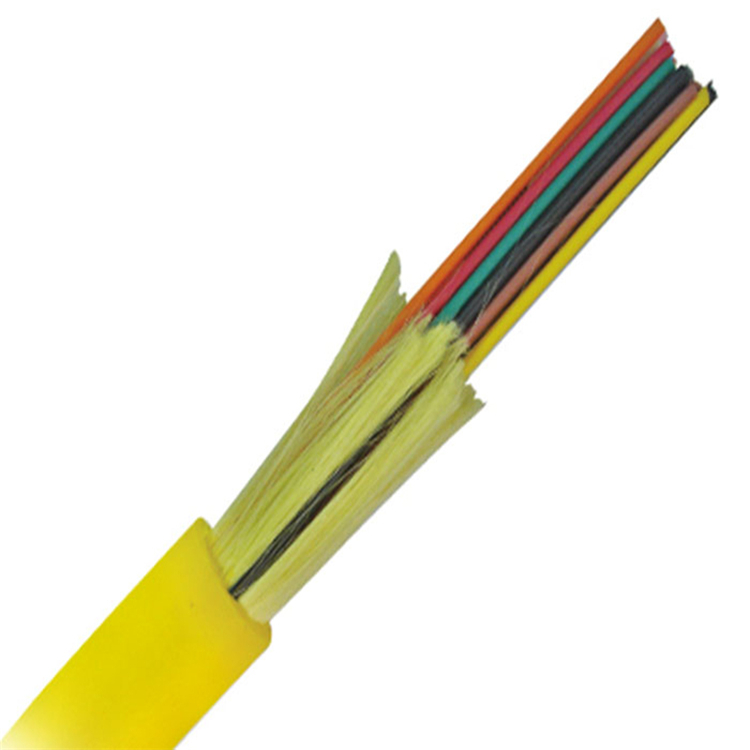

1.2 Characteristics
A. Tight buffer fiber easystrip
B. Tight buffer fiber has excellent flame-retardant performance
C. Aramid yarn as strengthmember make cable have excellent tensile strength
D. The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
1.3 Cable Application（Multi Purpose Distribution Cable）
A. Indoor any purpose cabledistribution
B. Backbone distributioncable in a building
C. Multi optical fiberjumper
1.4 Cable Properties
Transporttemperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
2. Optical Characteristics & Technical Parameters
| Cable Code | Cable Diameter mm | Cable Weight(Ref) kg/km | Tensile strength Long/Short term mm | Crush Resistance Long/short term N/100mm | Bending Radius Dynamic/ Static mm | |
| PVC jacket | LSZH jacket | |||||
| GJFJV(H)-4F | 4.8±0.3 | 16.0 | 18.0 | 130/440 | 300/1000 | 20D/10D |
| GJFJV(H)-6F | 5.1±0.3 | 20.0 | 23.0 | 130/440 | 300/1000 | 20D/10D |
| GJFJV(H)-8F | 5.6±03 | 27.0 | 31.0 | 130/440 | 300/1000 | 20D/10D |
| GJFJV(H)-12F | 6.2±03 | 32.0 | 36.0 | 130/440 | 300/1000 | 20D/10D |
| GJFJV(H)-24F | 8.1±0.3 | 53.0 | 57.0 | 400/1320 | 300/1000 | 20D/10D |
| Fiber Type | Attenuation | OFL | Valid mode band width | 10G Ethernet link length SX | Min. bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Typical | Max. | Typical | Max. | | | | | |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | | | | | | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | | | | | | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
| OM1 | | | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 |
| OM2 | | | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 |
| OM3 | | | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | | | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 |
3. Packing and shipping
3.1 The cables are packed in wooden drums andthen in carton box
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
GT *** xxFIBRE Month/Year XXXXM
l GT: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
Packaging: Wooden Drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001,ROHS,TLC
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
