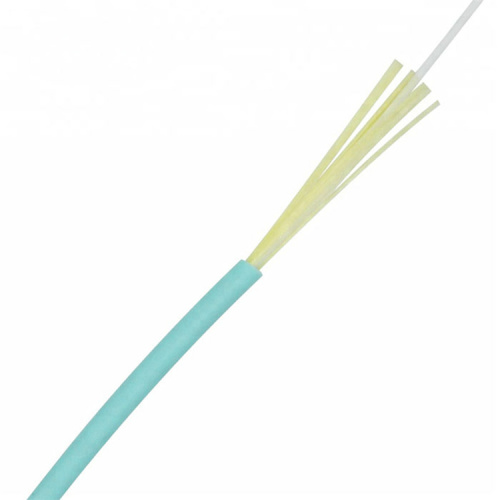

Model No.: GJFJH
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Count: 2-24 Cores
Cable Structure: tight buffer
Installation Tensile: 440-660N
Strength Member: Kevlar Aramid Yarn
Material Of Jacket: PVC/ LSZH
Application: Indoor any purpose cable distribution
Certification: ISO9001,ROHS,TLC
Bend Radius (Under Installation): 20 x External Diameter of cable
Fiber Type: OS1,OS2,OM1,OM2,OM3
OEM/ODM: Yes
| Selling Units: | Kilometer |
| Package Type: | Wooden Drum |

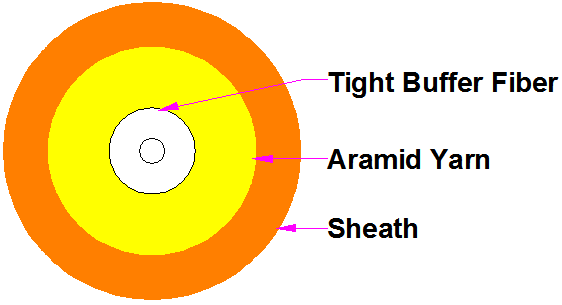

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1.2 Characteristics
A. Tight buffer fiber easystrip
B. Tight buffer fiber has excellent flame-retardant performance
C. Aramid yarn as strengthmember make cable have excellent tensile strength
D. The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
1.3 Cable Application
A. Optical fiber jumper or pigtail
B. Indoor riser level and plenum level cable distribution
C. Interconnect betweeninstruments, communication equipment.
1.4 CableProperties
Transporttemperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
2. Optical Characteristics& Technical Parameters
2.1 Technical Parameters
| Cable Code | Cable Diameter mm | Cable Weight(Ref) kg/km | TBF Diameter μm | Tensile strength Long/Short term mm | Crush Resistance Long/short term N/100mm | Bending Radius Dynamic/Static mm | |
| PVC jacket | LSZH jacket | ||||||
| GJFJV(H)-1.6 | 1.6±0.2 | 2.4 | 2.6 | 600±50 | 40/80 | 100/500 | 60/30 |
| GJFJV(H)-1.9 | 1.9±0.2 | 3.5 | 4.5 | 900±50 | 60/100 | 100/500 | 60/30 |
| GJFJV(H)-2.8 | 2.8±0.2 | 6.0 | 7.5 | 900±50 | 60/100 | 100/500 | 60/30 |
| Fiber Type | Attenuation | OFL | Valid mode band width | 10G Ethernet link length SX | Min. bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | | ||
| Typical | Max. | Typical | Max. | | | | | |
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | | | | | | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | | | | | | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | | | | | | 7.5 |
| OM1 | | | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 |
| OM2 | | | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 |
| OM3 | | | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | | | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 |
3. Packing and shipping
3.1 The cables are packed in wooden drums andthen in carton box
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
GT *** xxFIBRE Month/Year XXXXM
l GT: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
Packaging: Wooden Drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001,ROHS,TLC
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
