Model No.: GJFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Count: 2-24 Cores
Cable Structure: tight buffer
Installation Tensile: 440-660N
Strength Member: Kevlar Aramid Yarn
Material Of Jacket: PVC/ LSZH
Application: Indoor any purpose cable distribution
Certification: ISO9001,ROHS,TLC
Bend Radius (Under Installation): 20 x External Diameter of cable
Fiber Type: OS1,OS2,OM1,OM2,OM3
OEM/ODM: Yes
| Selling Units: | Kilometer |
| Package Type: | Wooden Drum |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
12 24 cores singlemode optical Distribution Fiber Cable

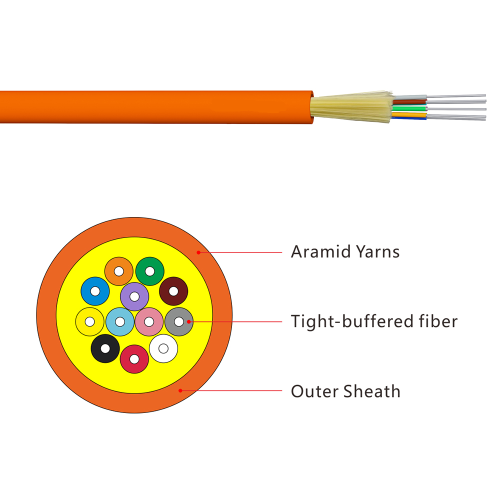

GJFJV Indoor Fiber Optic Cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Indoor distribution tight buffer cable are used for LAN connections, patch cords, MTP/MPO, pigtails and internal point-to-point links(data cabinets, equipment rooms, wall outlets and computers). With 250um fibre, the cable is suitable for industry standard connectors and can be easily made into assemblies for MTP/MPO patch cords,they can also be supplied in PVC (OFNR & OFNP) or LSZH jackets
Product Name:indoor fiber optic cable，fiber optic breakout cable，fiber patch cord cable，fiber cable specification，optical cable cord，indoor outdoor cable，distribution fiber cable，optical distribution fiber
·Small diameter, light weight,flame retardant,excellent strippability
·Low-attenuation,High flexibility
·No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.
·Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly
·GJFJV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.
|
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth （Class A） | @850 |
|
| ≥500MHZ·km | ≥200MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
|
| Transport Temperature | -20℃～﹢60℃ |
| Storage Temperature | -20℃～﹢60℃ |
| Installation Temperature | -5℃～﹢50℃ |
| Operating Temperature | -20℃～﹢60℃ |
Storage/Operating temperature:-20℃～﹢60℃
Packing and Marking:
Packaging: Wooden Drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001,ROHS,TLC
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
