2cores orange fiber optic cable patch cord specification

2cores orange fiber optic cable patch cord specification

Description for Indoor Fiber Optic Cable:

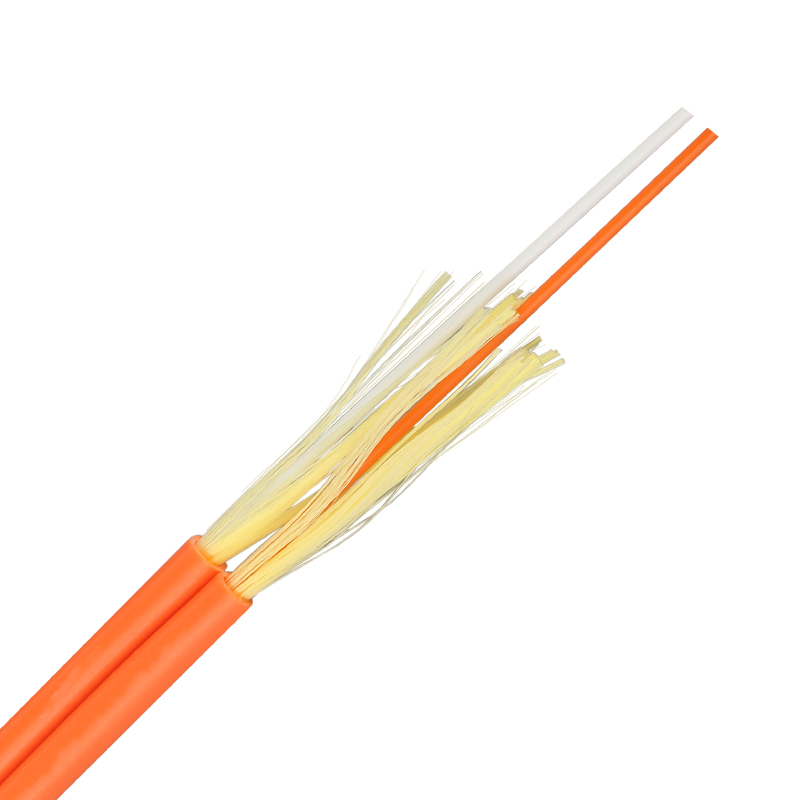

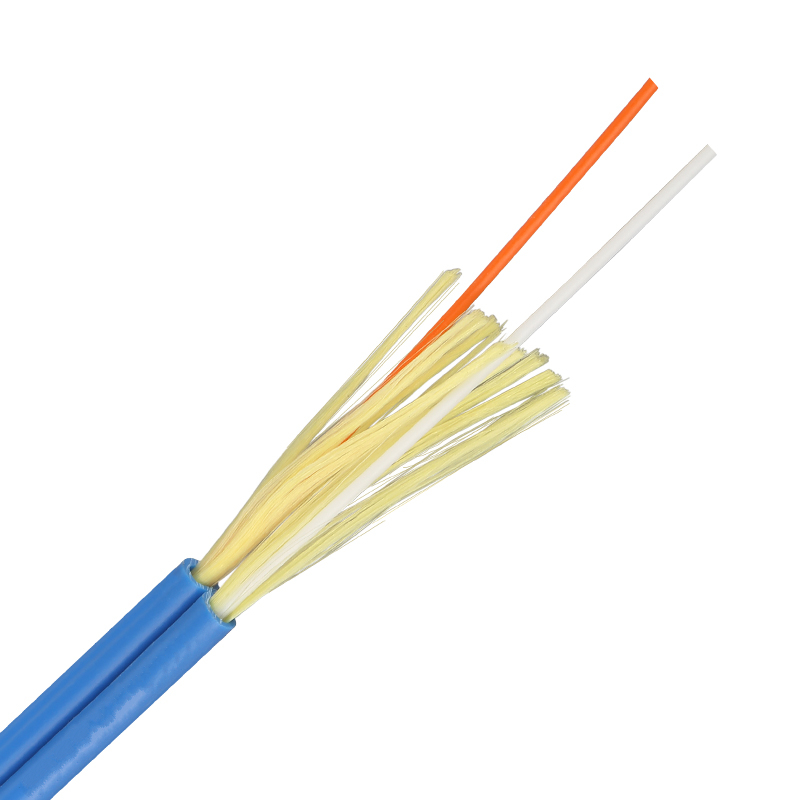

GJFJBV/H duplex fiber cable is made by ф900μm or ф600μm tight-buffered fiber as the basic unit, the Aramid yarn or high-strength glass yarn as strength member is evenly distributed outside the tight-buffered unit, and then it is completed with PVC or LSZH outer jacket.

GJFJBV/H is used for the connection of communication equipment. The ф900μm or ф600μm tight-buffered fiber is easy to strip, and Aramid yarn as strength member makes cable have excellent tensile strength.All dielectricstructure protects it from electromagnetic influence.

Zipcord Interconnect cable use 900um or 600um tight buffer fiber as optical communication medium , the tight buffer fiber weapped with a layer of aramid yarn as strength member units ,and the cable is completed with figure 8 PVC or LSZH (low smoke ,Zero Halogen, Flame-retardant) jacket.

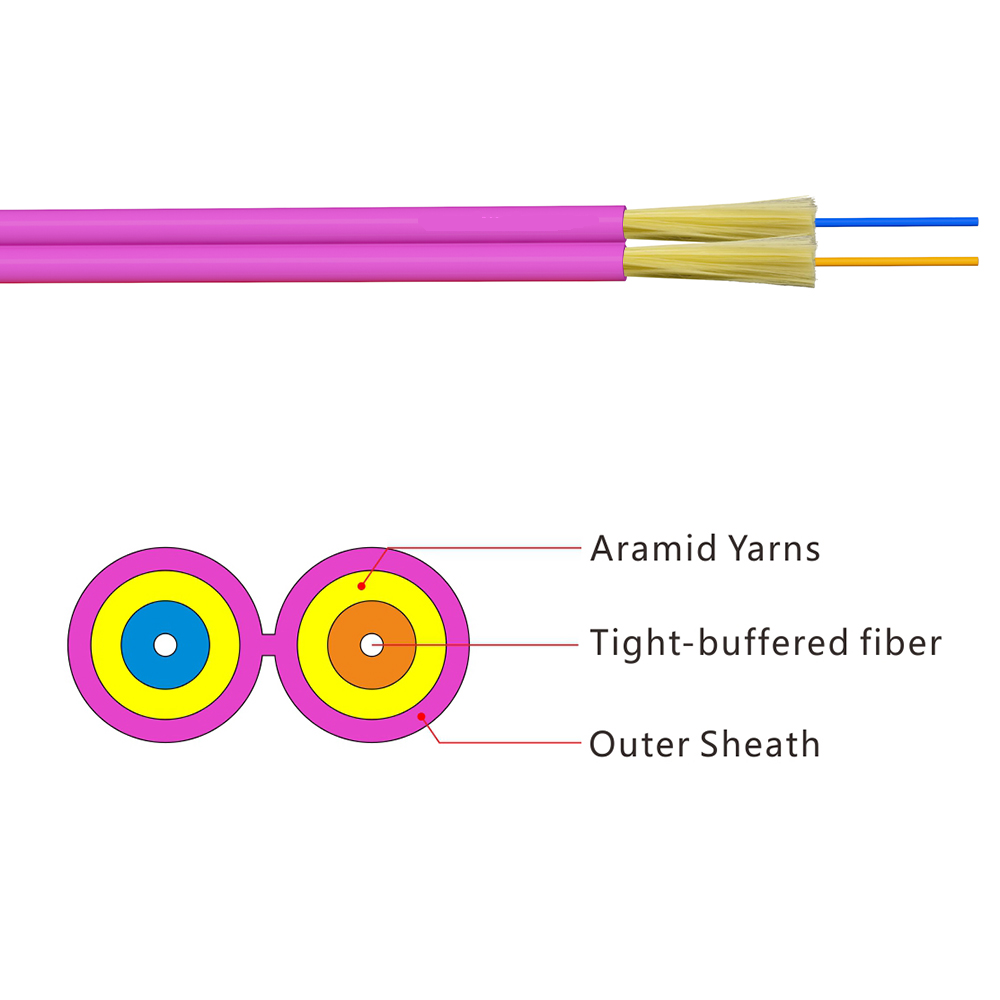

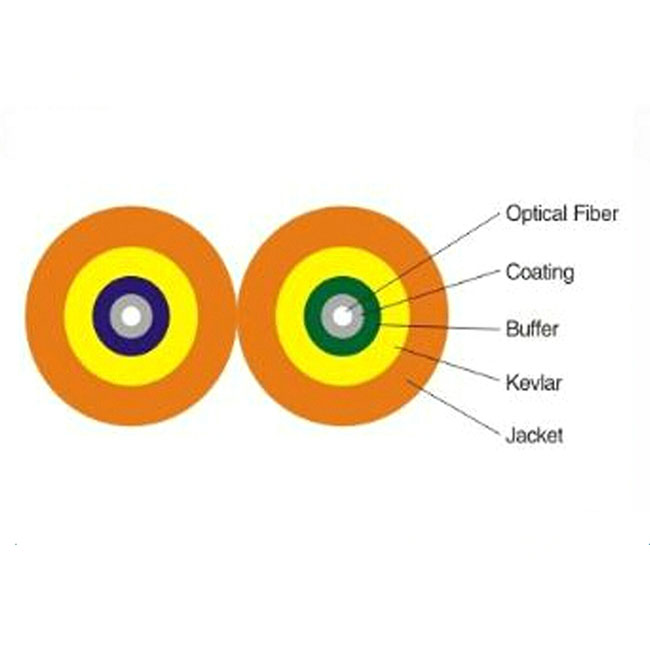

tight buffer fiber optic cable construction:

Fiber:

1 fibers

900um or 600um  tight buffer fibers

Strength Member:

Kevlar yarns

Outer Jacket:

Flame resistant PVC or LSZH

Product Name:optical cable cord，orange fiber optic cable，fiber cable specification，fiber patch cord cable，optical distribution fiber，indoor cables，Distribution Fiber Cable

·Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
·Good performance of flame-retardant
·Steady performance both in extremely high and low temperature.
·Excellent geometrical dimension of the fiber

·Data Communication.
·Making connector.
·Located in where waterproofisn't strictly required.
·Patch cord, Pigtail & Indoor distribution.

Products Standard:

GJFJBV/H Duplex fiber cable complies with Standard YD/T 1258.2-2009、ICEA-596、GR-409、IEC794etc; and meets with the requirements of UL approval for OFNR and OFNP.
