simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price
simplex 1core 3.0mm fiber patch cord cable price

simplex 1core 3.0mm fiber patch cord cable price

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJFJV

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Fiber Count2-24 Cores

Cable Structuretight buffer

Installation Tensile440-660N

Strength MemberKevlar Aramid Yarn

Material Of JacketPVC/ LSZH

ApplicationIndoor any purpose cable distribution

CertificationISO9001,ROHS,TLC

Bend Radius (Under Installation)20 x External Diameter of cable

Fiber TypeOS1,OS2,OM1,OM2,OM3

OEM/ODMYes

Packaging & Delivery
Selling Units: Kilometer
Package Type: Wooden Drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

simplex indoor 1core 3.0mm fiber patch cord cable price

GJFJV Indoor Fiber Optic Cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low smoke ,Zero halogen,Flame-retardant ) jacket.

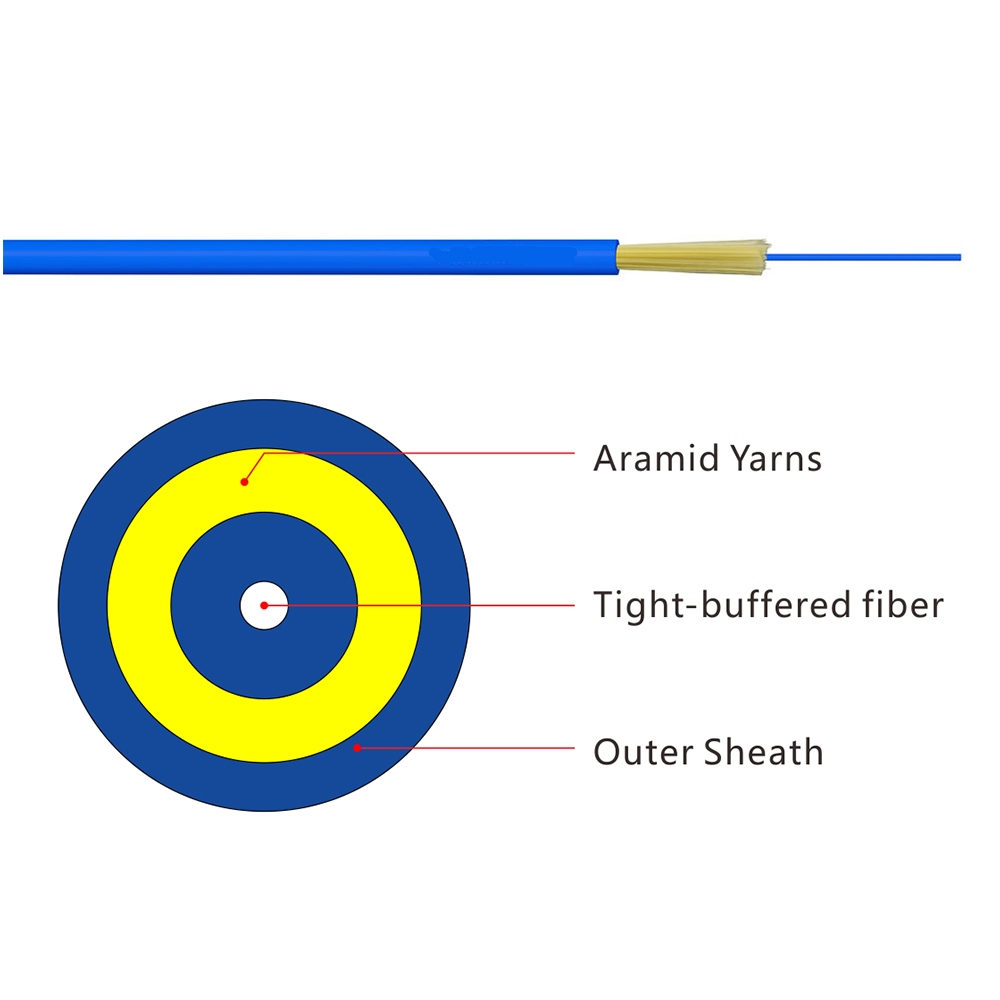

Product Construction:
Fiber:
1 fibers
900um or 600um  tight buffer fibers

Strength Member:
Kevlar yarns

Outer Jacket:
Flame resistant PVC or LSZH

Options:

Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber  and OM1, OM2, OM3, OM4 muti mold fiber.

Product Name:fiber patch cord cable,fiber patch cord price,fiber optic duplex cable,fiber optic patch cable,indoor fiber optic cable,duplex fiber patch cable,breakout cable

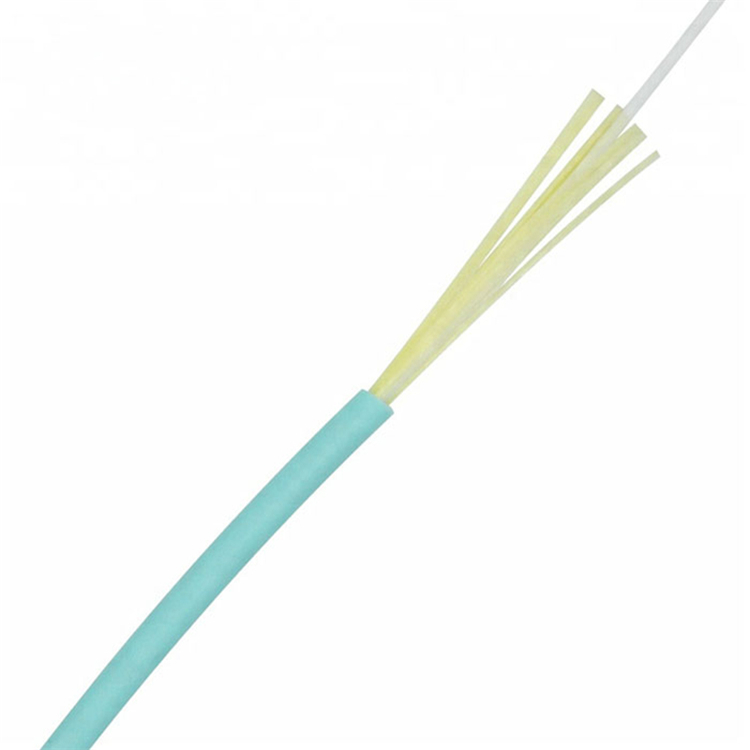

Product Show

fiber patch cord cable

Products Features

·Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
·Good performance of flame-retardant
·Steady performance both in extremely high and low temperature.
·Excellent geometrical dimension of the fiber

Products Application

·Data Communication
·Making connector
·Installation: Riser,Plenum,inter-layer,pipe & trunking
·Located in where waterproof isn't strictly required
·Patch cord, Pigtail & Indoor distribution

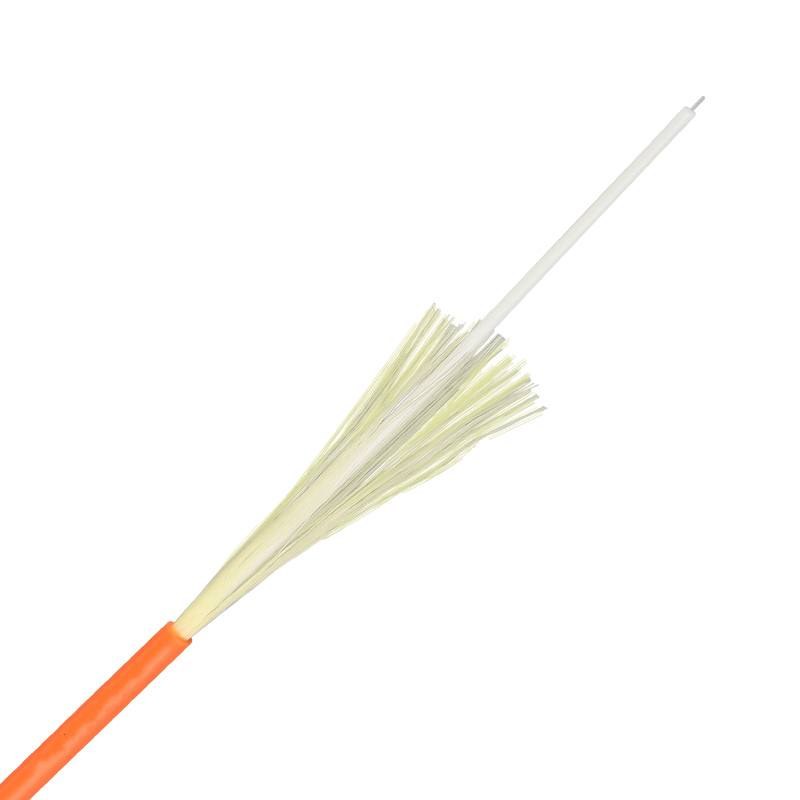

fiber patch cord price3mm fiber optic cable



Products Standard

GJFJV cable complies with Standard YD/T1258.2-2003、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.

Cable Code



SXC-III

SXC-II

SXC-I

Cable Diameter

2.8±0.2mm

2.0±0.2mm

1.6±0.2mm

Cable Weight

6.9kg/km

5.9kg/km

4.0kg/km

Tight Buffer Fiber Diameter

900±50μm

900±50μm

600±50μm

Mechanical  Characteristics

Tensile Strength

Long Term

80N

60

50

Short Term

150N

120

100

Crush Resistance

Long Term

100N/100mm

100N/100mm

100N/100mm

Short Term

500N/100mm

500N/100mm

500N/100mm

Bending Radius

Dynamic

20XD

20XD

20XD

Static

10XD

10XD

10XD

Optical Characteristics



G.652

G.655

50/125μm

62.5/125μm

Attenuation
 (+20℃)

@850nm





≤3.5dB/km

≤3.5dB/km

@1300nm





≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.50dB/km





@1550nm

≤0.30dB/km

≤0.50dB/km





Bandwidth  (Class A)

@850





≥500MHZ·km

≥200MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength



≤1260nm

≤1480nm





Environmental Characteristics

Transport Temperature

-20℃~﹢60℃

Storage Temperature

-20℃~﹢60℃

Installation Temperature

-5℃~﹢50℃

Operating Temperature

-20℃~﹢60℃



Packing and Marking:

  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3000m±2%; as required
  • indoor outdoor cable
Supply Ability & Additional Information

PackagingWooden Drum

Productivity1000 Kilometer/Kilometers per

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability1000 Kilometer/Kilometers per Month

CertificateISO9001,ROHS,TLC

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,DDU,Express Delivery
