Model No.: GJFJV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Count: 2-24 Cores
Cable Structure: tight buffer
Installation Tensile: 440-660N
Strength Member: Kevlar Aramid Yarn
Material Of Jacket: PVC/ LSZH
Application: Indoor any purpose cable distribution
Certification: ISO9001,ROHS,TLC
Bend Radius (Under Installation): 20 x External Diameter of cable
Fiber Type: OS1,OS2,OM1,OM2,OM3
OEM/ODM: Yes
Selling Units: | Kilometer |
Package Type: | Wooden Drum |

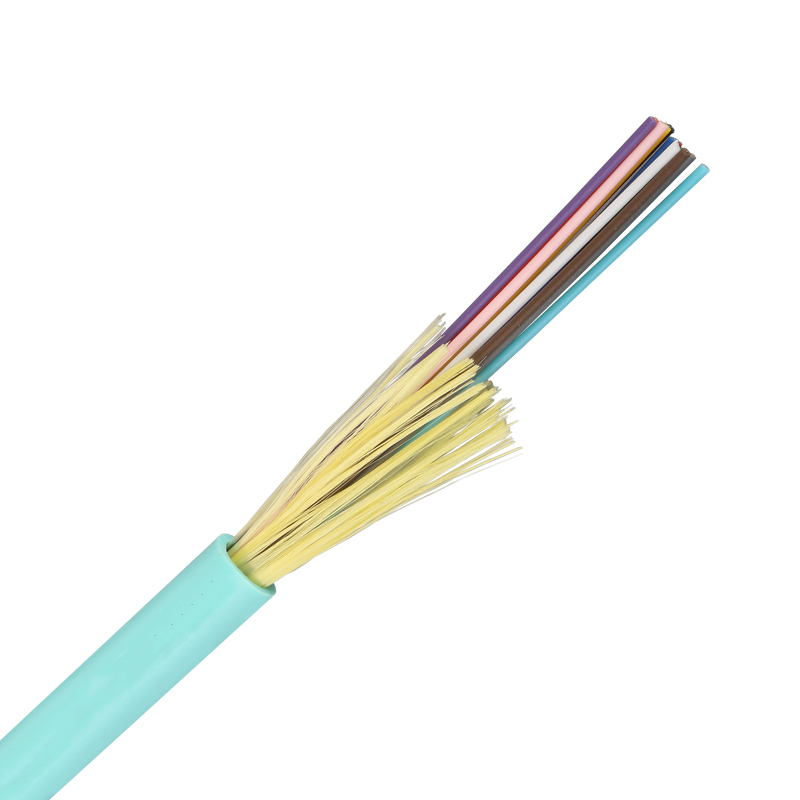

Picture Example: |
The file is encrypted. Please fill in the following information to continue accessing it
Fiber on Indoor multi mode fiber optic cable:
900um or 600um tight buffer fibers
Strength Member on Indoor multi mode fiber optic cable:
Kevlar yarns
Outer Jacket on Indoor multi mode fiber optic cable:
Flame resistant PVC or LSZH
Product Name:fiber cable price,multimode fiber optic,4 core fiber cable,indoor outdoor cable,Indoor Fiber Optic Cable types,orange fiber optic cable,distribution cable fiber optic,indoor fiber optic cable,Distribution Fiber Cable,breakout cable

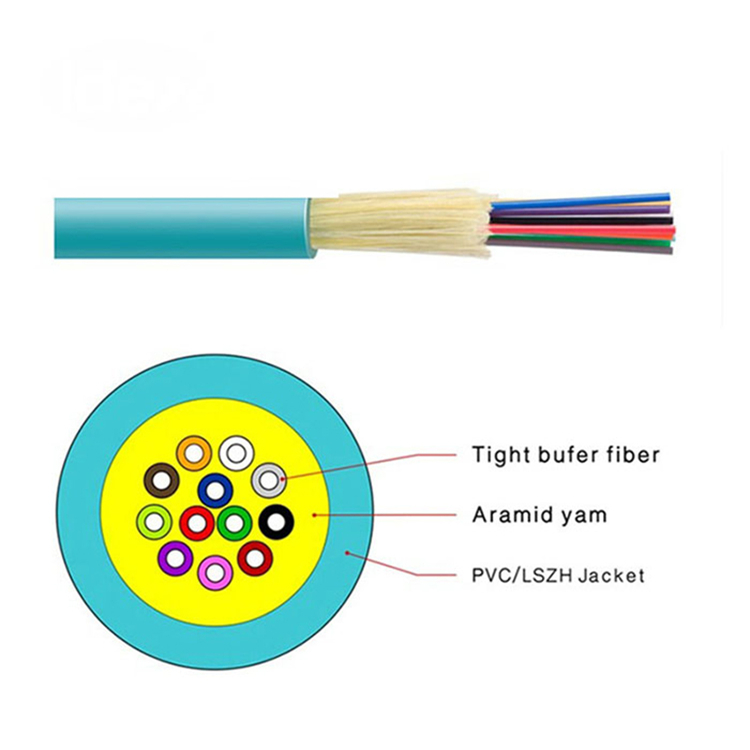

Cable Cross Section:
Cable Code:
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
@1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
@1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
Bandwidth | @850 |
|
| ≥500MHZ·km | ≥200MHZ·km |
@1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
|
Technical Parameter:
Cable Type | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short N | Crush Resistance Long/Short N/100m | Bending Radius Static/Dynamic |
GJFJV | 2-12 | 3.0 | 7.5 | 150/300 | 80/150 | 30D/15D |
GJFJV | 14-24 | 3.5 | 8 | 150/300 | 80/150 | 30D/15D |
Features on Indoor multi mode fiber optic cable:
Applications on Indoor multi mode fiber optic cable:
Options on Indoor multi mode fiber optic cable:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.
Characteristics:
·Mini bundle cable,high strength aramid yarn,high-performance jacket
·Small bend radius, light weight,excellent strippability,easily strip and splice.
·Good mechanical and environment performance
·Flame retardant or stop fire jacket,Provide good security.
Standards:
GJFJV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.
Packing and Marking:

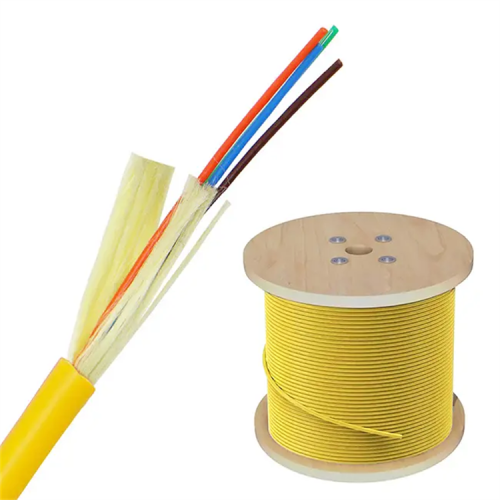

Packaging: Wooden Drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001,ROHS,TLC
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,others
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
