Model No.: GYTA53
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Armored Type: conrrugage steel armored
Sheath: HDPE/MDPE/LDPE/PE
Filling Gel: water resistant compound
Material Of Jacket: PE, double jacket
Fiber Count: 2~288 cores
Outer Diameter: 13.0~18.8mm
Fiber Type: G652D G657A
Standard: IEC 60794-1 YD/T901-2009
Application: Direct burial duct fiber optic cable
Certification: ISO9001, TLC, CE, Anatel
| Selling Units: | Kilometer |
| Package Type: | Iron-wooden drum or fumigated wooden drum,normal wooden drum |

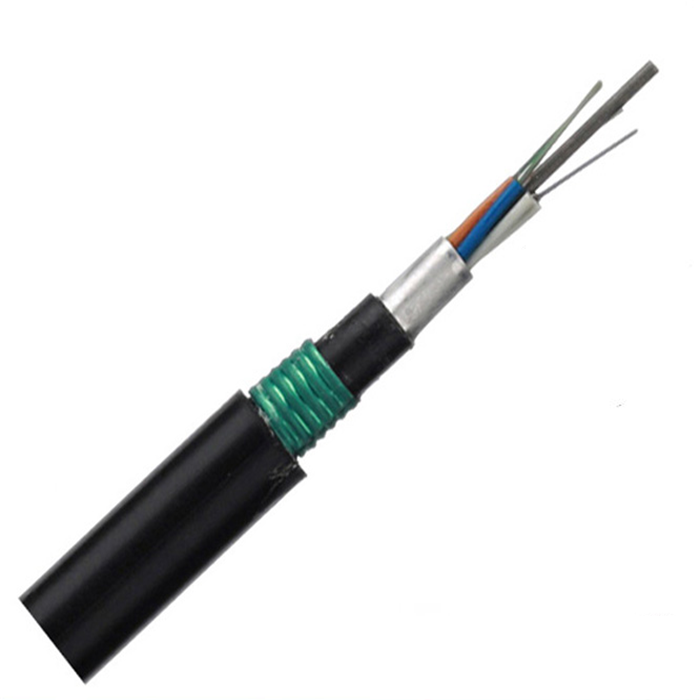

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Purchase optical fiber optic cable strandards multimode GYTA53
The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Product Name:purchase fiber optic cable,optical fiber cable multimode,fiber optic cable standards,24 core fiber,ofc cable price,fiber optic cable structure,fiber optic cable wire

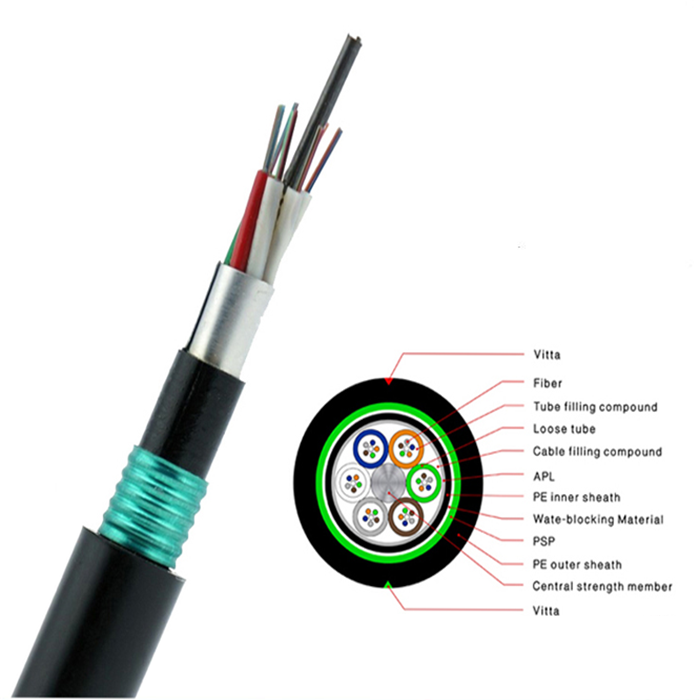

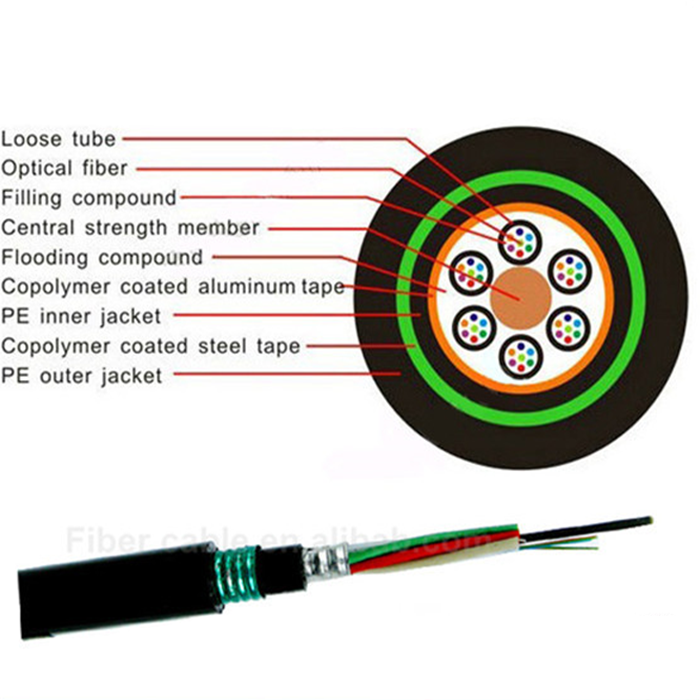

Cable Cross Section:
Single Mode Outdoor Fiber Optic Cable GYTA53
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.40dB/km |
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| Cable Type | Fiber Count | Loose tube count | Filler count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
| GYTA53-2～6 | 2～6 | 1 | 4 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-8～12 | 8～12 | 2 | 3 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-14～18 | 14～18 | 3 | 2 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-20～24 | 20～24 | 4 | 1 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-26～30 | 26～30 | 5 | 0 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-32～36 | 32～36 | 5 | 0 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-38～48 | 38～48 | 5 | 0 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-50～60 | 50～60 | 5 | 0 | 12.5 | 175 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-62～72 | 62～72 | 6 | 0 | 13.2 | 200 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-74～84 | 74～84 | 7 | 1 | 15.0 | 230 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-86～96 | 86～96 | 8 | 0 | 15.0 | 230 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-98～108 | 98～108 | 9 | 1 | 16.0 | 260 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-110～120 | 110～120 | 10 | 0 | 16.0 | 260 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-122～132 | 122～132 | 11 | 1 | 18.0 | 300 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTA53-130～144 | 134～144 | 12 | 0 | 18.0 | 330 | 1000/3000 | 1000/3000 | 15D/30D |
| GYTY53-146～216 | 146～216 | 18 | 0 | 18.0 | 330 | 1000/3000 | 1000/3000 | 15D/30D |
storage/Operating Temperature : -40℃ to + 70℃
Application:
Direct burial, duct, or aerial
Sheath Marking & Packing
The sheathmarking are hot stamped on the sheath at one meter interval with white color. Theaccuracy of the length marking shall be 0 ~ +1%.
Re-markingis yellow color, if necessary.
GT *** xxFIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
xxFIBRE: Fiber count
Month/Year:Manufacture date
XXXXM: The figure ofmeter.
Packaging: Iron-wooden drum or fumigated wooden drum,normal wooden drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001, TLC, CE, Anatel
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
